Temperature probe kit - with air probe, immersion/penetration probe and surface probe (TC type K)

Order-Nr.  0602 5093

  • With 3 temperature probes (TC type K, class 1), wireless and without a handle, compatible with all Testo and standard TC type K measuring instruments

  • Ideal for temperature measurements in a wide range of applications

  • In the kit: Air probe (measuring range -58 to 752 °F), immersion/penetration probe (measuring range -58 to 752 °F) and surface probe (measuring range -58 to 482 °F) – all probes TC type K, class 1

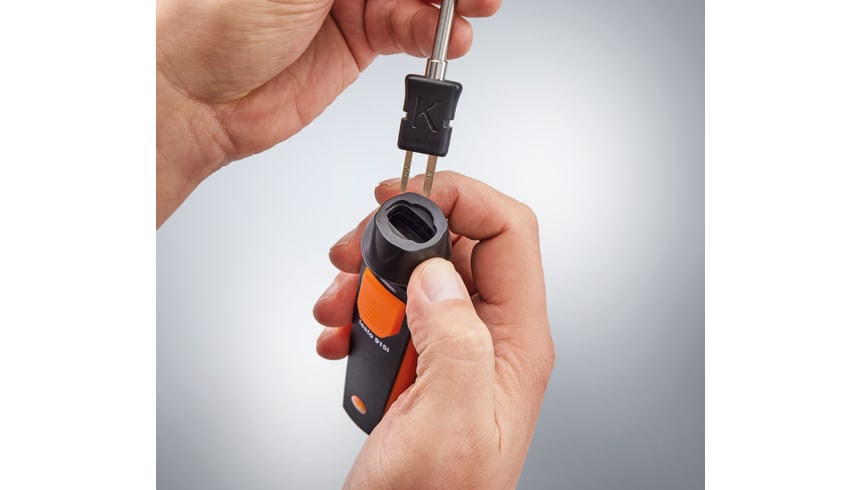

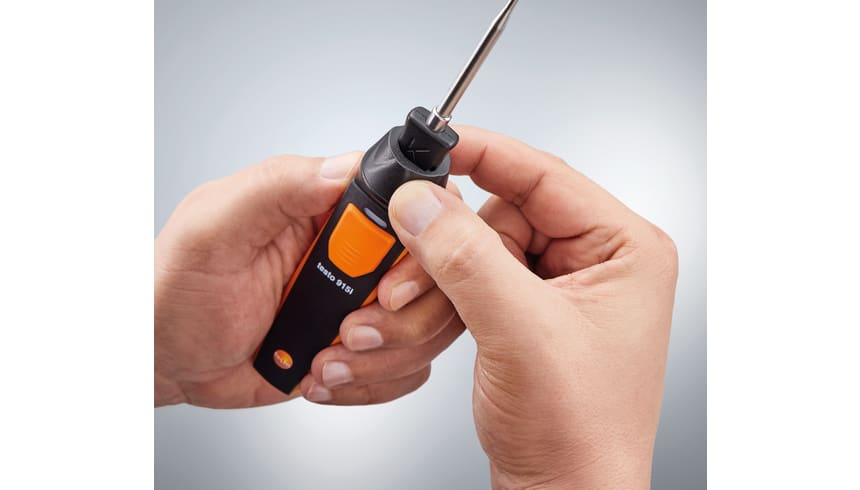

Versatile for numerous temperature applications: The kit consists of an air probe, an immersion/penetration probe and a surface probe. All probes are equipped with a thermocouple (type K, class 1) and are therefore compatible with the Smart Probe testo 915i, for example, as well as numerous measuring instruments from Testo.

Product Description

A kit for carrying out temperature measurements in a wide range of applications. Combine the temperature probes (thermocouple type K, class 1) with a suitable measuring instrument and start your measurement.

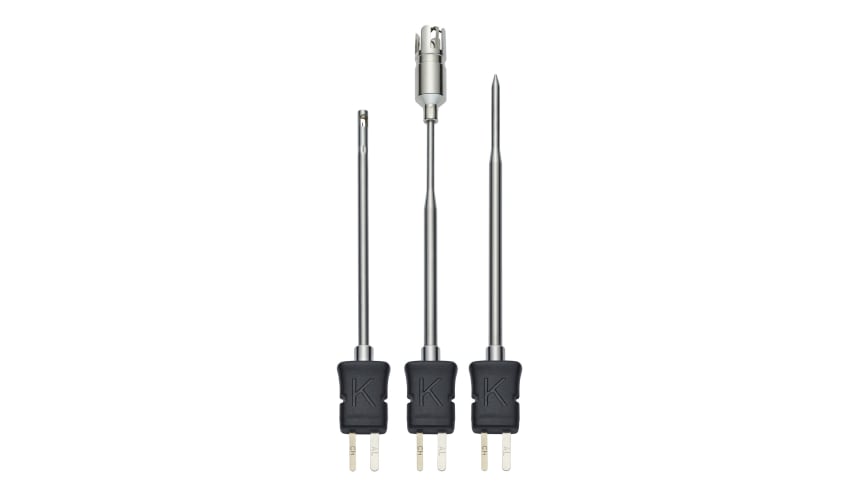

Temperature probe kit with air probe, immersion/penetration probe and surface probe (TC type K)

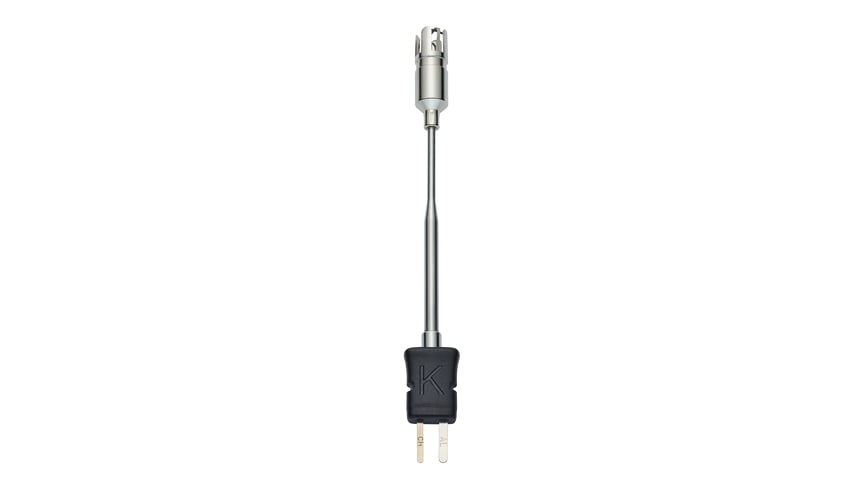

  • Rugged, fast-response air temperature probe (TC type K, class 1), measuring range -58 to 752 °F, application: Measurement of ambient temperature as well as temperatures in ducts and at air outlets<

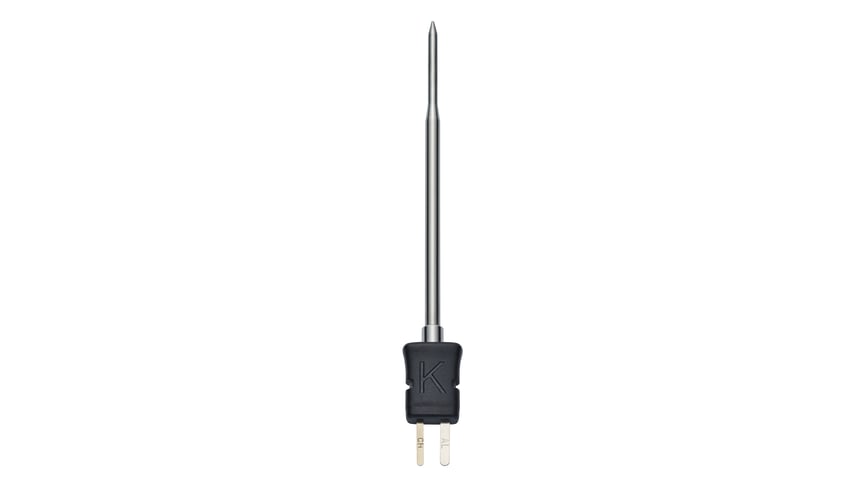

  • Rugged, fast-response immersion/penetration probe (TC type K, class 1), measuring range -58 to 752 °F, application: Temperature measurement in liquids, pastes and semi-solid media

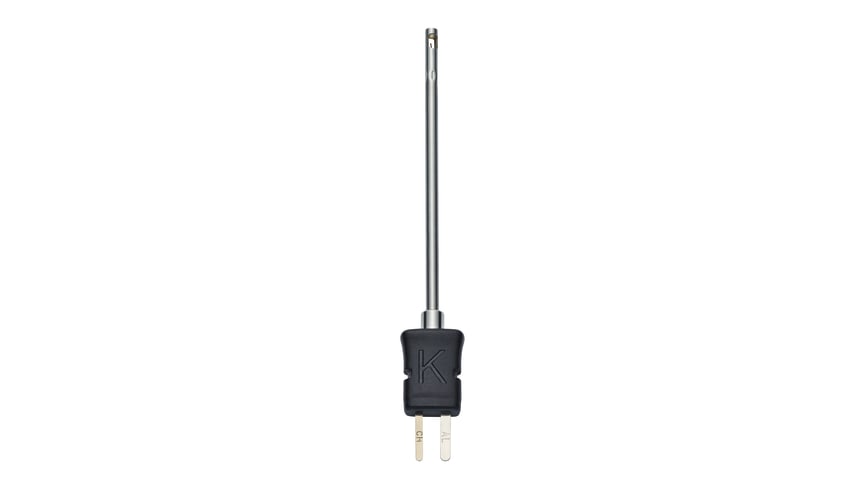

  • Fast-response surface probe (TC type K, class 1) with sprung thermocouple strip, measuring range -58 to 482 °F, application: Temperature measurement on flat and non-planar surfaces
  • Versatile in all temperature-relevant applications: Compatible with all Testo and standard type K thermocouple connections
  • Thanks to its proven quality and great durability, you can rely on your Testo temperature probe in all conditions



Delivery Scope

  • Immersion/penetration probe (TC type K, class 1)
  • Air probe (TC type K, class 1)
  • Surface probe (TC type K, class 1)
  • Calibration protocol
Temperature - Type K TC

Measuring range

-58° to 752 °F (air probe, immersion/penetration probe) / -50 to +400 °C (air probe, immersion/penetration probe)

-58° to 662 °F (surface probe) / -50 to +350 °C (surface probe)

Accuracy

Class 1 ¹⁾

Resolution

0.1 °F / 0.1 °C

Reaction time

t90 = 3.0 sec (immersion/penetration probe, surface probe)

t90 = 60 sec (air probe)

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General technical data

Weight

surface probe: 0.776 oz. / surface probe: 22 g

air probe, immersion/penetration probe: 0.388 oz. / air probe, immersion/penetration probe: 11 g

Dimensions

diameter probe tip: 0.12 in. (immersion/penetration probe), 0.47 in. (surface probe) / diameter probe tip: 3 mm (immersion/penetration probe), 12 mm (surface probe)

length probe: 3.90 in. (air probe), 4.53 in. (immersion/penetration probe), 5.35 in. (surface probe) / length probe: 99 mm (air probe), 115 mm (immersion/penetration probe), 136 mm (surface probe)

diameter probe shaft: 0.16 in. (air probe), 0.20 in. (immersion/penetration probe), 0.20 in. (surface probe) / diameter probe shaft: 4 mm (air probe), 5 mm (immersion/penetration probe), 5 mm (surface probe)

Protection class

IP 20 (air probe, surface probe); IP 40 (immersion/penetration probe)
