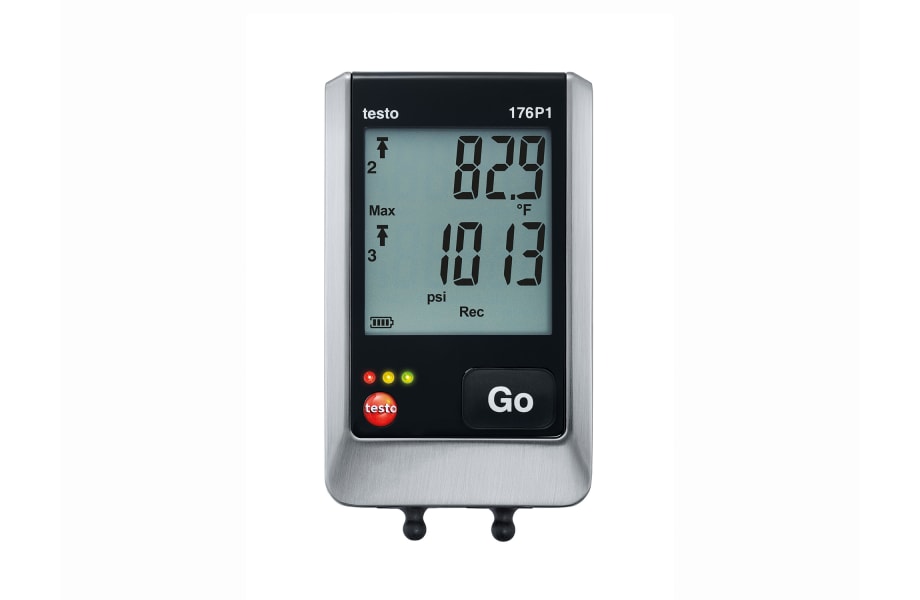

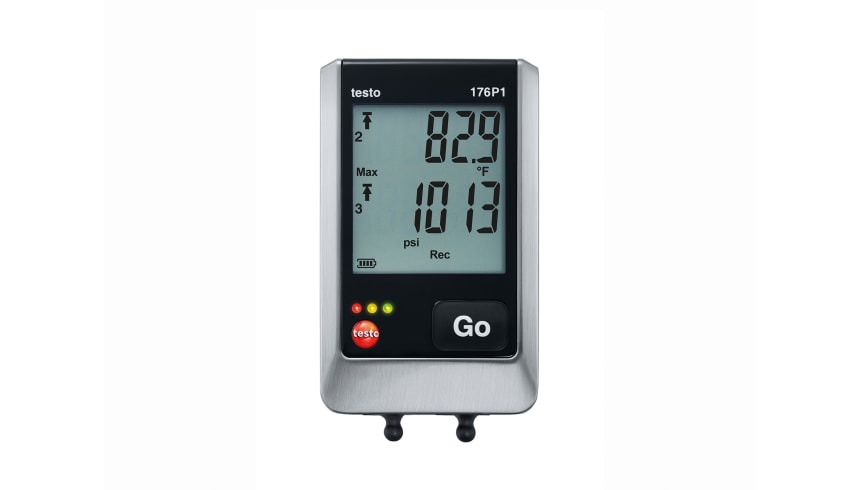

testo 176P1 - Five-channel pressure, temperature, and RH data logger

Order-Nr. 0572 1767

$ 879.30

excl. tax

Where to buy

Delivery costs

Delivery time: 12 working days

1-484-705-0777

Inquiry

Professional software with Excel export function for programming the logger and data analysis
Records up to 5 measurements at the same time
Temperature measuring range from -20 °C to +70 °C
Easy-to-change battery
Automatic measuring data backup when the battery runs out or is changed
Displays violations of limit values

The testo 176P1 pressure, temperature, and humidity measurement logger has a large display that makes it easy to read. The 176P1 is an ideal pressure, temperature, and RH data logger for the highly accurate and secure documentation of conditions in a laboratory, enviro chamber, clean room, or hospital control area. Creation of Excel Spreadsheets, PDFs, and data analysis are all easily achieved with the free, downloadable ComSoft software.


Professional software with Excel export function for programming the logger and data analysis.

Details

Product Description

The testo 176P1 pressure, temperature, and RH data logger is an ideal, highly accurate data logger for the monitoring of pressures, temperatures, and humidity.

Internal pressure and external NTC sensor connections
Data transfer possible using the USB port, or SD card (optional)
Easy to read large display that shows current reading
IP54 protection class
Capable of CFR 21 Part 11 Compliancy
Free data logger software available for download
Data is secured within the logger, and can be password protected using ComSoft

Delivery Scope

testo 176P1 pressure, temperature, and humidity highly accurate measurement logger, batteries, certificate of conformity

Technical Data

Temperature - NTC
Measuring range	-4° to 158 °F / -20 to +70 °C
Accuracy	±0.4 °F (-4° to 158 °F) ±1 Digit / ±0.2 °C (-20 to +70 °C) ±1 Digit ±0.7 °F (Remaining Range) ±1 Digit / ±0.4 °C (Remaining Range) ±1 Digit
Resolution	0.1 °F / 0.1 °C

Temperature - NTC

Measuring range

-4° to 158 °F / -20 to +70 °C

Accuracy

±0.4 °F (-4° to 158 °F) ±1 Digit / ±0.2 °C (-20 to +70 °C) ±1 Digit

±0.7 °F (Remaining Range) ±1 Digit / ±0.4 °C (Remaining Range) ±1 Digit

Resolution

0.1 °F / 0.1 °C

Humidity - Capacitive
Measuring range	0 to 100 %rH*
Accuracy	dependent on probe selected
Resolution	0.1 %rH

* Not for condensing atmospheres.

Absolute Pressure
Measuring range	9 to 16 psi / 600 to 1100 mbar
Accuracy	±0.0 psi (32° to 122 °F) ±1 Digit / ±3 mbar (0 to +50 °C) ±1 Digit
Resolution	0.0 psi / 0.1 mbar

General technical data
Weight	8.11 oz. / 230 g
Dimensions	4 x 2 x 1 in. / 103 x 63 x 33 mm
Operating temperature	-4° to 158 °F / -20 to +70 °C
Housing	Plastic
Protection class	IP54
Channels	4 external; 1 internal
Connectable probes	2 x NTC temperature probe or 2 x humidity probe
Product colour	Black
Standards	EU-guideline 2014/30/EU; 2011/65/EU
Measuring rate	1 s to 24 h; 2 s to 24 h (online measurement)
Battery type	1 x Lithium (TL-5903)
Battery life	8 years at 15 min. meas. rate, +25 °C
Interface	mini usb, SD card slot
Memory	2,000,000 measuring values
Storage temperature	-40° to 185 °F / -40 to +85 °C

Probes

Humidity / Temperature Probe 12mm

Order Number: 0572 6172

Humidity / Temperature Probe 4 mm

Order Number: 0572 6174

Accessories

USB connection cable

Order Number: 0449 0047

Battery for testo 176 -1 x TL-5903 AA cell

Order Number: 0515 1760

$ 48.00

excl. tax

Wall holder

Order Number: 0554 1703

ComSoft Professional 4

Order Number: 0554 1704

ComSoft CFR 21 Part 11

Order Number: 0554 1705

SD card - for collecting the measurement data from the data loggers testo 175 and testo 176; 2 GB; application range to -20 °C.

Order Number: 0554 8803

CD ComSoft Basic 5 (free download from website; registration not required)

Order Number: 0572 0580

Applications

Monitoring and documentation of laboratory conditions

The ambient conditions for research projects must frequently be documented in laboratories to check external influencing factors. In addition to recording temperature and humidity, this also includes checking the absolute pressure. There are major requirements in terms of reliability, along with tamper-proofing and data security of the recording instrument, as incorrect documentation could invalidate the whole research result. There are only a few instruments which can log all three measurement parameters at the same time and also offer the required amount of data security.
