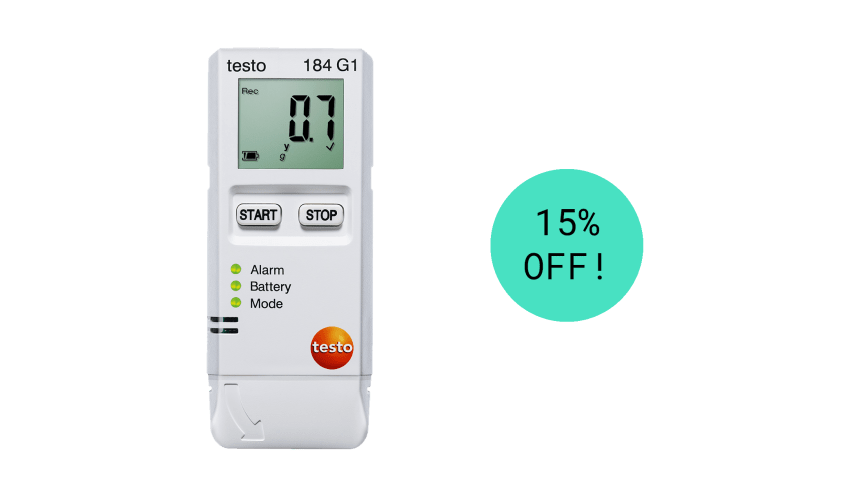

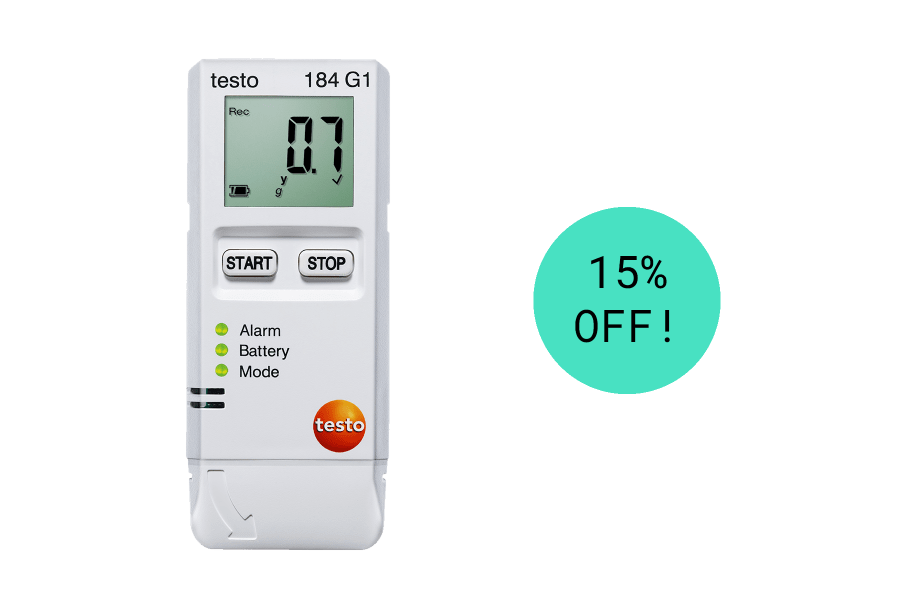

testo 184 G1 - Temperature, humidity and shock USB transport data logger

Order-Nr. 0572 1846 01

Up to 120 consecutive days of battery life with replaceable battery, and large storage capable of storing 64,000 (temperature / humidity) and 1,000 shock readings
Large, easy to read LCD display
PDF Reports allow for quick access to non-corruptible documentation without software
NFC (Near Field Communication) allows for easy access of documentation with a compatible device

The testo 184 G1 data logger is suited for cold chain transportation, monitoring fragile or sensitive items and is capable of monitoring temperature, humidity, and shock. With configuration, reports, calibration certificates on-board, and LED lights that indicate when specified limits have been exceeded, transport monitoring and documentation of sensitive goods is easy.

Inquiry

+1 484 350 4318

Where to buy

Product Description

The testo 184 G1 data logger is ideal for the transport of fragile items. Configuration of the testo 184 logger is as simple as plugging into a USB port and customizing the included PDF file. With clear indication of configurable alarm settings, including measurement frequency, temperature, humidity or shock range, and start and end times, ensuring proper cold chain transportation has never been easier. For international shipping, different languages can be independently configured for the recipient or shipper. Available in packs of 1, 10, or 50, configuring mutiple devices is as simple as drag and drop.

NFC communication to compatible devices allows for unaltered documentation to display immediately
Easy configuration on any computer with pre-loaded files
On-board electronic calibration certificate eliminates the hassles of maintaining traceabilty
IP30 protection class
GxP, ISO 9001:2008, FDA 21 CFR Part 11, EN 12830, and HACCP International compliant

Delivery Scope

testo 184 G1 data logger and adhesive installation pad

Temperature - NTC
Measuring range	-4° to 158 °F / -20 to +70 °C
Accuracy	±0.9 °F (32° to 158 °F) / ±0.5 °C (0 to +70 °C) ±1.4 °F (-4° to 32 °F) / ±0.8 °C (-20 to +0 °C)
Resolution	0.1 °F / 0.1 °C
Reaction time	t90 t 2 30 min
Measuring rate	1 sec to 24 ((°C/°F, %RH))

Humidity - Capacitive
Measuring range	0 to 100 %rH
Accuracy	±2 %rH at 77 °F (20 to 80 %rH) / ±2 %RH at +25 °C (20 to 80 %RH) ±3 %rH at 77 (< 20 and > 80 %rH) / ±3 %RH at +25 (< 20 and > 80 %RH) ±1.00 %rF Hysterese (n2{#0}° t1 n3{#0} {%S3}) ±1 %rF/year Drift
Resolution	0.1 %rH

Humidity - Capacitive

Measuring range

0 to 100 %rH

Accuracy

±2 %rH at 77 °F (20 to 80 %rH) / ±2 %RH at +25 °C (20 to 80 %RH)

±3 %rH at 77 (< 20 and > 80 %rH) / ±3 %RH at +25 (< 20 and > 80 %RH)

±1.00 %rF Hysterese (n2{#0}° t1 n3{#0} {%S3})

±1 %rF/year Drift

Resolution

0.1 %rH

Shock
Measuring range	0 to 27 g 0 to 265 m/s²
Accuracy	±(0.1 g + 5 % of mv) ±1 / 1 / 1 m/s²
Resolution	0.1 g 1 m/s²

Shock

Measuring range

0 to 27 g

0 to 265 m/s²

Accuracy

±(0.1 g + 5 % of mv)

±1 / 1 / 1 m/s²

Resolution

0.1 g

1 m/s²

General technical data
Dimensions	0,4 x 0,2 x 0,0 in. (LxWxH) / 97 x 40 x 12 mm (LxWxH)
Operating temperature	-4° to 158 °F / -20 to +70 °C
Housing	ABS
Protection class	IP30
System requirements	Adobe® Acrobat Reader
Product colour	white
Standards	CE 2014/30/EU; DIN EN 61326-1:2013; DIN EN 50581:2013; CFR 21 Part 11 (in use with testo ComSoft CFR-Software)
Channels	5 internal
Operating time	Unlimited
Authorizations	CE
Alarmsignal	by LED and Display
Battery type	Lithium battery CR2450, 3V, exchangeable
Battery life	120 days (at +25 °C and 15 min. meas. cycle)
Display type	segment LCD
Display size	one-line
Display ligthing	no
Display
Interface	USB; NFC
Memory	64,000 measurement values (temperature and humidity); 1,000 measurement values (shock)
Storage temperature	-67° to 158 °F / -55 to +70 °C
Weight	0,2 oz. / 44 g
