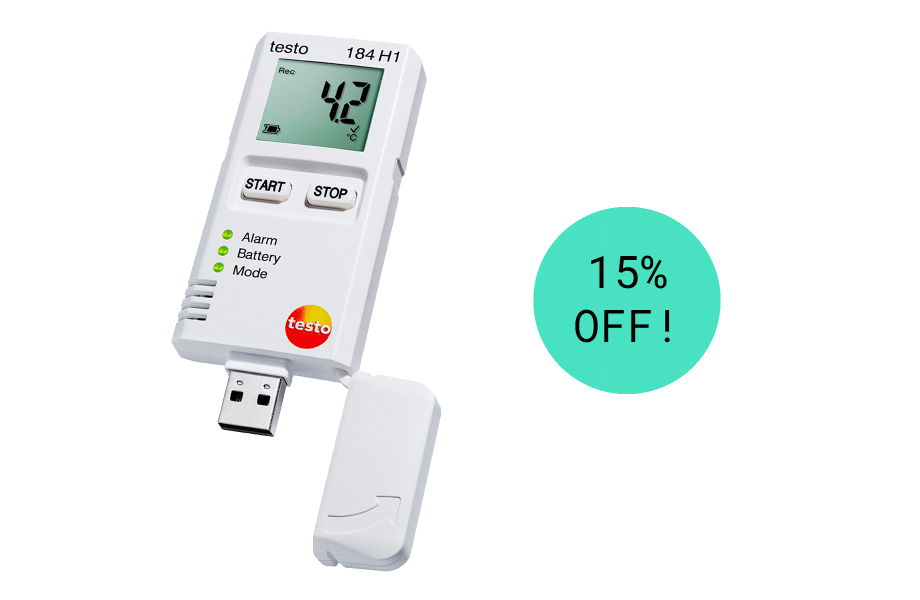

testo 184 H1 - Temperature and humidity USB transport data logger with LCD display

Order-Nr. 0572 1845

Where to buy

Easy programming and reporting without additional software (plug and play)
Measurement data memory for up to 60,000 readings
Easy-to-change battery
Battery life up to 500 days
Professional software for programming the logger and data analysis
Convenient Excel export functions

The testo 184 H1 logger is capable of monitoring temperature and humidity levels during cold chain transportation. Its large, easy to read LCD display shows readouts in real time. Its LED status lights alert when specified limits have been exceeded. With configuration, reports, and calibration certificates on-board, the 184 makes transport monitoring and documentation of sensitive goods easy.

Easy programming and reporting without additional software (plug and play).

Details

Product Description

The testo 184 H1 temperature and humidity logger is ideal for both pharmaceutical and food cold chain logistics. Configuration of the testo 184 logger is as simple as plugging into a USB port and customizing the included PDF file. With clear indication of configurable alarm settings, including measurement frequency, temperature or humidty range, and start and end times, ensuring proper cold chain transportation has never been easier. For international shipping, different languages can be independently configured for the recipient or shipper. Available in packs of 1, 10, or 50, configuring mutiple devices is as simple as drag and drop.

NFC communication to compatible devices allows for unaltered documentation to display immediately
Easy configuration on any computer with pre-loaded files
On-board electronic calibration certificate eliminates the hassles of maintaining traceabilty
IP30 protection class
GxP, ISO 9001:2008, FDA 21 CFR Part 11, EN 12830, and HACCP International compliant

Technical Data

Temperature - NTC
Measuring range	-4.0° to 158.0 °F / -20 to +70 °C
Accuracy	±0.9 °F (32° to 158 °F) / ±0.5 °C (0 to +70 °C) ±1.4 °F (-4° to 32 °F) / ±0.8 °C (-20 to 0 °C)
Resolution	0.1 °F / 0.1 °C
Reaction time	t90 = 30 min
Measuring rate	1 min to 24 hr

Humidity - Capacitive
Measuring range	0 to 100 %rH
Accuracy	±1.8 %rH, +3 % of mv (at 77 °F , 5 % to 80 %rH) / ±1.8 %RH, +3 % of mv (at 25 °C , 5 % to 80 %RH) / ±1.8 %RH, +3 % of mv (at 25 °C, 5 % to 80 %RH) ±0.03 %rF/K (at 32.0° to 140 °F) / ±0.03 %RH/K (at 0 to 60 °C) ±1 %rF Hysterese ±1 %rF/year Drift
Resolution	0.1 %rH
Measuring rate	1 min to 24 hr

General technical data
Weight	0,2 oz. / 44 g
Dimensions	0,2 x 0,0 x 0,04 in. (t4) / 40 x 12.5 x 96.5 mm
Operating temperature	-4.0° to 158.0 °F / -20 to +70 °C
Housing	ABS
Protection class	IP30
System requirements	Adobe® Acrobat Reader
Product colour	white
Standards	CE 2014/30/EU; CFR 21 Part 11 (in use with testo ComSoft CFR-Software)
Certificate type	Certified by HACCP International
Channels	2 internal
Operating time	Unlimited
Authorizations	CE
Alarmsignal	by LED and Display
Battery type	Lithium battery CR2450, 3V, exchangeable
Battery life	500 days (at +25 °C and 15 mins measurement rate).
Display type	segment LCD
Display size	one-line
Display ligthing	no
Interface	USB; NFC
Memory	60,000 measuring values
Storage temperature	-67.0° to 158.0 °F / -55 to +70 °C

Accessories

Humidity Certificates

With a Testo ISO Calibration Certificate, we will calibrate your Testo meter for humidity.

Order Number: 0520 0076

Printer and accessories

Mobile printer for data loggers

Order Number: 0572 0576

Software and Accessories

ComSoft Professional 4

Order Number: 0554 1704

ComSoft CFR 21 Part 11

Order Number: 0554 1705

Downloads

Product Brochures

Manuals

Instruction manual testo 184 (application/pdf, 910 KB)

Software

testo 184 H1 Configuration (v1.16, application/pdf, 278 KB) This pdf document is a configuration file, therefore you might not be able to open it in your web browser. Please download the data and open it using your Adobe Acrobat Reader.
