testo 184 T2 - Short-term temperature USB transport data logger with LCD display

0572 1842
  • Easy programming and reporting without additional software (plug and play)
  • Measurement data memory for up to 40,000 readings
  • Compliant with GxP, 21 CFR Part 11, HACCP and EN 12830
  • Battery life up to 150 days
  • Professional software for programming the logger and data analysis
  • Convenient Excel export functions
    • The testo 184 T2 short-term temperature logger is perfect for monitoring cold chain transportation. With its large easy to read LCD display, temperature readouts can be viewed in real time. With configuration, reports, and calibration certificates on-board, the 184 series loggers eliminates the hassles of temperature sensitive goods transport monitoring and documentation.

    • Easy programming and reporting without additional software (plug and play).

    The testo 184 T2 is an ideal logger for both pharmaceutical and food cold chain logistics. Configuration of the testo 184 short-term temperature logger is as simple as plugging into a USB port and customizing the included PDF file. With clear indication of configurable alarm settings, including measurement frequency, temperature range, and start and end times, ensuring proper cold chain transportation has never been easier. For international shipping, different languages can be independently configured for the recipient or shipper. Available in packs of 1, 10, or 50, configuring mutiple devices is as simple as drag and drop.

    • NFC communication to compatible devices allows for unaltered documentation to display immediately
    • Easy configuration on any computer with pre-loaded files
    • On-board electronic calibration certificate eliminates the hassles of maintaining traceabilty
    • IP67 protection class
    • GxP, ISO 9001:2008, FDA 21 CFR Part 11, EN 12830, and HACCP International compliant

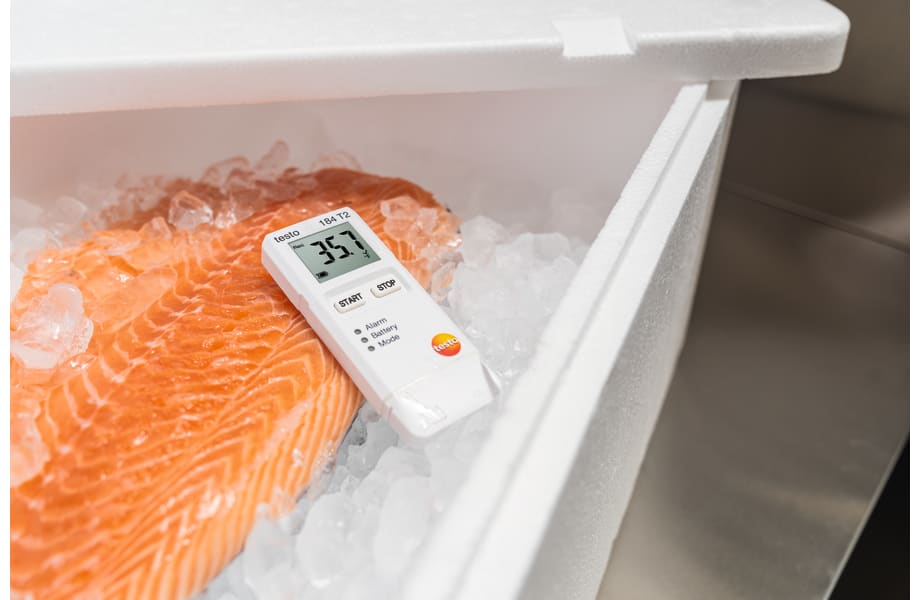

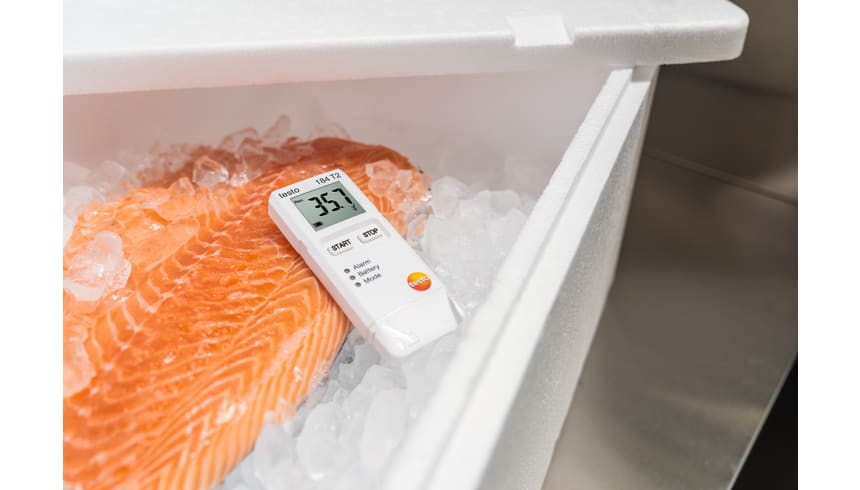

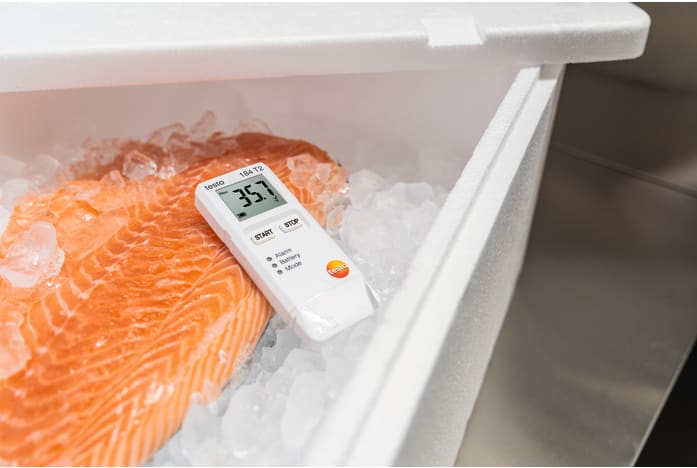

    testo 184 T2 short-term temperature logger and adhesive installation pad

    Temperature - NTC

    Measuring range
    -31.0° to 158.0 °F / -35 to +70 °C
    Accuracy
    ±0.9 °F / ±0.5 °C
    Resolution
    0.1 °F / 0.1 °C
    Reaction time
    t90 = 30 min
    Measuring rate
    1 min to 24 hr

    General technical data

    Weight
    2 oz. / 44 g
    Dimensions
    0,2 x 0,0 x 0,4 in. t4 / 40 x 12.5 x 96.5 mm
    Operating temperature
    -31° to 158 °F / -35 to +70 °C
    Housing
    ABS
    Protection class
    IP67
    System requirements
    Adobe® Acrobat Reader
    Product colour
    white
    Standards
    EN 12830; DIN EN 50581:2013; CE 2014/30/EU; DIN EN 61326-1:2013; CFR 21 Part 11 (in use with testo ComSoft CFR-Software)
    Certificate type
    Certified by HACCP International
    Channels
    1 internal
    Operating time
    150 days days from the first time the program is started (5-minute measuring cycle, -35 °C)
    Authorizations
    CE; RTCA/DO-160G
    Alarmsignal
    by LED and Display
    Battery type
    Lithium battery non exchangeable
    Display type
    segment LCD
    Display size
    one-line
    Display ligthing
    no
    Interface
    USB; NFC
    Memory
    40,000 measuring values
    Storage temperature
    -31.0° to 158.0 °F / -35 to +70 °C

    Printer and accessories

  • Printer and accessories
    Mobile Printer 0572 0576
    Mobile printer for data loggers
      :
      0572 0576

      • Software and Accessories

    • Software and Accessories
      ComSoft Professional 4
        :
        0554 1704
      • Software and Accessories
        ComSoft CFR 21 Part 11
          :
          0554 1705

          • testo 184 T2 Configuration(v1.16, pdf, 277.45 kB)
            This pdf document is a configuration file, therefore you might not be able to open it in your web browser. Please download the data and open it using your Adobe Acrobat Reader.
