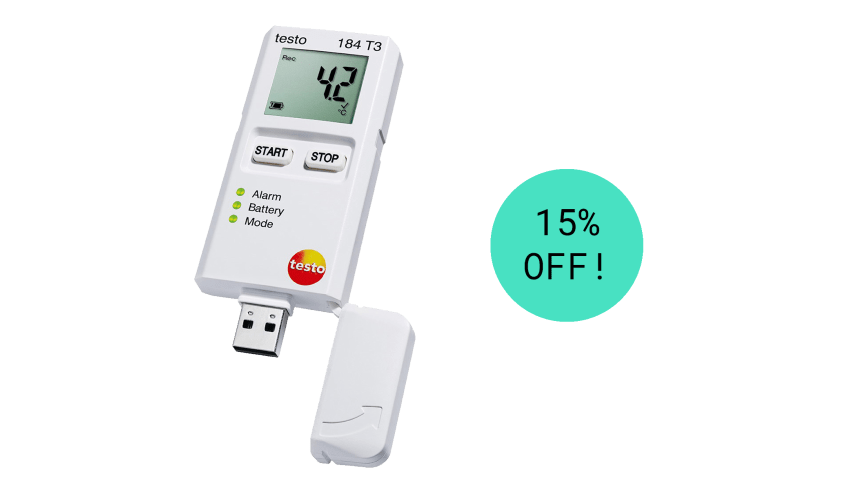

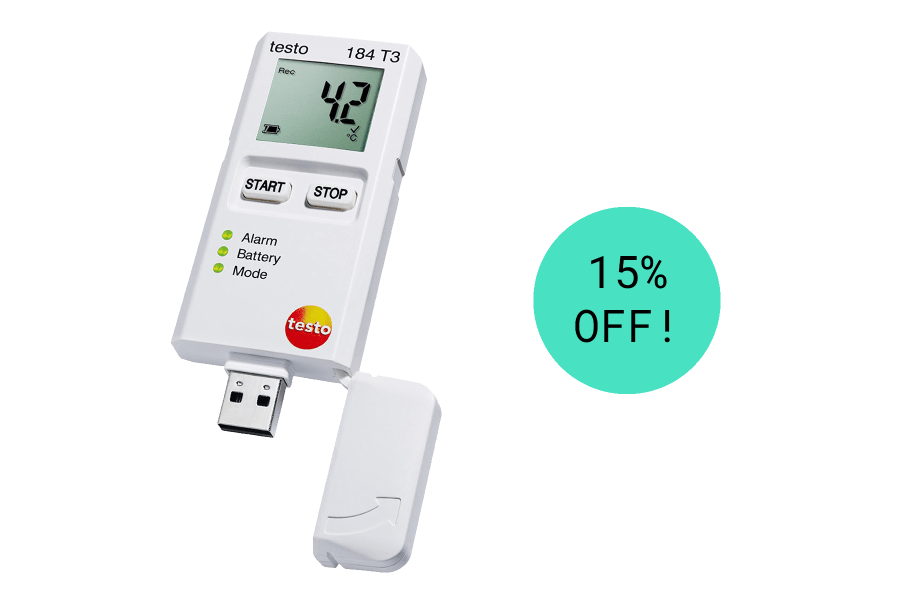

testo 184 T3 - Temperature USB transport data logger with LCD display

0572 1843
  • Unlimited operating time
  • All in one logger: PDF measurement data, configuration file, calibration certificate and instruction manual
  • Immediate creation of a PDF report directly after connection to a computer
  • Compliant with GxP, 21 CFR Part 11, HACCP and EN 12830
  • With the testo 184 T3 temperature data logger, you can now monitor the transport of sensitive products, such as pharmaceuticals, food or electronic items, both safely and conveniently. A start and stop button means the temperature data logger guarantees really easy operation for data recording. At the destination, a glance at the display or the LEDs tells you whether the configured limit values have been adhered to during transport.
    • Easy programming and reporting without additional software (plug and play).

    • testo184_T3_pharma_2000x1500.jpg

      WHO certified

      With our temperature data logger testo 184 T3, you can monitor the transport of sensitive goods such as pharmaceuticals over an unlimited period of time. A glance at the display or the LEDs lets you know whether set limit values have been adhered to.

      View certificate

    With the temperature data loggers testo 184 T3, you monitor the transport of sensitive goods such as pharmaceuticals, foods or electronics, over an unlimited period. More info on applications (link to tab Applications)

    At their destination, a glance at the display or the LEDs tells you whether the configured limit values have been adhered to. In order to obtain detailed information, it is sufficient to connect the logger to a PC – a PDF report is immediately generated with all relevant data. In order for you to be able to work even more efficiently and conveniently with the data loggers, all required files and information are stored directly and securely in the testo 184 T3: Configuration file, acceptance test certificate 3.1 according to DIN ISO 10204, instruction manual and PDF report of your recorded data.

    The measurement value store of the temperature data logger testo 184 T3 has a capacity of 40000 measurement values. The measurement rate is freely selectable from 1 min to 24 h. The battery has a life of 500 days. The temperature data logger testo 184 T3 is supplied by a standard battery which can be exchanged by the user.

    testo 184 T3 is compliant with GxP, 21 CFR Part 11, HACCP and EN 12830. Testo is an ISO 9001-certified company, and ensures the adherence to the norms through internal audits as well as accredited external audits.

    All advantages at a glance:
    1. Clear alarm indication
    A glance at the the LEDs is enough to know whether limit values have been violated during transport.
    2. Easiest operation
    testo 184 T3 is intuitively operated, and can be used without special training or previous knowledge: The "Start" button begins data recording. "Stop" ends it.
    3. Easiest configurationIn each testo 184 T3, a configuration file is stored, with which the configuration of the testo 184 T3 is childsplay – no download, no installation, no user interface and no additional costs.
    4. Convenient readoutA PDF report with the transport data is created immediately on connection of the testo 184 T3 data logger to the USB interface of a computer. This is suitable for long-term archiving according to PDF/A standard.
    5. Mobile readout/printout on site
    Data transfer from the data logger to a compatible Testo fast printer (option) also functions wirelessly via NFC.

    6. IT-safe
    The testo 184 T3 data loggers work securely without software installation or download, so that IT problems are triggered neither by the firewall nor the virus scanner.

    testo 184 T3 temperature logger and adhesive installation pad

    Temperature - NTC

    Measuring range
    -31.0° to 158.0 °F / -35 to +70 °C
    ±0.9 °F / ±0.5 °C
    0.1 °F / 0.1 °C
    Reaction time
    t90 = 30 min
    Measuring rate
    1 min to 24 hr

    General technical data

    2 oz. / 44 g
    0,2 x 0,0 x 0,4 in. (t4) / 40 x 12.5 x 96.5 mm
    Operating temperature
    -31.0° to 158.0 °F / -35 to +70 °C
    Protection class
    System requirements
    Adobe® Acrobat Reader
    Product colour
    EN 12830; CE 2014/30/EU; DIN EN 61326-1:2013; DIN EN 50581:2013; CFR 21 Part 11 (in use with testo ComSoft CFR-Software)
    Certificate type
    Certified by HACCP International
    1 internal
    Operating time
    CE; RTCA/DO-160G
    by LED and Display
    Battery type
    Lithium battery CR2450, 3V, exchangeable
    Battery life
    500 days (at +25 °C and 15 min. meas. cycle)
    Display type
    segment LCD
    Display size
    Display ligthing
    USB; NFC
    40,000 measuring values
    Storage temperature
    -31.0° to 158.0 °F / -35 to +70 °C

    Printer and accessories

  • Printer and accessories
    Mobile Printer 0572 0576
    Mobile printer for data loggers
      0572 0576
    • Software and Accessories

    • Software and Accessories
      ComSoft Professional 4
        0554 1704
      • Software and Accessories
        ComSoft CFR 21 Part 11
          0554 1705

          • testo 184 T3 Configuration(v1.16, pdf, 277.45 kB)
            This pdf document is a configuration file, therefore you might not be able to open it in your web browser. Please download the data and open it using your Adobe Acrobat Reader.
