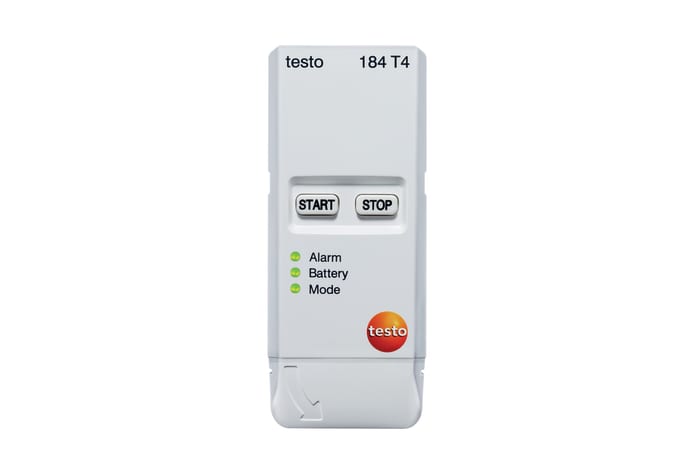

testo 184 T4 - Cryogenic temperature USB transport data logger

Order-Nr. 0572 1844

Where to buy

Easy programming and reporting without additional software (plug and play)
Measurement data memory for up to 40,000 readings
Easy-to-change battery
Application up to -80 °C for transport with dry ice
Professional software for programming the logger and data analysis
Convenient Excel export functions

The testo 184 T4 cryogenic temperature logger is best for monitoring goods shipped with dry ice. With configuration, reports, and calibration certificates on-board, the 184 series loggers eliminates the hassles of temperature sensitive cold chain logistics monitoring and documentation.

Easy programming and reporting without additional software (plug and play).

Details

Product Description

The testo 184 T4 is an ideal logger for both pharmaceutical and food cold chain logistics. Configuration of the testo 184 cryogenic temperature logger is as simple as plugging into a USB port and customizing the included PDF file. With LED status lights to indicate when specified limits have been exceeded and clear indication of configurable alarm settings, including measurement frequency, temperature range, and start and end times, ensuring proper cold chain transportation has never been easier. For international shipping, different languages can be independently configured for the recipient or shipper. Available in packs of 1, 10, or 50, configuring mutiple devices is as simple as drag and drop.

Operating range of -80 to 70 °C – ideally suited for transports under dry ice
NFC communication to compatible devices allows for unaltered documentation to display immediately
Easy configuration on any computer with pre-loaded files
On-board electronic calibration certificate eliminates the hassles of maintaining traceabilty
IP67 protection class
GxP, ISO 9001:2008, FDA 21 CFR Part 11, EN 12830, and HACCP International compliant

Delivery Scope

testo 184 T4 cryogenic temperature logger and adhesive installation pad

Technical Data

Temperature - Pt1000
Measuring range	-112.0° to 158.0 °F / -80 to +70 °C
Accuracy	±1.4 °F (-112.0° to -31.2 °F) / ±0.8 °C (-80 to -35.1 °C) ±0.9 °F (-31.0° to 158.0 °F) / ±0.5 °C (-35 to +70 °C)
Resolution	0.1 °F / 0.1 °C
Reaction time	t90 = 30 min
Measuring rate	1 min to 24 hr

General technical data
Weight	2 oz. / 44 g
Dimensions	0,2 x 0,0 x 0,4 in. t4 / 40 x 12.5 x 96.5 mm
Operating temperature	-112.0° to 158.0 °F / -80 to +70 °C
Housing	ABS
Protection class	IP67
System requirements	Adobe® Acrobat Reader
Product colour	white
Standards	EN 12830; CE 2014/30/EU; DIN EN 50581:2013; DIN EN 61326-1:2013; CFR 21 Part 11 (in use with testo ComSoft CFR-Software)
Certificate type	Certified by HACCP International
Channels	1 internal
Operating time	unlimited
Authorizations	CE; RTCA/DO-160G
Alarmsignal	by LED
Battery type	Lithium battery TLH-2450, 3V, exchangeable
Battery life	100 days (at 15 mins measurement rate)
Interface	USB; NFC
Memory	40,000 measuring values
Storage temperature	-112.0° to 158.0 °F / -80 to +70 °C

Accessories

Printer and accessories

Mobile printer for data loggers

Order Number: 0572 0576

Software and Accessories

ComSoft Professional 4

Order Number: 0554 1704

ComSoft CFR 21 Part 11

Order Number: 0554 1705

Downloads

Product Brochures

Manuals

Instruction manual testo 184 (application/pdf, 910 KB)

Software

testo 184 T4 Configuration (v1.16, application/pdf, 278 KB) This pdf document is a configuration file, therefore you might not be able to open it in your web browser. Please download the data and open it using your Adobe Acrobat Reader.
