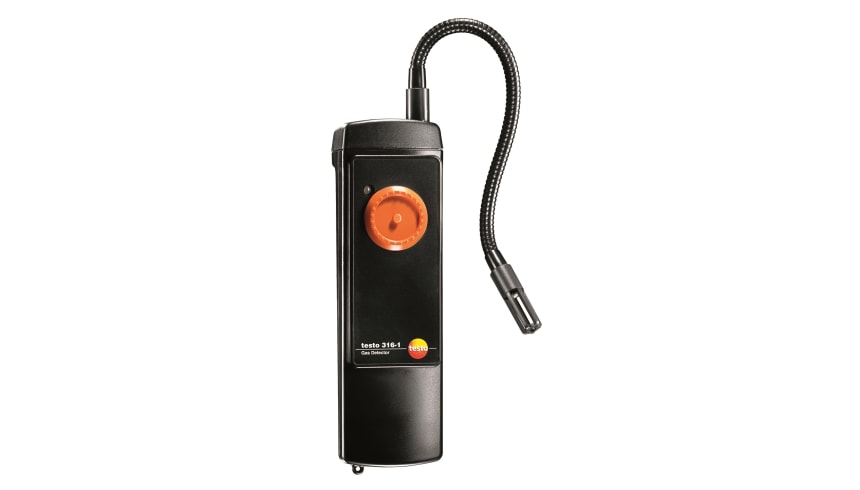

testo 316-1 - Gas leak detector

Order-Nr.  0632 0316

  • Speedy and accurate leak detection in natural gas pipes

  • Audible and two-stage visual alarm

  • Audible alarm if limit value is exceeded

  • Optical alarm

Speedy and accurate detection of gas leaks in natural gas pipes. The testo 316-1 natural gas leak detector with two-stage visual alarm system. Ideal for carrying out quick and reliable checks.

Product Description

Hairline cracks in pipes, old and worn out gaskets. Even the tiniest of gas leaks in a natural gas pipe can cause enormous problems. The new testo 316-1 leak detector will help you pinpoint the exact position of a leak when the leak has already been detected using a leak measuring device, for example.

The testo 316-1 gas leak detector. The accurate and easy way to detect methane gas

The testo 316-1 is an especially easy to use gas leak detector with an adjustable sensitivity dial. The leak detector is equipped with both a visual and an audible alarm. A yellow LED lights up when the reading is higher than 200 ppm CH4. The LED changes to red when the reading is higher than 10,000 ppm CH4. This special feature allows you to pinpoint the exact position of the leak. The testo 316-1 is also equipped with a flexible gooseneck sensor for locating gas leaks in especially hard to reach or otherwise inaccessible places.
The optional TopSafe protective cover is designed to protect your detector against impact and keeps out dust and dirt.



Delivery Scope

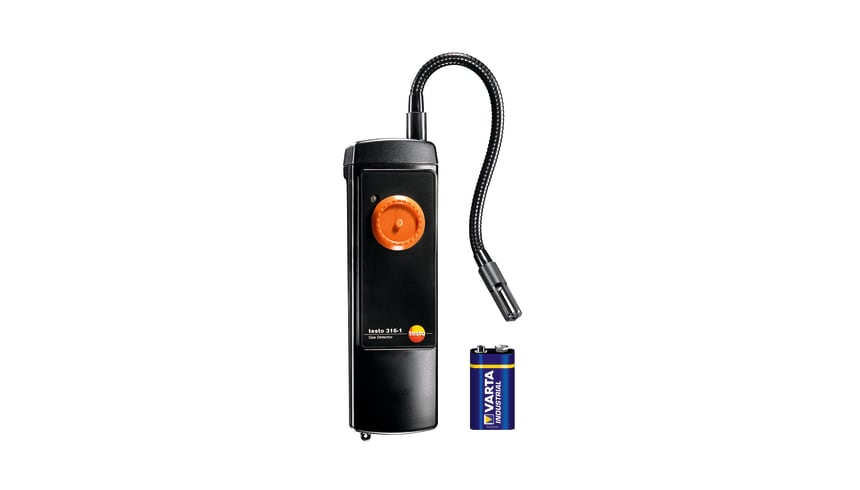

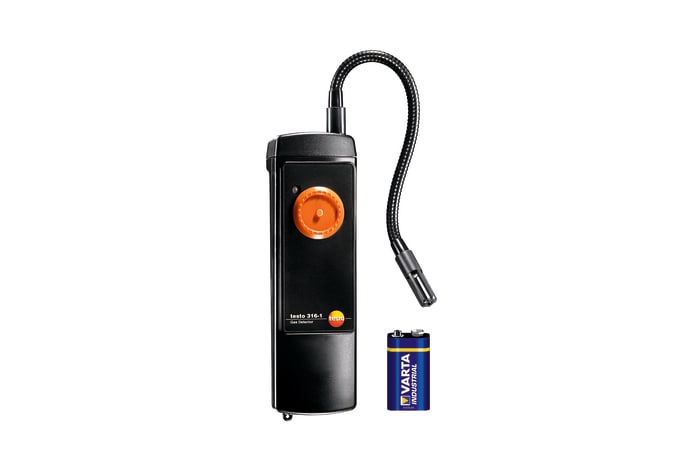

testo 316-1 electronic gas leak detector, battery
Methane (CH₄)

Measuring range

100 to 10000 ppm CH₄

Lower response threshold

100 ppm

1st alarm limit

200 ppm CH₄ (LED yellow)

2nd alarm limit

10000 ppm CH₄ (LED red)

General technical data

Operating humidity

0 to 95 %rH

Reaction time

t90 < 5 sec

Dimensions

7 x 2 x 2 in. (without sensors) / 190 x 57 x 42 mm (without sensors)

Operating temperature

39.2° to 113.0 °F / +4 to +45 °C

Heat up time

30 sec

Battery type

9V block battery

Battery life

> 5 h

Storage temperature

-4.0° to 122.0 °F / -20 to +50 °C

Weight

11 oz. / 300 g
