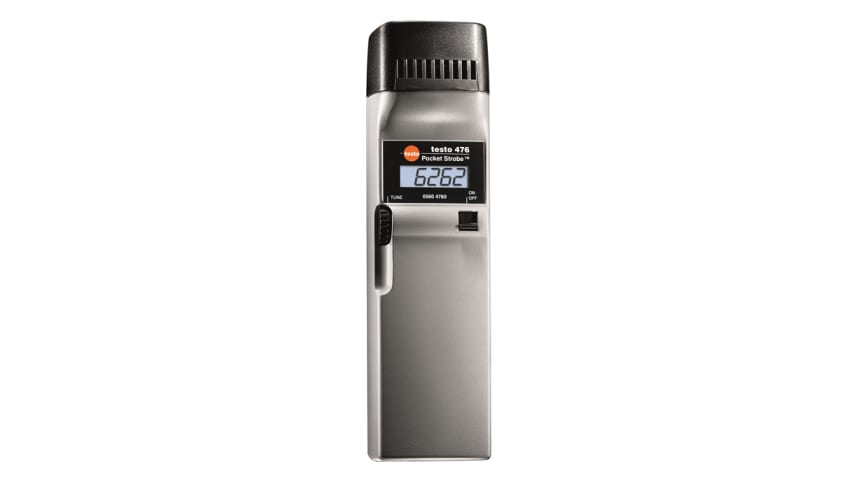

testo 476 - Pocket StrobeTM handheld stroboscope

Order-Nr.  0563 4760

  • Testo 476
Where to buy
+1-484- 773 0111
Inquiry

  • High adjustment accuracy and stability thanks to dynamic setting dial

  • High light intensity thanks to high-performance xenon flashlamp

  • Powerful Li-Ion rechargeable battery pack for at least 2 hours of continuous operation

  • Extremely short flash duration (< 9 µs)

The testo 476 Pocket StrobeTM handheld stroboscope with high-intensity light is ideal for rpm measurement, and for the inspection of parts moving at high frequencies.

Details

Product Description

The testo 476 Pocket StrobeTM handheld stroboscope with high-intensity light allows fast-moving objects to appear in slow motion. In doing so, this handheld stroboscope measures and checks rotational and vibrational movements. It enables measurement of very small objects, and objects in inaccessible places – what is more, without any interruption to the production process. The testo 476 is therefore ideally suited for rpm measurement, and for the inspection of parts moving at high frequencies.

Where the testo 476 handheld stroboscope is used

  • Air conditioning / ventilation technology: monitoring / checking if HVAC systems are working properly
  • Textile industry: monitoring of thread guides on knitting machines (extremely fast flash frequency needed)
  • Automotive industry: detecting vibration hotspots in exhaust systems
  • Packaging machines: monitoring bottle sealing and labelling
  • Metal foil production: monitoring product quality
  • Vibratory conveying technology: checking for defects during operation
  • Printing industry / flexo printing / label printing: monitoring print quality

Delivery Scope

testo 476 handheld stroboscope (xenon) for rpm measurement, including transport case, charger with 4 country-specific adapters, and trigger signal connector

Technical Data

rpm - Xenon

Measuring range

30 to 12500 rpm

Accuracy

±0.01 % of mv

Resolution

1 rpm
General technical data

Illumination value

1200 Lux at distance of approx. 20 cm

Flash color

6000 to 6500 K

Life-time flash lamp

200,000,000 flashes

Connection external trigger

0 to 5 V DTL/TTL compatible; 3.5 mm / 1/8 Standard plug; Uout=7.2 V unregulated

Display type

LCD

Display size

one-line

Display function

5 digit LCD display

Storage battery type

NiMH rechargable battery pack

Battery charging time

max. 3.5 h

Battery deep discharge protection

yes

Overload discharge protection

yes

Battery conservation charging

yes

Mains voltage rech. battery:

100 to 240 V, 50/60 Hz
