testo 515 Ex - Multi-purpose leak detector – Refrigeration

0563 2515

testo 515 Ex - Multi-purpose leak detector – Refrigeration

The testo 515 Ex provides fast, highly sensitive leak detection down to 1 g/year, with response times of less than 2 seconds.

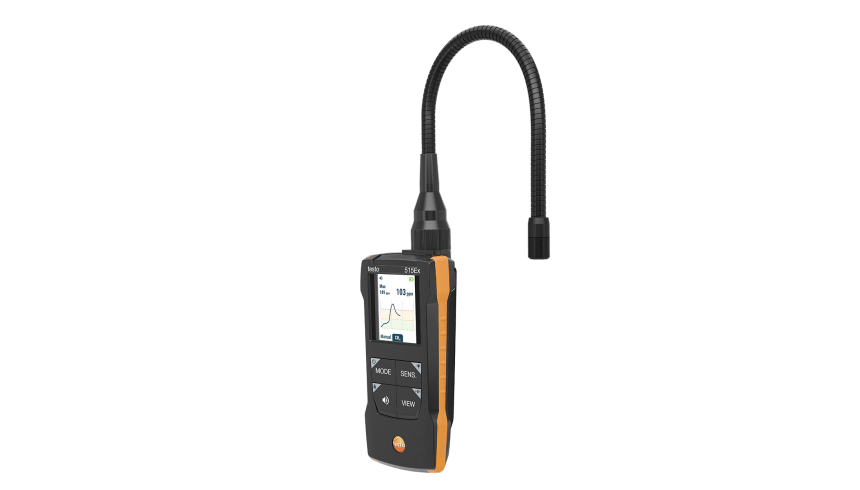

Its flexible gooseneck probe enables safe measurements in hard-to-reach areas, while clear display modes featuring colour-coded and trend visualizations support precise leak localization.

Interchangeable sensors for flammable gases and refrigerants, combined with ATEX certification, make it a versatile and safe tool for demanding environments.

Highly sensitive – Detects leak rates as low as 1 g/year, with response and recovery times of < 2 seconds

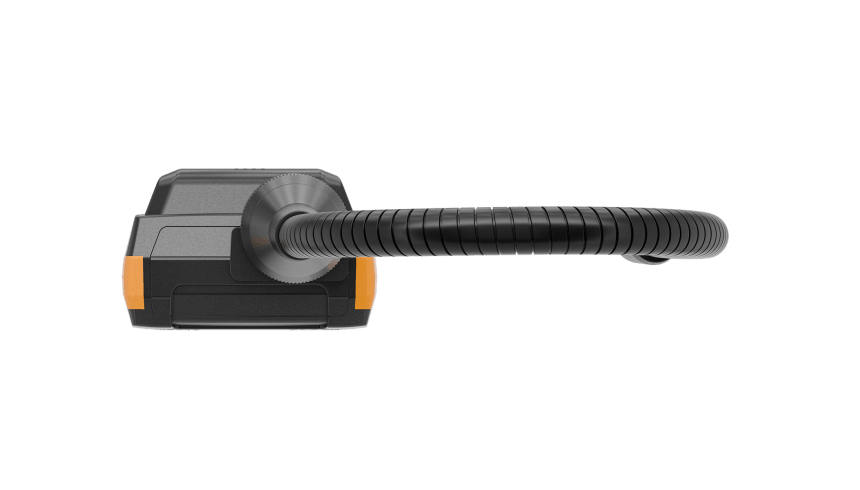

Convenient – Leak detection via a flexible and durable gooseneck probe

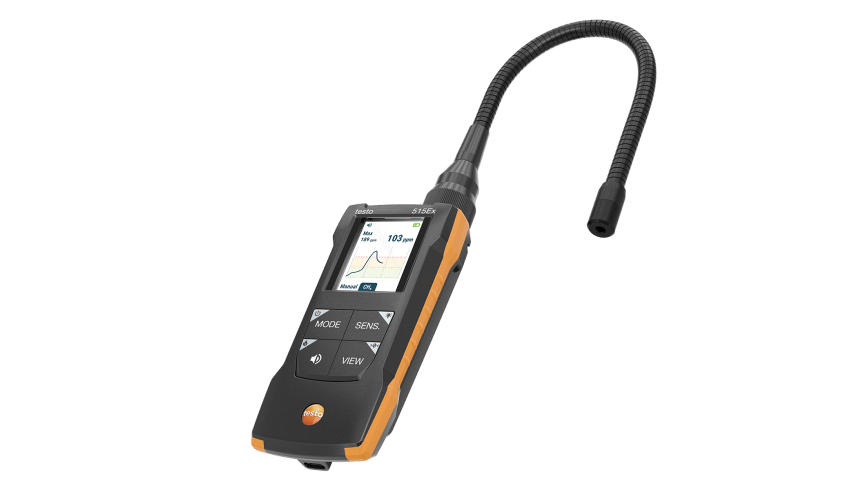

Simple and reliable – Selectable colour display modes (numeric, bar graph and trend curve) provide intuitive leak analysis

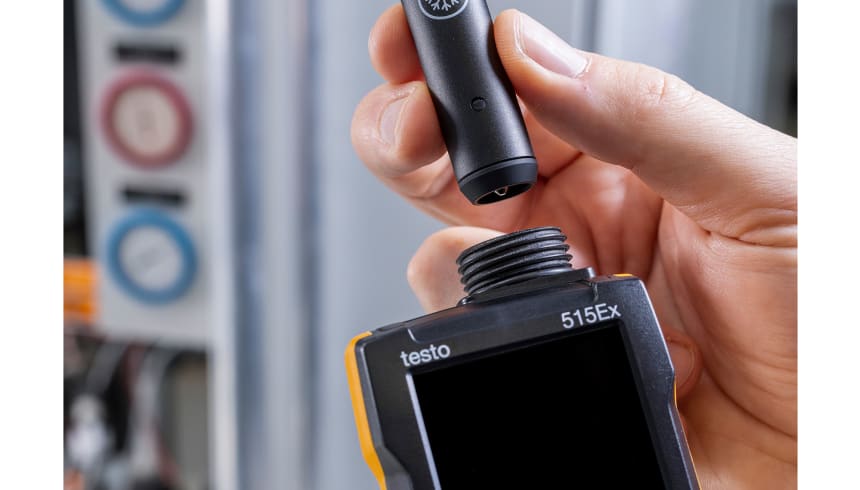

2-in-1 – Detects both refrigerants and flammable gases (with an additional gas sensor)

The testo 515 Ex combines fast, reliable performance with a user-friendly design.
Leak rates as low as 1 g/year can be detected, ensuring both high sensitivity and long-term sensor stability. An advanced pump-assisted sampling system delivers response and recovery times of less than 2 seconds, enabling rapid leak detection. The flexible gooseneck probe provides safe and reliable detection, even in confined or hard-to-reach areas. Selectable display modes with colour graph and trend curve visualization allow clear monitoring of leak development and precise leak localization. Interchangeable sensors enable 2-in-1 detection of both refrigerants and flammable gases.
ATEX certification ensures safe and reliable operation in potentially explosive environments.

General technical data

General technical data	Operating humidity 10 to 80 %rH
	Weight 10 oz. / 291 g
	Dimensions 5 x 2 x 1 in. (LxWxH) / 132 x 60 x 37 mm (LxWxH)
	Operating temperature 14° to 122 °F / -10 to +50 °C
	Detection parameters ppm; vol.%; %LEL
	Response time <2 sec
	Detectable HCFC, HFC, HFO,HCFO, HC (R290), and blends
	Leakage alarm optical and audible alarm; vibration
	Life-time sensor 2 years under normal usage
	Sensitivity 3 g/a – High; 14 g/a – Low; 1 g/a – High+
	Length probe shaft 11.614 in. / 295 mm
	Battery life 8 h
	Battery type 3400 mAh rechargeable Lithium-ion battery
	Storage temperature -4° to 140 °F / -20 to +60 °C
	Ex-protection ATEX/UL/CSA 60079-0, UL/SA 60079-11, Zone 2

Softcase
Filter
Protective cap
1x refrigerant sensor

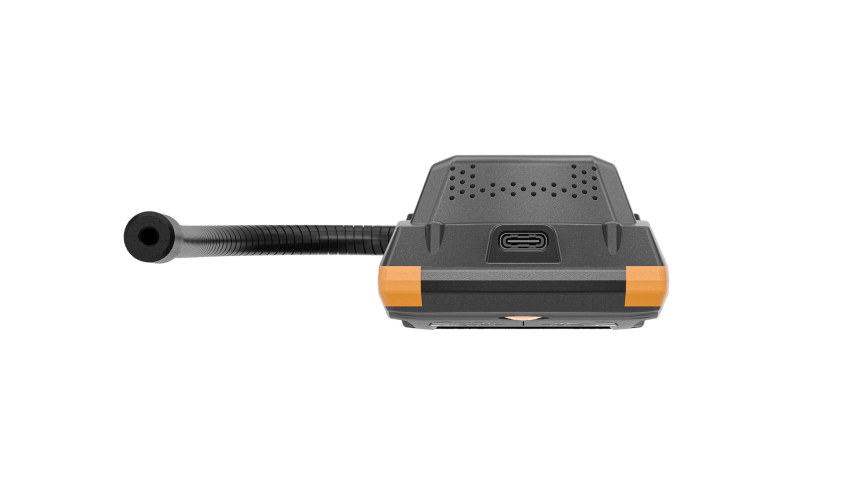

USB-C cable

Data sheet testo 515 Ex(1.2 MB)

Accessories

: 0554 3515

testo 51x - basic combi sensor gas

The Basic Combi Gas Sensor enables fast and reliable detection of the most common ﬂammable gases.

$ 150.00

: 0554 4515

testo 51x - refrigeration sensor

The Basic Combi Refrigeration Sensor delivers fast and reliable leak detection for all common refrigerants.

$ 215.00
