testo 552 - Digital vacuum / micron gauge with Bluetooth

0560 5522
  • Control and read complete measurement via smartphone
  • Extremely precise, extremely rugged, extremely practical – with visual alarm and backlit display
  • App for creating on-site reports
  • Sending measurement protocols by e-mail
  • High-precision measuring technology
  • Extremely robust
    • The testo 552 digital micron gauge is ideal for monitoring the evacuation of air conditioning, refrigeration, and heat pump systems. It is rich in features that make your work faster, easier, and more accurate.
    • products_smart_app_products_refrigeration_vacuum_img-2000x1500.jpg

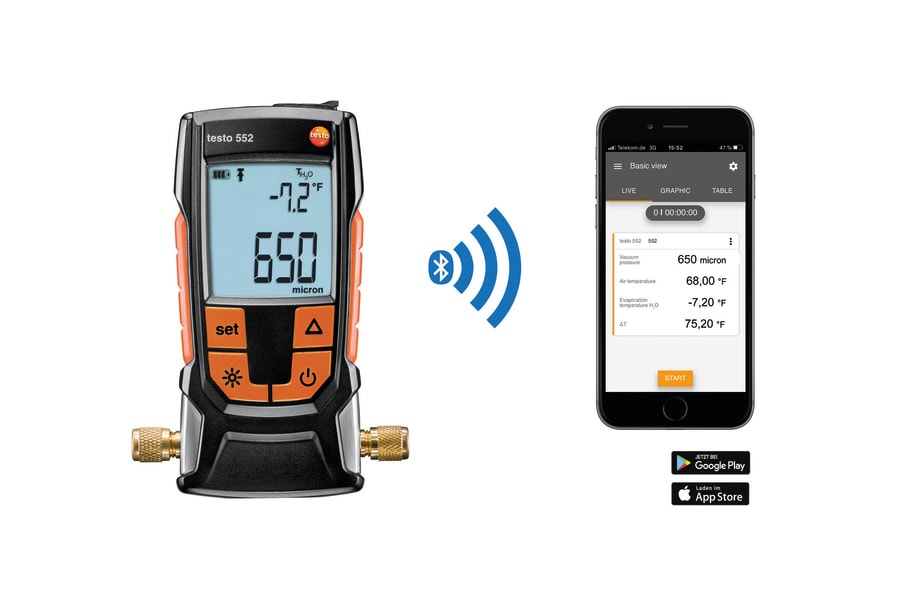

      Control and read complete measurement via smartphone

    Precise deep vacuum measurements measured at single digit resolutions are carried out with Pirani sensors. The testo 552 provides real-time calculations for the saturation temperature of water, which determines the proper micron / temperature levels at which moisture is removed from the system. These internal calculations inform you when the pressure is low enough to meet your evacuation target. This saves you time, and assures that the system is now free from moisture and contaminants. User defined alarm points alert you when target values are reached.
    The new and improved testo 552 with Bluetooth links to your smartphone or device, and to the free testo Smart app.

    testo 552 digital vacuum / micron gauge with Bluetooth

    Absolute Pressure

    Measuring range
    0 to 0.39 psi / / 0 to 26.66 mbar /
    0 to 20000 micron
    Accuracy
    ±(10 micron + 10 % of mv) (100 to 1000 micron)
    Resolution
    100 micron (2000 to 5000 micron) /
    1 micron (0 to 1000 micron) /
    10 micron (1000 to 2000 micron) /
    Overload
    absolute: 87.0 psi / 87 psi / absolute: 6.0 bar / 87 psi
    (relative: 72.5 psi / 72 psi) / (relative: 5.0 bar / 72 psi)

    General technical data

    Weight
    18 oz. / 500 g
    Dimensions
    6 x 4 x 2 in. / 160 x 110 x 50 mm
    Operating temperature
    14.0° to 122.0 °F / -10 to +50 °C
    Protection class
    IP42
    System requirements
    requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
    Product colour
    black/orange
    Battery type
    2 x AA
    Battery life
    50 hrs (without Bluetooth/backlighting)
    Connection
    2 x 7/16“ UNF
    Interface
    Bluetooth® 4.0 wireless technology
    Parameter
    mbar; micron; mmHg; Torr; inHg; inH20; hPa; Pa
    Measuring rate
    0.5 sec
    Storage temperature
    -4.0° to 122.0 °F / -20 to +50 °C

    Complying with manufacturer's specifications

    Some manufacturers specify exactly what the absolute pressure must be for you to evacuate your air conditioning systems and how long this pressure must be maintained. Compliance with these specifications is simple and easy thanks to the flexible setting of the alarm threshold in the testo 552.

    testo-552

    Connect to the testo 570 Digital Manifold

    When you connect the testo 552 Digital Vacuum Gauge to the testo 570 Digital Manifold, you can save the testo 552's readings directly on a laptop via the optional EasyKool software. This allows data-logging and/or on-site printing.
    testo-552

    Complying with manufacturer's specifications

    Some manufacturers specify the desired micron lower limit that must be achieved to evacuate their air conditioning systems and how long this pressure must be maintained. Compliance with these specifications is simple and easy thanks to the flexible setting of the alarm threshold in the testo 552.

    testo-552

    Evacuating AC/R systems

    The testo 552 Digital Vacuum Gauge is for the evacuation of heat pumps, air conditioning, and refrigeration systems. The innovative testo 552 utilizes a sensor that, unlike the competition, requires no cleaning and is not affected by contamination. Never worry about a dirty sensor causing false readings. Trust your testo 552 to always be accurate.

    testo-552

    • EasyKool Software(v4 Servicepack4, 91.37 MB)
      (1) This is a demo version which will run 30 days on your computer. Within that time the software can be upgraded with a licence key to a full version.(2) The software runs with operating systems Microsoft Windows 7, Windows 8, Windows 10. (3) The software needs the > Microsoft .NET Framework 4.0. It has to be installed first if it is not already installed on your computer. The installation package can be downloaded from the Microsoft webpage.(4) This software supports the analyzers testo 556, testo 560 and testo 570(5) For your own security we recommend a backup of your data before running an update.
