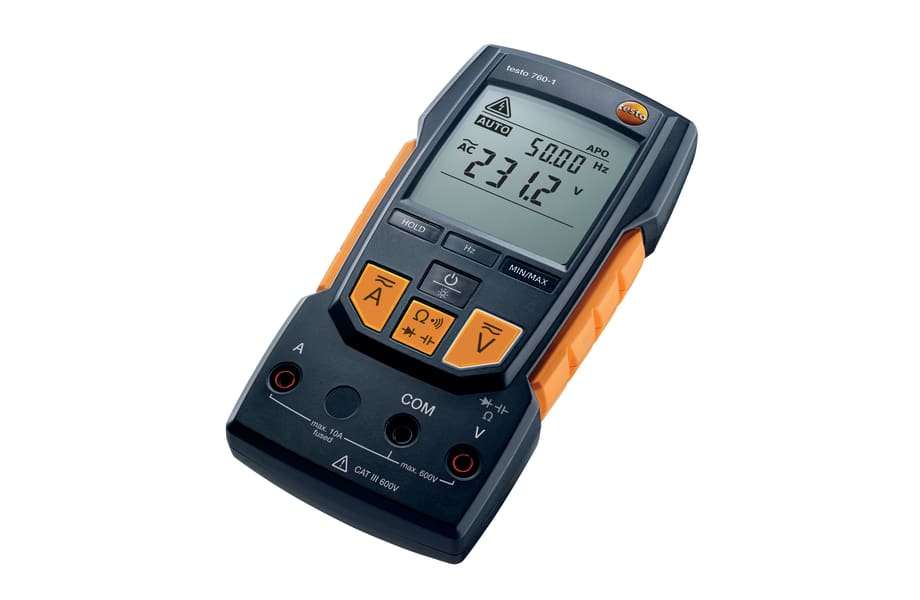

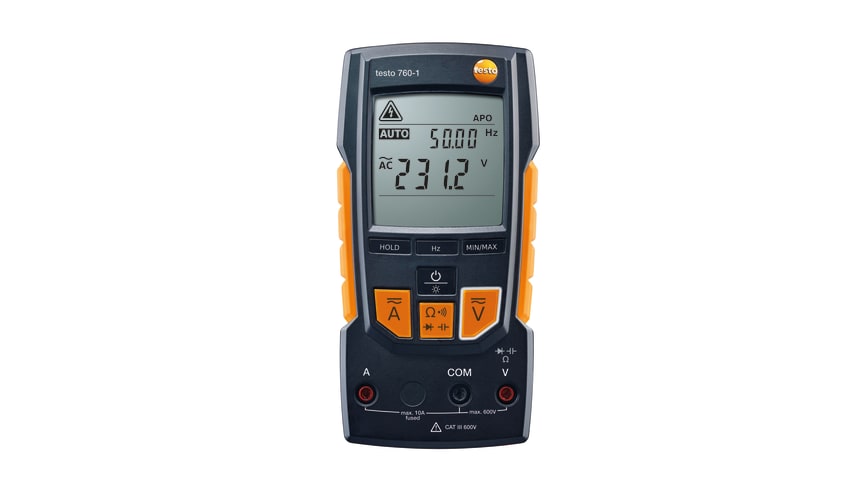

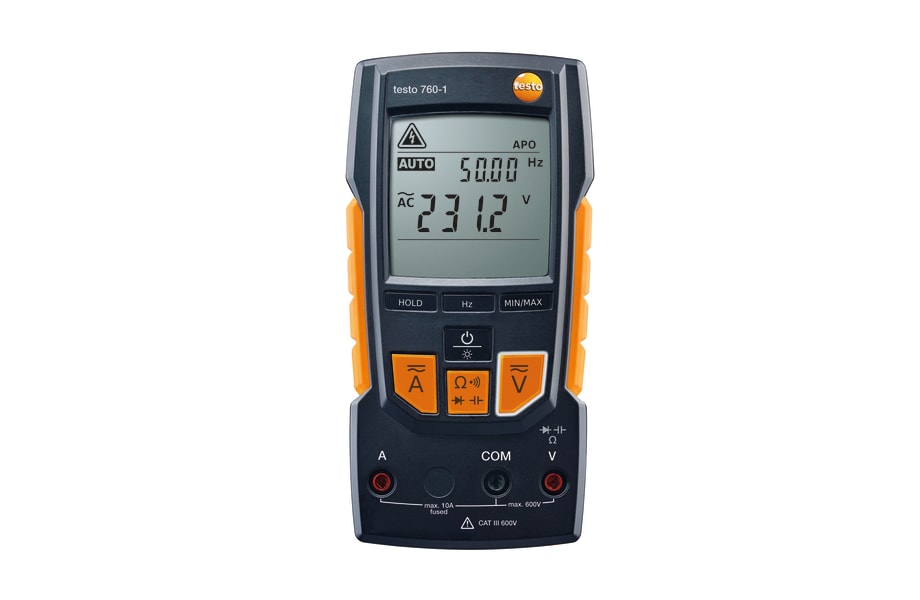

testo 760-1 - Digital multimeter

Order-Nr. 0590 7601

Where to buy

Auto-test setup based upon lead connection prevents blown fuses in the meter
Meter prevents switching from V to A, or A to V, if the leads are not in the proper socket
Meter automatically detects testing in-process, and selects the correct meter configuration, saving time and optimizing accuracy
3 buttons that illuminate for easy and clear selection of test functions

Testo’s exclusive auto-test setup enables the user to simply turn the unit on, connect the leads, and begin measuring. The testo 760-1 digital multimeter detects the lead connection, and prevents switching from V to A, or A to V, if the leads are not in the proper socket. This prevents accidentally blowing the meter’s fuse because of incorrect connections.

Details

Product Description

This multimeter's function and range settings are always correct, because its measurement parameters are detected and set automatically. Three easy to read buttons replace the traditional rotary switch for selecting manual test functions.

Additional benefits:

APO (Auto Power Off) saves battery life

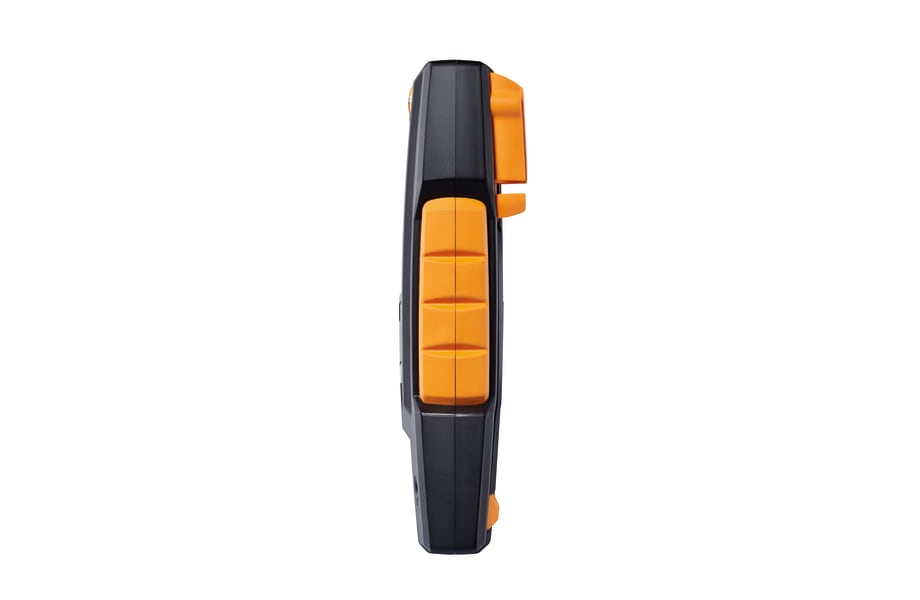

Rugged meter with overmold housing
Large, backlit, dual readout display with analog bar graph is easy to read

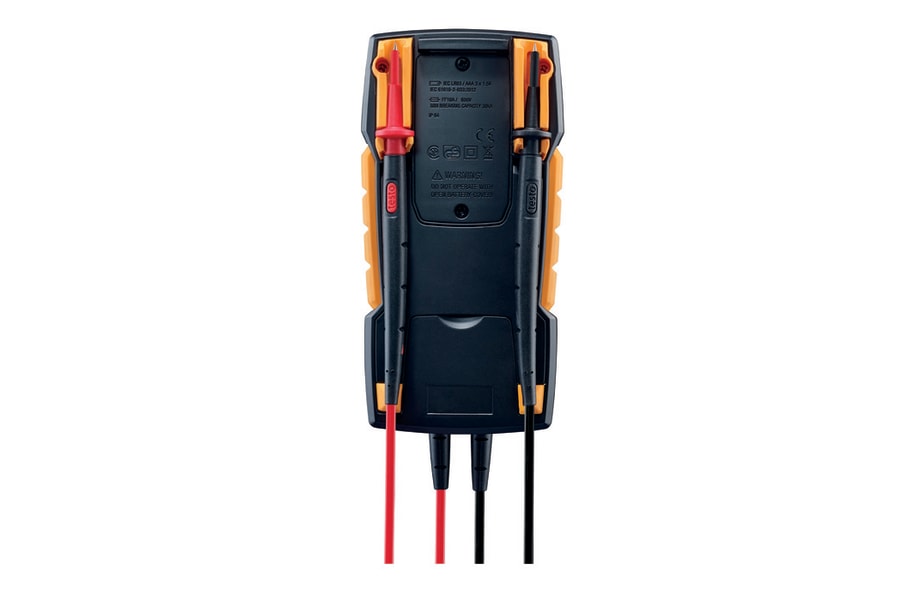

Lead holder conveniently molded into housing for easy storage

Testo’s history of efficiency, innovation, and quality now extends into the entire electrical lineup. Once again, Testo brings high value, feature-packed products to the HVAC contractor market.

Delivery Scope

testo 760-1 digital multimeter 600 V, including test leads, 3 AAA batteries, instruction manual, quick start guide, and certificate of conformity

Technical Data

DC voltage
Measuring range	0.1 to 600 V
Resolution	max. 0.1 mV
Accuracy	± (0.8 % of mv + 3 Digit)

AC voltage
Measuring range	0.1 mV to 600 V
Resolution	max. 0.1 mV
Accuracy	± (1.0 % of mv + 3 Digit)

DC current
Measuring range	0.1 mA to 10 A
Resolution	max. 0.1
Accuracy	± (1.5 % of mv + 5 Digit)

AC current
Measuring range	0.1 mA to 10 A
Resolution	max. 0.1 mA
Accuracy	± (1.0 % of mv + 3 Digit)

Resistance
Resolution	max. 0.1 Ohm
Measuring range	0.1 to 40.00 MOhm
Accuracy	± (1.5 % of mv + 3 Digit)

Capcitance
Resolution	max. 0.01 nF
Measuring range	0.001 nF to 100 μF
Accuracy	± (1.5 % of mv + 5 Digit)

Frequency
Resolution	max. 0.001 Hz
Measuring range	0.001 Hz to 512.0 kHz
Accuracy	± (0.1 % of mv + 1 Digit)

General technical data
Operating humidity	0 to 80 %rH
Weight	11.99 oz. / 340 g
Dimensions	6.6 x 3.3 x 1.8 in. / 167 x 85 x 45 mm
Operating temperature	14° to 122 °F / -10 to +50 °C
Product colour	Black
Protection class	IP64
Standards	EN 61326-1; EN 61010-2-033; EN 61140
Battery type	2 AAA batteries
Display type	LCD
Display size	2 lines
Interface	4 measuring jacks
Storage temperature	5° to 140 °F / -15 to +60 °C
Overvoltage Category	CAT III 600V; CAT IV 300V
Authorizations	CSA; CE
Internal_resistance	11 MOhm (AC / DC)

Instrument Measurement Functions
Diode test	yes
Continuity testing	yes
Display ligthing	yes
Hold	yes
MinMax	yes
Display (counts)	4,000
Autom. measurement parameter detection	yes

Accessories

Magnetic suspension system for attaching the digital multimeter to systems

Order Number: 0590 0001

$ 44.00

excl. tax

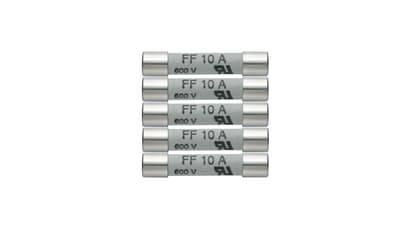

Spare 10 A/600 V fuses, 5 items

Order Number: 0590 0005

$ 35.00

excl. tax

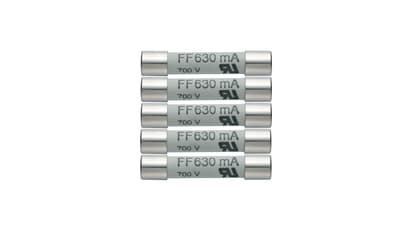

Spare 630 mA/600 V fuses, 5 items

Order Number: 0590 0007

$ 27.00

excl. tax

Safety crocodile clips, 1 set, 10 A, CAT III 600 V

Order Number: 0590 0008

Crocodile clips, 1 set, 10 A, CAT IV 600 V / CAT III 1000 V

Order Number: 0590 0009

2 mm standard measuring cables (angled plug) 0590 0010

Standard measuring cables (angled plug), 1 set, tip Ø: 2 mm, CAT II 1000 V

Order Number: 0590 0010

Measuring cable extensions (straight plug) 0590 0013

Measuring cable extensions (straight plug), 1 set, 10 A, CAT IV 600 V / CAT III 1000 V

Order Number: 0590 0013

Measuring cable extensions (angled plug) 0590 0014

Measuring cable extensions (angled plug), 1 set, 10 A, CAT IV 600 V / CAT III 1000 V

Order Number: 0590 0014

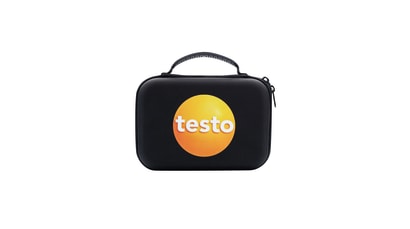

Transport Case

Transport bag, dimensions: 240 x 180 x 100 mm

Order Number: 0590 0016

Applications

Ideal for measuring all important electrical parameters

Automatic detection and selection of measurement parameters, operation via function keys, large illuminated display

Overview of applications

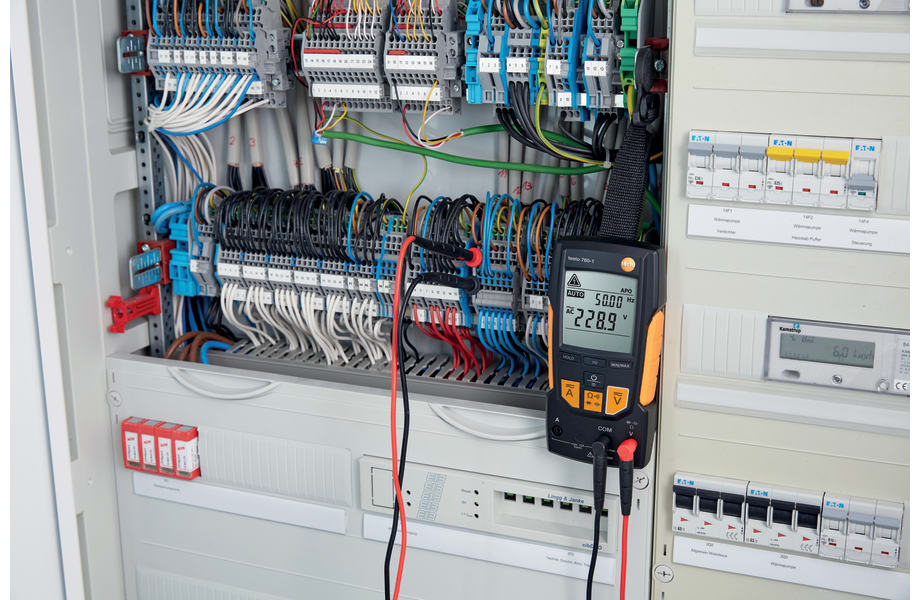

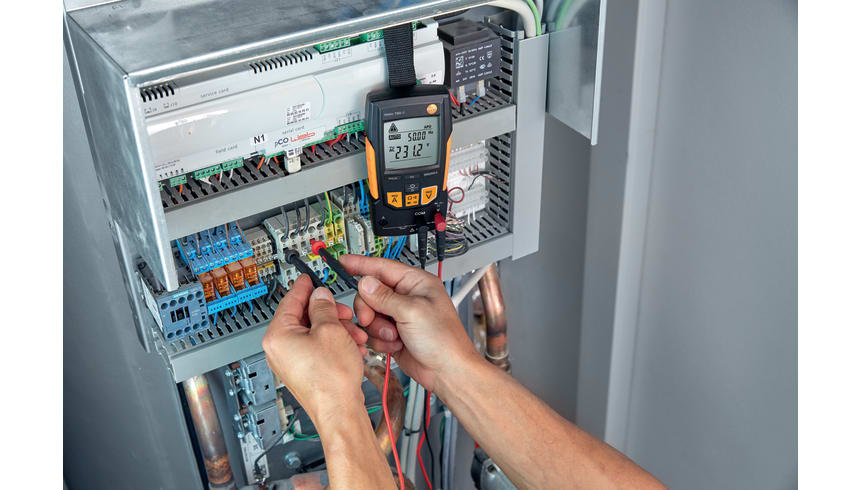

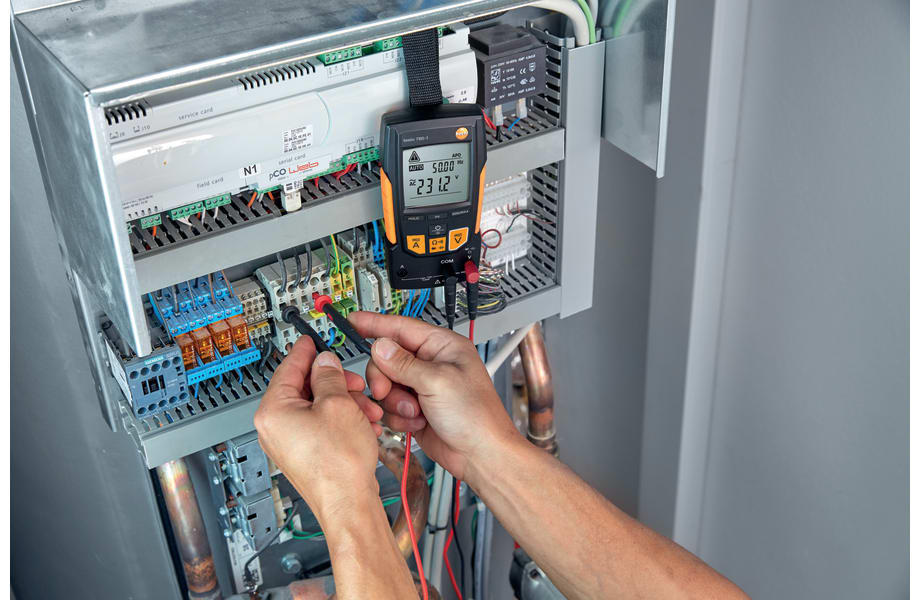

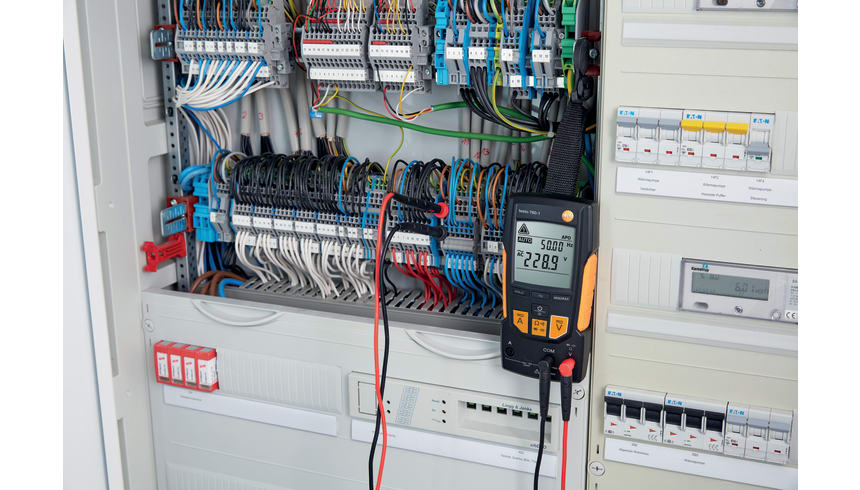

Testing voltage supply in live wires, current measurement in the lower measuring range, continuity tests on switching components, resistance measurement of sensors or motor windings
