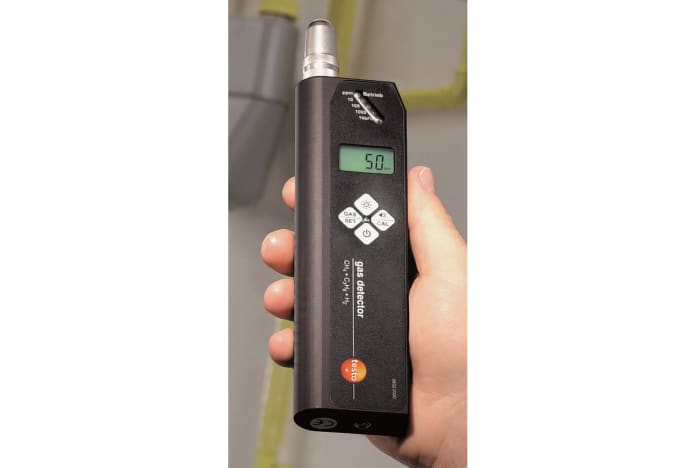

testo gas detector - Gas detector

Order-Nr.  0632 0323

  • testo gas detector
  • testo gas detector
  • testo gas detector
  • testo gas detector
1-484-705-0999
Inquiry

  • Gas detector for methane, propane and hydrogen gases

  • Flexible probe extension for inaccessible areas

  • Acoustic signals on approaching the lower explosive limit

  • With alarm function: continuous tone and indication on the display on reaching the explosive limit

testo gas detector incl. flexible probe extenstion, rechargeable battery and mains unit for mains operation and battery recharging, with calibration protocol

Details

Product Description

According to DVGW leaflet G 465-4, gas detectors are approved for above-ground gas detection up to the "lower explosive limit (LEL)". Testo's gas detector is a multi-range gas detector for the gas types methane, propane and hydrogen. Gas concentrations are measured by the semi-conductor sensor in the ppm range and are shown in the display with a resolution of 1 ppm.

Delivery Scope

testo gas detector, including flexible probe extension, rechargeable battery and mains unit for mains operation and charging the battery, along with calibration protocol.

Technical Data

General technical data

Weight

11 oz. / 320 g

Reaction time

t90 2 - 3 sec

Dimensions

7 x 2 x 1 in. / 190 x 40 x 28 mm

Operating temperature

5° to 104 °F / -15 to +40 °C

Heat up time

40 sec

Battery type

NiMH battery, 1600 mAh

Battery life

> 8 h

Display type

ppm display

Storage temperature

-13° to 158 °F / -25 to +70 °C
Methane (CH₄)

Measuring range

10 to 999 ppm

0.1 to 4 Vol.%

Resolution

1 ppm / 0.1 Vol.%

Lower response threshold

10 ppm
Propane (C₃H₈)

Measuring range

10 to 999 ppm

0.1 to 1.9 Vol.%

Resolution

1 ppm / 0.1 Vol.%

Lower response threshold

10 ppm
Leak detection H₂

Measuring range

10 to 999 ppm

0.1 to 4.0 Vol.%

Resolution

1 ppm / 0.1 Vol.%

Lower response threshold

10 ppm
