- Waterproof Pt100 immersion/penetration probe, calibratable
0614 1272

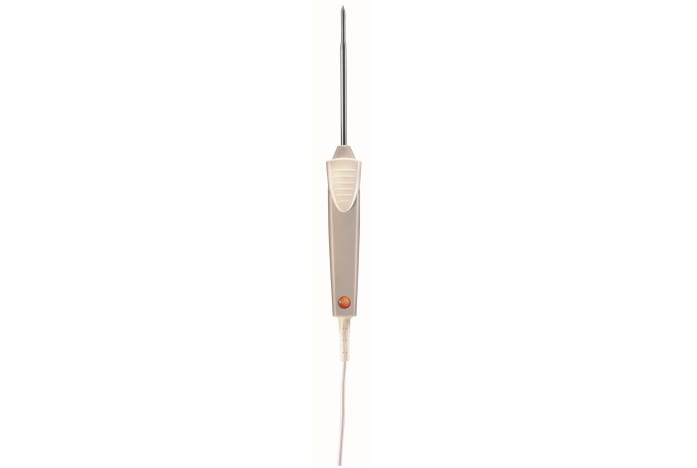

Waterproof Pt100 immersion/penetration probe, calibratable - with PTB approval
General technical data
General technical data | Weight 4 oz. / 106 g |
|---|---|
Dimensions 50 in. / 1280 mm | |
Length probe shaft tip 1.969 in. / 50 mm | |
Diameter probe shaft 0.197 in. / 5 mm | |
Diameter probe shaft tip 0.157 in. / 4 mm | |
Cable length 3.609 ft. / 1.1 m | |
Fixed cable yes | |
Protection class IP65 | |
Waterproof Waterproof Pt100 immersion/penetration probe | |
Housing ABS / TPE / PUR | |
Length probe shaft 5.709 in. / 145 mm | |
Product colour Black; silver; grey | |
Temperature - Pt100
Temperature - Pt100 | Measuring range -58 to +572 °F / -50 to +300 °C |
|---|---|
Accuracy Class A | |
Reaction time 12 sec | |
1 x waterproof immersion/penetration probe (Pt100) with PTB approval, including fixed cable (cable length 1.1 m).
