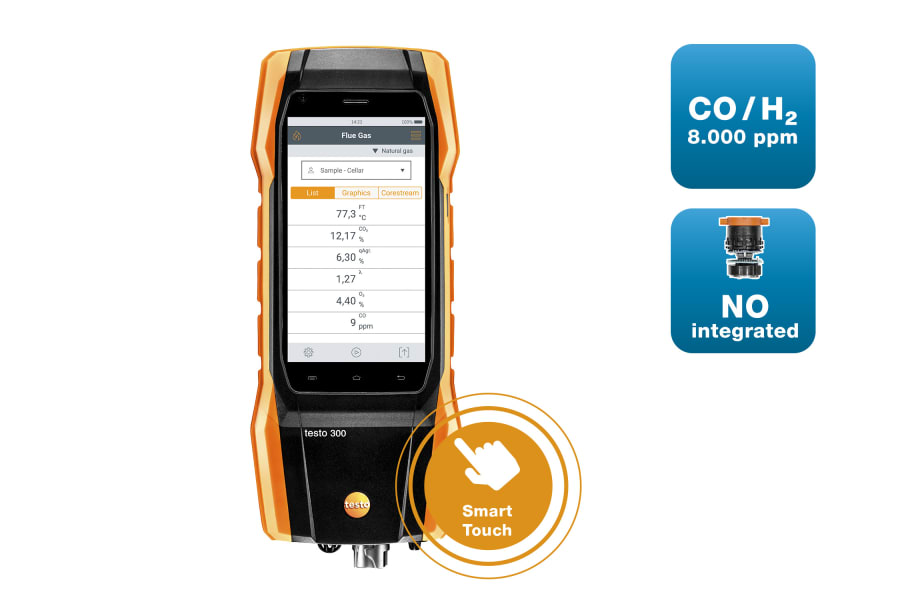

testo 300 - flue gas analyzer (O2, CO H2-compensated up to 8,000 ppm, NO)

제품 번호  0633 3002 75

  • Intuitive measurement menus and the fast-response Smart-Touch display ensure easy operation – as on your smartphone

  • Including O2, CO H2-compensated sensor up to 8,000 ppm and NO sensor

  • Large 5-inch HD display – see all the system's measuring values at a glance

  • Creation of documentation directly on site and e-mailing of reports

The testo 300 flue gas analyzer is ideal for the most important measurements involving heating systems. It combines decades of experience in measuring technology with contemporary Smart-Touch operation, robust construction and e-mailing of reports. The testo 300 enables easy measurement of flue gas, draught, pressure, ambient CO and differential temperature.

제품 설명

Truly smart flue gas measurement on heating systems with the testo 300 flue gas analyzer. High-quality sensors, intuitive operation with Smart-Touch technology and smart features, such as efficient documentation and e-mailing of reports, will make your day-to-day work easier.

testo 300 flue gas analyzer with Smart-Touch operation – Features

Impressive measuring technology and quality

  • O2, H2-compensated CO sensor up to 8,000 ppm and NO sensor
  • Longer sensor service life thanks to automatic sensor protection
  • TÜV-tested according to first German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1-3
  • Integrated fine pressure
  • Versatile probes and fast probe changes: take advantage of quick-change probes and the multi-functional handle for attaching a variety of probe shafts (each available to order separately). You can for instance use longer probe shafts for flue gas pipes with larger diameters or flexible probes for difficult-to-access measuring points
  • Optionally available probes and accessories for further measuring tasks, such as gas flow pressure measurement, gas pipe testing, differential temperature measurement and ambient CO measurement

Smart, intuitive, efficient: easy operation in day-to-day work

  • Smart-touch display for intuitive operation of the flue gas analyzer: the display responds without delay – just as easy as on your smartphone
  • Get the measurement result faster: clearly structured measurement menus for all relevant measurements
  • Create documentation (including measuring value, measuring location and customer data) easily on site
  • Save PDF measurement reports directly in the instrument and always have them available
  • Signature function: your customer can sign measurement reports directly on the instrument
  • E-mail measurement reports directly to the office or to customers via WLAN (hotspot)
  • Large 5-inch HD display – enables you to see all the system's parameters immediately
  • Testo interface function for direct data transfer of measuring values to industry/customer-specific software*
  • Ready to use straight away: in standby mode, the testo 300 is ready to measure at the touch of a button. Use it straight away with the next customer – because you no longer need to wait for the end of the zeroing phase
  • Integrated Bluetooth® interface: immediate printout of the measuring values on site with the appropriate printer

*Note: the manufacturer has to integrate an interface into the industry software to use the function


Other advantages

  • 10-hour rechargeable battery life: an average measurement period of 2 hours means the flue gas analyzer is capable of being used for one week
  • Integrated, extra-strong magnets for easy fixing during the measuring process


상품 제공 시 포함

testo 300 flue gas analyzer with O2 and CO H2-compensated sensor up to 8,000 ppm, NO sensor, USB mains unit.
열전대 K타입(NiCr-Ni)

열전대 K타입 측정 범위

-40 ~ +1200 °C

열전대 K타입 정확도

±0.5 °C (0.0 ~ +100.0 °C)

±0.5 측정값의 % (나머지 범위)

열전대 K타입 분해능

0.1 °C (-40 ~ +999.9 °C)

1 °C (나머지 범위)


차압 측정 범위

-100 ~ +200 hPa

차압 정확도

±0.5 hPa (0 ~ +50.0 hPa)

±1 측정값의 % (+50.1 ~ +100.0 hPa)

±1.5 측정값의 % (+100.1 ~ +200 hPa)

차압 분해능

0.01 hPa

O₂ 측정값

O₂ 측정

0 ~ 21 Vol.%

O₂ 정확도

±0.2 Vol.%

O₂ 분해능

0.1 Vol.%

CO 측정값 (H2 보상)

CO(H2보상) 측정범위

0 ~ 8000 ppm

CO(H2보상) 정확도

±10 ppm 또는 ±10 측정값의 % (0 ~ 200 ppm)

±20 ppm 또는 ±5 측정값의 % (201 ~ 2000 ppm)

±10 측정값의 % (2001 ~ 8000 ppm)

CO(H2보상) 분해능

1 ppm

NO 측정값

NO 측정범위

0 ~ 3000 ppm

NO 정확도

±5 ppm (0 ~ 100 ppm)

±5 측정값의 % (101 ~ 2000 ppm)

±10 측정값의 % (2001 ~ 3000 ppm)

NO 분해능

1 ppm

통풍 측정값

통풍 측정 범위

-9.99 ~ +40 hPa

통풍 정확도

±0.005 hPa (0 ~ 0.1 hPa)

±0.02 hPa (0.1 ~ +3.00 hPa)

±1.5 측정값의 % (+3.01 ~ +40 hPa)

통풍 분해능

0.001 hPa (0 ~ 0.1 hPa)

0.01 hPa (나머지 범위)


효율 측정 범위

0 ~ 120 %

효율 분해능

0.1 %

연소가스 손실

연소가스 손실 측정 범위

0 ~ 99.9 %

연소가스 손실 분해능

0.1 %

CO₂ 측정값(O₂ 계산)

CO₂(O₂ 계산) 측정 범위

표시범위 0 ~ CO2 max

CO₂ (O₂ 계산) 정확도

±0.2 Vol.%

CO₂ (O₂ 계산) 분해능

0.1 Vol.%

대기 중 CO 측정값

대기 CO 측정 범위

0 ~ 2000 ppm

대기 CO 측정 정확도

±10 ppm (0 ~ 100 ppm)

±10 측정값의 % (101 ~ 2000 ppm)

대기 CO 분해능

1 ppm

기술 데이터

Operating humidity

15 ~ 90 %RH non-condensing


244 (including probe connection) x 98 x 59 mm LxWxH

작동 온도

-5 ~ +45 °C



Product colour


디스플레이 종류

5.0" touch display, HD 1280*720 pixels, IPS (160 k)

전력 공급

Rechargeable battery, USB mains unit

Warranty conditions



Gas sensors (O₂, CO) 24 months; 열전대 센서 - 12개월; 충전가능한 배터리 - 12개월


TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3


1,000,000 측정값

보관 기기

Lithium ion battery

보관 배터리 수명

10 h

보관 온도

-20 ~ +50 °C


approximately 800 g

Charging temperature

0 ~ +45 °C

Flue gas measurement on heating systems

Ideal for measurements involving heating systems:
  • high-quality sensors, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing
Further areas of application:
  • gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*
* Please note: additional probes or accessories are required for these measurements and have to be ordered separately.
