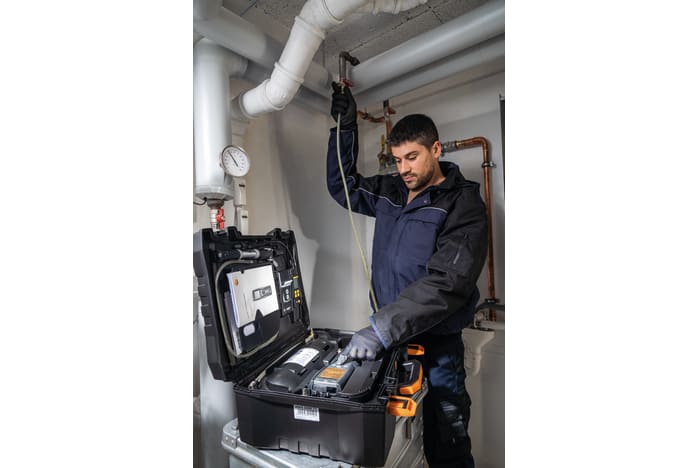

Basisset testo 324 - Voor alle druk- en lekhoeveelheidscontroles

Bestelnr.  0563 3240 70

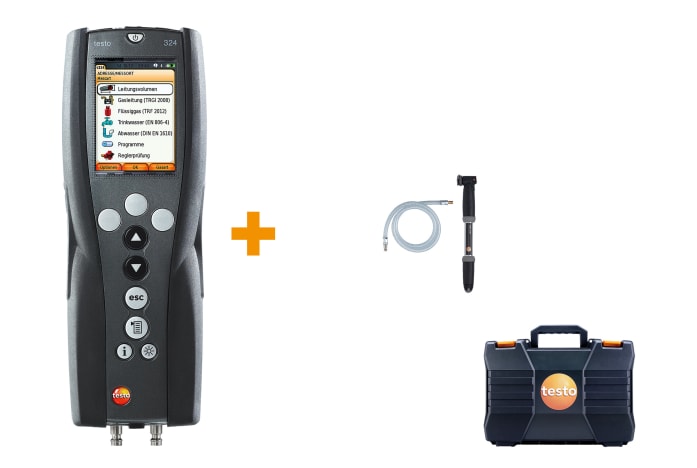

  • Included in the set: DVGW-tested testo 324 pressure and leakage measuring instrument, including integrated pressure pump, mains unit, system case with feeding unit, connection block and connection hose, manual test pump, adapter for gas boiler test port and ¾” and 1¼” high-pressure stage stops

  • Automatic pressure build-up to 300 mbar by means of an integrated pressure pump; manual test pump for generating higher pressures, e.g. for the 1 bar test

  • All the important measurements in one instrument: tightness test, load test and serviceability test

  • Step-by-step guide through regulatory-compliant measurement menus: conducting tests on gas pipes has never been easier

Drukmeter testo 324
Netadapter voor testo 324
Manuele pomp voor het op druk zetten
Adapter voor meting op gasboiler
Teststoppen (hoge druk) 3/4” en 1 ¼”
Systeemkoffer incl. gastoevoer-unit
aansluitblok en aansluitslang

Levertijd 3 tot 6 werkdagen

Meer info over levertermijn en leveringskosten

€ 1.420,00
€ 1.718,20 inclusief btw

Productbeschrijving

Over the course of time gas pipes can become leaky. The testo 324 basic set enables you to get down to work straight away and carry out all relevant and legally prescribed tests on gas pipes.


testo 324 basic set – pressure and leakage measuring instrument in detail


testo 324 pressure and leakage measuring instrument, DVGW tested:

  • All the important measurements in one instrument:
  1.  gas pipe test according to TRGI 2008 DVGW G600 (load, tightness and serviceability test)
  2. Testing on LPG pipes according to TRF 2012
  3. Gas pipe test on caravans according to DIN DVGW G607 and DIN EN 1949
  4. Automatic determination of pipe volume in gas pipes
  5. Waste water pipe test
  • Automatic serviceability test: the system case with feeding unit (included in the scope of delivery, for further information see system case) feeds in the gas using the gas bladder. Since the gas bladder is filled with the system's own gas, there is no possibility of a hazardous gas-air mixture developing during the serviceability test
  • Carry out the tests prescribed by TRGI with ease, thanks to stored guidelines and a step-by-step guide through the measurement menu. The relevant tests, e.g. the tightness test on gas pipes, are carried out automatically by the pressure and leakage measuring instrument. This gives you more time for other jobs
  • The single-hose connection makes it extremely easy to operate, while the high-resolution colour graphic display also makes it convenient to work with
  • Measuring location and customer management: the measurement data can be stored and documented quickly and easily in previously created customer folders, assigned to the measuring location
  • Maximum precision is offered by the built-in sensors – a flow sensor, an absolute pressure sensor and two differential pressure sensors are all installed in the testo 324. Optionally, up to two temperature probes or high-pressure probes of up to 25 bar can be connected to the measuring instrument
  • The pressure pump integrated in the testo 324 enables automatic pressure build-up of up to 300 mbar, for example for the tightness test at 150 mbar on gas pipes
  • 2-year warranty

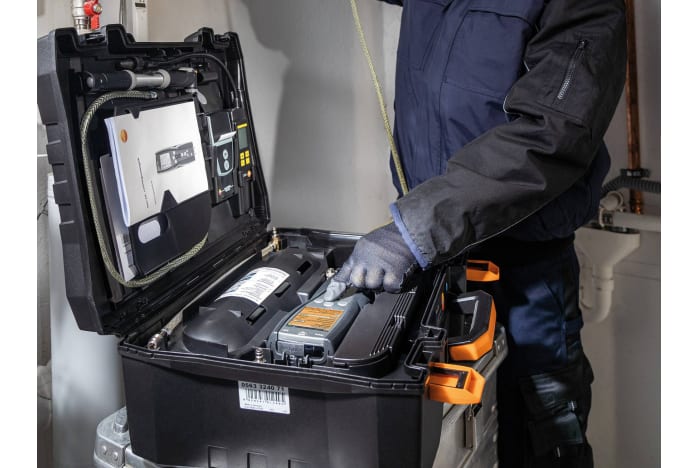

System case:

  • The system case is equipped with a feeding unit, connection block and connection hose and has an instrument, pump and hose connection, including overpressure valve and stopcock
  • The system case has special inserts along with compartments for measuring instrument and accessories – this means your equipment is always ready to hand

Manual test pump:

  •  You have the option of generating higher pressures with the manual test pump, for example for the 1 bar test



Leveringsomvang

  • DVGW-tested testo 324 pressure and leakage measuring instrument, including rechargeable battery and calibration protocol (0632 3240)
  • Mains unit for testo 324 (0554 1096), also suitable for infrared printer 0554 0549
  • System case, including feeding unit, connection hose and connection block, dimensions (W x H x D): 476 x 191 x 363 mm (0516 3240)
  • Manual pump for setting the test pressure (0554 3157)
  • Adapter for the gas boiler test port
  • High-pressure stage stops with ¾” and 1 ¼” (0554 0533)
NTC

Meetbereik

-20 … +100 °C

Type K (NiCr-Ni)

Meetbereik

-40 … +600 °C

Nauwkeurigheid

±0,5 °C of ±0,5 %

Absolute druk

Meetbereik

600 … 1150 hPa

Nauwkeurigheid

±3 hPa

overbelast

to 1200 hPa

Lekage-meting

Meetbereik

0 … 10 l/h

Nauwkeurigheid

±0,2 l/h of ±5 % v. Mw.

Resolution

10,0

Druk-meting

Meetbereik

0 … 1000 hPa

Nauwkeurigheid

±0,5 hPa … ±3 % v. Mw.

Algemene technische gegevens

Operating temperature

+5 … +40 °C

beschermklasse

IP40 conform EN 60529

reservevoeler kapje

2 Hirschmann sockets for connecting pressure and temperature probes

gasaansluitingen

2 pressure connections DN 5

DVGW-toelating conform 5925

Instrument class L up to volume = 200 litres

Opslagtemperatuur

-20 … +50 °C

Gewicht

7000 g

Pipe volume calculation

Pipe volume calculation

max. 1200

±0,2 of ±5 (1 … 200 l)
