球形探头,直径150mm,K型热电偶,用于测量辐射热 - for radiant heat

訂貨號  0602 0743

  • For the measurement of radiant heat according to ISO 7243, ISO 7726, DIN EN 27726 and DIN 33403

  • Thermocouple type K

  • Measuring range: 0 to + 120 °C

球形探头,直径150mm,K型热电偶,用于测量辐射热

産品描述

Thermal comfort is a crucial factor in terms of a person's physical and mental capabilities – and should be ensured through regular measurements of the individual parameters directly at the workplace.

In combination with an appropriate measuring instrument, the globe thermometer (thermocouple type K) enables standard-compliant determination and checking of the radiant heat parameter. For example, if a significant temperature difference between the ambient and globe temperature is detected, the cause could be high solar radiation through the window.

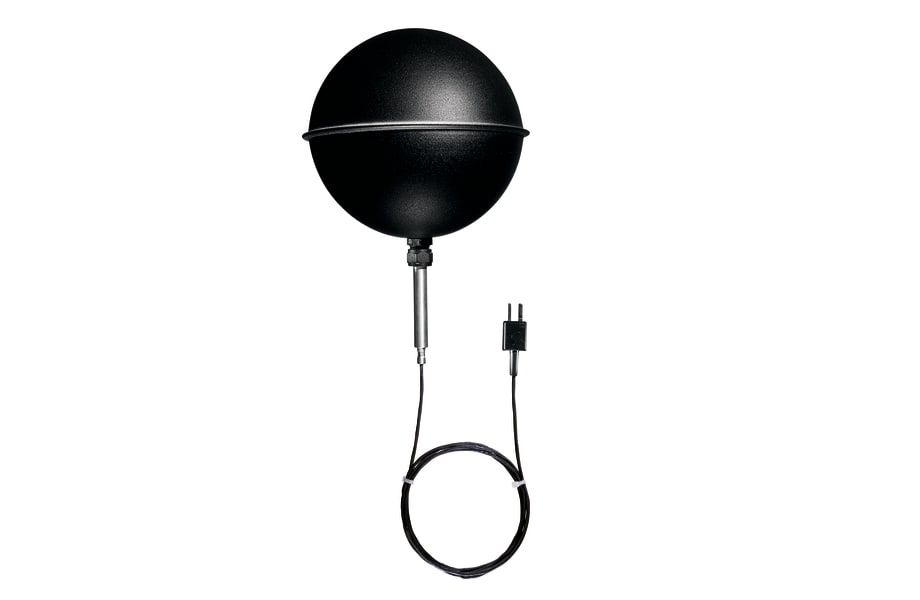

The hollow sphere has a diameter of 150 mm and there is a thermocouple type K at its centre for measuring the temperature.



産品包含

Globe thermometer (Ø 150 mm, TC type K) with 1.45 m fixed cable.
Type K (NiCr-Ni)

測量範圍

0 ~ +120 °C

測量精度

1級精度

技術參數

電纜長度

1.45 m

Emissivity

0,95

Probe head diameter

150 mm

標定證書
