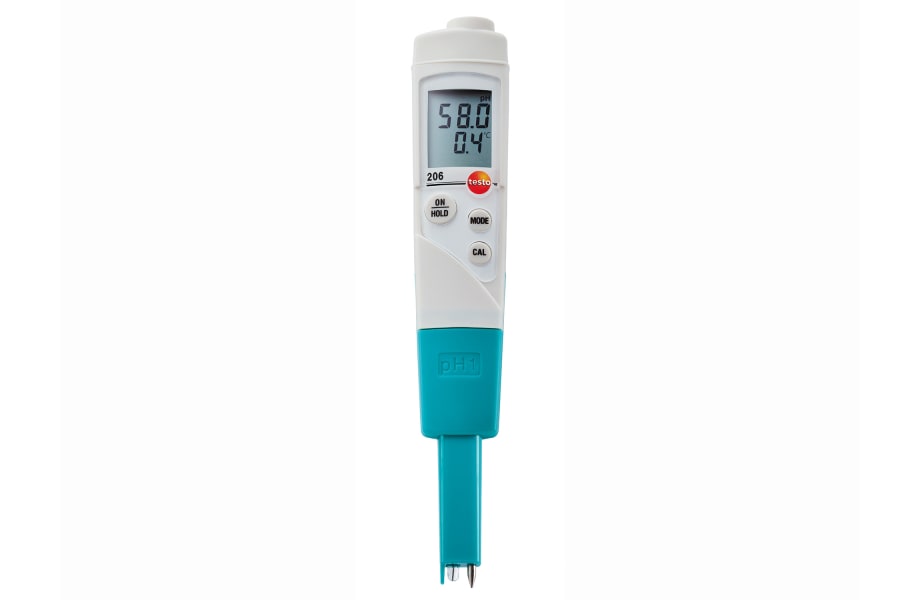

testo 206 pH1 - pH/temperature measuring instrument for liquids

訂貨號  0563 2065

  • Ideal for measuring the pH value of liquids

  • Temperature measurement is feasible thanks to the integrated temperature probe

  • The TopSafe protective case ensures that the pH/temperature measuring instrument is robust and waterproof

  • The set contains essential accessories, which you will always have to hand: calibration dosing bottles, TopSafe protective case, aluminium case, etc.

testo 206-pH1基礎套裝,單手操作pH/°C測量。含pH1探頭,適用於液體測量。包括保護帽,標定套裝,保護軟套,掛繩/牆面支架及鋁制儀器箱。

産品描述

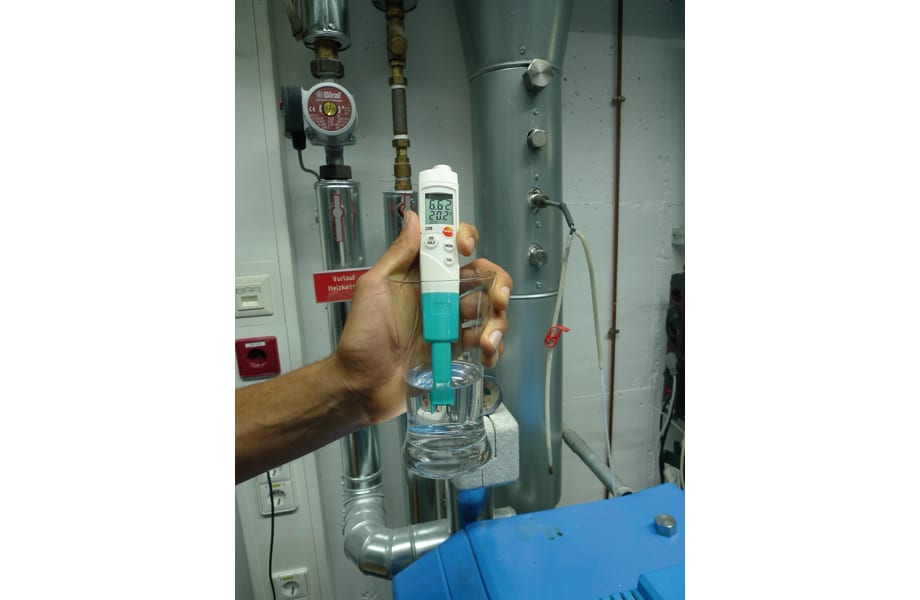

pH value and temperature are key parameters for guaranteeing the quality assurance of products in the food sector, in the cosmetics industry, in the sanitary and HVAC sector, etc. With the testo 206-pH1 starter set, you can get started straight away with measuring the temperature and pH value in liquids (e.g. in drinking or heating water).


Benefits of the pH/temperature measuring instrument set at a glance

The testo 206-pH1 temperature and pH measuring instrument boasts the following features:

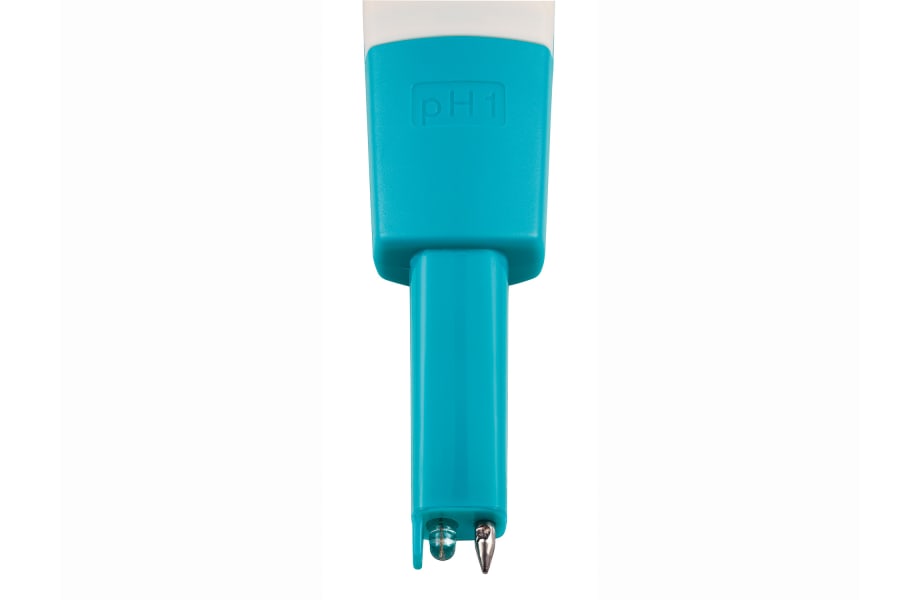

  • The pH probe is ideal for measurements in liquids. The temperature sensor ensures precise, fast temperature compensation, and therefore precise pH measurement
  • The pH probe is maintenance-free, leak-proof and insensitive to dirt thanks to the gel electrolyte in the probe
  • The dual wall diaphragm of the pH probe guarantees quick, reliable pH measurement
  • Simultaneous display of pH value and temperature on the clear display
  • Automatic final value recognition (auto hold): the reading is automatically held once it is stable
  • The measuring instrument enables 1-, 2-, or 3-point calibration – calibration dosing bottles for pH 4.01 and 7 are included in the set
With the included accessories, you are ideally equipped for measuring pH:
  • TopSafe protective case: this is dishwasher-safe, hygienic and protects the measuring instrument from dirt, water and shock. Safely stored in the protective case, the pH measuring instrument is waterproof in accordance with protection class IP 68
  • Storage cap with gel: the storage cap, which is filled with gel electrolyte and attached to the pH probe, is used to store the probe between measurements

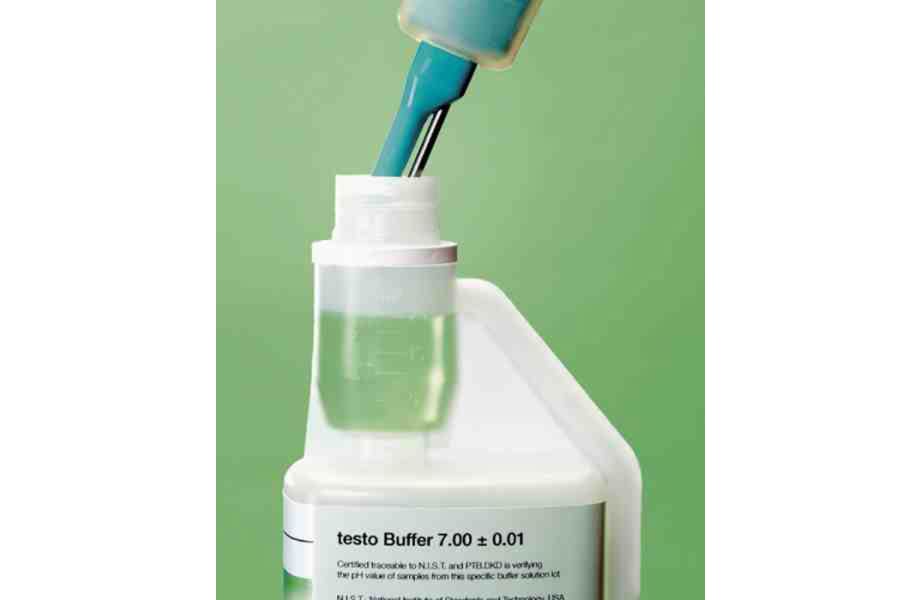

  • Calibration dosing bottles: both pH calibration solutions, pH 4.01 and 7, are DAkkS-certified and facilitate calibration of the pH probe. The pH probe is calibrated in the integrated dosing aperture of the calibration dosing bottle. This guarantees economical use of the calibration solution
  • Belt/wall bracket: used for storing the measuring instrument on the wall or on a belt
  • Robust aluminium case: this ensures safe transport of all the measuring equipment

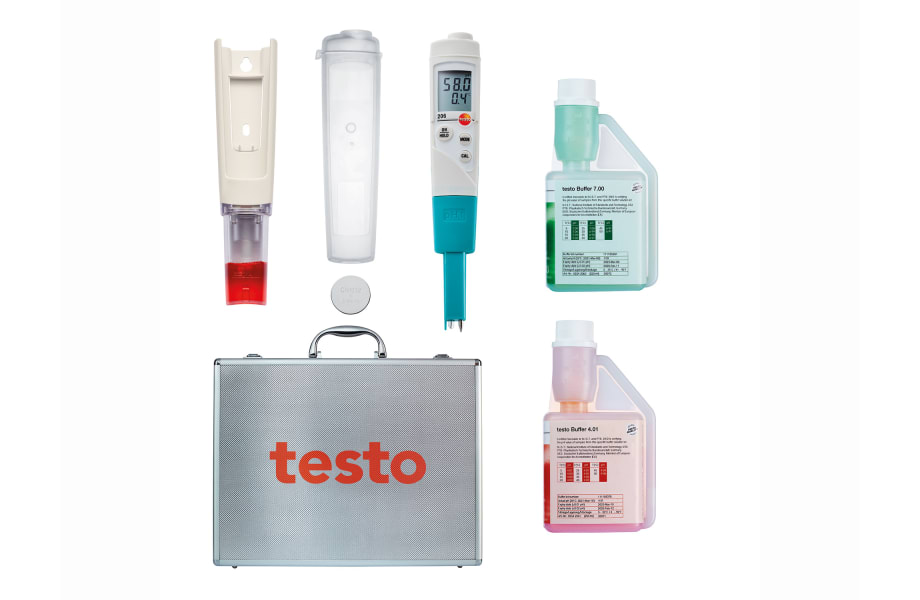

産品包含

•    testo 206 pH1 pH/temperature measuring instrument with pH1 probe for liquid media
•    Storage cap with gel
•    2 calibration dosing bottles, each 250 ml, pH 4.01 and 7
•    TopSafe protective case
•    Belt/wall bracket
•    Aluminium case
NTC

測量範圍

0 ~ +14 pH (短期達+80°C,最長5分鐘)

測量精度

±0.4 °C

解析度

0.1 °C

pH測量

測量範圍

0 ~ 14 pH

測量精度

±0.02 pH

解析度

0.01 pH

技術參數

直徑

197 x 33 x 20 mm

操作溫度

0 ~ +60 °C

外壳

ABS,使用保護軟套時防護等級 IP68

防护等级

IP68

电池类型

一個CR2032

电池寿命

約80小時

显示屏类型

LCD

显示屏尺寸

2行

通道数量

2-通道

测量比例

2 每秒測量

温度补偿

自動

存放溫度

-20 ~ +70 °C

重量

69 g

pH测量在饮用水重要应用

早在1980年欧洲颁布的法规指令中,就规定了饮用水的特定限值。德国在2001年5月21日颁布的《饮用水法令》规定:供水公司必须为客户提供达到该法令所述质量标准的饮用水。pH值是确定水质量的一个重要参数。

在采集水样本后,必须直接或立即检查其pH值,该数值不能超过6.5的酸性限值或9.5的碱性限值,一般应在中性值7左右。

testo 206单手操作式pH测量仪具有如下优势:

  • 可以直接在现场测量,从而快速分析pH值
  • 有三种型号(包括一种带可更换探头接口,便于远距离测量)
  • 坚固耐用防水的保护软套(防护等级IP68)
  • 内置温度探头,可以同时测量pH值和温度值
  • 采用无需维护的凝胶电解质

通过测量pH值确保食品质量安全

食品的pH值直接影响微生物的生长,因此也会影响食品质量和安全性。为此,很多公司都在食品评估过程中将pH值作为一个质量特征。比如,在生产肉类、香肠、熟食和乳制品的过程中,pH值都很重要。

在食品行业,pH值是一个重要的质量参数。它会影响肉类和肉类产品的属性,尤其是保水能力、口感、颜色、嫩度和保质期。在面包行业,可以通过pH值来确定酵母的酸度。对于色拉酱等调味料,借助pH值,能够确保产品具有统一的质量和酸度。

testo 206单手操作式pH测量仪具有如下优势:

  • 在生产过程/食品中直接测量,从而快速分析pH值
  • 根据测量介质不同有三种型号可选
  • 坚固耐用防水的保护软套(防护等级IP68)
  • 内置温度探头,可以同时测量pH值和温度值
  • 采用无需维护的凝胶电解质
  • 可以进行1、2、或3点校准

pH测量在化妆品行业重要应用

在评估化妆品质量的过程中,pH值是一个重要因素。化妆品如果酸性或碱性过强,会刺激皮肤或产生皮疹。皮肤因为带有天然酸性保护膜,所以其pH值一般在5到6.5之间。“皮肤中性”清洁剂实际上略呈酸性,有利于皮肤的酸性保护膜,这对于皮肤敏感的人来说尤为重要。而碱性清洁剂则会促进皮肤补充天然油脂的过程。

因此,必须监测、控制化妆品的pH值,并根据需要从生产阶段开始进行调整,从而使最终产品达到满意的pH值。testo 206单手操作式pH值测量仪可以帮助您实现这个目标,它具有如下特点:

  • 在生产过程中直接测量,从而快速分析pH值
  • 根据测量介质不同有三种型号可选(比如液体、糊状等)
  • 坚固耐用防水的保护软套(防护等级IP68),满足洁净行业严格的清洁要求
  • 内置温度探头,可以同时测量pH值和温度值
  • 采用无需维护的凝胶电解质
  • 可以进行1、2或3点校准
