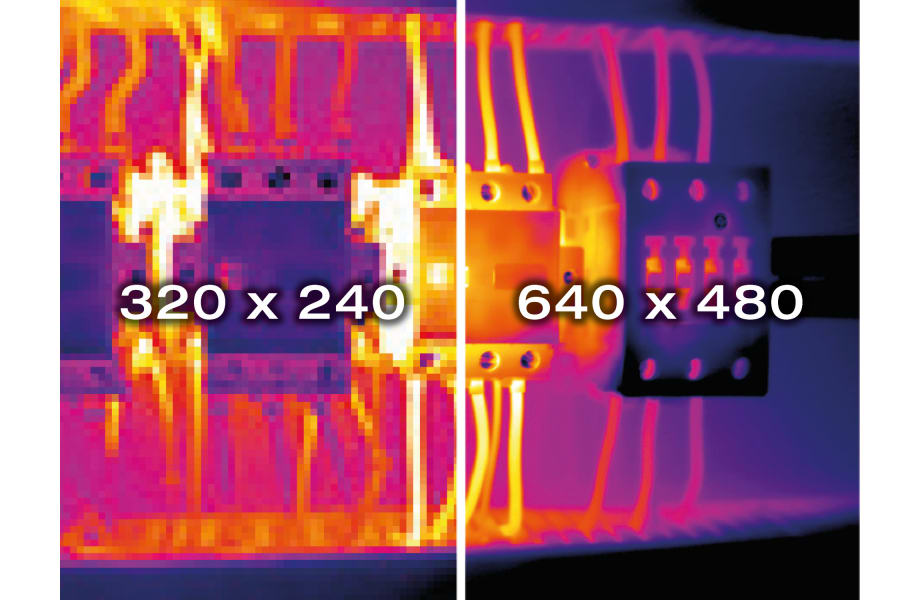

画质所具备的红外分辨率为 320 x 240 像素(采用 testo 超像素技术可达 640 x 480 像素)
-
热灵敏度 < 0.04°C
-
配有30°x23°标准镜头,12°x9°长焦镜头
-
免费的分析软件用于创建专业报告
-
测量地点识别和自动图像管理
-
用于现场分析并创建测量报告的应用程序
-
红外热像仪标准/保修 EU-/EG-法規
RED: 2014/53/歐標; EMC: 2014/30/歐標; WEEE: 2012/19/EU; RoHS: 2011/65/EU + 2015/863; REACH: 1907/2006
技術參數 產品顏色
Black
顯示幕類型
capacitive touch display
顯示幕背光燈
bright / normal / dark
紅外圖像輸出 紅外解析度
320 x 240 pixel
熱靈敏度
˂ 40 mK
視場
30° x 23° (標準鏡頭), 12° x 9° (t长焦镜头)
最小聚焦距離
< 0.1 m (標準鏡頭)
幾何解析度 (IFOV)
1.7 mrad (標準鏡頭), 0.7 mrad (长焦镜头)
红外超像素(像素)
640 x 480 pixels
紅外超圖元 (空間解析度)
1.1 mrad (長焦鏡頭: 0.4 mrad)
圖像刷新頻率
27 Hz*
對焦
手動
光譜範圍
7.5 ~ 14 µm
* Inside the EU, outside 9 Hz
可見光圖像輸出 圖像圖元
5 MP
最小聚焦距離
< 0.4 m
圖像顯示 顯示幕類型
8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)
數碼變焦
2x; 4x
顯示幕選項
紅外圖像/可見光圖像
顏色
iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette
測量 測量範圍
-30 … +650°C
精度
±2 °C或 ±2 % 的讀數值; (適用更大的值)
發射率
0.01 ~ 1
反射溫度
手動
ε-Assist
✓
測量功能 太陽能模式
輸入太陽輻射值
分析功能
Up to 5 selectable individual measuring points, hot/cold spot detection, Delta T, area measurement (min/max on area), alarms, isotherm
空間解析度
✓
濕度模組說明
電流、電壓或功率的輸入
✓
模組附件
✓
帶濕度測量的濕度測量儀
溫濕度計 testo 605 支援藍牙功能(儀器必須單獨訂購);無線許可證 (歐盟,EFTA,美國,加拿大,澳大利亞,土耳其)
鉗形表
Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately)
* An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com)
圖像設備 全屏模式
✓
JPEG存儲
✓
視頻流
支援無線紅外App; 支持 USB
聲音記錄
✓
鐳射
-
測量地址識別
✓
標準鏡頭
30° x 23°
數碼相機
✓
資料傳輸
USB 2.0; USB-C
無線區域網路連接
Communication with the testo Thermography App/ wireless module BT/WLAN*
藍牙
Headset for voice annotations, transfer of readings from testo 605i thermohygrometer, testo 770-3 clamp meter (optional)**
* An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com)
** excepting USA, China
Laser: excepting USA, China and Japan
Voice recording : An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com)圖像存儲 圖像格式
.bmt; .jpg; 可保存為.bmp; .jpg; .png; .csv; .xls
存放裝置
Internal Memory (2.8 GB)
電源 電池類型
快速充電器
操作時間
≥ 5 小時
充電選擇
充電器(選配)
交流電供電
是
環境情況 環境濕度
20 - 80 %RH ,不結露
外殼防護等級
IP54
振動
2G
儲存溫度
-30 ~ +60 °C
操作溫度
-15 ~ +50 °C
物理規格 三腳架介面
1/4" - 20UNC; carrying strap
外殼
PC - ABS
重量
824 g
大小
171 x 95 x 236 mm
PC軟體 系統要求
Windows 10; Windows 8; Windows 7
-
技術參數 重量
119 g
直徑
20 x 24 x 140 mm (LxWxH)
Product colour
Black
-
技術參數 重量
385 g
直徑
80 x 90 x 75 mm (LxWxH)
電纜長度
1 m
Product colour
black/orange
