testo 330i - flue gas analyzer with NO sensor

訂貨號  0632 3000 72

Proven technology meets revolutionary operation. The testo 330i flue gas analyzer was specifically developed to help you to overcome all the obstacles you meet when servicing and commissioning heating systems.

産品描述

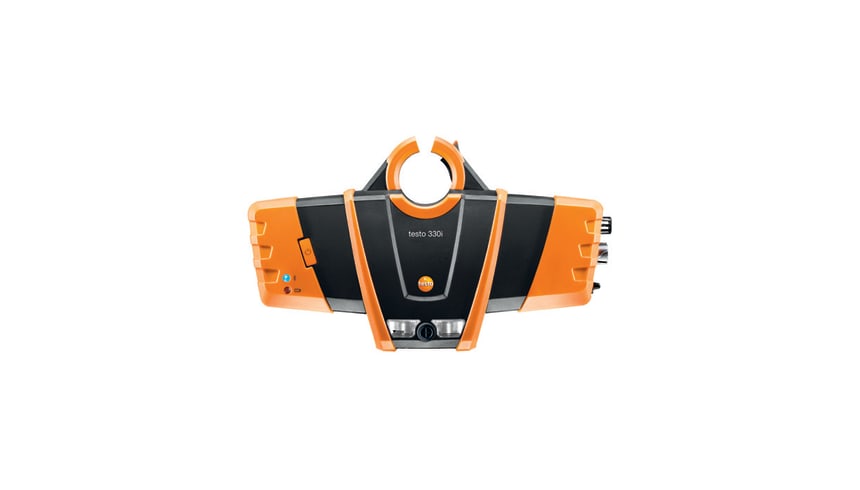

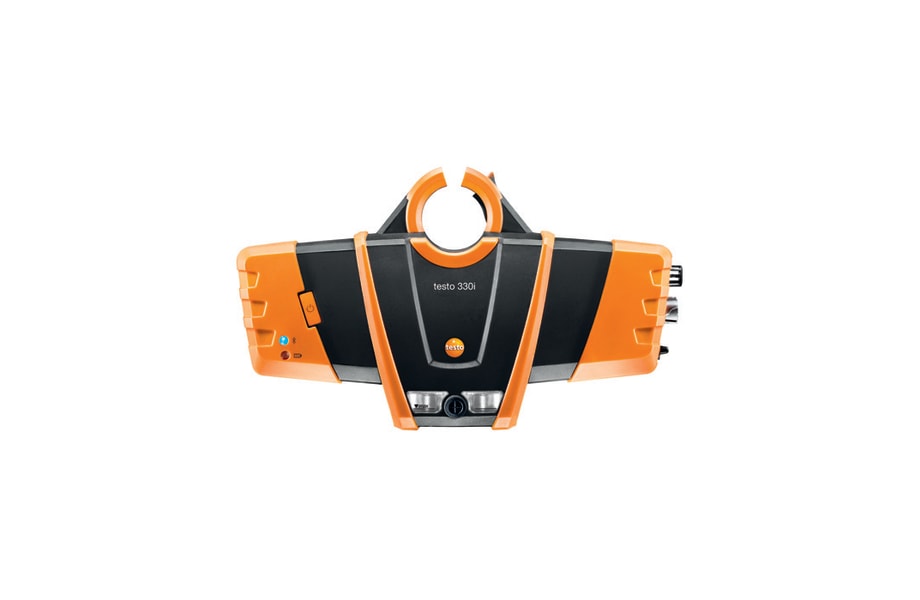

The testo 330i flue gas analyzer is an advancement of the testo 330 LL flue gas analyzer. Its proven measuring technology is once again at the heart of the testo 330i. This means that you can rely on highly accurate results when measuring flue gas, draught and O2 supply air. The testo 330i also has the following impressive features:
  • User-replaceable long-life sensors with a service life of up to 6 years
  • Successful TÜV inspection according to the 1st German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1-3
  • ntegrated draught and gas zeroing. This means that the probe does not have to be removed from the flue gas duct for the zeroing
  • Fresh air dilution up to 30,000 ppm upon exceeding a CO threshold value
  • NO sensor for combined heat and power plants

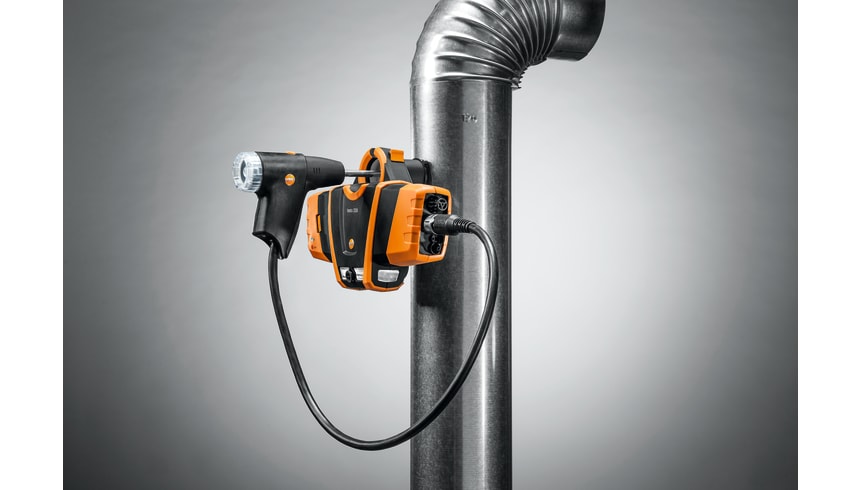

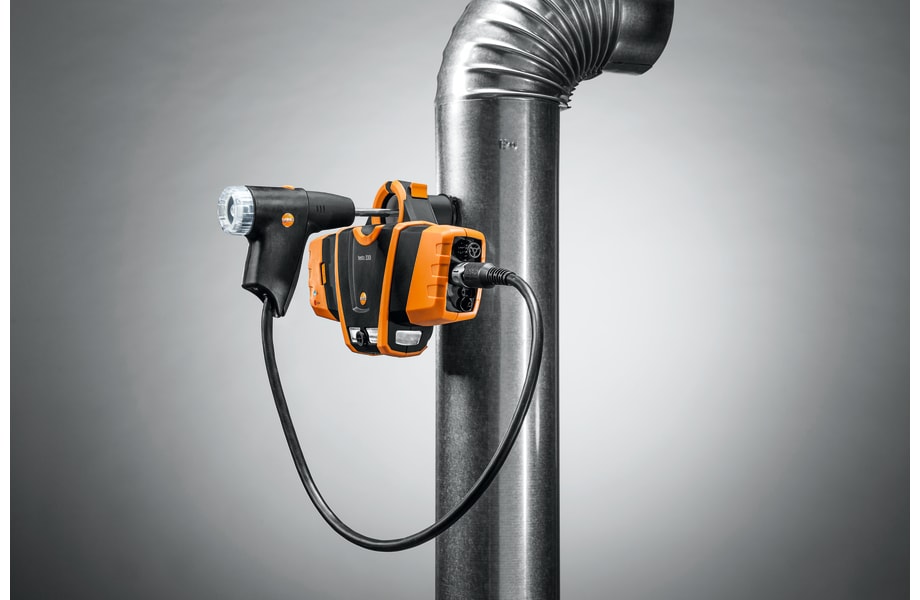

The new testoFix probe holder is available as an accessory, so the flue gas probe is guaranteed not to lose the centre of flow once it has been found. This can be attached to the pipe quickly and easily. It holds the probe in the centre of flow and also serves as a fall-proof suspension system for the testo 330i flue gas analyzer. Incidentally, the hose between probe and measuring instrument is lighter and more flexible than before.

The future of flue gas measuring technology

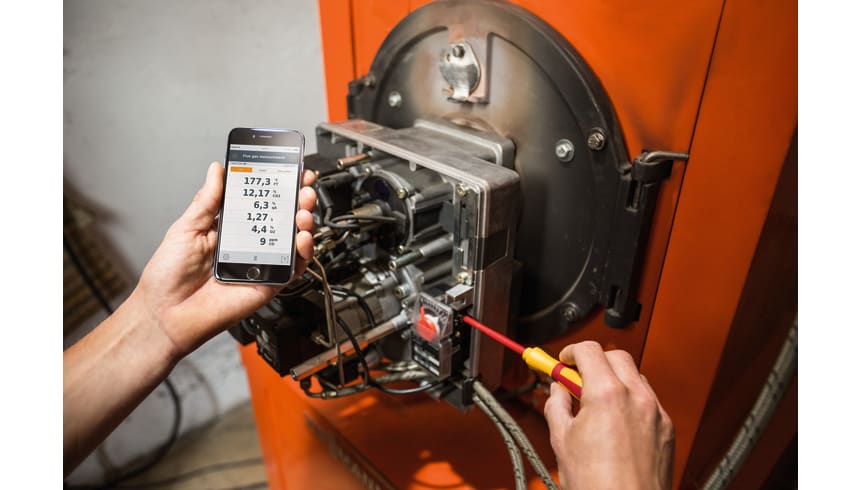

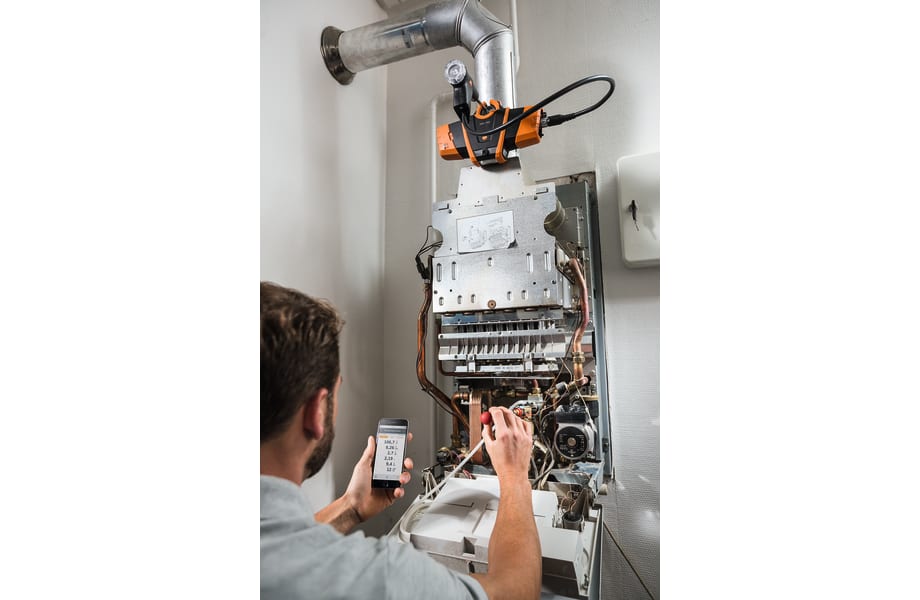

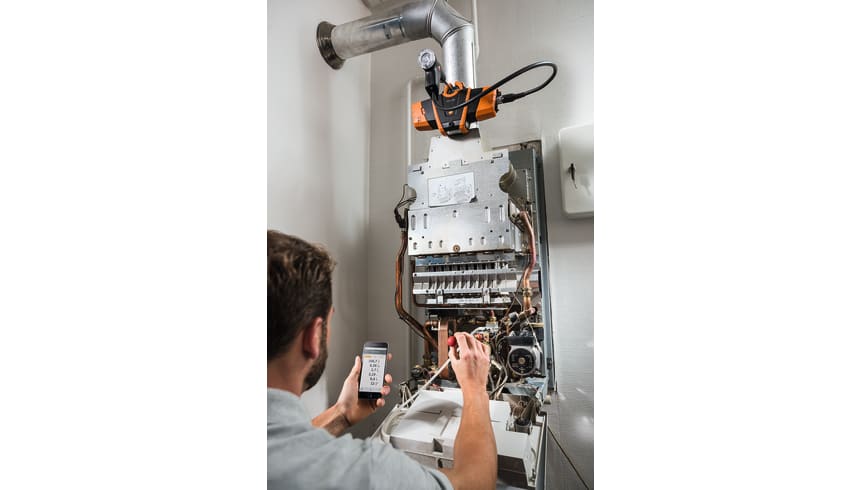

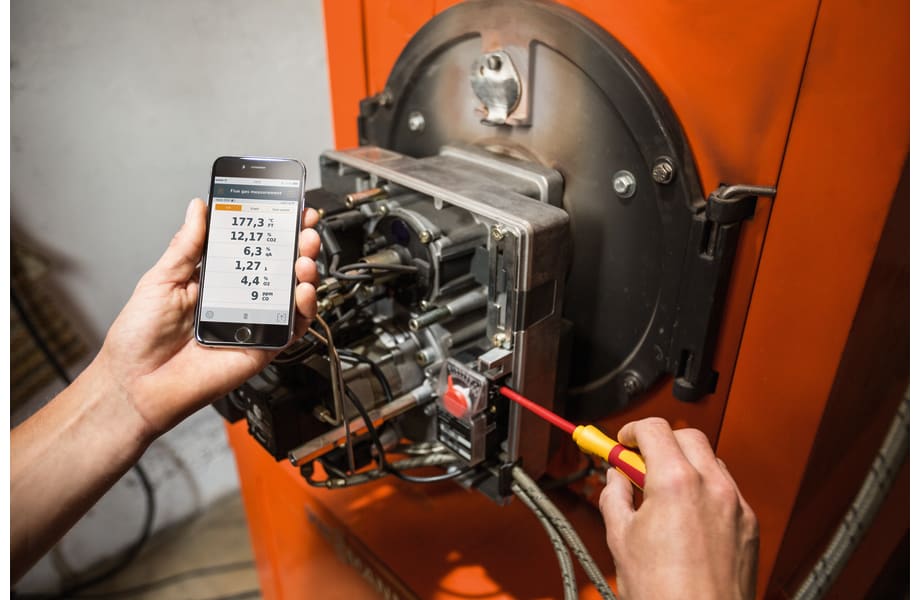

The testo 330i no longer has a display. How do you make the correct adjustments to the flue gas analyzer? Where can you view the readings? What about the creation of measurement protocols? Via the testo 330i App on your smartphone. The readings are transferred from the testo 330i flue gas analyzer to the App via Bluetooth. So you always have the relevant values to hand whenever you need them. This is particularly useful when faced with larger systems or awkward measuring points as there is no need to look around corners, which can be annoying. The measurement parameters can also be set intuitively, via the App. Once you have completed the measurement, you can add comments or photos of the system to the results on site, and send them to your customer or the office via e-mail.

Requirement: iOS 7.1 / Android 4.3 or newer. Mobile end device with Bluetooth 4.0.



産品包含

testo 330i flue gas analyzer with long-life gas sensors, 3 slots and integrated draught and gas zeroing, including O2/CO measuring cell, NO sensor, rechargeable battery and calibration protocol.
差壓

測量範圍

0 ~ 300 hPa

測量精度

±0.5 hPa (0.0 ~ +50.0 hPa)

±1 %測量值 (+50.1 ~ +100.0 hPa)

±1.5 %測量值 (其餘量程)

解析度

0.1 hPa

O₂測量

測量範圍

0 ~ 21 Vol.%

測量精度

±0.2 Vol.%

解析度

0.1 Vol.%

CO (無H₂補償),testo 320-2 LL自動稀釋

分辨力

1 ppm

測量範圍

0 ~ 15000 ppm

精度

±200 ppm 或 ±20 %測量值 (0 ~ 15000 ppm)

NO測量

測量範圍

0 ~ 3000 ppm

測量精度

±5 ppm (0 ~ 100 ppm)

±5 %測量值 (101 ~ 2000 ppm)

±10 %測量值 (2001 ~ 3000 ppm)

解析度

1 ppm

抽力測量

測量範圍

-9.99 ~ +40 hPa

測量精度

±0.02 hPa 或 ±5 %測量值 (-0.50 ~ +0.60 hPa)

±0.03 hPa (+0.61 ~ +3.00 hPa)

±1.5 %測量值 (+3.01 ~ +40.00 hPa)

解析度

0.01 hPa

溫度

測量範圍

-40 ~ +1200 °C

測量精度

±0.5 °C (0.0 ~ +100.0 °C)

±0.5 %測量值 (其餘量程)

解析度

0.1 °C (-40 ~ +999.9 °C)

1 °C (其餘量程)

dependent on the thermocouple

有效性測定

測量範圍

0 ~ 120 %

解析度

0.1 %

煙氣損失

測量範圍

0 ~ 99.9 %

解析度

0.1 %

CO₂測量(通過O2計算)

測量範圍

Display range 0 ~ CO₂ max

測量精度

±0.2 Vol.%

解析度

0.1 Vol.%

CO測量(無H₂補償)

測量範圍

0 ~ 4000 ppm

測量精度

±20 或 ±10 %測量值 (0 ~ 400 )

±5 %測量值 (401 ~ 2000 ppm)

±10 %測量值 (2001 ~ 4000 )

解析度

1 ppm

技術參數

直徑

270 x 160 x 57 mm

操作溫度

-5 ~ +45 °C

电源

Rech. batt. block 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A (optional)

系统要求

requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

最大内存

500000 readings

存放溫度

-20 ~ +50 °C

重量

720 g (excluding battery)
