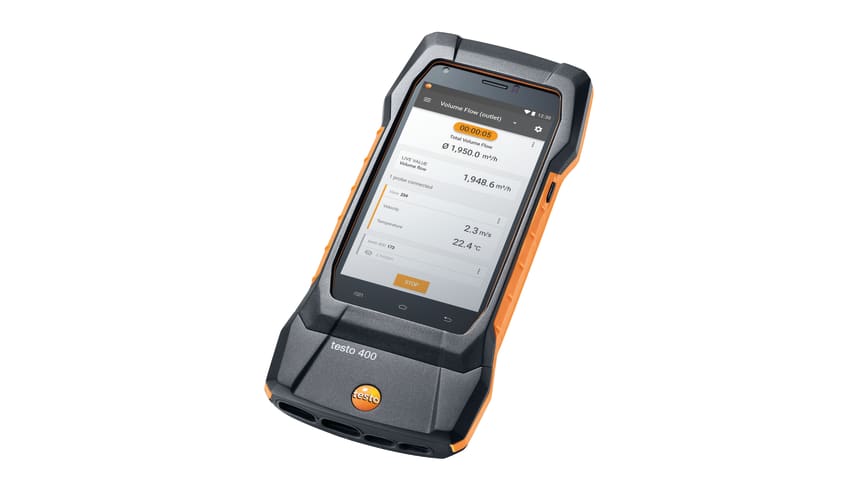

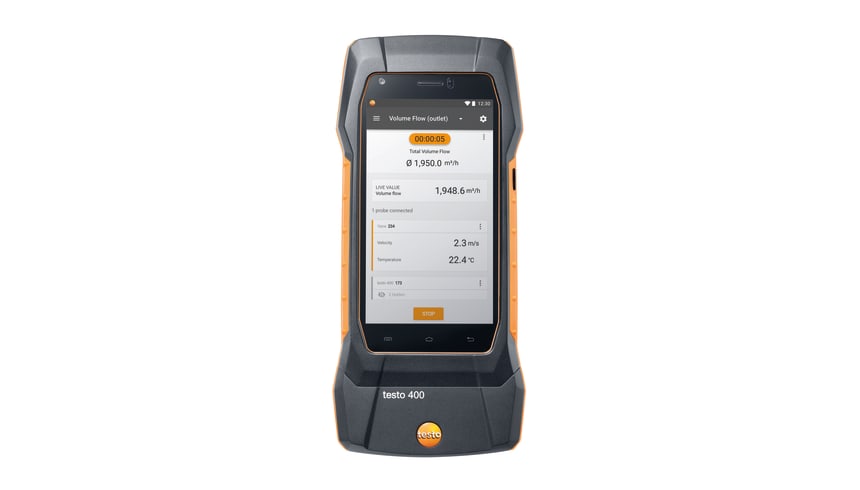

testo 400 - 智能型参比级多功能测量仪

0560 0400
  • 一台测量仪即可测量所有气候相关参数
  • 智能、直观的测量程序,包含按 N ISO 12599 和 ASHRAE 111 的空调通风测量、按 EN ISO 7730 和 ASHRAE 55 的 PMV/PPD 以及紊流度测量
  • 高精度、不受位置限制的集成式差压传感器
  • 可通过丰富的探头系列进行扩展
  • 分析软件可用于专业报告创建与测量数据管理
  • 得益于数字探头,测量仪能够避免额外的测量不确定度
  • testo 400 智能型参比级多功能测量仪, 配有专业的测量程序,适用于高要求通风空调系统,室内空气质量,舒适度评估检测。
    As an expert in the field of air conditioning and ventilation, you will find the testo 400 universal IAQ measuring instrument ideal. The IAQ measuring instrument with a built-in measurement assistant provides optimum support for carrying out air flow and comfort level measurements in accordance with the standards, as well as for adjusting and inspecting air conditioning and ventilation systems.



    testo 400 universal IAQ instrument – features

    Impressive IAQ measurement technology

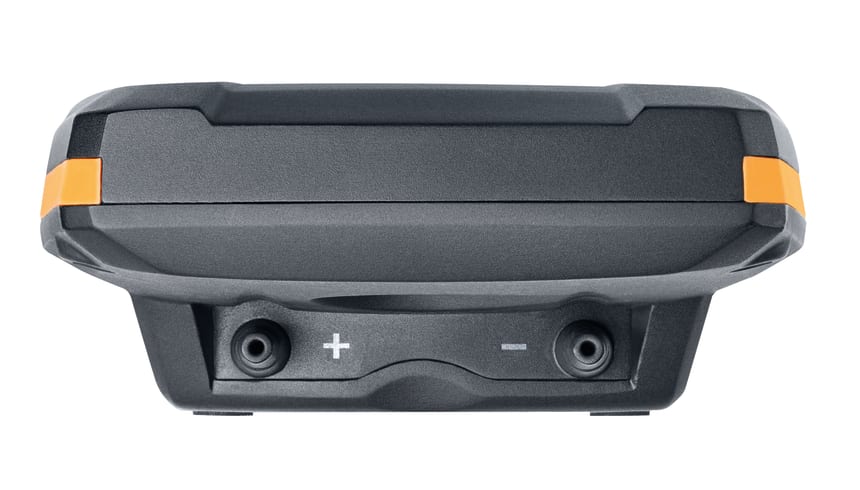

    • High-precision, location-independent, built-in differential pressure sensor
    • Integrated absolute pressure sensor
    • Measures all IAQ-related parameters: Flow velocity, temperature, humidity, pressure, illuminance, radiant heat, turbulence, CO2 and CO

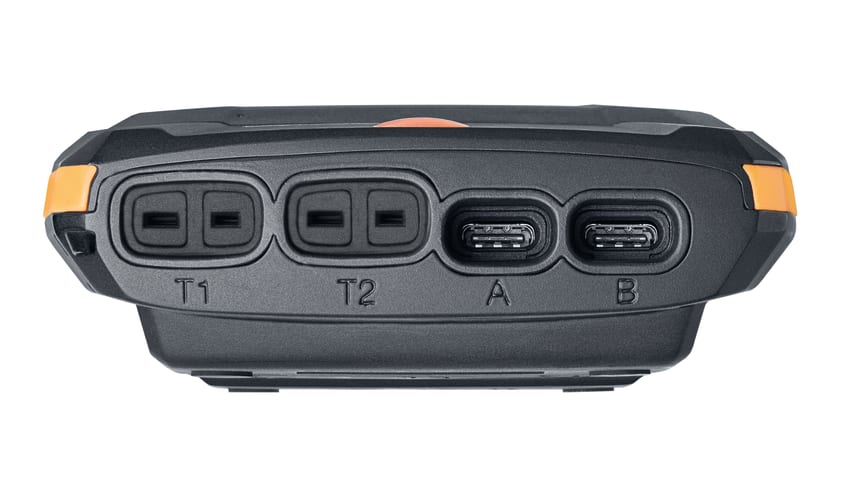

    • Numerous connection options for probes: 2 x cable probes (TUC), 4 x Bluetooth® probes, 2 x type K thermocouple probes
    • Compatible with a wide range of available Bluetooth® and cable probes – so you’ll be equipped for any measuring task
    • Compatible with the testo 420 volume flow hood: Simply connect to the testo 400 via Bluetooth, measure volume flow at larger air inlets and outlets and manage all customer and measuring site data on site using one measuring instrument
    • For high-precision measurements and less downtime: Adjustment function at up to six measuring points for zero-error display, probe heads can be replaced without restarting the IAQ measuring instrument, high-quality probes with an intelligent calibration concept (probe calibration independent of the measuring instrument)

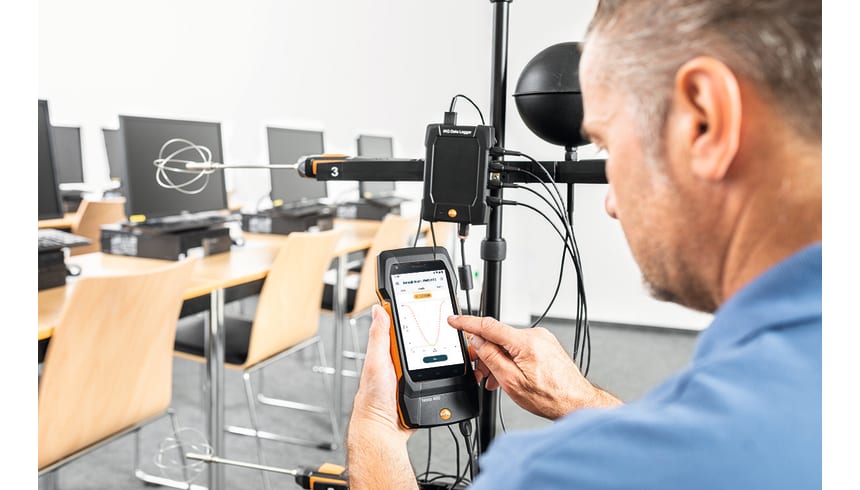

    • Long-term monitoring of the indoor air quality: Order the IAQ data logger for carrying out long-term measurements with the testo 400 IAQ measuring instrument. While the stand-alone data logger is carrying out the IAQ measurement, you can use the IAQ measuring instrument for measurements elsewhere

    Smart, intuitive, practical: Measurement programs, measurement data management and operation
    • For error-free measurements in accordance with the standards: Smart, intuitive measurement menus and evaluation of readings provide optimum support for your measuring task. Use the measurement programs for standard-compliant measurements: HVAC grid measurement as per EN ISO 12599 and ASHRAE 111, PMV/PPD as per EN ISO 7730 and ASHRAE 55, draught and turbulence as per EN ISO 7730 and ASHRAE 55, WBGT measurement as per DIN 33403 and EN ISO 7243, NET measurement as per DIN 33403
    • Complete the measurement along with full documentation including photos, comments and your own logo at the customer’s premises, and send by e-mail (via WLAN)
    • Customer and measuring point management is carried out on the measuring instrument itself – for efficient work on site.
    • Smart-touch display for intuitive operation of the IAQ measuring instrument
    • testo DataControl PC software for further analysis, archiving and documentation of measurement data on your computer
    • Built-in WLAN and Bluetooth® interfaces: Send measurement reports directly on site or print them out with a suitable printer

    testo 400主机,含通用型仪器箱,testo DataControl分析软件,硅胶连接软管,USB充电电源,出厂报告。

    NTC

    測量範圍
    -40 ~ +150 °C
    測量精度
    ±0.4 °C ±1 Digit (-40 ~ -25.1 °C)
    ±0.2 °C ±1 Digit (-25 ~ +74.9 °C)
    ±0.5 %測量值 ±1 Digit (其餘量程)
    ±0.4 °C ±1 Digit (+75 ~ +99.9 °C)
    解析度
    0.1 °C

    Type K (NiCr-Ni)

    測量範圍
    -200 ~ +1370 °C
    測量精度
    ±(0.3 °C + 0.1 %測量值) ±1 Digit
    解析度
    0.1 °C

    壓阻式壓力感測器

    測量範圍
    0 ~ +200 hPa
    測量精度
    ±(0.3 Pa + 1 %測量值) ±1 Digit (0 ~ 25 hPa)
    ±(0.1 hPa + 1.5 %測量值) ±1 Digit (25.001 ~ 200 hPa)
    解析度
    0.001 hPa

    壓力探頭

    溫度探頭

  • 溫度探頭
    testo 805i
    testo 805i 智能無線迷你紅外測溫儀用於測量牆體溫度、空調系統的保險絲和元件溫度。
      :
      0560 1805
    • 溫度探頭
      High-precision immersion/penetration probe (digital)
      高精度浸入式/刺入式探頭含Pt 100溫度傳感器,數字式;適用於液體和糊狀介質中的溫度測量,測量範圍 -80 ~ +300 °C,精度高達 ±0.05 °C
        :
        0618 0275
      • 溫度探頭
        Glass-coated laboratory probe (digital)
        这种带玻璃外罩的实验室探头(Pt100 温度传感器,数字式)适用于腐蚀性介质中的温度测量 - 测量范围 -50 ~ +400 °C
          :
          0618 7072
        • 溫度探頭
          Flexible temperature probe (digital)
          柔性溫度探頭帶有 Pt100 溫度傳感器(數字式),適用於難以靠近的位置上和液體中的溫度測量,測量範圍 -100 ~ +265 °C
            :
            0618 0071
          • 溫度探頭
            Temperature probe with Velcro and NTC temperature sensor
            带魔术贴的温度探头(NTC 温度传感器)用于测量管道的表面温度,测量范围 -50 ~ +70 °C。
              :
              0615 4611
            • 溫度探頭
              Waterproof immersion/penetration probe with NTC temperature sensor
              防水浸入/刺入探头(配有NTC温度传感器)用于在液体和半固体介质中进行温度测量,测量范围 -50 ~ +150℃,精度高达 ±0.2℃。
                :
                0615 1212
              • 溫度探頭
                Robust air probe with NTC temperature sensor
                空气探针(NTC)来测量空气温度,测量范围-50 to +125 °C,精度±0.2 °C (-25 to +80 °C)
                  :
                  0615 1712
                • 溫度探頭
                  Robuster Luftfühler, TE Typ K
                  坚固空气探头,K型热电偶,温度测量范围:-60 ~ +400 °C
                    :
                    0602 1793
                  • 溫度探頭
                    Fast-action surface probe with sprung thermocouple strip
                    快速响应表面探头K型热电偶,测量范围-60 ~+300 °C,短时间可达 +500 °C
                      :
                      0602 0393
                    • 溫度探頭
                      Fast-reaction paddle surface probe
                      反应快速的桨式表面探头(K 型热电偶)- 测量范围:- 0 至 +300 °C
                        :
                        0602 0193
                      • 溫度探頭
                        Efficient, waterproof surface probe with small measurement head
                        防水表面温度探头,带小测量尖端(K型热电偶)—测量范围:-60 °C 至 +1000 °C
                          :
                          0602 0693
                        • 溫度探頭
                          Fast-action surface probe with sprung thermocouple strip
                          弯曲型表面探头(K型热电偶),响应快,用于测量平整或不平整表面—测量范围:-60 至 +300 °C
                            :
                            0602 0993
                          • 溫度探頭
                            Magnetic probe (TC type K) - for surface temperatures
                            带磁铁的表面温度探头(K 型热电偶),附着力20N,测量范围 -50°C ~ +170°C
                              :
                              0602 4792
                            • 溫度探頭
                              Magnetfühler, Haftkraft ca. 10 N, mit Haft-Magneten
                              磁性表面溫度探頭K型熱電偶,附著力10N,測量範圍 -50 ~ +400 °C
                                :
                                0602 4892
                              • 溫度探頭
                                Waterproof surface probe with widened measurement tip
                                防水表面温度探头,测量尖端扩展(K型热电偶)用于平整表面温度测量—测量范围-60 至 +400 °C
                                  :
                                  0602 1993
                                • 溫度探頭
                                  Pipe wrap probe with velcro strip
                                  管钳式探头,带尼龙搭扣,适用于管径120 mm以内,最大耐温 +120°C,K型热电偶量程 -50 到 +120 °C
                                    :
                                    0628 0020
                                  • 溫度探頭
                                    Pipe wrap probe for pipe diameter 5 to 65 mm
                                    带弓形夹的温度探头(K 型热电偶),用于在直径为 5 至 65 mm 的管道上测量 – 测量范围 -60 ~ +130 °C,短时允许最高 +280 °C 的温度
                                      :
                                      0602 4592
                                    • 溫度探頭
                                      Clamp probe for measurements on pipes
                                      钳式探头(K 型热电偶),用于在直径为 15 至 25 mm 的管道上测量温度 – 测量范围 -50 ~ +100 °C,短时允许最高 +130 °C 的温度
                                        :
                                        0602 4692
                                      • 溫度探頭
                                        Efficient and fast-action immersion probe, waterproof
                                        靈活,快速回應的浸入式探頭(K型熱電偶),測量範圍 -60 ~ +1000°C
                                          :
                                          0602 0593
                                        • 溫度探頭
                                          Fast-action, waterproof immersion/penetration probe
                                          快速响应的浸入式/刺入式探头(K型热电偶),测量范围:-60 至 +800 °C
                                            :
                                            0602 2693
                                          • 溫度探頭
                                            Tauch-Messspitze, biegsam, TE Typ K
                                            带 K 型热电偶插头的浸入式感应尖端 - 适用于快速测量温度
                                              :
                                              0602 5792
                                            • 溫度探頭
                                              可弯曲的浸入式感应尖端(TE 型 K,3 级) - 测量范围 -200 至 +40°C
                                                :
                                                0602 5793
                                              • 溫度探頭
                                                Immersion measurement tip, flexible, for measurements in air
                                                可弯曲的浸入式测量头(TE 型 K) - 测量范围:-40 ~ +1000 °C
                                                  :
                                                  0602 5693
                                                • 溫度探頭
                                                  Waterproof immersion/penetration probe, TC Type K
                                                  防水浸入式/刺入式温度探头(K型热电偶)—测量范围:-60 至 +400 °C
                                                    :
                                                    0602 1293
                                                  • 溫度探頭
                                                    Flexible, low-mass immersion measurement tip
                                                    K型热电偶,浸入式探头,可弯曲,质量轻,适合小体积介质的测量和培养皿,或者表面测量(如用粘性胶带固定)
                                                      :
                                                      0602 0493
                                                    • 溫度探頭
                                                      Wasserdichter Lebensmittelfühler aus Edelstahl (IP65)
                                                      防水不锈钢食品探头(K 型热电偶)- 测量范围:-60 至 +400 °C
                                                        :
                                                        0602 2292
                                                      • 溫度探頭
                                                        Thermocouple with TC adapter, flexible, 800 mm long
                                                        柔性熱電偶(K 型熱電偶,玻璃絲),測量範圍 -50 °C ~ +400 °C
                                                          :
                                                          0602 0644
                                                        • 溫度探頭
                                                          Thermocouple with TC adapter, flexible, length 1500 mm
                                                          柔性热电偶(TE 型 K,玻璃丝)- 测量范围 -50 至 + +400°C
                                                            :
                                                            0602 0645
                                                          • 溫度探頭
                                                            Thermocouple with TC adapter, flexible, 1500 mm long, PTFE
                                                            柔性热电偶(TE 型 K,PTFE)- 测量范围 -50 至 + 250°C
                                                              :
                                                              0602 0646
                                                            • 溫度探頭
                                                              testo 115i
                                                              testo 115i 智能無線迷你管鉗式溫度測量儀,用於空調和製冷系統進行維修保養、故障排除以及安裝測試
                                                                :
                                                                0560 2115 02
                                                              • 溫度探頭
                                                                testo 915i
                                                                testo 915i 智慧分體式空氣溫度儀,快速回應的空氣溫度探頭(TC型K, 1級),測量範圍-50 ~ +400°C
                                                                  :
                                                                  0563 3915
                                                                • 濕度探頭

                                                                • 濕度探頭
                                                                  Humidity/temperature probe (digital) with Bluetooth®
                                                                  配有藍牙的濕度/溫度探頭(數字),精度±2% RH / ±0.5 °C,測量範圍0 ~ 100% RH / -20 ~ +70 °C;用於房間,通風管道,製冷系統和熱泵的測量
                                                                    :
                                                                    0636 9731
                                                                  • 濕度探頭
                                                                    Humidity/temperature probe (digital), wired
                                                                    濕度/溫度探頭(數字),有線;精度±2% RH / ±0.5 °C,測量範圍0 ~ 100% RH / -20 ~ +70 °C,用於在房間、通風管道、製冷系統和熱泵上進行測量
                                                                      :
                                                                      0636 9732
                                                                    • 濕度探頭
                                                                      Humidity/temperature probe head
                                                                      湿度/温度探头,测量范围0 ~ 100% RH / -20 ~ +70 °C;精度±2% RH / ±0.5 °C,用于连接到通用蓝牙或线缆手柄
                                                                        :
                                                                        0636 9730
                                                                      • 濕度探頭
                                                                        High-precision humidity/temperature probe (digital) with Bluetooth®
                                                                        高精度温湿度蓝牙探头(数字);用于洁净室和实验室,以及制药、工业和食品行业关键流程,以及储存、制冷和工作场所,或者空调/通风管道中的测量;精度:±(0.6% RH + 均值的0.7 %) (0 ~ 90% RH) / ±0.3 °C (+15 ~ +30 °C)
                                                                          :
                                                                          xxxx xxxx
                                                                        • 濕度探頭
                                                                          High-precision humidity/temperature probe (digital), wired
                                                                          高精度温湿度探头(数字),有线;用于洁净室和实验室,制药、工业和食品行业中的关键过程,以及储存、冷藏和工作场所,或者空调/通风管道中的测量,精度:±(0.6% RH + 均值的0.7 % ) (0 ~ 90% RH) / ±0.3 °C (+15 ~ +30 °C)
                                                                            :
                                                                            xxxx xxxx
                                                                          • 濕度探頭
                                                                            高精度温湿度探头;用于连接到通用蓝牙或线缆手柄 ,测量范围(0 ~ 90% RH) / ±0.3 °C (+15 ~ +30 °C),精度:±(0.6% RH + 均值的0.7 % )
                                                                              :
                                                                              0636 9770
                                                                            • 濕度探頭
                                                                              Robust humidity/temperature probe (digital) - for temperatures up to +180 °C, wired
                                                                              數字溫濕度探頭(有線)適用溫度高達+180 °C;用於工業排氣、散裝材料和環境試驗箱測量—— 精度±2% RH (2.1 ~ 98% RH) / ±0.4 °C (0.1 ~ +50 °C)
                                                                                :
                                                                                xxxx xxxx
                                                                              • 濕度探頭
                                                                                testo 605i
                                                                                testo 605i 智能無線迷你溫濕度測量儀,用於對室內和管道的溫濕度進行可靠測量。
                                                                                  :
                                                                                  0560 2605 02
                                                                                • 皮託管

                                                                                  舒適度探頭

                                                                                  風速

                                                                                • 風速
                                                                                  Hot wire probe (digital) with Bluetooth® including temperature and humidity sensor
                                                                                  热线风速蓝牙探头(数字),含温湿度模块,测量范围0 ~ +50 m/s,-20 ~ +70 °C,5 ~ 95% RH;用于在通风管道中进行测量
                                                                                    :
                                                                                    xxxx xxxx
                                                                                  • 風速
                                                                                    Hot wire probe (digital) including temperature and humidity sensor, wired
                                                                                    热线风速探头(数字)含温湿度模块,有线;测量范围0 ~ +50 m/s, -20 ~ +70 °C, 5 ~ 95% RH,用于在通风管道中进行测量
                                                                                      :
                                                                                      xxxx xxxx
                                                                                    • 風速
                                                                                      Hot wire probe head including temperature and humidity sensor
                                                                                      热线风速探头含温湿度模块,测量范围0 ~ +50 m/s, -20 ~ +70 °C, 5 ~ 95% RH;用于连接到使用通用手柄的风速探头伸缩杆
                                                                                        :
                                                                                        0635 1570
                                                                                      • 風速
                                                                                        Vane probe (Ø 16 mm, digital) with Bluetooth®, including temperature sensor
                                                                                        叶轮风速蓝牙探头(Ø 16 mm,数字),含温度模块;测量范围+0.6 ~ +50 m/s,-10 ~ +70 °C,用于在通风管道中进行测量
                                                                                          :
                                                                                          xxxx xxxx
                                                                                        • 風速
                                                                                          Vane probe (Ø 16 mm, digital) including temperature sensor, wired
                                                                                          叶轮风速探头(Ø 16 mm,数字)含温度模块,有线;测量范围+0.6 ~ +50 m/s,-10 ~ +70 °C用于通风管道中的测量
                                                                                            :
                                                                                            xxxx xxxx
                                                                                          • 風速
                                                                                            16 mm vane probe head including temperature sensor
                                                                                            16 mm叶轮风速探头含温度模块,测量范围+0.6 ~ +50 m/s, -10 ~ +70 °C;将伸缩杆连接到配有通用手柄的风速探头
                                                                                              :
                                                                                              0635 9570
                                                                                            • 風速
                                                                                              Hot wire probe (digital) including temperature sensor, wired
                                                                                              热线风速探头(数字),有线;含温度模块的,测量范围0 ~ 30 m/s,-20 ~ +70 °C,用于通风管道中的测量
                                                                                                :
                                                                                                0635 1032
                                                                                              • 風速
                                                                                                Vane probe (Ø 16 mm, digital) wired
                                                                                                叶轮风速探头(Ø 16 mm,数字)有线,测量范围+0.6 ~ +50 m/s;用于在通风管道中进行测量
                                                                                                  :
                                                                                                  0635 9532
                                                                                                • 風速
                                                                                                  High-precision vane probe (Ø 100 mm, digital) with Bluetooth® including temperature sensor

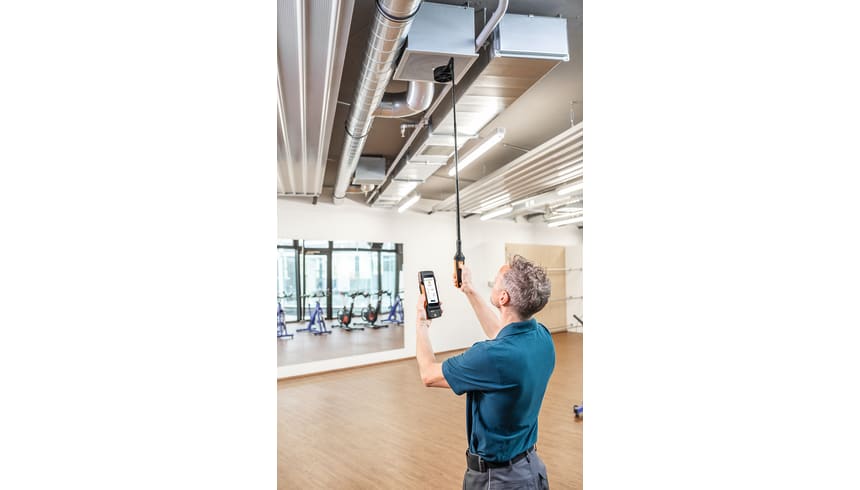

                                                                                                  配有蓝牙的高精度叶轮风速探头(Ø 100 mm,数字),含温度模块;用于在洁净室的天花板出风口进行测量;测量范围+0.1 ~ +15 m/s, -20 ~ +70 °C
                                                                                                    :
                                                                                                    xxxx xxxx
                                                                                                  • 風速
                                                                                                    High-precision vane probe (Ø 100 mm, digital) including temperature sensor, wired
                                                                                                    高精度叶轮风速探头(Ø 100 mm,数字),含温度模块,有线;用于在洁净室的空气出口,以及在天花板出风口、通风格栅或旋流出口进行测量;测量范围+0.1 ~ +15 m/s, -20 ~ +70 °C
                                                                                                      :
                                                                                                      0635 9372
                                                                                                    • 風速
                                                                                                      Vane probe (Ø 100 mm, digital) with Bluetooth® including temperature sensor
                                                                                                      叶轮风速蓝牙探头(Ø 100 mm,数字),含温度模块,测量范围+0.3 ~ +35 m/s,-20 ~ +70 °C;用于在天棚/空气出口以及在天花板出风口、通风格栅或旋流出口进行测量
                                                                                                        :
                                                                                                        0635 9431
                                                                                                      • 風速
                                                                                                        testo 405i German Design Award
                                                                                                        testo 405i 智能無線迷你熱線式風速測量儀,測量空氣流速、溫度以及體積流量
                                                                                                          :
                                                                                                          0560 1405
                                                                                                        • 風速
                                                                                                          Smart Probes VAC Set
                                                                                                          testo 410i 智能无线迷你叶轮式风速测量仪,测量出口和通风格栅的空气流速和温度
                                                                                                            :
                                                                                                            0560 1410
                                                                                                          • 風速
                                                                                                            Thermische Strömungssonde (Hitzdraht) ~ 7,5 mm
                                                                                                            數位式熱線探頭(Ø7.5mm),集成溫度感測器,有線;測量範圍0 ~ +20 m/s,適用於帶有小檢測孔的通風管道
                                                                                                              :
                                                                                                              0635 1026
                                                                                                            • 風速
                                                                                                              testo 420
                                                                                                              testo 420 風量罩,內置氣流轉換柵可有效降低渦流,均勻氣流,實現風量在 80〜3,500m3/h 之間精確測量。
                                                                                                                :
                                                                                                                0563 4200
                                                                                                              • 食品探頭


                                                                                                                适用于空调和通风设备设施

                                                                                                                • 高精度、不受位置限制的集成式差压传感器,用于按标准进行环境测量的智能且直观的测量程序,可现场创建文件,通过邮件发送记录报告,可与环境探头灵活组合
                                                                                                                application  testo 400 Universal IAQ instrument

                                                                                                                适用于高要求通风空调系统,室内空气质量,舒适度评估检测

                                                                                                                根据测量需求配置仪器即可满足您的应用

                                                                                                                请根据测量需求选择正确的探头及附件:
                                                                                                                • 通风系统测量:内置根据 EN ISO 12599和 ASHRAE 111 设置测量程序进行通风管道,风口及过滤器的风速风量测量
                                                                                                                • 舒适度评估:根据 EN ISO 7730和 ASHRAE 55 设置测量程序进行紊流度 测量, 根据DIN 33403 设置测量程序进行NET测量, 根据EN ISO 7730和ASHRAE 55设置测量程序进行PMV/PPD测量,根据DIN 33403 和 EN ISO 7243设置测量程序进行WBGT测量

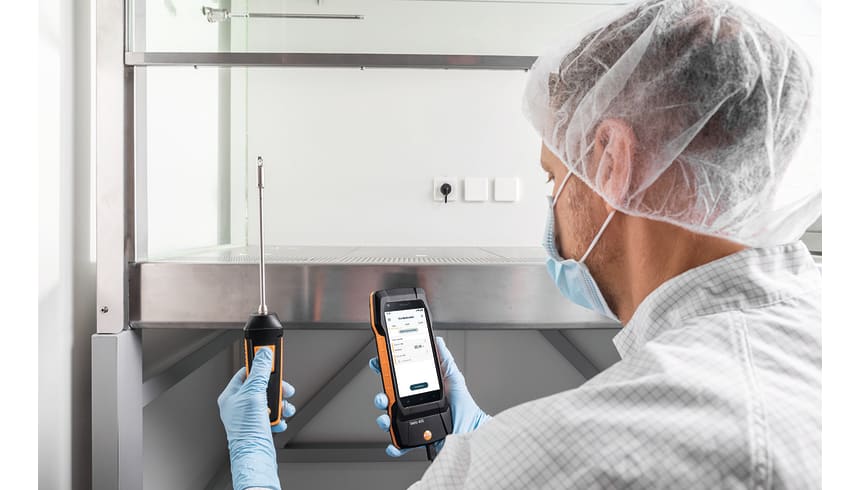

                                                                                                                • 高标准洁净室及实验室应用: 高洁净通风橱柜的风速检测,压差测量以及洁净室的层流风速,温湿度检测
