    testo 300 Longlife - Flue gas analyzer (O2, CO H2-compensated up to 30,000 ppm, NO - can be retrofitted)

    0633 3004 88
  1. Intuitive measurement menus and the fast-response Smart-Touch display ensure easy operation – as on your smartphone
  2. Including O2, CO H2-compensated sensor up to 30,000 ppm (NO sensor - can be retrofitted)
  3. High-quality sensor technology with up to 6 years' service life
  4. Create documentation directly on site and e-mailing of reports
  5. The testo 300 flue gas analyzer with Longlife sensors is ideal for heating engineers who carry out installation and maintenance work on heating systems several times a day. It combines decades of experience in measuring technology with contemporary smart-touch operation, robust construction and e-mailing of reports. The testo 300 enables easy measurement of flue gas, draught, pressure, ambient CO and differential temperature – you can also retrofit an NO sensor.

    Truly smart flue gas measurement on heating systems with the testo 300 flue gas analyzer. High-quality sensors, intuitive operation with smart-touch technology and smart features, such as efficient documentation and e-mailing of reports, will make your day-to-day work easier.

    testo 300 Longlife flue gas analyzer with smart-touch operation – Features

    Impressive measuring technology and quality

    • O2 sensor and H2-compensated CO sensor up to 30,000 ppm thanks to integrated fresh air dilution
    • NO sensor - can be retrofitted
    • Longer sensor service life thanks to automatic sensor protection
    • Integrated draught and gas zeroing without removing the probe – the flue gas probe can remain in the flue during zeroing
    • For intensive daily use: high-quality Longlife sensors for O2 and CO with a service life of up to 6 years. That means at least one sensor replacement is saved in the course of a normal working life
    • TÜV-tested according to first German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1-3
    • Integrated fine pressure and 4 Pa measurement for legally prescribed measurements
    • Manufacturer's warranty of up to 5 years on O2 and CO sensor with product registration – without a maintenance contract

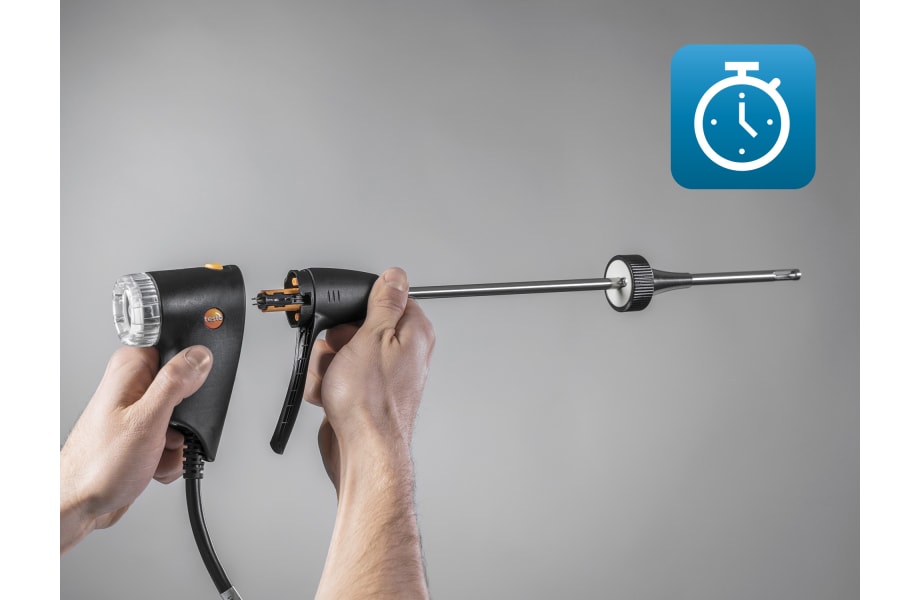

    • Versatile probes and fast probe changes: take advantage of quick-change probes and the multi-functional handle for attaching a variety of probe shafts (each available to order separately). You can for instance use longer probe shafts for flue gas pipes with larger diameters or flexible probes for difficult-to-access measuring points
    • Optionally available probes and accessories for further measuring tasks, such as gas flow pressure measurement, gas pipe testing, differential temperature measurement and ambient CO measurement


    Smart, intuitive, efficient: easy operation in day-to-day work

    • Smart-touch display for intuitive operation of the flue gas analyzer: the display responds without delay – just as easy as on your smartphone

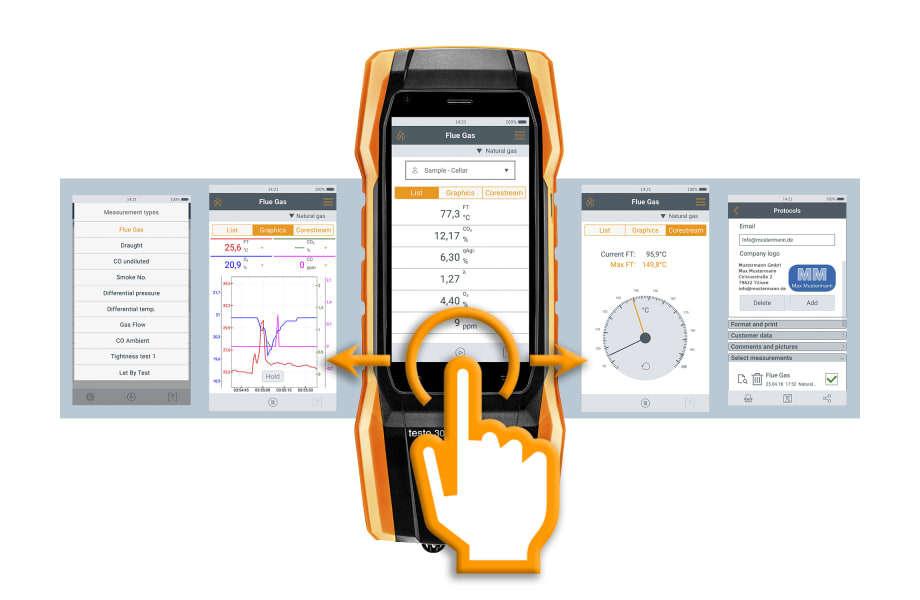

    • Get the measurement result faster: clearly structured measurement menus for all relevant measurements
    • Create documentation (including measuring value, measuring location, customer data) easily on site
    • Save PDF measurement reports directly in the instrument and always have them available
    • Signature function: your customer can sign measurement reports directly on the instrument
    • E-mail measurement reports directly to the office or to customers via WLAN (hotspot)
    • Large 5-inch HD display – enables you to see all the system's parameters immediately
    • Testo interface function for direct data transfer of measuring values to industry/customer-specific software*
    • Ready to use straight away: in standby mode, the testo 300 is ready to measure at the touch of a button. Use it straight away with the next customer – because you no longer need to wait for the end of the zeroing phase

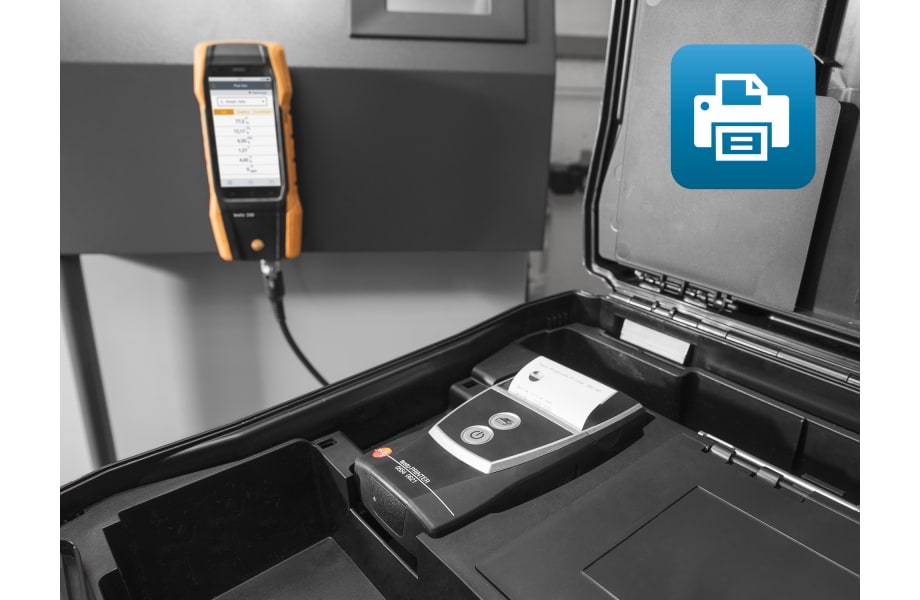

    • Integrated Bluetooth® interface: immediate printout of the measuring values on site with the appropriate printer


    *Note: the manufacturer has to integrate an interface into the industry software to use the function



    Other advantages

    • 10-hour rechargeable battery life: an average measurement period of 2 hours means the flue gas analyzer is capable of being used for one week
    • Integrated, extra-strong magnets for easy fixing during the measuring process

    testo 300 Longlife flue gas analyzer with O2 and CO H2-compensated sensor up to 30,000 ppm, NO sensor - can be retrofitted, USB mains unit, testo Bluetooth Connector.

    Temperature - TC Type K (NiCr-Ni)

    Measuring range
    -40 to +1200 °C
    Accuracy
    ±0.5 % of mv (Remaining Range)
    ±0.5 °C (0.0 to +100.0 °C)
    Resolution
    1 °C (Remaining Range)
    0.1 °C (-40 to +999.9 °C)

    Differential Pressure - Piezoresistive

    Measuring range
    -100 to +200 hPa
    Accuracy
    ±1 % of mv (+50.1 to +100.0 hPa)
    ±0.5 hPa (0 to +50.0 hPa)
    ±1.5 % of mv (+100.1 to +200 hPa)
    Resolution
    0.01 hPa

    Flue gas O₂

    Measuring range
    0 to 21 Vol.%
    Accuracy
    ±0.2 Vol.%
    Resolution
    0.1 Vol.%

    CO probes

    Flue gas probes

    Further probes

    Temperature probes

    Flue gas measurement on heating systems

    Ideal for measurements involving heating systems:
    • high-quality Longlife sensors with a service life of up to 6 years, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing
    Further areas of application:
    • gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*, integrated 4 Pa measurement for combustion equipment
    * Please note: additional probes or accessories are required for these measurements and have to be ordered separately.

    Application testo 300

    • The Testo ZIV driver is used to connect the testo 300, testo 320 and testo 330 measuring instruments to an application program (sweeping district administration program) according to the interface defined by the Zentralverband des Schornsteinfegerhandwerks (ZIV, Central Association of Chimney Sweeps) in version 1.0 of 01. August 2012, in version 2.0 of 13. February 2017 as well as version 3.0 from 02. July 2021. Please check with the manufacturer of your application program as to whether this interface is supported.
    • Firmware / App testo 300(v1.10.8125, BTG 0.3.8, App 12.7.22.17649, 43.94 MB)
    • USB driver for the following devices with USB port: * USB Interface testo 174 / 177 - T + H * testo 300 / 320 / 330 / 330i / 335 / 340 / 350 * testo 435 * testo 556 / 560 / 570 / 580 * testo 635 * testo 735 * testo 845
