testo 340 - Flue Gas Analyser (NO/NO2 Kit)

Order-Nr.  0563 9350

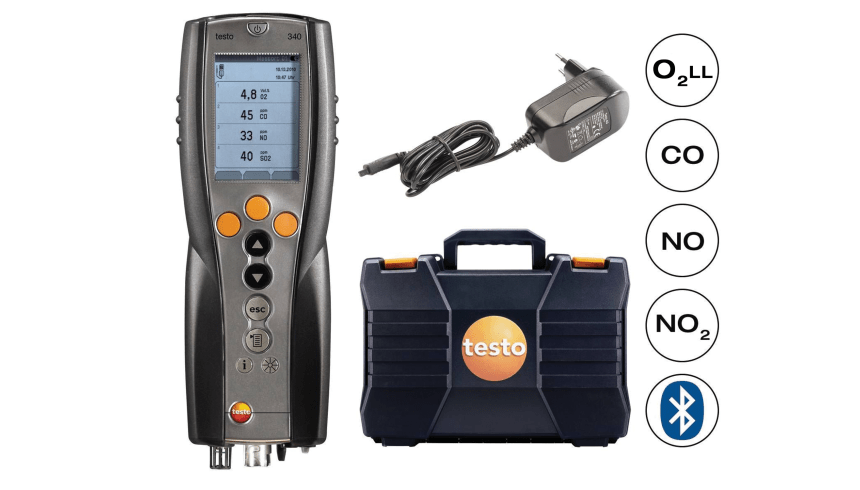

  • Testo 340 NO2 NOx Kit Image.jpg
  • testo 340
  • testo 340
  • testo 340
  • testo 340
  • testo 340
  • testo 340
  • testo 340
  • testo 340
This meter uses a sensor to start up. Click here for probe selection.
£ 3,150.00
incl. VAT £ 3,780.00
Where to buy
Delivery costs
Delivery time: 3 – 5 working days
+44 1420 358122
Inquiry

  • Flue gas analysis with up to 4 gas sensors - freely configurable with sensor change on site by the user

  • This 'NO / NO2' kit includes sensors for O2, CO, NO, and NO2 allowing the instrument to give true measured total NOx values

  • Can measure CO, COlow, NO, NOlow, NO2 or SO2

  • Industrial use design

  • Measuring range extension even with high gas concentrations

  • Measurement data management on PC or notebook

Emission checks in industry: Professional technology meets practical design. The testo 340 combustion analyser is an easy-to-use combustion gas analyser designed for commercial and industrial applications that can be fitted with up to four different gas sensors.  This 'NO / NO2' kit includes sensors for O2, CO, NO, and NO2 allowing the instrument to give true measured total NOx values.

Details

Product Description

Emission checks in industry: Professional technology meets practical design. The testo 340 combustion analyser is an easy-to-use combustion gas analyser designed for commercial and industrial applications that can be fitted with up to four different gas sensors.  This 'NO / NO2' kit includes sensors for O2, CO, NO, and NO2 allowing the instrument to give true measured total NOx values. Other features include :
  • Extended measuring range for use in environments with high gas concentrations
  • Precalibrated gas sensors for quick and easy sensor change

(*note - kit does not include sampling probe - to be selected dependant on application)

Delivery Scope

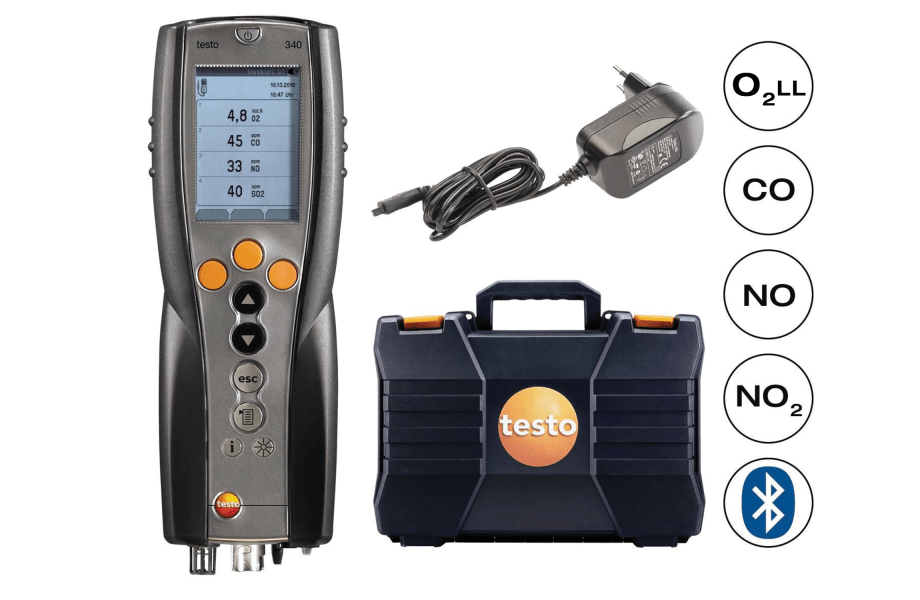

testo 340 flue gas analyser, calibration certificate, shoulder strap, O2, CO, NO, NO2 sensors fitted, AC power supply.

Technical Data

Differential Pressure - Piezoresistive

Measuring range

-200 to 200 hPa

Accuracy

±0.5 hPa (-49.9 to 49.9 hPa)

±1.5 % of mv (Remaining Range)

Resolution

0.1 hPa

Absolute Pressure

Measuring range

+600 to +1150 hPa

Accuracy

±10 hPa

Resolution

1 hPa
Flue gas O₂

Measuring range

0 to 25 Vol.%

Accuracy

±0.2 Vol.%

Resolution

0.01 Vol.%

Reaction time t₉₀

< 20 s
Flue gas CO (with H₂-compensation)

Measuring range

0 to 10000 ppm

Accuracy

±10 ppm or ±10 % of mv (0 to 200 ppm)

±20 ppm or ±5 % of mv (201 to 2000 ppm)

±10 % of mv (2001 to 10000 ppm)

Resolution

1 ppm

Reaction time t₉₀

< 40 s
Flue gas COlow (with H₂-compensation)

Measuring range

0 to 500 ppm

Accuracy

±2 ppm (0 to 39.9 ppm)

±5 % of mv (Remaining Range) data corresponds to 20°C ambient temperature. Additional temperature coefficient 0.25% of reading/K.

Resolution

0.1 ppm

Reaction time t₉₀

< 40 s

Flue gas NO

Measuring range

0 to 4000 ppm

Accuracy

±5 ppm (0 to 99 ppm)

±5 % of mv (100 to 1999 ppm)

±10 % of mv (2000 to 4000 ppm)

Resolution

1 ppm

Reaction time t₉₀

< 30 s
Flue gas Nolow

Measuring range

0 to 300 ppm

Accuracy

±2 ppm (0 to 39.9 ppm)

±5 % of mv (Remaining Range)

Resolution

0.1 ppm

Reaction time t₉₀

< 30 s
Flue gas NO₂

Measuring range

0 to 500 ppm

Accuracy

±10 ppm (0 to 199 ppm)

±5 % of mv (Remaining Range)

Resolution

0.1 ppm

Reaction time t₉₀

< 40 s

To avoid absorption, a maximum measurement duration of 2 hours should not be exceeded.

Flue gas SO₂

Measuring range

0 to 5000 ppm

Accuracy

±10 ppm (0 to 99 ppm)

±10 % of mv (Remaining Range)

Resolution

1 ppm

Reaction time t₉₀

< 40 s

To avoid absorption, a maximum measurement duration of 2 hours should not be exceeded.

Differential Pressure flue gas Draught - Piezoresistive

Measuring range

-40 to +40 hPa

Accuracy

±0.03 hPa (-2.99 to +2.99 hPa)

±1.5 % of mv (Remaining Range)

Resolution

0.01 hPa
Temperature

Measuring range

-40 to +1200 °C

Accuracy

±0.5 °C (0 to +99 °C)

±0.5 % of mv (Remaining Range)

Resolution

0.1 °C
Flue gas degree of effectivity, Eta (calculated)

Measuring range

0 to 120 %

Resolution

0.1 %
Flue gas loss (calculated)

Measuring range

0 to 99.9 %

Resolution

0.1 %
Flue gas dewpoint (calculated)

Measuring range

0 to 99.9 °Ctd

Resolution

0.1 °Ctd
Flue gas CO₂ calculation (calculated from O₂)

Measuring range

0 to CO₂ max

Accuracy

±0.2 Vol.%

Resolution

0.1 Vol.%

Reaction time t₉₀

< 40 s
General technical data

Weight

960 g

Dimensions

283 x 103 x 65 mm

Operating temperature

-5 to +50 °C

Product-/housing material

TPE PC

Protection class

IP40

Connectable probes

1 x flue gas probe; 1 x temperature probe; 1 x differential pressure

Product colour

Black

Battery life

> 6h (Pumpe an, Displaybeleuchtung aus, bei 20°C)

Display type

graphic Display

Display size

160 x 240 pixels

Display function

Graphic display

Power supply

Battery block 3.7 V / 2.4 Ah, Mains unit 6.3 V / 2 A

User defined fuels

10 user-defined fuels incl. test gas as fuel

Pump flow

0.6 l/min (regulated)

Hose length

max. 7.8 m (corresponds to two probe hose extensions)

Max. pos. press./flue gas

50 mbar

Max. neg. press./flue gas

-200 mbar

Maximum memory

100 folders

Storage per folder

Max. 10 sites

Storage per site

Max. 200 logs

Miscellaneous

The max. number of logs is determined by the number of folders or sites

Interface

Bluetooth®; USB; IR/IRDA interface; gas outlet; Mains connection; probe input/ probe inputs; Differential Pressure

Storage temperature

-20 to +50 °C

Probes

Flue gas probes

Cross-Seller 0600-7610
The industrial probe set 1 200 °C enables the extractive sampling of flue gas analysed at high flue gas temperatures (up to 1 200 °C) or for applications involving large flue gas pipe diameters.

Order Number: 0600 7610

£ 1,225.00
incl. VAT  £ 1,470.00

Pitot tubes

Cross-Seller Staurohr
Stainless steel Pitot tube, length 350 mm, Ø 7 mm - for measuring flow velocity

Order Number: 0635 2145

£ 135.00
incl. VAT  £ 162.00
Cross-Seller Staurohr
Stainless steel Pitot tube, length 1000 mm, Ø 7 mm - for measuring flow velocity

Order Number: 0635 2345

£ 399.00
incl. VAT  £ 478.80

Temperature probes

Cross-Seller Combustion air temperatur probe
Combustion air temperature probe, immersion depth 60 mm

Order Number: 0600 9797

£ 105.00
incl. VAT  £ 126.00

Accessories

Accessories

Cross-Seller Hose extension
Hose extension - probe-instrument extension hose (length 2.8 m)

Order Number: 0554 1202

£ 189.00
incl. VAT  £ 226.80
Cross-Seller testo-Schnelldrucker IRDA mit kabelloser Infrarot-Schnittstelle
testo fast printer IRDA

Order Number: 0554 0549

£ 205.00
incl. VAT  £ 246.00
Cross-Seller Mains unit international
International mains unit

Order Number: 0554 1096

£ 51.00
incl. VAT  £ 61.20
Cross-Seller testo easyEmission software
testo easyEmission software

Order Number: 0554 3334

£ 250.00
incl. VAT  £ 300.00
Cross-Seller Battery charging station
Battery-charging station, desktop charging station for optimizing the charge time

Order Number: 0554 1103

Applications

Analysis of the gas atmosphere (thermal processes)

Flue gas analysis is used for thermal manufacturing processes, from ongoing emission control, via setting and optimisation of combustion systems, through to process monitoring. Flue gas analysis instruments serve to optimise operations and save fuel. At the same time, flue gas measurement enables checking and monitoring of flue gas emission limit values laid down by the authorities, along with functional testing of permanently installed emission instruments. Flue gas analysis instruments are increasingly used for monitoring process and product quality.

Advantages of the testo 340

Ideal for measurements at high concentrations

  • When recording extremely high concentrations, the measuring range extension is automatically activated. This enables continuation of the measurement. The gas sensor is not subjected to any higher stress than it is at low gas concentrations. This ensures the sensor has the longest possible service life.

testo 340

Service measurement on industrial engines

Flue gas analysis instruments are one of the items of equipment that are used on a daily basis by service engineers to achieve optimum tuning of engines. Flue gas measurement is used on industrial engines when they are commissioned, at regular maintenance intervals or for troubleshooting when they are running in an unstable way. The background to flue gas measurement is tuning the engine to the optimum operating parameters while complying with the limit value regulations in force. Maintenance work that is carried out regularly makes an important contribution to avoiding downtimes over the long term, to ensuring the quality of the system and thus a high level of efficiency and to having a significant influence on emission levels.

Advantages of the testo 340
Separate NO and NO2 measurement

  • The real NOx value is measured with the NO and NO2 sensor combination. In gas engines, the NO2 component of the NOx value can fluctuate greatly, so the separate measurement of each of the gases is necessary for correct NOx values.

Measurements even at high CO concentrations

  • At unexpectedly high concentrations (up to 50,000 ppm), the automatic dilution of the sensor with fresh air allows measurements even when the engine conditions are not defined, without negatively affecting the service life of the sensor.

Special flue gas probes for industrial engines as an accessory

  • These probes are highly heat-resistant and specially designed to compensate for different pressure conditions, e. g. for measurements before and after the catalytic converter.

Engine-specific parameters

  • The most important parameters for industrial engines such as O2, CO, NO, NO2, NOx and Lambda can be displayed simultaneously.

testo 340

Service measurement on industrial burners

The testo 340 flue gas analysis instrument offers service engineers a vast range of technical functions. In addition to compliance with environmental regulations, it can also be used to check correct functioning and to optimise burner efficiency. Flue gas measurement is used on industrial burners for safe and efficient commissioning, at regular maintenance intervals or for troubleshooting when they are running in an unstable way.

Advantages of the testo 340
Time saving through helpful instrument pre-settings

  • Typical fuels, a sensible sequence of flue gas parameters in the display and useful instrument settings are preset for each application. Tips on the display take the user through the measurement (no prior knowledge specific to the instrument needed). The testo 340 is ready for operation within just a few minutes.

Unrestricted measuring at high concentrations

  • When commissioning burners or carrying out measurements on unfamiliar systems, very high concentrations can occur unexpectedly. The measuring range extension is automatically activated in such cases.

Always ready for use – even in tough day-to-day work

  • The robust housing protects the measuring instrument from knocks.

testo 340
