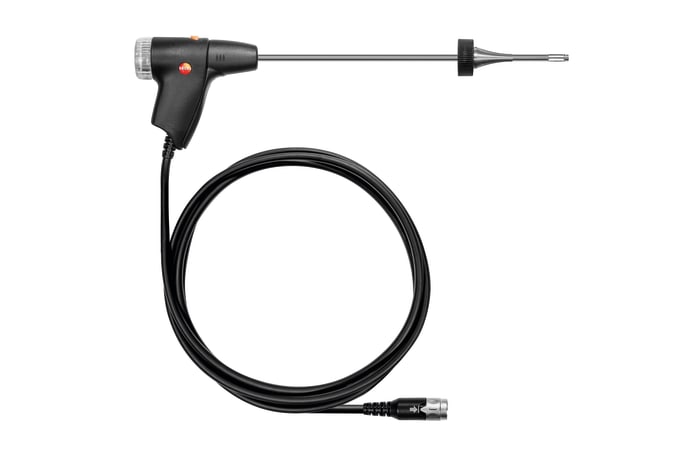

12" flue gas probe, 1/4" diameter, Tmax = 932 °F, with hose

Order-Nr.  0600 9763

  • Easy probe shaft replacement via quick-change click system

  • Flue gas path and temperature channel can be connected to the instrument via a bayonet lock

  • Integrated dirt filter protects instrument and sensors

  • Integrated thermocouple probe for temperature measurements up to 932 °F

This 12" modular flue gas probe has a 1/4" diameter, Tmax = 932 °F, and 7.2' hose.

Product Description

This TÜV-tested modular flue gas probe with a 12" long probe shaft features a quick-change click system on the handle, which enables easy replacement of the probe shaft.  The thermocouple is NiCr-Ni, which is integrated in the probe shaft, enabling temperature measurements up to 932 °F.  The flue gas path and temperature channel can be conveniently connected to the measuring instrument via a practical bayonet lock.  In addition, a dirt filter protects the instrument and its sensors from contamination.



Delivery Scope

12" modular flue gas probe, including dirt filter, cone for attachment, NiCr-Ni thermocouple with Tmax = 932 °F, and 7.2' hose
General technical data

Length probe shaft

11.8 in. / 300 mm

Cable length

7.2 ft. / 2.2 m

Diameter

0.2 in. / 6 mm

Temperature maximum

932 °F / 500 °C

Accessories

Particle filters - pack of 10

Order Number: 0554 3385
