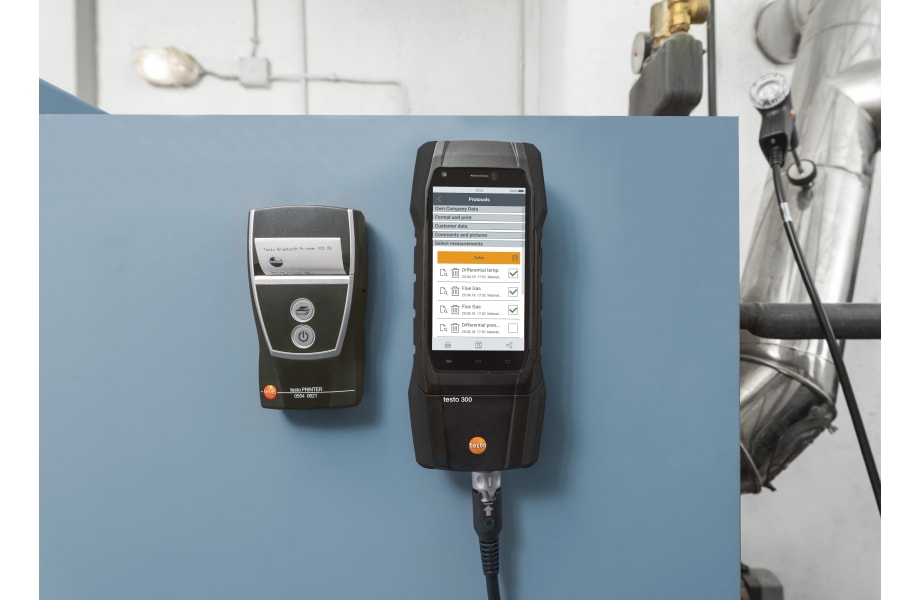

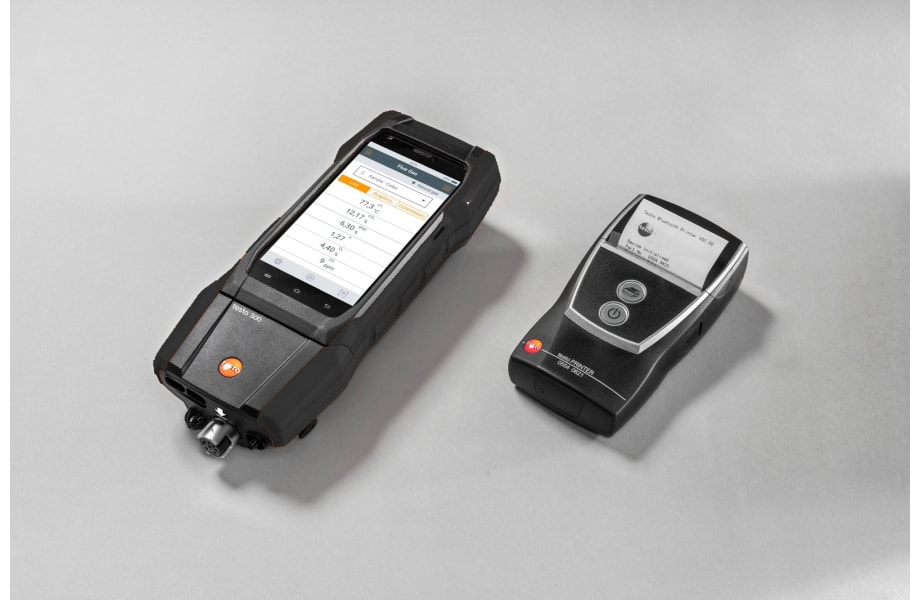

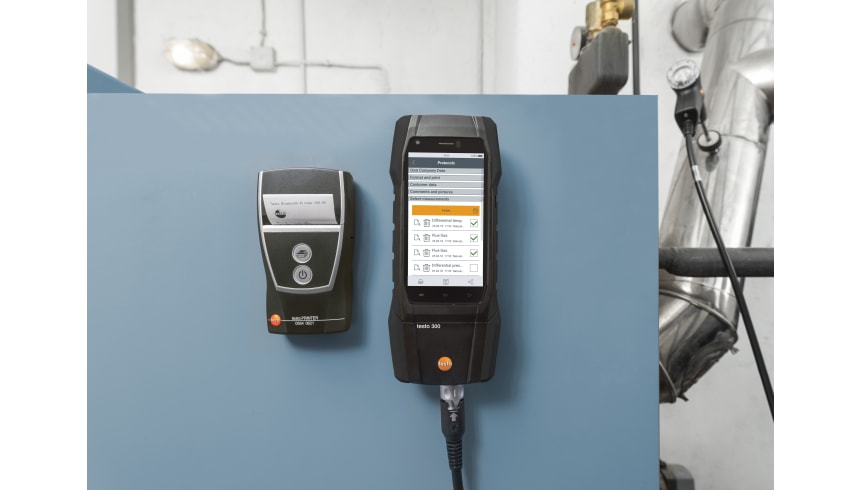

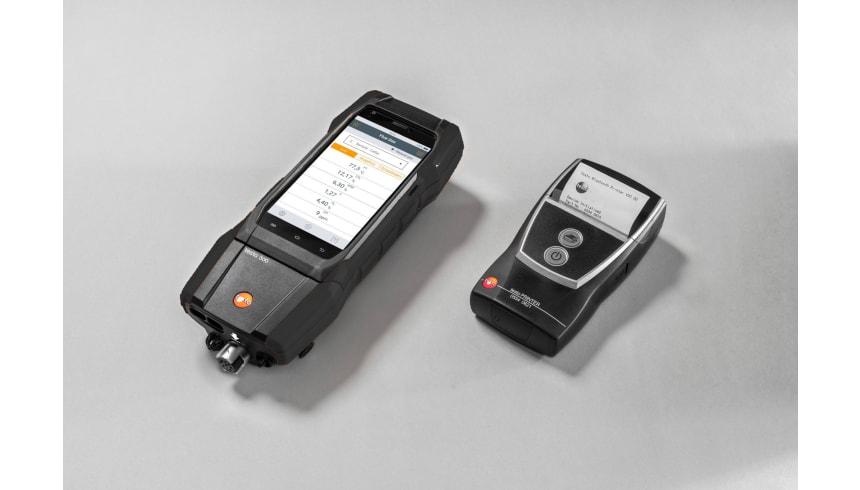

Next-Gen testo 300 - Smoke Edition Combustion Analyzer Kit with Printer and testo Bluetooth® Connector (w/ O2 and CO 0-4,000)

Order-Nr. 0564 3002 83

Where to buy

Intuitive measurement menus and fast-response Smart-Touch display
Includes O₂ and CO Sensor (CO Sensor range 0-4,000ppm), Bluetooth Printer, Printer Paper
In the kit: testo 300 flue gas analyzer, including O₂ and CO sensor up to 4,000 ppm, mains unit, basic flue gas probe, spare dirt filters, testo Bluetooth® printer, spare thermal paper, EasyHeat software, instrument case
Integrated micro-pressure measurement
Documentation on site and reports sent by e-mail
Versatile probes and fast probe changes by the user

Details

Product Description

With this kit, you will be equipped for the most important measurements involving heating systems: the Next-Gen testo 300 combustion analyzer is supplied with O2 and CO sensor (CO range up to 4,000 ppm), combustion probe, testo Bluetooth® Connector, instrument case, printer, and practical accessories.

More information

Impressive measuring technology and quality

O2 sensor and CO sensor up to 4,000 ppm
testo Bluetooth® Connector (0554 3004)
Longer sensor service life thanks to automatic sensor protection
Integrated fine pressure
Versatile probes and fast probe changes: take advantage of quick-change probes and the multi-functional handle for attaching a variety of probe shafts (each available to order separately). You can for instance use longer probe shafts for flue gas pipes with larger diameters or flexible probes for difficult-to-access measuring points
Optionally available probes and accessories for further measuring tasks, such as gas flow pressure measurement, gas pipe testing, differential temperature measurement and ambient CO measurement

Smart, intuitive, efficient: easy operation in day-to-day work

Smart-touch display for intuitive operation of the combustion analyzer: the display responds without delay – just as easy as on your smartphone
Get the measurement result faster: clearly structured measurement menus for all relevant measurements
Create documentation (including measuring value, measuring location, customer data) easily on site
Save PDF measurement reports directly in the instrument and always have them available
Signature function: your customer can sign measurement reports directly on the instrument
E-mail measurement reports directly to the office or to customers via WiFi (hotspot)
Large 5-inch HD display – enables you to see all the system's parameters immediately
Testo interface function for direct data transfer of measuring values to industry/customer-specific software*
Ready to use right away: in standby mode, the Next-Gen testo 300 is ready to measure at the touch of a button. Use it right away with the next customer – because you no longer need to wait for the end of the zeroing phase
Integrated Bluetooth® interface: immediate printout of the measuring values on site with the appropriate printer

*Note: the manufacturer has to integrate an interface into the industry software to use the function

Other advantages

10-hour rechargeable battery life: an average measurement period of 2 hours means the combustion analyzer is capable of being used for one week on a full charge
Integrated, extra-strong magnets for easy fixing during the measuring process

Details on kit components

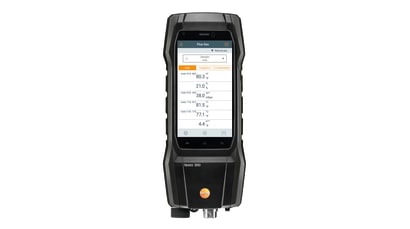

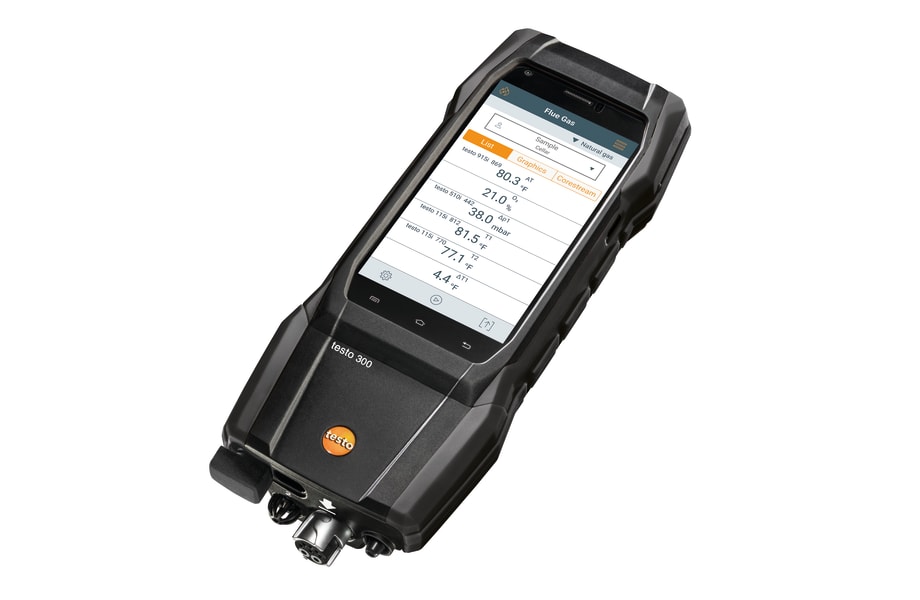

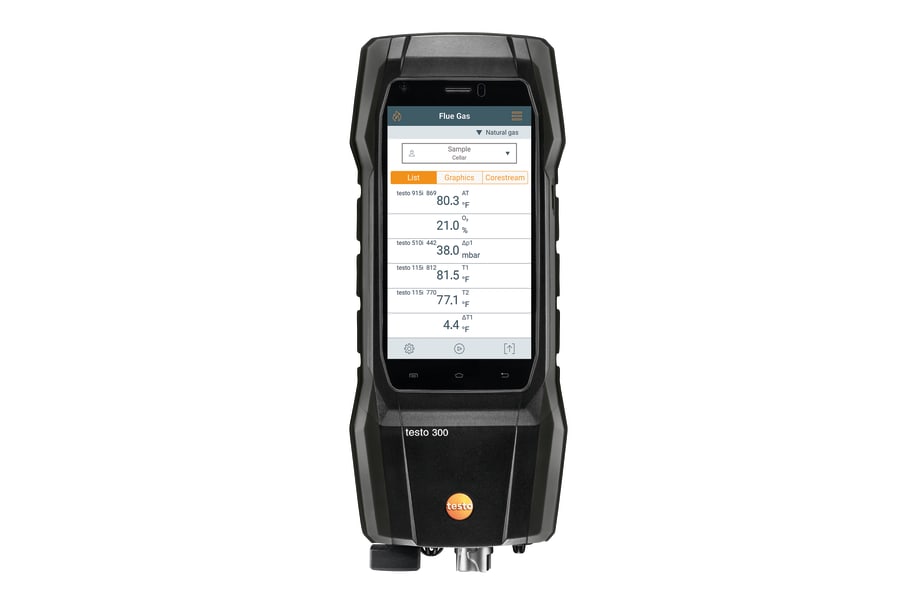

testo 300 - Combustion analyzer (O₂, CO up to 4,000 ppm)

Order-Nr. 0633 3002 70
- Intuitive measurement menus and fast-response Smart-Touch display
- Including O₂ and CO sensor up to 4,000 ppm
Details
12" flue gas probe, 1/4" diameter, Tmax = 932 °F, with hose - 300 mm, Ø 6 mm, Tmax 500 °C

Order-Nr. 0600 9741
- Easy probe shaft replacement via quick-change click system
- Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
Details
Replacement particle filter (10/pkg) - Spare particle filter

Order-Nr. 0554 0040
Details
Bluetooth®/IRDA printer

Order-Nr. 0554 0621
- Bluetooth^® & IrDA interface in one printer
- Printout of graphs and measurement data
Details
Spare thermal paper

Order-Nr. 0554 0568
- Permanent thermal paper
- 6 rolls
Details
testo EasyHeat v2.12 SP7 - PC software (interface cable not included)

Order-Nr. 0554 3332
- PC software for reading out the data from corresponding Testo measuring instruments
- Graphic and tabular presentation of the measurement parameters
Details
Instrument bag with carrying strap

Order-Nr. 0516 3001
- Robust instrument bag for flue gas analyzer, probe and accessories
- Dimensions: 256 x 516 x 135 mm (L x W x H)
Details
USB mains unit with cable

Order-Nr. 0554 1106
- For the external power supply
- 230 V AC / 5 V DC (2 A)
Details
testo Bluetooth^® Connector - testo Bluetooth® Connector

Order-Nr. 0554 3004
- testo Bluetooth^® Connector to allow testo Smart Probe connectivity to testo 300 Combustion Analyzers
- Connection to testo 510i Smart Probe for gas flow and static gas pressure measurement
Details

Delivery Scope

Next-Gen testo 300 combustion analyzer with O₂ and CO sensor up to 4,000 ppm (0633 3002 70)
testo Bluetooth® Connector (0554 3004)
Power adapter, includes USB cable (0554 1106)
Compact basic flue gas probe, 12 inch, Ø 0.25 in., Tmax. 932°F; 5 foot hose; including dirt filters and cone for fixing (0600 9741)
Spare dirt filters, compact probe; 10 count (0554 0040)
BLUETOOTH^®/IRDA printer, including 1 roll of thermal paper and rechargeable battery (0554 0621)
Spare thermal paper for printer, indelible ink (0554 0568)
Free download EasyHeat PC software (0554 3332)
Soft transport case (0516 3001)

Technical Data

testo 300 - Combustion analyzer (O₂, CO up to 4,000 ppm)

Order-Nr. 0633 3002 70

Temperature - Type K TC
Measuring range	-40° to 2192 °F / -40 to +1200 °C
Accuracy	±0.9 °F (32.0° to 212.0 °F) / ±0.5 °C (0.0 to +100.0 °C) ±0.5 % of mv (Remaining Range)
Resolution	0.1 °F (-40° to 1831.8 °F) / 0.1 °C (-40 to +999.9 °C) ±1 °F (Remaining Range) / 1 °C (Remaining Range)

Temperature - Type K TC

Measuring range

-40° to 2192 °F / -40 to +1200 °C

Accuracy

±0.9 °F (32.0° to 212.0 °F) / ±0.5 °C (0.0 to +100.0 °C)

±0.5 % of mv (Remaining Range)

Resolution

0.1 °F (-40° to 1831.8 °F) / 0.1 °C (-40 to +999.9 °C)

±1 °F (Remaining Range) / 1 °C (Remaining Range)

Differential Pressure
Measuring range	-40 to +80 InH₂O / -100 to +200 hPa
Accuracy	±0.2 InH₂O (0 to +20.0 InH₂O) / ±0.5 hPa (0 to +50.0 hPa) ±1 % of mv (+20.0 to +40.0 InH₂O) / ±1 % of mv (+50.1 to +100.0 hPa) ±1.5 % of mv (+40.0 to +80 InH₂O) / ±1.5 % of mv (+100.1 to +200 hPa)
Resolution	0.00 InH₂O / 0.01 hPa

Differential Pressure

Measuring range

-40 to +80 InH₂O / -100 to +200 hPa

Accuracy

±0.2 InH₂O (0 to +20.0 InH₂O) / ±0.5 hPa (0 to +50.0 hPa)

±1 % of mv (+20.0 to +40.0 InH₂O) / ±1 % of mv (+50.1 to +100.0 hPa)

±1.5 % of mv (+40.0 to +80 InH₂O) / ±1.5 % of mv (+100.1 to +200 hPa)

Resolution

0.00 InH₂O / 0.01 hPa

Flue gas O₂
Measuring range	0 to 21 Vol.%
Accuracy	±0.2 Vol.%
Resolution	0.1 Vol.%

Flue Gas Draft
Measuring range	-4.00 to +16 InH₂O / -9.99 to +40 hPa
Accuracy	±0.002 InH₂O (+0 to +0.0 InH₂O) / ±0.005 hPa (+0 to +0.1 hPa) ±0.01 InH₂O (+0.0 to +1.20 InH₂O) / ±0.02 hPa (+0.1 to +3.00 hPa) ±1.5 % of mv (1.20 to +16 InH₂O) / ±1.5 % of mv (3.01 to +40 hPa)
Resolution	0.000 InH₂O (0 to 0.0 InH₂O) / 0.001 hPa (0 to 0.1 hPa) 0.00 InH₂O (Remaining Range) / 0.01 hPa (Remaining Range)

Flue Gas Draft

Measuring range

-4.00 to +16 InH₂O / -9.99 to +40 hPa

Accuracy

±0.002 InH₂O (+0 to +0.0 InH₂O) / ±0.005 hPa (+0 to +0.1 hPa)

±0.01 InH₂O (+0.0 to +1.20 InH₂O) / ±0.02 hPa (+0.1 to +3.00 hPa)

±1.5 % of mv (1.20 to +16 InH₂O) / ±1.5 % of mv (3.01 to +40 hPa)

Resolution

0.000 InH₂O (0 to 0.0 InH₂O) / 0.001 hPa (0 to 0.1 hPa)

0.00 InH₂O (Remaining Range) / 0.01 hPa (Remaining Range)

Efficiency (calculated)
Measuring range	0 to 120 %
Resolution	0.1 %

Flue Gas loss (calculated)
Measuring range	0 to 99.9 %
Resolution	0.1 %

Flue Gas CO₂ calculation (calculated from O₂)
Measuring range	Display range 0 to CO₂ max
Accuracy	±0.2 Vol.%
Resolution	0.1 Vol.%

Flue gas CO (without H₂-compensation)
Measuring range	0 to 4000 ppm
Accuracy	±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm)
Resolution	1 ppm

Flue gas CO (without H₂-compensation)

Measuring range

0 to 4000 ppm

Accuracy

±20 ppm (0 to 400 ppm)

±5 % of mv (401 to 2000 ppm)

±10 % of mv (2001 to 4000 ppm)

Resolution

1 ppm

Ambient CO
Measuring range	0 to 2000 ppm
Accuracy	±10 ppm (0 to 100 ppm) ±10 % of mv (101 to 2000 ppm)
Resolution	1 ppm

Ambient CO

Measuring range

0 to 2000 ppm

Accuracy

±10 ppm (0 to 100 ppm)

±10 % of mv (101 to 2000 ppm)

Resolution

1 ppm

General technical data
Operating humidity	15 to 90 %rH non-condensing
Weight	approximately 28.2 oz. / approximately 800 g
Dimensions	9.6 (including probe connection) x 3.9 x 2.3 in. (LxWxH) / 244 (including probe connection) x 98 x 59 mm (LxWxH)
Operating temperature	23° to 113 °F / -5 to +45 °C
Protection class	IP40
Product colour	black/orange
Display type	5.0" touch display, HD 1280*720 pixels, IPS (160 k)
Power supply	Rechargeable battery, USB mains unit
Authorizations	TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3
Guarantee	Gas sensors (O₂, CO) 24 months; rechargeable battery: 12 months; Thermocouple 12 months
Warranty conditions	https://www.testo.com/guarantee
Memory	1,000,000 measuring values
Storage battery type	Lithium ion battery
Battery life	10 h
Storage temperature	-4° to 122 °F / -20 to +50 °C
Charging temperature	32° to 113 °F / 0 to +45 °C

Differential Pressure 4 Pa measurement - Piezoresistive
Measuring Range	-0 to +0 InH₂O / -50 to +50 Pa
Accuracy	±0.0 InH₂O (< 0 InH₂O) / ±0.3 Pa (< 10 Pa) ±3 % of mv (Remaining Range)
Resolution	0.0 InH₂O / 0.1 Pa

Differential Pressure 4 Pa measurement - Piezoresistive

Measuring Range

-0 to +0 InH₂O / -50 to +50 Pa

Accuracy

±0.0 InH₂O (< 0 InH₂O) / ±0.3 Pa (< 10 Pa)

±3 % of mv (Remaining Range)

Resolution

0.0 InH₂O / 0.1 Pa

12" flue gas probe, 1/4" diameter, Tmax = 932 °F, with hose - 300 mm, Ø 6 mm, Tmax 500 °C

Order-Nr. 0600 9741

General technical data
Diameter probe shaft	0.236 in. / 6 mm
Cable length	4.921 ft. / 1.5 m
Length probe shaft	11.811 in. / 300 mm
Product colour	Black
Temperature maximum	932 °F / 500 °C
Diameter	0.2 in. / 6 mm
Weight	12.84 oz. / 364 g

Test Fußnote

Spare thermal paper

Order-Nr. 0554 0568

General technical data
Dimensions	4.7 x 3.0 x 2.4 in. / 120 x 75 x 60 mm
Housing	paper
Product colour	white
Weight	1.76 oz. / 50 g

testo EasyHeat v2.12 SP7 - PC software (interface cable not included)

Order-Nr. 0554 3332

General technical data
System requirements	Windows 7; Windows 8; Windows® 10

Instrument bag with carrying strap

Order-Nr. 0516 3001

General technical data
Weight	49.4 oz. / 1400 g
Dimensions	10 x 20 x 5 in. ((LxWxH)) / 256 x 516 x 135 mm ((LxWxH))
Product colour	Black

USB mains unit with cable

Order-Nr. 0554 1106

General technical data
Weight	5.08 oz. / 144 g
Dimensions	3.3 x 2.2 x 3.5 in. LxWxH / 85 x 55 x 90 mm LxWxH
Product colour	Black
Cable length	6.562 ft. / 2 m
Power supply	230 V AC / 5 V DC (2 A), micro USB, for the use in USA, CA, AU, Europe, UK, CN, Korea

testo Bluetooth^® Connector - testo Bluetooth® Connector

Order-Nr. 0554 3004

General technical data
Battery life	None, operated via testo 300
Connection	TUC 1 or TUC 2
Radio range	328.08 ft. / 100 m
compatible with	testo 510i, testo 115i, testo 915i

Probes

CO probes

CO probe (digital), wired: for measuring carbon monoxide in indoor areas (e.g. boiler rooms) – measuring range 0 to 500 ppm

Order Number: 0632 1272

Flue gas probes

7" flue gas probe, 5/16" diameter, with 7' hose, Tmax=932 °C

Order Number: 0600 9760

12" probe, 5/16" diameter, with hose, Tmax=932 °C

Order Number: 0600 9761

$ 416.00

excl. tax

7" flue gas probe, 1/4" diameter with 7' hose, Tmax=932 °C

Order Number: 0600 9762

12" probe, 1/4" diameter, 7' teflon hose assembly, Tmax=932 °C

Order Number: 0600 9763

Our flexible flue gas probe helps you to carry out flue gas measurements even on difficult-to-access measurement areas. Since the probe shaft is made of very flexible plastic, you can easily bend it, allowing it to be inserted into exhaust flues which are obstructed (e.g. by sloping ceilings)

Order Number: 0600 9770

12" probe, 3/8" diameter with 5' hose

Order Number: 0600 9740

12" flue gas probe with 5' hose, t max=932 °F

Order Number: 0600 9741

$ 285.00

excl. tax

Further probes

clearance-probe-for-O2-supply-air-measurement

Annular gap probe

Order Number: 0632 1260

Solid fuel set (probe shaft, adapter, upgrade CD)

Order Number: 0600 9765

Temperature probes

Clamp probe with NTC temperature sensor for measurements on pipes (Ø 6-35 mm)

Clamp probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 6-35 mm) – measuring range -40 to +125 °C

Order Number: 0615 5505

Waterproof immersion/penetration probe with NTC temperature sensor

Waterproof immersion/penetration probe (NTC temperature sensor) for temperature measurements in liquids and semi-solid media – measuring range -50 to +150 °C, accuracy ±0.2 °C (-25 to +74.9 °C)

Order Number: 0615 1212

Combustion air temperature probe with an immersion depth of 190 mm – measuring range: 0 to +100 °C

Order Number: 0600 9799

Accessories

USB mains unit, including cable

Order Number: 0554 1106

Applications

Flue gas measurement on heating systems

Ideal for measurements involving heating systems:

high-quality sensors, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing

Further areas of application:

gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*

* Please note: additional probes or accessories are required for these measurements and have to be ordered separately.

Downloads

Product Brochures

Manuals

Software

Where to buy

1-484-705-0999

Inquiry

Next-Gen testo 300 - Smoke Edition Combustion Analyzer Kit with Printer and testo Bluetooth® Connector (w/ O2 and CO 0-4,000)

Next-Gen testo 300 - Smoke Edition Combustion Analyzer Kit with Printer and testo Bluetooth® Connector (w/ O2 and CO 0-4,000)

Details

Product Description

More information

Details on kit components

Delivery Scope

Technical Data

testo 300 - Combustion analyzer (O2, CO up to 4,000 ppm)

12" flue gas probe, 1/4" diameter, Tmax = 932 °F, with hose - 300 mm, Ø 6 mm, Tmax 500 °C

Spare thermal paper

testo EasyHeat v2.12 SP7 - PC software (interface cable not included)

Instrument bag with carrying strap

USB mains unit with cable

testo Bluetooth® Connector - testo Bluetooth® Connector

Probes

CO probes

Flue gas probes

Further probes

Temperature probes

Accessories

Accessories

Applications

Flue gas measurement on heating systems

Downloads

Product Brochures

Manuals

Software

Next-Gen testo 300 - Smoke Edition Combustion Analyzer Kit with Printer and testo Bluetooth® Connector (w/ O2 and CO 0-4,000)

testo 300 - Combustion analyzer (O₂, CO up to 4,000 ppm)

testo Bluetooth^® Connector - testo Bluetooth® Connector
