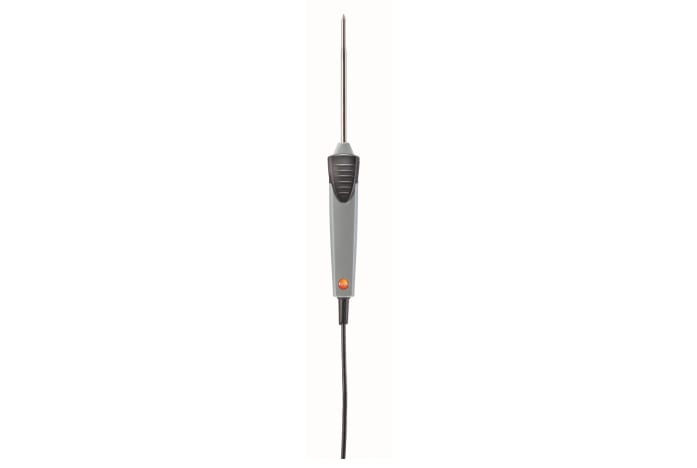

Waterproof immersion/penetration probe - with NTC temperature sensor

0615 1212
  • Measuring range from -50 to +150 °C; accuracy of up to ±0.2 °C
  • For measurements in liquids and semi-solid media
  • Temperature probe with NTC temperature sensor
  • Waterproof – in accordance with protection class IP67
    • Use the waterproof immersion/penetration probe (with the compatible measuring instrument) to carry out fast, precise temperature measurements in liquids and semi-solid media.
    For precise temperature measurements: Use the waterproof immersion/penetration probe with a compatible measuring instrument (please order separately) for carrying out temperature measurements in liquids and semi-solid media.


    Waterproof immersion/penetration probe – equipment and areas of application


    Use the fixed cable to connect the immersion/penetration probe to the measuring instrument (please order separately). The immersion/penetration probe is equipped with a high-quality NTC sensor, is easy to use and features high measuring accuracy of up to ±0.2 °C.

    The waterproof immersion/penetration probe is designed for temperature measurements in liquids and semi-solid media and offers numerous application options. For example, it is ideal for measuring the temperature of water and for carrying out sophisticated temperature measurements in the area of food production.

    Waterproof immersion/penetration probe (NTC) with fixed cable (cable length 1.3 m).

  • Next-Gen testo 300 - Smoke Edition Combustion Analyzer Kit with Printer and testo Bluetooth® Connector (w/ O2 and CO 0-4,000)
      :
      0564 3002 83
    • Next-Gen testo 300 - Smoke Edition Combustion Analyzer Kit (w/ O2 and CO 0-4,000) with Bluetooth® connector.
        :
        0564 3002 82
      • Next-Gen testo 300 Pro - Commercial Combustion Analyzer Kit (w/ O2 and CO 0-4,000, NO Sensor can be retrofitted) with Hard case and testo Bluetooth® Connector
          :
          0564 3004 92
        • Next-Gen testo 300 Pro - Commercial Combustion Analyzer Kit (w/ O2 and CO 0-4,000, NO Sensor can be retrofitted) with Printer, testo Bluetooth Connector, and Hard case
            :
            0564 3004 93
          • Next-Gen testo 300 Pro - Commercial / Industrial Combustion Analyzer Kit (w/ O2, CO H2 Compensated 0-30,000, and NO Sensor), with Printer, testo Bluetooth® Connector and Hard Case
              :
              0564 3004 96
            • 300
              testo 300 LongLife - Combustion analyzer (O2, CO up to 4,000 ppm, NO)
                :
                0633 3004 74
              • testo 300 LongLife Combustion Analyzer - Commercial Combustion Analyzer with Printer (w/ O2, CO 0-4,000, and NO Sensors)
                  :
                  0564 3004 94
                • 300
                  testo 300 Longlife - Combustion analyzer (O2, CO H2-compensated up to 30,000 ppm, NO - can be retrofitted)
                    :
                    0633 3004 83
                  • 300
                    testo 300 Pro - Combustion analyzer (O2, CO up to 4,000 ppm, NO - can be retrofitted)
                      :
                      0633 3004 72
                    • 300
                      testo 300 Pro - Combustion Analyzer (O2, CO H2-compensated up to 30,000 ppm, NO)
                        :
                        0633 3004 85
                      • testo 400 Air Flow Kit - For TAB / Commissioning Professionals
                          :
                          0563 0407
                          $ 3,187.50
                          1
                        • testo 400 Comfort Kit - for comfort professionals in high performance buildings
                            :
                            0563 0409
                            $ 3,650.75
                            1
                          • testo 400 IAQ Kit - for Commissioning and IAQ investigation professionals
                              :
                              0563 0408
                              $ 2,715.75
                              1
                            • testo 440 Air velocity and IAQ measuring instrument
                              testo 440 - Air velocity and IAQ measuring instrument
                                :
                                0560 4401
                              • testo 440 CO2 Kit with Bluetooth®
                                testo 440 - CO2 kit with Bluetooth
                                  :
                                  0563 4405
                                  $ 1,095.00
                                  1
                                • testo 440 100 mm Vane Kit with Bluetooth®
                                  testo 440 - Vane kit with Bluetooth (Ø 3.9")
                                    :
                                    0563 4403
                                    $ 995.00
                                    1
                                  • testo 440 Air Flow ComboKit 1 with Bluetooth®t 1 with Bluetooth
                                    testo 440 - Air flow ComboKit 1 with Bluetooth
                                      :
                                      0563 4406
                                      $ 1,350.00
                                      1
                                    • testo 440 16 mm Vane Kit
                                      testo 440 - Vane kit (Ø 0.63")
                                        :
                                        0563 4401
                                        $ 795.00
                                        1
                                      • testo 440 Humidity Kit with Bluetooth®
                                        testo 440 - Humidity kit with Bluetooth (Ø 0.47")
                                          :
                                          0563 4404
                                          $ 625.00
                                          1
                                        • testo 440 Hot Wire Kit
                                          testo 440 - Hot wire kit (Ø 0.35")
                                            :
                                            0563 4400
                                            $ 750.00
                                            1
                                          • testo 440 Indoor Comfort ComboKit with Bluetooth®
                                            testo 440 - Indoor comfort ComboKit with Bluetooth
                                              :
                                              0563 4408
                                              $ 2,350.00
                                              1
                                            • testo 440 Air Flow ComboKit 2 with Bluetooth®
                                              testo 440 - Air flow ComboKit 2 with Bluetooth
                                                :
                                                0563 4407
                                                $ 1,425.00
                                                1
                                              • testo 440 dP Air velocity and IAQ measuring instrument including differential pressure sensor
                                                testo 440 dP - Air velocity and IAQ measuring instrument with differential pressure sensor
                                                  :
                                                  0560 4402
                                                • testo 440 Delta P Air Flow ComboKit 1 with Bluetooth®
                                                  testo 440 dP - Air flow ComboKit 1 with Bluetooth and delta P
                                                    :
                                                    0563 4409
                                                    $ 2,150.00
                                                    1
                                                  • testo 440 Delta P Air Flow ComboKit 2 with Bluetooth®
                                                    testo 440 dP - Air flow ComboKit 2 with Bluetooth and delta P
                                                      :
                                                      0563 4410
                                                      $ 2,295.00
                                                      1
                                                    • testo 110
                                                      testo 110 - NTC and Pt100 temperature measuring instrument with App connection
                                                        :
                                                        0563 0110
                                                        $ 131.75
                                                        1
                                                      • testo 300 - Combustion analyzer (O2, CO up to 4,000 ppm)
                                                          :
                                                          0633 3002 70
                                                        • testo 400 Universal IAQ instrument
                                                          testo 400 - Universal Air Flow and IAQ Instrument
                                                            :
                                                            0560 0400
                                                          • testo 400 IAQ and comfort kit with tripod
                                                            testo 400 IAQ and comfort kit with tripod
                                                              :
                                                              0563 0401

                                                              • Temperature - NTC

                                                              Measuring range
                                                              -58.0° to 302.0 °F / -50 to +150 °C
                                                              Accuracy
                                                              ±0.7 °F (Remaining Range) / ±0.4 °C (Remaining Range)
                                                              ±0.5 % of mv (212° to 302 °F) / ±0.5 % of mv (+100 to +150 °C)
                                                              ±0.4 °F (-13° to 166.8 °F) / ±0.2 °C (-25 to +74.9 °C)
                                                              Reaction time
                                                              t99: 10 sec

                                                              General technical data

                                                              Weight
                                                              3.53 oz. / 100 g
                                                              Length probe shaft tip
                                                              1.969 in. / 50 mm
                                                              Diameter probe shaft
                                                              0.197 in. / 5 mm
                                                              Diameter probe shaft tip
                                                              0.157 in. / 4 mm
                                                              Cable length
                                                              3.937 ft. / 1.2 m
                                                              Waterproof
                                                              Waterproof NTC immersion/penetration probe
                                                              Length probe shaft
                                                              4.528 in. / 115 mm
                                                              Product colour
                                                              grey
