    12" flue gas probe, 5/16" diameter, Tmax = 932 °F, with hose - 300 mm, Ø 8 mm, Tmax 500 °C, TÜV-tested

    0600 9761
    $ 361.25
    1
  1. Easy probe shaft replacement via quick-change click system
  2. Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
  3. Integrated dirt filter protects instrument and sensors
  4. Integrated thermocouple probe for temperature measurements up to 932 °F
  5. This 12" modular flue gas probe has a 5/16" diameter, Tmax = 932 °F, and 7.2' hose.

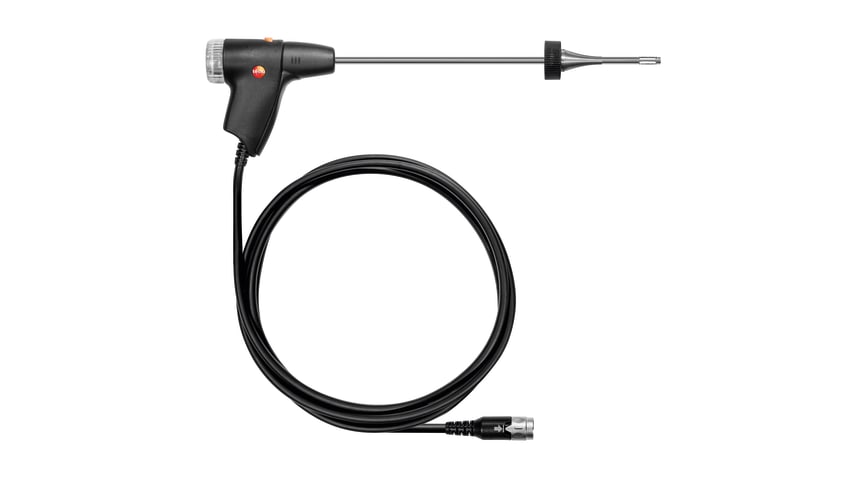

    This TÜV-tested modular flue gas probe with a 12" long probe shaft features a quick-change click system on the handle, which enables easy replacement of the probe shaft.  The thermocouple is NiCr-Ni, which is integrated in the probe shaft, enabling temperature measurements up to 932 °F.  The flue gas path and temperature channel can be conveniently connected to the measuring instrument via a practical bayonet lock.  In addition, a dirt filter protects the instrument and its sensors from contamination.

    12" modular flue gas probe, including dirt filter, cone for attachment, NiCr-Ni thermocouple with Tmax = 932 °F, and 7.2' hose

    General technical data

    Diameter probe shaft
    0.315 in. / 8 mm
    Cable length
    7.218 ft. / 2.2 m
    Length probe shaft
    11.811 in. / 300 mm
    Product colour
    Black
    Diameter
    0.236 in. / 6 mm
    Temperature maximum
    932 °F / 500 °C
    Weight
    19.47 oz. / 552 g
