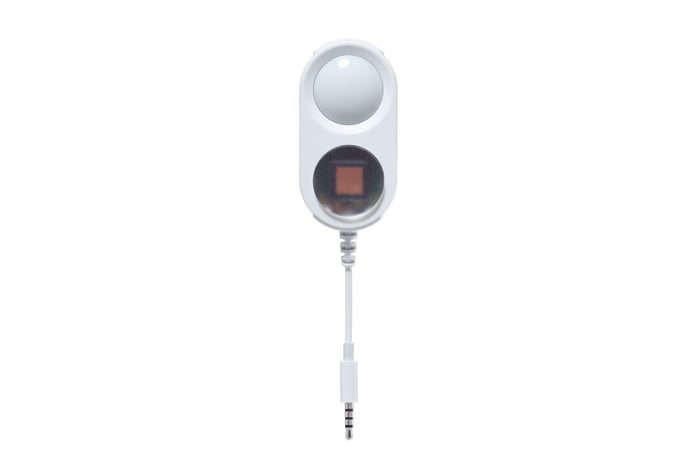

Lux and UV probe for monitoring light-sensitive exhibition objects - External probe for the testo 160 E and 160 THE Wi-Fi data loggers

0572 2157

Lux and UV probe for monitoring light-sensitive exhibition objects - External probe for the testo 160 E and 160 THE Wi-Fi data loggers

The Lux and UV probe is applicable to exhibits where the light sensitive paintings, fabrics or papers must have logs of their cumulative exposure.

Non-noticeable monitoring of exhibits and display cases
Illuminance measurement range 0 to 20,000 Lux
UV radiation range 0 to 10,000 mW/m²

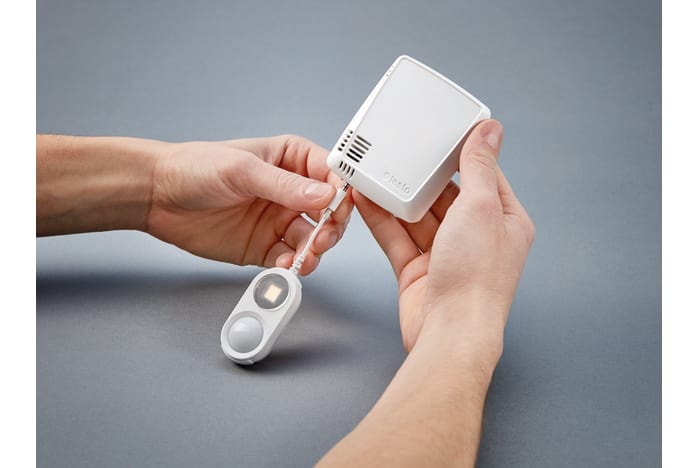

Connects to Wi-Fi logger with extension cables

The probe is supplied with a connecting cable (length 0.6 m) and if required, longer (8.2 ft. / 2.5 m) extension cables can be added. Multiple cables can be combined up to a length of 32.8 ft. / 10 meters.

Applications for the Lux/UV probe
The Lux and UV probe is applicable to exhibits where the light sensitive paintings, fabrics or papers must have logs of their cumulative exposure.

Smart probe calibration
The Lux and UV probe offers maximum digital measurement reliability. As the processing of measuring values is done within the probe, the quality of the measurement is not affected by the length of the cable between the Wi-Fi data logger and the probe. The probe can be sent in for calibration on its own (without the data logger) because the calibration points are stored internally.

Light

Light	Measuring range 0 to 20000 Lux
Light	Accuracy ±3 Lux or ±3 % of mv (refers to reference DIN 5032-7 Class L) DIN 5032-7 Class C-compliant.

UV

UV	Measuring range 0 to +10000 mW/m²
UV	Accuracy ±5 mW/m² or ±5 % of mv (refers to external reference)

1 x Lux and UV probe with plug-in cable (length 1.7 ft. / 0.6 m) and factory calibration document.

: 0572 2022

testo 160 E - Wi-Fi data logger with 2 connections for temperature and humidity probe, lux probe, or UV radiation and lux probe

$ 290.00

: 0572 2023

testo 160 THE - Wi-Fi data logger with internal temperature and humidity sensors and 2 connections for external probes

$ 648.00

Brief instructions testo 160 – External Probes(856.3 KB)

Accessories

: 0554 2004

Extension cable (0.6 m) - Extension cable for digital probes

Cable length 1.96 ft. (0.6 m)

: 0554 2005

Extension cable for digital probes - for testo 160 probe

Cable length 8.2 ft / 2.5 m

Certificates

: 0520 0010

ISO luminous intensity calibration certificate - with 5 measuring points

5 calibration points: 0 / 500 / 1,000 / 2,000 / 4,000 lx
