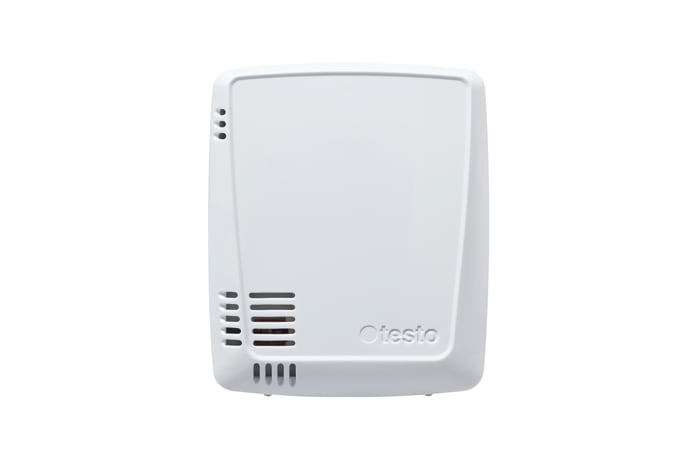

testo 160 THE - Wi-Fi data logger with internal temperature and humidity sensors and 2 connections for external probes

Order-Nr.  0572 2023

  • testo 160 THE
  • testo 160 THE
  • testo 160 THE
  • testo 160 THE
  • testo 160 THE
Where to buy
+1-484-727-8381
Inquiry

  • Expanded monitoring options, with an internal temperature and humidity sensor, plus connection options for 2 additional probes

  • Optional paintable logger cover helps conceal the logger in an exhibit

  • Logger sends data to the Testo Cloud using your existing Wi-Fi network, alarms by email (Basic License), and optional text messages with the Advanced License

  • Simple to install, integrate, and operate

Monitor your exhibits and archived artwork with the testo 160 THE Wi-Fi data logger for temperature, humidity, lux, and UV radiation.  The testo 160 THE has internal temperature and humidity sensors, and allows for the connection of two additional external sensors to monitor the ambient environment in museums, museum storage, and archives.

Details

Product Description

The testo 160 THE is a part of the testo 160 data logger family developed specifically for the needs of museums. This system allows for the configuration of internal sensors and external probes, to match any monitoring situation in a museum or archival setting.
Operation and programming of the data logger is simple, and can be carried out directly via the Testo Cloud.

Monitoring temperature, humidity, lux, and UV radiation with the testo 160 THE Wi-Fi data logger

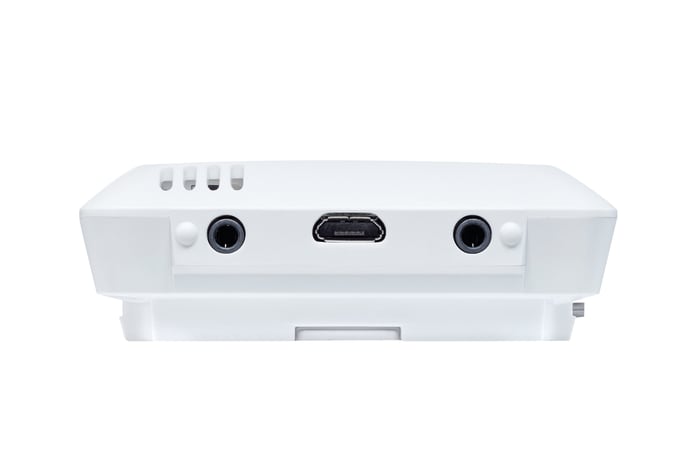

This logger is designed to serve all museum areas where monitoring must be performed unobtrusively, with easily hidden cable sensors.  The testo 160 THE has two connection ports for any of three sensor probes; temperature and humidity, light level lux, or lux and UV probes are available.
The logger has an internal memory buffer to hold up to 40,000 readings that are offloaded to the Testo Cloud at preset intervals.  The lower and upper alarm settings can be individually set for each logger on the Cloud account, and when triggered, an alarm is immediately sent by email or optional text message.
The logger data is accessible at any time from any browser enabled device, such as a smart phone, tablet, or a PC or Mac.

The testo 160 THE Wi-Fi data logger – unobtrusive and easy to hide
So as not to distract from your art exhibit, the testo 160 THE logger was made small, about 2.5x3x0.9 inches.  To make it easy to conceal in an exhibit or a display case, an optional paintable deco cover is available to help the logger blend in with its surroundings.

A perfect network appliance – uses an existing Wi-Fi network to send data to the Testo Cloud
The Testo Cloud is a central data repository for all of your testo 160 THE data loggers.  On your Testo Cloud account, you can configure data loggers and set alarm points, designate authorized users, and set recipients for alarms and monitoring reports.
To start, register at www.museum.saveris.net to gain access to your account.  To register you can use a normal webbrowser.
Depending on your needs, you can select between the free Basic or subscription based Advanced functionalities as needed, to create 10 user accounts, or add text messaging of alarms, for example.

Museum, archive, and storage applications for the testo 160 THE Wi-Fi data logger
By adding individual testo 160 THE data loggers, one can build a system that reliably delivers data on your exhibit space, display cases, and storage environmental conditions.  The logger can be easily hidden at the base of a cabinet, while the tiny connected cable sensors are placed in the display area.  The small temperature and humidity sensor is perfect for monitoring the exhaustion rate of silica gel packets.  The light level and UV monitoring sensor can be connected to the same testo 160 THE logger.

Additional functionality of the testo 160 THE Wi-Fi logger
The logger comes with a large internal memory for 40,000 measurement values to protect your data, in case of a blackout or Wi-Fi network issues.  The logger housing has IP20 moisture protection, and uses readily available, standard alkaline batteries.  The batteries are monitored, and should last for about 12 months.  The logger can also be powered by an external USB power supply, and in such a case, the batteries will be used only during a loss of power.

Delivery Scope

  • Testo 160 THE Wi-Fi data logger
  • Includes free Cloud access (Basic License)
  • Batteries (4 x AAA alkaline)
  • USB cable
  • Wall bracket with unlocking key and adhesive strip
  • QR code sticker
  • Basic instructions

Technical Data

Humidity - Capacitive

Measuring range

0 to 100 %rH (non-condensing)

Accuracy

±2.0 %rH at +77°F and 20 to 80 %rH / ±2.0 %RH at +25 °C and 20 to 80 %RH

±3.0 %rH at +77°F and < 20 and > 80 %rH / ±3.0 %RH at +25°C and < 20 and > 80 %RH / ±3.0 %RH at +25 °C and < 20 and > 80 %RH

±1.0 %rH hysteresis

±1.0 %rH / year drift

Resolution

0.1 %rH
Temperature

Measuring range

14° to 122 °F / -10 to +50 °C

Accuracy

±0.9 °F / ±0.5 °C

Resolution

0.1 °F / 0.1 °C
Light

Measuring range

See probe data

Accuracy

See probe data

Resolution

See probe data
UV

Measuring range

See probe data

Accuracy

See probe data

Resolution

See probe data
General technical data

Weight

3 oz. / 94 g

Dimensions

3 x 3 x 1 in. / 76 x 64 x 22 mm

Operating temperature

14° to 122 °F / -10 to +50 °C

Protection class

IP20

Measuring rate

Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

Communication rate

Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

WLAN Connectivity

supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS, EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA Personal, WPA2 (AES), WPA (TKIP), WEP

Battery life

1.5 years

Power supply

4 x AAA batteries 1.5 V, alternatively mains unit via USB connection

Memory

32,000 Measuring values / Sum of all channels

Storage temperature

-4° to 122 °F / -20 to +50 °C

Applications

Monitoring the microclimate in a display cabinet

Reliable monitoring of ambient conditions in a display cabinet plays a decisive role in early warnings of potential problems.  An unstable microclimate in a display cabinet can result in artwork damage.  A Wi-Fi data logger from the testo 160 family will detect when preset alarm points are crossed, and it will send notifications.  This small Wi-Fi data logger can also be placed inside the base of a display cabinet, with a small external probe hidden in proximity to the displayed object.
testo 160 micro-climate in a display cabinet

Checking and documenting ambient conditions in an exhibit room

Paintings, sculptures, and other displayed items may be damaged by an unsuitable exhibit room climate.  Microcracks and fissures, which gradually grow larger, are the consequences of an unsuitable or highly fluctuating ambient climate.  With the testo 160 series Wi-Fi data loggers, you can always monitor the key parameters of temperature and relative humidity.  As loan items are often exhibited, loan agreements often require documentation of an exhibit’s ambient environment.  The testo Cloud data storage can allow lenders to view current climate conditions at any time.  Testo 160 loggers can be paired with optional paintable covers, to allow for concealment within an exhibit space.
testo 160 checking and documenting the ambient conditions

Protecting museum objects using light and climate measurements

Unsuitable light conditions, in addition to improper indoor climate, pose a risk to exhibited objects.  They accelerate natural aging processes, and can cause irreparable microcracks and discoloration.  Monitoring with the testo 160 series for light, UV, temperature, and humidity levels exposure can help preserve cultural heritage.
testo 160 protecting museum objects

Good ambient conditions inside a storage depot

Museums generally only exhibit a small portion of their objects.  As the majority of a museum's inventory is in storage, reliable monitoring of ambient storage conditions is important, as well.  Constant and suitable ambient conditions are important for slowing the natural aging processes of museum objects.  A Wi-Fi data logger from the testo 160 series helps you monitor and collect data, and document the storage conditions of your collections.
testo 160 good ambient conditions inside the storage depot
