Pressure transmitter – handling and use

Electrical pressure transmitters enable you to measure pressure in a short time with relatively little effort. The transmitter can check different types of pressure here. Absolute pressure, along with relative pressure and differential pressure can all be measured. The product itself is a great help if you want to measure the density, flow rate or fill level. These values are of particular importance, especially in the industrial sector. This is the only way you can ensure you are able to work effectively with the measured values.

If you want to buy a pressure transmitter, there are some points which you need to keep in mind:

  • type of measurement
  • high precision through low measuring range
  • if necessary, alarm management
  • reconciliation and analyses can be carried out

How to contact us.

Do you have any questions?
We would be more than happy to help you.

Overview of pressure transmitter

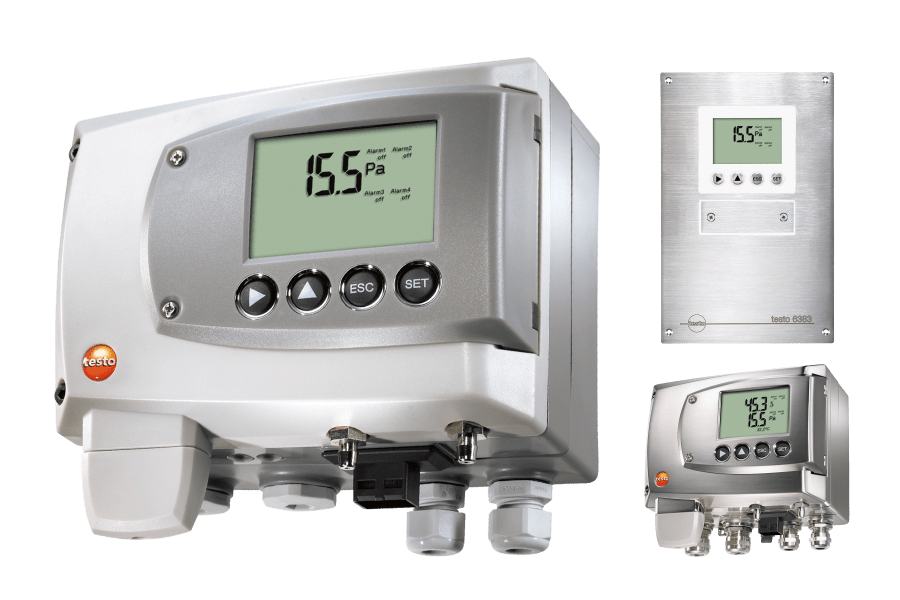

Pressure transmitter
for differential pressure

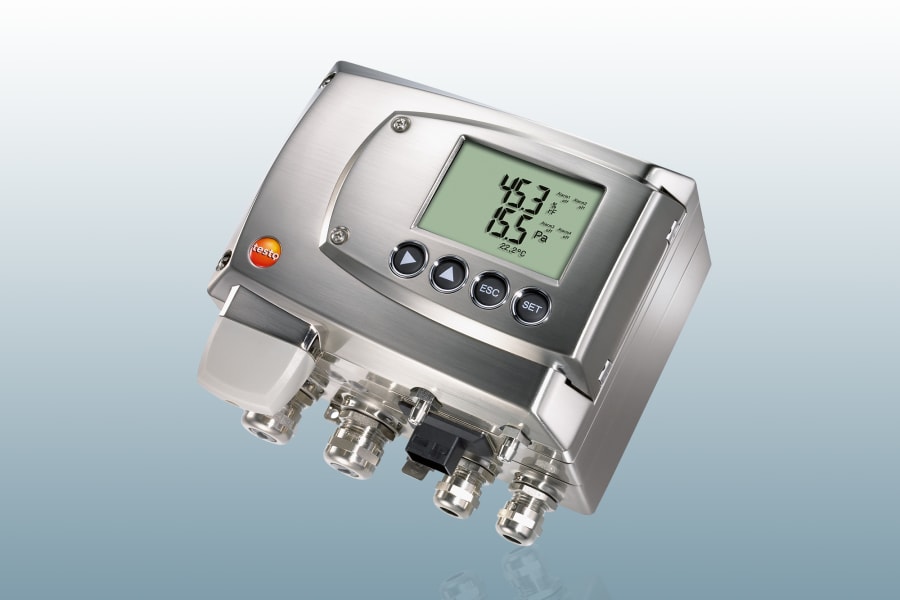

Differential pressure transmitter for industry

Differential pressure transmitter with flow calculation

Differential pressure transmitter for cleanrooms

Pressure transducers – measuring different types of pressure

The pressure transmitter is capable of measuring different types of pressure. What these types are, depends on the instrument in this case. When searching for an appropriate pressure transducer, it is therefore important to keep track of the models and to check whether the pressure transmitter is suitable for the application. A classic example is the differential pressure transducer. In this respect, the aim of using a pressure transducer is to determine the differences between two different levels of pressure. The instruments have so-called pressures on the front and rear of the sensor. The inputs are needed for the measurement. As a rule, differential pressure transmitters are also capable of measuring relative pressure.

Relative pressure is a measurement of atmospheric pressure. In a pan or boiler, overpressure always develops when heat builds up. You can find out how high this pressure is using a relative pressure measuring instrument.

The third option is the measurement of absolute pressure.Here, the absolute volume is recorded by the transmitter. However, when the air pressure changes, changes in the measuring value also occur. You should pay attention to these during use.

You should not confuse pressure transducers with humidity transducers. The latter are used to monitor humidity and thus ensure that you can maintain constant humidity in specific rooms. On the other hand, pressure transmitters combine the following features:

  • checking the pressure
  • accurate measurements for fast responses when there are changes
  • with alarm management in some cases
  • measurement of flow velocities also possible in some cases
Pressure transmitter

The features of a good pressure transducer

As a rule, pressure transducers have specific features. In most cases, they have a measuring range of 4-20 mA and are operated with 0-10 V. The measuring range is of primary interest. Accuracy is higher with a lower measuring range. If you need very differentiated values, this should then be an important aspect when it comes to making your selection.

Modern pressure transmitters are now capable of monitoring drying processes effectively. For this, they are often equipped with an alarm range which you can use. Depending on the settings, you receive a signal when the pressure falls or rises to a dangerous range. This enables fast responses. In summary, that means:

  • measuring range plays a major role
  • alarm signal may make sense
  • type of pressure measured is also important

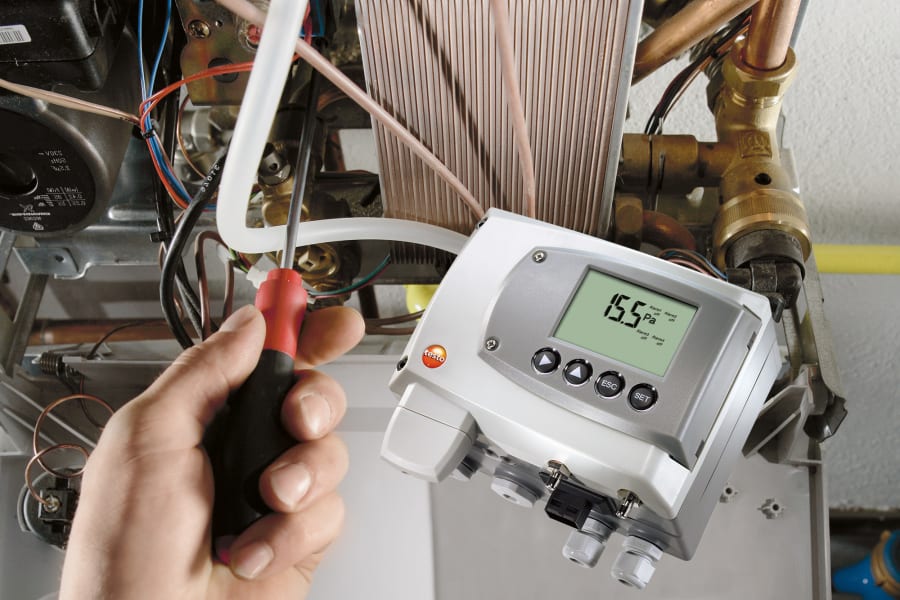

Testo pressure transmitter

Transducers – fields of application of a pressure transducer

Testo's pressure transmitters are a great help when it comes to checking pressure ranges. You can supplement these results by using a temperature transducer or a humidity transducer. Some instruments are even capable of checking temperature and humidity as well. Here, the fields of application include the monitoring of volume flows or also the monitoring of important drying processes. They are indispensable in the field of air conditioning technology in particular.

Differential pressure transmitter with flow calculation

Transducer with flow calculation

Testo offers you the option of ordering a transmitter with flow calculation. These instruments have the advantage of being able to measure the flow velocity and volume flow as well as the pressure. The measuring ranges are kept very low from 10 Pa. This means you benefit from high precision. In some cases, you also get the temperature and humidity checking feature.

The advantages of a transducer with flow calculation are:

  • additional calculation of the flows
  • humidity and temperature can be measured in some cases
  • very easy to handle
  • precise results in a short time

Effective comparison of pressure transducers

Testo has a variety of pressure transmitters on offer. Here you have the opportunity to make a comparison. The high-quality instruments come in different designs. The elements you can compare include measuring ranges, along with stability and accuracy. Different features are important, depending on the areas where you intend to use the pressure transmitter. For example, if you need a model for cleanrooms, it must have the flattest possible housing, so that it can be easily integrated into the wall. A model with a display is again helpful for a better readout of the results. If you rely on being able to respond quickly in the relevant areas, an alarm is also a sensible feature.
