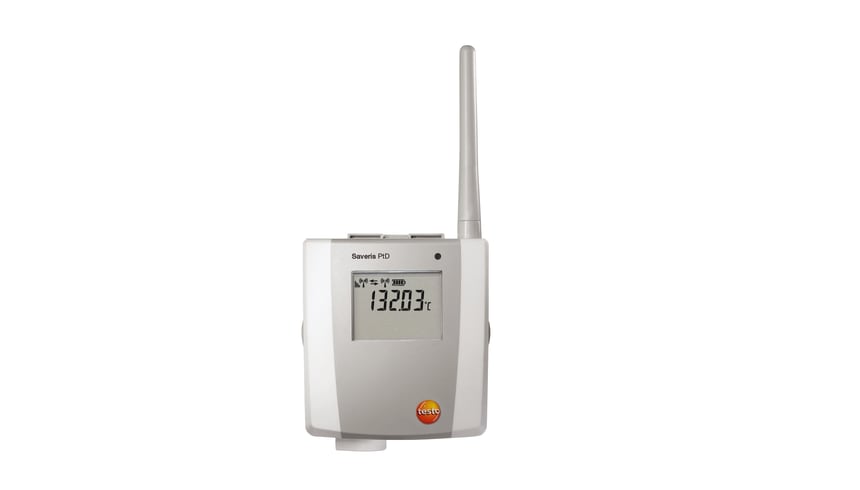

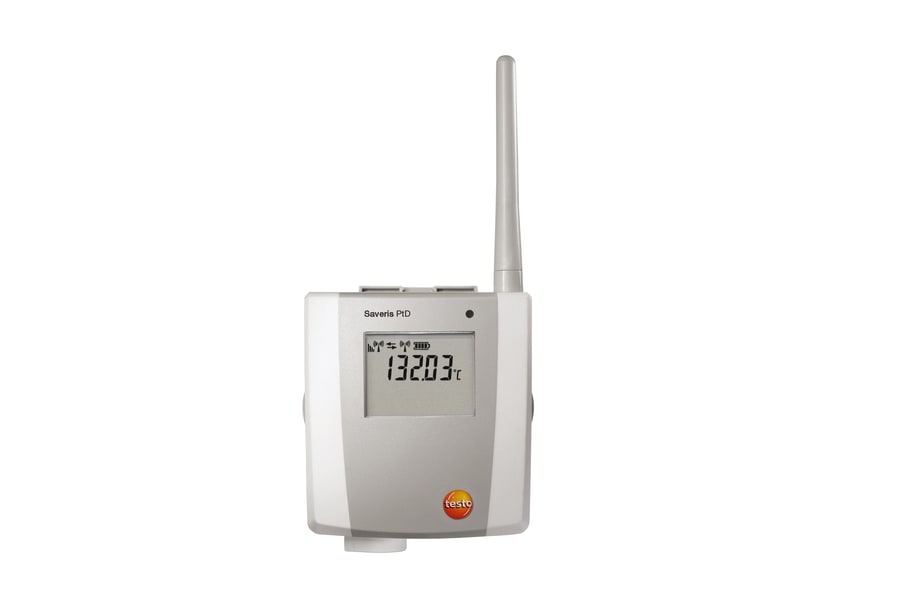

Saveris Pt D - 1-channel temperature radio probe, with display

Order-Nr.  0572 7261

  • Large measurement data memory

  • Flexible wireless data transfer

  • Large measuring range (-200 to +600 °C)

  • High degree of measuring accuracy to meet the most stringent requirements

Temperature recorder external Pt100, with display, radio frequency 2.4 GHz

Product Description

The high-precision testo Saveris Pt D radio probe is equipped with an external Pt100 probe connection. Its high level of measuring accuracy enables it to be used even in critical environments, where there are particular requirements in terms of the measuring technology. The testo Saveris Pt D radio probe has a data memory for 6,000 readings.

The Pt D radio probe is also equipped with a display, showing the current measurement data, battery status, limit value violations and quality of the radio link.

Please note: Saveris converter V 2.0 (order no. 0572 0258) is required for integrating Saveris radio probes into systems with base firmware V 1.X. For more information please contact your Testo partner.

What's included

testo Saveris Pt D radio probe with 1 external Pt100 probe connection and display, radio frequency 2.4 GHz, including wall bracket, calibration protocol and 4 × AA alkaline manganese batteries.



Delivery Scope

testo Saveris Pt D radio probe with 1 external Pt100 probe connection and display, radio frequency 2.4 GHz, including wall bracket, calibration protocol and 4 × AA alkaline manganese batteries.

Temperature - Pt100

Measuring range

-328.0° to 1112.0 °F / -200 to +600 °C

Accuracy

at +77 °F / at +25 °C

±0.2 °F (32.0° to 140.0 °F) / ±0.1 °C (0 to +60 °C)

±0.4 °F (-148.0° to 392.0 °F) / ±0.2 °C (-100 to +200 °C)

±0.9 °F (Remaining Range) / ±0.5 °C (Remaining Range)

General technical data

Dimensions

3 x 3 x 2 in. / 80 x 85 x 38 mm

Operating temperature

-4.0° to 122.0 °F / -20 to +50 °C

Housing

Plastic

Protection class

IP68

Radio frequency

2.4 MHz

Transmission distance

approx. 100 m without obstruction at a frequency of 2.4 GHz

Wall bracket

included

Measuring rate

Standard 15 min, 1 min to 24 h can be set

Battery type

4 x AA batteries

Battery life

Battery life at +25 °C, 3 years; for freezer applications, 3 years with L91 Photo lithium Energizer batteries

Connection

1 Pt100 via mini-DIN socket

Display type

LCD

Display size

2 lines

Display function

7-segment with symbols

Memory

6,000 measurement values / channel

Storage temperature

-40.0° to 131.0 °F (incl. batteries) / -40 to +55 °C (incl. batteries)

Weight

8 oz. / 240 g
