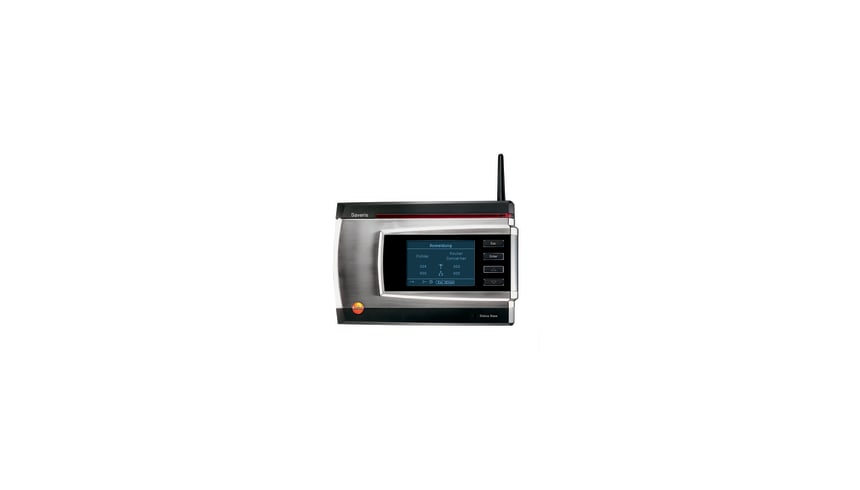

Base - For Saveris 1

Order-Nr.  0572 0260

  • Up to 150 probes can be connected

  • Graphical display, 4 control keys

  • Interfaces: radio, Ethernet, USB

  • Alarm relay for connecting alarm transmitters

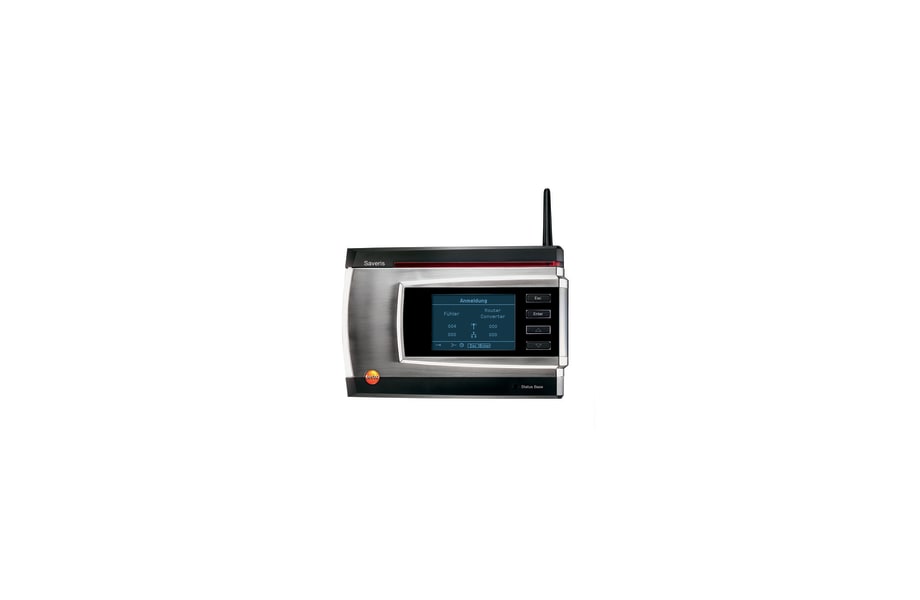

The base is the heart of the testo Saveris 1, and can save 40,000 readings per measurement channel, independently of the PC. This corresponds to around one year of memory capacity, at a measuring rate of 15 minutes.

Product Description

The base is the heart of the testo Saveris 1, and can save 40,000 readings per measurement channel, independently of the PC. This corresponds to around one year of memory capacity, at a measuring rate of 15 minutes, or a total of 18,000,000 readings. The system data and alarms are visible via the display of the Saveris 1 base.
The base also features an alarm relay for connecting alarm transmitters, such as lights or horns. The integrated emergency battery guarantees maximum data security, in the event that the power supply fails.
Please note that no mains unit or antenna with magnetic foot is included.



Delivery Scope

testo Saveris base, radio frequency 2.4 GHz, including table base and wall bracket

Ethernet probes

Temperature - NTC

Measuring range

-58° to 302 °F / -50 to +150 °C

Accuracy

±0.4 °F (-13° to 158 °F) / ±0.2 °C (-25 to +70 °C)

±0.7 °F (Remaining Range) / ±0.4 °C (Remaining Range)

Resolution

0.1 °F / 0.1 °C

Temperature - NTC

Measuring range

-4° to 158 °F / -20 to +70 °C

Accuracy

±0.4 °F (32 to +86 °F) / ±0.2 °C (0 to +30 °C)

32.9 °F Remaining Range / 0.5 °C Remaining Range

Resolution

0.1 °F / 0.1 °C

Humidity - Capacitive

Measuring range

0 to 100 %rH

Accuracy

±1 %rH (< 90 %rH) 0.7 % of mv at 77 °F / ±1 %RH (< 90 %RH) +0.7 % of mv at +25 °C

±1.4 %rH (> 90 %rH) 0.7 % of mv at 77 °F / ±1.4 %RH (> 90 %RH) +0.7 % of mv at +25 °C

0.03 %rF/K

Resolution

0.1 % / 0.1 °Ctd

Temperature - NTC

Measuring range

-4° to 158 °F / -20 to +70 °C

Accuracy

±0.9 °F / ±0.5 °C

Resolution

0.1 °F / 0.1 °C

Humidity - Capacitive

Measuring range

0 to 100 %rH

Accuracy

±2 %rH (< 90 %rH) at +77 °F / ±2 %RH (< 90 %RH) at +25 °C

±3 %rH (> 90 %rH) at +77 °F / ±3 %RH (> 90 %RH) at +25 °C

±0.03 %rF/K

Resolution

0.1 %rH / 0.1 °Ctd

Temperature - NTC

Measuring range

-4° to 158 °F / -20 to +70 °C

Accuracy

±0.4 °F / ±0.2 °C

Resolution

0.1 °F / 0.1 °C

Humidity - Capacitive

Measuring range

0 to 100 %rH

Accuracy

see external probes

Resolution

0.1 % / 0.1 °Ctd

Temperature - Pt100

Measuring range

-328° to 1112 °F / -200 to +600 °C

Accuracy

±0.2 °F (32° to 140 °F) / ±0.1 °C (0 to +60 °C)

±0.4 °F (-148° to 392 °F) / ±0.2 °C (-100 to +200 °C)

±0.9 °F (Remaining Range) / ±0.5 °C (Remaining Range)

Resolution

0.01 °F / 0.01 °C

Temperature - Type K TC

Measuring range

-319° to 2462 °F / -195 to +1350 °C

Accuracy

±0.9 °F or ±0.5 % of mv / ±0.5 °C or ±0.5 % of mv

Resolution

0.1 °F TC type S 34 °F / 0.1 °C/TC type S 1 °C

Temperature - TC Type T (Cu-CuNi)

Measuring range

-328° to 752 °F / -200 to +400 °C

Accuracy

±0.9 °F or ±0.5 % of mv / ±0.5 °C or ±0.5 % of mv

Resolution

0.1 °F TC type S 34 °F / 0.1 °C/TC type S 1 °C

Temperature - Type J TC

Measuring range

-148° to 1382 °F / -100 to +750 °C

Accuracy

±0.9 °F t1 ±0.5 % of mv / ±0.5 °C t1 ±0.5 % of mv

Resolution

0.1 °F TC type S 34 °F / 0.1 °Ct1TC type S 1 °C

Temperature - TC Type S (Pt10Rh-Pt)

Measuring range

32° to 3200 °F / 0 to +1760 °C

Accuracy

±0.9 °F or ±0.5 % of mv / ±0.5 °C or ±0.5 % of mv

Resolution

0.1 °F TC type S 34 °F / 0.1 °C/TC type S 1 °C

External Thermo Hot Wire Probe

Temperature - Type K TC

Measuring range

-58° to 752 °F / -50.0 to +400.0 °C

Accuracy

Class 2 ¹⁾

Reaction time

5 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - Type K TC

Measuring range

-58.0° to 752.0 °F / -50 to +400 °C

Accuracy

Class 2 ¹⁾

Reaction time

5 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Temperature - Type K TC

Measuring range

-58.0° to 482.0 °F / -50 to +250 °C

Accuracy

Class 2 ¹⁾

Reaction time

5 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Temperature - Type K TC

Measuring range

-76.0° to 266.0 °F / -60 to +130 °C

Accuracy

Class 2 ¹⁾

Reaction time

5 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - Type K TC

Measuring range

-58.0° to 338.0 °F / -50 to +170 °C

Accuracy

Class 2 ¹⁾

Reaction time

150 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - Type K TC

Measuring range

-328.0° to 2372.0 °F / -200 to +1300 °C

Accuracy

Class 1 ¹⁾

Reaction time

4 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Temperature - Type K TC

Measuring range

-328.0° to 1832.0 °F / -200 to +1000 °C

Accuracy

Class 1 ¹⁾

Reaction time

5 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K)

Temperature - Type K TC

Measuring range

-58.0° to 482.0 °F / -50 to +250 °C

Accuracy

Class 2 ¹⁾

Reaction time

20 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Temperature - Type K TC

Measuring range

-40.0° to 428.0 °F / -40 to +220 °C

Accuracy

Class 1

Reaction time

7 sec

Magnetic probe (TC Type K)

Order Number: 0602 4892

Temperature - Type K TC

Measuring range

-58.0° to 752.0 °F / -50 to +400 °C

Accuracy

Class 2 ¹⁾

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - Type K TC

Measuring range

-58.0° to 248.0 °F / -50 to +120 °C

Accuracy

Class 1 ¹⁾

Reaction time

90 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K)

Humidity / Temperature Probe

Temperature - NTC

Measuring range

-4.0° to 158.0 °F / -20 to +70 °C

Accuracy

±0.3

Humidity - Capacitive

Measuring range

0 to +100 %rH

Accuracy

±2 %rH at +77 °F (2 to +98 %rH) / ±2 %RH at +25 °C (2 to +98 %RH)

±0.03 %rF/K

NTC Temperature Probe

Temperature - NTC

Measuring range

-40.0° to 257.0 °F / -40 to +125 °C

Accuracy

±0.5 % of mv (212.0° to 257.0 °F) / ±0.5 % of mv (100 to +125 °C)

±0.4 °F (-13.0° to 176.0 °F) / ±0.2 °C (-25 to +80 °C)

±0.7 °F Remaining Range / ±0.4 °C Remaining Range

Reaction time

8 sec

Temperature - NTC

Measuring range

-31.0° to 176.0 °F / -35 to +80 °C

Accuracy

±0.4 °F (-13 to 167 °F) / ±0.2 °C (-25 to +75 °C)

±0.7 °F (Remaining Range) / ±0.4 °C (Remaining Range)

Reaction time

5 sec

Temperature - NTC

Measuring range

-31 to +176 °F / -35 to +80 °C

Accuracy

±0.4 °F (-13.0° to 166.8 °F) / ±0.2 °C (-25 to +75.0 °C)

±0.7 °F (-31.0° to -13.2 °F) / ±0.4 °C (-35 to --25.1 °C)

±0.7 °F (167.0° to 176.0 °F) / ±0.4 °C (+75 to +80 °C)

Reaction time

5 sec

Temperature Probe

Order Number: 0628 7503

Temperature - NTC

Measuring range

-22.0° to 194.0 °F / -30 to +90 °C

Accuracy

±0.4 °F (32.0° to 158.0 °F) / ±0.2 °C (0 to +70 °C)

±0.9 °F (Remaining Range) / ±0.5 °C (Remaining Range)

Reaction time

190 sec

Temperature - NTC

Measuring range

-58.0° to 176.0 °F / -50 to +80 °C

Accuracy

±0.4 °F (-13° to 176 °F) / ±0.2 °C (-25 to +80 °C)

±0.9 °F (-40° to -13.2 °F) / ±0.5 °C (-40 to -25.1 °C)

Reaction time

20 sec

Temperature - NTC

Measuring range

-58.0° to 302.0 °F / -50 to +150 °C ¹⁾

Accuracy

±0.5 % of mv (212.0° to 302.0 °F) / ±0.5 % of mv (+100 to +150 °C)

±0.4 °F (-13.0° to 166.8 °F) / ±0.2 °C (-25 to +74.9 °C)

32.7 °F / ±0.4 °C (Remaining Range)

Reaction time

8 sec

1) Long-term measurement range +125°C, short-term +150°C or +140°C (2 minutes)

Temperature - NTC

Measuring range

-58.0° to 158.0 °F / -50 to +70 °C ¹⁾

Accuracy

±0.4 °F (-13.0° to 158.0 °F) / ±0.2 °C (-25 to +70 °C)

±0.7 °F (-58.0° to -13.2 °F) / ±0.4 °C (-50 to -25.1 °C)

Reaction time

60.0 sec

1) Long-term measurement range +125°C, short-term +150°C or +140°C (2 minutes)

Stub probe, IP 54

Order Number: 0628 7510

Temperature - NTC

Measuring range

-4.0° to 158.0 °F / -20 to +70 °C

Accuracy

±0.4 °F (-4.0° to 104.0 °F) / ±0.2 °C (-20 to +40 °C)

±0.7 °F (104.2° to 158.0 °F) / ±0.4 °C (40.1 to +70 °C)

Reaction time

15 sec

NTC temperature probes

Temperature - NTC

Measuring range

-58.0° to 302.0 °F / -50 to +150 °C

Accuracy

±0.5 % of mv (212.0° to 302.0 °F) / ±0.5 % of mv (100 to +150 °C)

±0.4 °F (-13.0° to 166.8 °F) / ±0.2 °C (-25 to +74.9 °C)

±0.7 °F (remaimig range) / ±0.4 °C (remaimig range)

Reaction time

10 sec

Pt100 Temperature Probe

Temperature - Pt100

Measuring range

-121.0° to 302.0 °F / -85 to +150 °C

Accuracy

Class A

Reaction time

35 sec

Temperature - Pt100

Measuring range

-58.0° to 752.0 °F / -50 to +400 °C

Accuracy

Class A (-58 to +572 °F) / Class A (-50 to +300 °C)

Class B (Remaining Range) ¹⁾

Reaction time

12 sec

1) According to standard 60751, the accuracies of Class A and B refer to -200 to +600 °C (Pt100)

Temperature - Pt100

Measuring range

-58 to +752 °F / -50 to +400 °C

Accuracy

Class A (-58.0° to 572.0 °F) / Class A (-50 to +300 °C)

Class B (Remaining Range) ¹⁾

Reaction time

10 sec

1) According to standard 60751, the accuracies of Class A and B refer to -200 to +600 °C (Pt100)

Radio probes

Temperature - NTC

Measuring range

-31.0° to 122.0 °F / -35 to +50 °C

Accuracy

±0.7 °F (-13.0° to 122.0 °F) / ±0.4 °C (-25 to +50 °C)

±1.4 °F (Remaining Range) / ±0.8 °C (Remaining Range)

Resolution

0.1 °F / 0.1 °C

Temperature - NTC

Measuring range

-31.0° to 122.0 °F / -35 to +50 °C

Accuracy

±0.7 °F (-13.0° to 122.0 °F) / ±0.4 °C (-25 to +50 °C)

±1.4 °F (Remaining Range) / ±0.8 °C (Remaining Range)

Resolution

0.1 °F / 0.1 °C

Temperature - NTC

Measuring range

-4.0° to 122.0 °F / -20 to +50 °C

Accuracy

±0.9 °F / ±0.5 °C

Resolution

0.1 °F / 0.1 °C

Humidity - Capacitive

Measuring range

0 to +100 %rH

Accuracy

±3 %rH at +77 °F / ±3 %RH at +25 °C

±0.03 %rF/K

±1 digit

Resolution

0.1 % / 0.1 °Ctd

Temperature - NTC

Measuring range

-4.0° to 122.0 °F / -20 to +50 °C

Accuracy

±0.9 °F / ±0.5 °C

Resolution

0.1 °F / 0.1 °C

Humidity - Capacitive

Measuring range

0 to +100 %rH

Accuracy

±3 %rH at +77 °F / ±3 %RH at +25 °C

±0.03 %rF/K

±1 digit

Resolution

0.1 % / 0.1 °Ctd

Temperature - NTC

Measuring range

-4.0° to 122.0 °F / -20 to +50 °C

Accuracy

±0.9 °F / ±0.5 °C

Resolution

0.1 °F / 0.1 °C

Humidity - Capacitive

Measuring range

0 to +100 %rH

Accuracy

±2 %rH (< 90 %rH) at +77 °F / ±2 %RH (< 90 %RH) at +25 °C

±3 %rH (> 90 %rH) at +77 °F / ±3 %RH (> 90 %RH) at +25 °C

±0.03 %rF/K

±1 digit

Resolution

0.1 °Ctd / 0.1 °Ctd

Temperature - NTC

Measuring range

-4.0° to 158.0 °F / -20 to +70 °C

Accuracy

±0.4 °F / ±0.2 °C

Resolution

0.1 °F / 0.1 °C

Humidity - Capacitive

Measuring range

0 to +100 %rH

Accuracy

see probes

Resolution

0.1 % / 0.1 °Ctd

Temperature - Pt100

Measuring range

-328.0° to 1112.0 °F / -200 to +600 °C

Accuracy

at +77 °F / at +25 °C

±0.2 °F (32.0° to 140.0 °F) / ±0.1 °C (0 to +60 °C)

±0.4 °F (-148.0° to 392.0 °F) / ±0.2 °C (-100 to +200 °C)

±0.9 °F (Remaining Range) / ±0.5 °C (Remaining Range)

Temperature - Pt100

Measuring range

-328.0° to 1112.0 °F / -200 to +600 °C

Accuracy

at +77 °F / at +25 °C

±0.2 °F (32.0° to 140.0 °F) / ±0.1 °C (0 to +60 °C)

±0.4 °F (-148.0° to 392.0 °F) / ±0.2 °C (-100 to +200 °C)

±0.9 °F (Remaining Range) / ±0.5 °C (Remaining Range)

Temperature - Type K TC

Measuring range

-319.0° to 2462.0 °F / -195 to +1350 °C

Accuracy

±0.9 °F or 0.5 % of mv / ±0.5 °C or 0.5 % of mv

Resolution

0.1 °F /TC type S 1 °F / 0.1 °C /TC type S 1 °C

Temperature - TC Type T (Cu-CuNi)

Measuring range

-328.0° to 752.0 °F / -200 to +400 °C

Accuracy

±0.9 °F or 0.5 % of mv / ±0.5 °C or 0.5 % of mv

Resolution

0.1 °F /TC type S 1 °F / 0.1 °C/TC type S 1 °C

Temperature - Type J TC

Measuring range

-148.0° to 1382.0 °F / -100 to +750 °C

Accuracy

±0.9 °F or 0.5 % of mv / ±0.5 °C or 0.5 % of mv

Resolution

32.2 °F/TC type S 34 °F / 0.1 °C/TC type S 1 °C

Temperature - TC Type S (Pt10Rh-Pt)

Measuring range

32.0° to 3200.0 °F / 0 to +1760 °C

Accuracy

±0.9 °F or 0.5 % of mv / ±0.5 °C or 0.5 % of mv

Resolution

32.2 °F/TC type S 34 °F / 0.1 °C/TC type S 1 °C

Temperature - Type K TC

Measuring range

-319.0° to 2462.0 °F / -195 to +1350 °C

Accuracy

±0.9 °F or 0.5 % of mv / ±0.5 °C or 0.5 % of mv

Resolution

0.1 °F /TC type S 1 °F / 0.1 °C/TC type S 1 °C

Temperature - TC Type T (Cu-CuNi)

Measuring range

-328.0° to 752.0 °F / -200 to +400 °C

Accuracy

±0.9 °F or 0.5 % of mv / ±0.5 °C or 0.5 % of mv

Resolution

0.1 °F /TC type S 1 °F / 0.1 °C/TC type S 1 °C

Temperature - Type J TC

Measuring range

-148.0° to 1382.0 °F / -100 to +750 °C

Accuracy

±0.9 °F or 0.5 % of mv / ±0.5 °C or 0.5 % of mv

Resolution

0.1 °F /TC type S 1 °F / 0.1 °C/TC type S 1 °C

Temperature - TC Type S (Pt10Rh-Pt)

Measuring range

32.0° to 3200.0 °F / 0 to +1760 °C

Accuracy

±0.9 °F or 0.5 % of mv / ±0.5 °C or 0.5 % of mv

Resolution

0.1 °F /TC type S 1 °F / 0.1 °C/TC type S 1 °C

Thermo Hot Wire Probe

Temperature - Type K TC

Measuring range

-76.0° to 752.0 °F / -60 to +400 °C

Accuracy

Class 2 ¹⁾

Reaction time

200 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.
