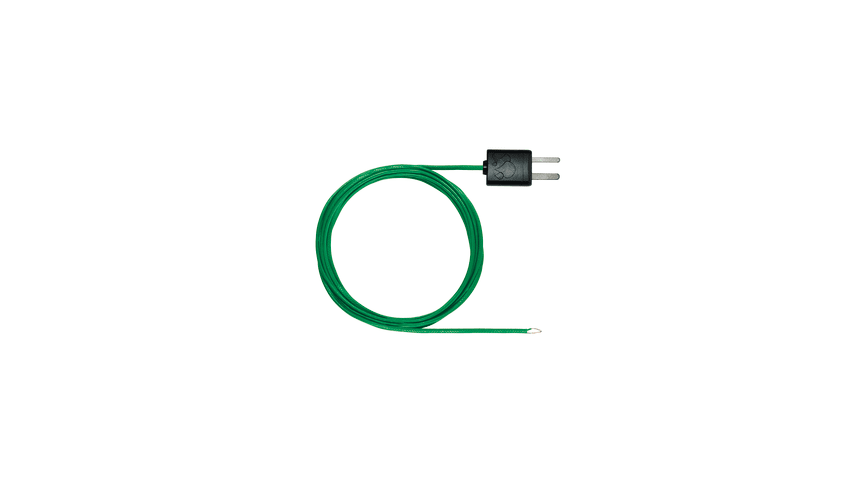

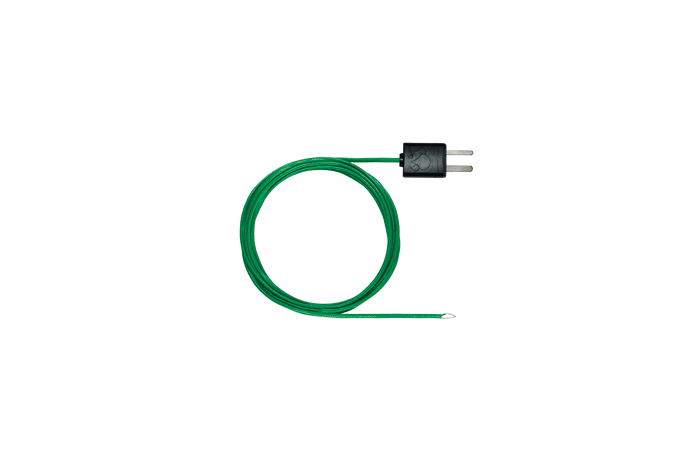

Thermocouple with T/C adapter, flexible, 60 in. long, PTFE, ... - Thermocouple, flexible, 60 in. long, PTFE

Order-Nr.  0602 0646

  • Thermoelectric couple type K with TC plug

  • Heatproof to +250°C due to the teflon coating (PTFE)

  • Length 1500 mm (flexible)

Thermocouple with T/C adapter, flexible, 60 in. long, PTFE, T/C Type K

Product Description

The thermoelectric couple is ideal for fast and easy measurement of the air temperature. The flexible thermocouple wire can for instance be laid through drill holes, gaps or door seals.

Thanks to the PTFE insulation, the thermoelectric couple can also be used in the food or pharmaceutical sector. Use it for instance to take measurements of climate cabinets or ripening chambers in the food sector.



Delivery Scope

Flexible thermoelectric couple (TC type K temperature sensor) with teflon coating (PTFE) (cable length 1500 mm).
Temperature - Type K TC

Measuring range

-58.0° to 482.0 °F / -50 to +250 °C

Accuracy

Class 2 ¹⁾

Reaction time

5 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General technical data

Length probe shaft

59.055 in. / 1,500 mm

Cable length

59.055 in. / 1,500 mm

Diameter probe shaft

0.059 in. / 1.5 mm

Weight

3,0
