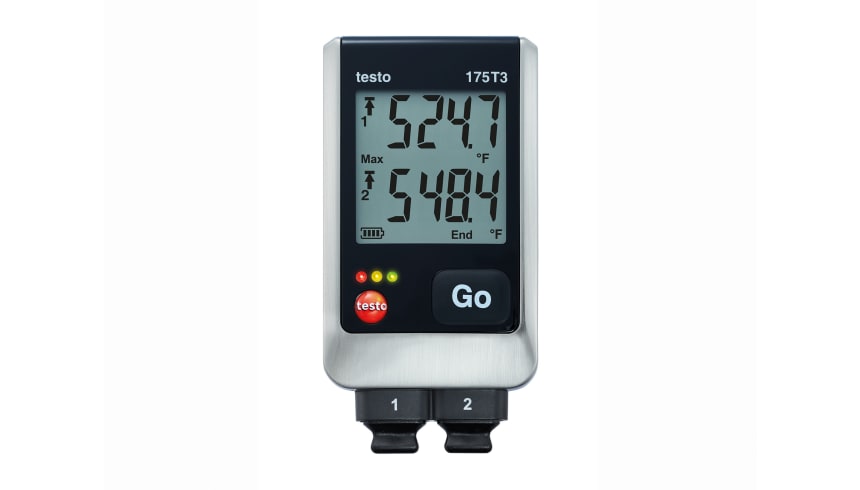

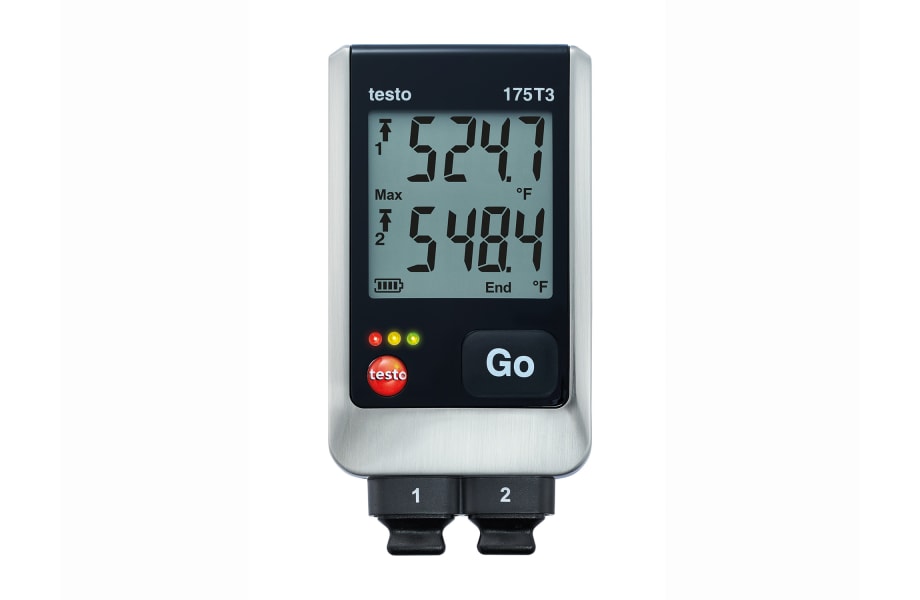

testo 175T3 - Temperature data logger

Order-Nr. 0572 1753

This meter uses a sensor to start up. Click here for probe selection.

$ 322.20

excl. tax

Where to buy

Delivery costs

Delivery time: 1 working days

1-484-705-0777

Inquiry

Professional software with Excel export function for programming the logger and data analysis
Temperature measuring range from -50 °C to +1000 °C
Wall mount
Automatic measuring data backup when the battery runs out or is changed
Transfer of measuring data via SD card
Displays violations of limit values

The testo 175T3 temperature data logger features a large display and alarm indication that makes it ideal for continuous monitoring of temperatures. The 175T3 temperature measurement logger has dual external thermocouple connections, 1 Type K and 1 Type T, which allows for simultaneous measurements using a wide variety of probes. Creation of Excel Spreadsheets, PDFs, and data analysis are all easily achieved with the free, downloadable ComSoft software.


Professional software with Excel export function for programming the logger and data analysis.

Details

Product Description

The testo 175T3 is an ideal data logger for the continuous monitoring of ambient and product temperatures. With its customizable alarm, the 175T3 will alert when user defined thresholds have been exceeded.

Dual external thermocouple probe ports (1 Type T, 1 Type K) compatible with a variety of different probes
Data transfer possible using the USB port, or SD card (optional)
Easy to read large display that shows current reading and exceeded measurement limits
IP65 proection class
Capable of CFR 21 Part 11 Compliancy
Free data logger software available for download
Data is secured within the logger, and can be password protected using ComSoft
Includes lockable wall mount to prevent theft or tampering

Please note: The testo 175T3 temperature measurement logger requires an interface to use the free data logger software. One interface can be used for multiple instruments.

Delivery Scope

testo 175T3 temperature data logger, batteries, wall mount, lock, and certificate of conformity

Technical Data

Temperature - Type K TC
Measuring range	-58° to 1832 °F / -50 to +1000 °C
Accuracy	±0.9 °F (-58° to 158 °F) ±1 Digit / ±0.5 °C (-50 to +70 °C) ±1 Digit ±0.7 % of mv (158.2° to 1832 °F) ±1 Digit / ±0.7 % of mv (+70.1 to +1000 °C) ±1 Digit
Resolution	0.1 °F / 0.1 °C

Temperature - Type K TC

Measuring range

-58° to 1832 °F / -50 to +1000 °C

Accuracy

±0.9 °F (-58° to 158 °F) ±1 Digit / ±0.5 °C (-50 to +70 °C) ±1 Digit

±0.7 % of mv (158.2° to 1832 °F) ±1 Digit / ±0.7 % of mv (+70.1 to +1000 °C) ±1 Digit

Resolution

0.1 °F / 0.1 °C

Temperature - TC Type T (Cu-CuNi)
Measuring range	-58 to +752 °F / -50 to +400 °C
Accuracy	±0.9 °F (-58° to 158 °F) ±1 Digit / ±0.5 °C (-50 to +70 °C) ±1 Digit ±0.7 % of mv (158.2° to 752 °F) ±1 Digit / ±0.7 % of mv (70.1 to +400 °C) ±1 Digit
Resolution	0.1 °F / 0.1 °C

Temperature - TC Type T (Cu-CuNi)

Measuring range

-58 to +752 °F / -50 to +400 °C

Accuracy

±0.9 °F (-58° to 158 °F) ±1 Digit / ±0.5 °C (-50 to +70 °C) ±1 Digit

±0.7 % of mv (158.2° to 752 °F) ±1 Digit / ±0.7 % of mv (70.1 to +400 °C) ±1 Digit

Resolution

0.1 °F / 0.1 °C

General technical data
Weight	4.59 oz. / 130 g
Dimensions	4 x 2 x 1 in. / 96 x 54 x 29 mm
Operating temperature	-4° to 131 °F / -20 to +55 °C
Protection class	IP65
Channels	2 external
Housing	Plastic
Product colour	Black
Standards	EU-guideline 2014/30/EU; 2011/65/EU
Measuring rate	10 s - 24 h
Battery type	3 x AIMn type AAA or Energizer
Battery life	3 years at 15 min. meas. rate, +25 °C
Memory	1,000,000 measuring values
Storage temperature	-4° to 131 °F / -20 to +55 °C

Probes

Air Probes

Rugged air probe, T/C Type K

Order Number: 0602 1793

Robust, affordable air probe, T/C Type T

Order Number: 0603 1793

Food Probe

Wasserdichter Lebensmittelfühler aus Edelstahl (IP65)

Waterproof food probe made of stainless steel (IP65)

Order Number: 0602 2292

Flexible oven probe, Tmax +250 °C, PTFE cable

Order Number: 0603 0646

Stainless steel food probe (IP67) with PUR cable, T/C Type T

Order Number: 0603 2192

Robust food penetration probe with special handle, IP 65, reinforced cable (PUR) and reinforced protection from buckling

Order Number: 0603 2492

Waterproof precision immersion/penetration probe without visible penetration hole, T/C Type T

Order Number: 0603 2693

Frozen food probe, corkscrew design, Tmax handle and cable +158°F

Order Number: 0603 3292

Accurate, waterproof food probe (IP67), made of stainless steel, with Teflon cable

Order Number: 0603 3392

Flexible incoming goods probe, ideal for quick temperature measurements on incoming goods

Order Number: 0628 0023

Waterproof, super-quick needle probe for measurements without visible penetration hole. Ideal for hamburgers, steaks etc.

Order Number: 0628 0027

Quick needle probe to monitor cooking processes in oven. Measurements on vacuum products also possible if special sealing strip is used

Order Number: 0628 0030

Wasserdichter Tauch-/Einstechfühler mit Metallschutzschlauch

Waterproof rugged immersion/penetration probe with metal protection hose Tmax 450°F, e.g. for checking the temperature in cooking oil

Order Number: 0628 1292

Immersion / Penetration Probe

Flexible, low-mass immersion measurement tip, ideal for measurements in small volumes such as petri dishes, or for surface measurements (e.g. attached with adhesive tape), TC Type K

Order Number: 0602 0493

Efficient and fast-action immersion probe, waterproof, T/C Type K

Order Number: 0602 0593

Waterproof immersion/penetration probe, TC Type K

Waterproof immerstion/penetration probe, T/C Type K

Order Number: 0602 1293

Fast-action, waterproof immersion/penetration probe

Super-quick, waterproof immersion/penetration probe, T/C Type K

Order Number: 0602 2693

Immersion measurement tip, flexible, for measurements in air

Flexible immersion measurement tip for measurements in air/exhaust gases (not suitable for measurements in smelters), TC Type K -104 to +1832 °F, 39" long, Ø 0.12"

Order Number: 0602 5693

Immersion tip, flexible
Measuring range: -328° to 1832 °F (-200° to 1000 °C)

Order Number: 0602 5792

Immersion tip, flexible

Order Number: 0602 5793

Waterproof standard immersion/penetration probe, T/C Type T

Order Number: 0603 1293

Temperature probe with stainless steel sleeve (TC Type K)

Order Number: 0628 7533

Surface probes

Spare meas. head for pipe wrap probe, TC Type K

Spare measuring head with thermocouple strip for temperature probe with clamping bracket

Order Number: 0602 0092

Fast-reaction paddle surface probe, for measurements in inaccessible places, e.g. narrow apertures and slots, TC Type K

Order Number: 0602 0193

Fast-action surface probe with sprung thermocouple strip

Fast-action surface probe with spring thermocouple , for uneven surfaces, short-term range to +932°F, T/C Type K

Order Number: 0602 0393

Efficient, waterproof surface probe with small measurement head for flat surfaces, T/C Type K

Order Number: 0602 0693

Fast-action surface probe with spring thermocouple for uneven surfaces, short-term to +932°F, T/C Type K

Order Number: 0602 0993

Waterproof surface probe with widened measurement tip

Waterproof surface probe with widenend measurement tip for flat surfaces, T/C Type K

Order Number: 0602 1993

Flat head surface probe with telescopic handle max. 680 mm

Flat head surface probe with telescopic handle (max. 24 in.) for hard-to-reach areas, T/C Type K

Order Number: 0602 2394

Pipe wrap probe for pipe diameter 5 to 65 mm

Pipe clamp probe for pipe diameter 0.2 to 2.5'', with replaceable measuring head. Measuring range to 536 °F short-term

Order Number: 0602 4592

Clamp probe for measurements on pipes, pipe diameter 0.6 to 1'' (max. 1''), meas. range to +266 °F short-term

Order Number: 0602 4692

Magnetic probe (TC type K) - for surface temperatures

Magnetic probe, adhesive force approx. 20 N, with magnets, for measurements on metal surfaces

Order Number: 0602 4792

Magnetfühler, Haftkraft ca. 10 N, mit Haft-Magneten

Surface temperature probe with magnet (TC type K), adhesive power 10 N – Measuring range -50 to +400°C

Order Number: 0602 4892

Waterproof surface probe with widened measurement tip for flat surfaces, T/C Type T

Order Number: 0603 1993

Temperature probe with Velcro (TC Type K)

Order Number: 0628 0020

Thermocouples

Thermocouple with TC adapter, flexible, 800 mm long

Thermocouple with T/C adapter, flexible, 32 in. long, fibre glass, T/C Type K

Order Number: 0602 0644

Thermocouple with TC adapter, flexible, length 1500 mm

Thermocouple with T/C adapter, flexible, 60 in. long, fibre glass, T/C Type K

Order Number: 0602 0645

Thermocouple with TC adapter, flexible, 1500 mm long, PTFE

Thermocouple with T/C adapter, flexible, 60 in. long, PTFE, T/C Type K

Order Number: 0602 0646

Accessories

USB connection cable

Order Number: 0449 0047

Wall holder

Order Number: 0554 1702

ComSoft Professional 4

Order Number: 0554 1704

ComSoft CFR 21 Part 11

Order Number: 0554 1705

SD card - for collecting the measurement data from the data loggers testo 175 and testo 176; 2 GB; application range to -20 °C.

Order Number: 0554 8803

CD ComSoft Basic 5 (free download from website; registration not required)

Order Number: 0572 0580

Applications

Monitoring the flow and return temperature of heating systems

The heating period begins in autumn and with it complaints from tenants that their apartments cannot be heated to the extent they would like. The flow and return temperature of individual radiators, for example, can be specifically monitored with the aid of flexible external pipe wrap probes, which enable causes to be identified and remedied.

Monitoring process temperatures

In production processes, the temperature often has to be checked in different places to ensure production quality: whether this is the air temperature, the temperature of manufactured products themselves, or the surface temperature of machines or engines and motors.
With the aid of thermocouple probes, data loggers can also record in the extreme temperature ranges prevalent in production processes. The extremely fast response of the probes means that even in processes with fast changing temperatures a good measurement result can be achieved.
