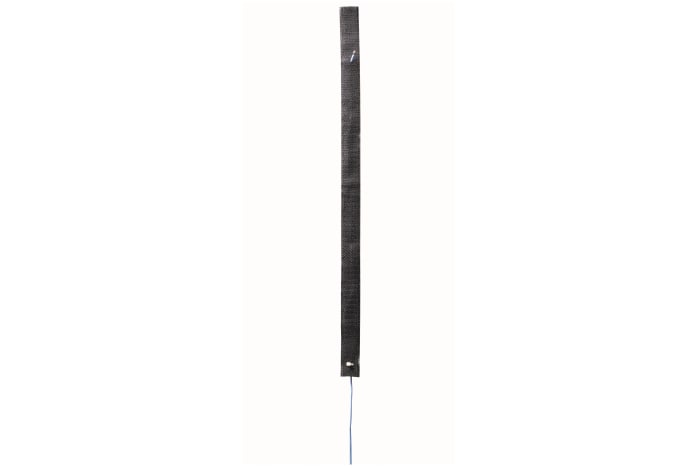

Pipe wrap probe

Order-Nr.  0628 0020

  • With Velcro: makes it easy to attach the surface probe to pipes with a diameter of up to 120 mm

  • TC Type K temperature probe with 1.5 m cable

  • Measuring range: -60 to 250 °F (-50 to +120 °C)

Temperature probe with Velcro for surface measurements on pipes.

Product Description

The testo temperature probe is suitable for surface temperature measurements on pipes with a pipe diameter of up to 120 mm. Because of the Velcro fastener on this strip, the surface probe attaches to pipes quickly and easily.

The surface probe features a 1.5 m cable. With this probe, you are ideally equipped for measuring temperatures which are not in close proximity to the testo Saveris-2T3 Wi-Fi data logger.

The perfect probe for any application
If you don’t see an appropriate temperature probe for your application, please contact us directly. We have a large range of standard and custom temperature probes.



Delivery Scope

1 x TC Type K temperature probe 0628 0020, for the testo Saveris 2-T3 Wi-Fi data logger
Temperature - Type K TC

Measuring range

-58.0° to 248.0 °F / -50 to +120 °C

Accuracy

Class 1 ¹⁾

Reaction time

90 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K)

General technical data

Diameter

4.724 in. / 120 mm

Temperature maximum

248 °F / 120 °C

Length probe shaft

15.551 in. / 395 mm

Diameter probe shaft tip

0.787 in. / 20 mm
