testo 108-1 - Waterproof food thermometer

Order-Nr.  0563 1080

  • Rugged and waterproof IP67 protection stands up to the toughest of environments

  • HACCP compliant

  • Slim, sleek design and the large, backlit, display makes for comfortable handling

  • Compatible with Type T and Type K thermocouples for a variety of applications

The testo 108 waterproof food thermometer is a reliable and rugged solution for food meaurement needs. With a sleek, compact, waterproof housing and interchangeable Type T and Type K probes, the testo 108 offers a wide variety of measurement options for most food applications.

Product Description

Rugged and waterproof, the testo 108 food thermometer is the top contender in the varying aspects of food preparation.  The testo 108 allows for spot check measurements in seconds, during transportation and storage, in large kitchens or restaurants. The testo 108 allows temperature measurement to be integrated into daily work routines worry-free, due to its tough, rugged design, and simple two button operation.
The testo 108 waterproof thermometer is not only HACCP compliant but can be cleaned under running water, making it ideal for use in the food sector.



Delivery Scope

testo 108-1 waterproof food thermometer, Type K thermocouple, user guide, calibration protocol, and batteries
Temperature - Type K TC

Measuring range

-58° to 572 °F / -50 to +300 °C

Accuracy

±0.9 °F (-22° to 158 °F) / ±0.5 °C (-30 to +70 °C)

±0.9 °F ±0.5 % of mv (Remaining Range) / ±0.5 °C ±0.5 % of mv (Remaining Range)

Resolution

0.1 °F / 0.1 °C

Temperature - TC Type T (Cu-CuNi)

Measuring range

-58° to 572 °F / -50 to +300 °C

Accuracy

±0.9 °F (-22° to 158 °F) / ±0.5 °C (-30 to +70 °C)

±0.9 °F ±0.5 % of mv (Remaining Range) / ±0.5 °C ±0.5 % of mv (Remaining Range)

Resolution

0.1 °F / 0.1 °C

General technical data

Reaction time

10 sec (measured in moving liquid)

Dimensions

6 x 2 x 1.0 in. / 140 x 60 x 24.5 mm

Operating temperature

-4° to 140 °F / -20 to +60 °C

Housing

ABS / ABS-PC fibre glass 10%

Protection class

IP67 with TopSafe

Measuring rate

2 measurements per second

Standards

EN 13485

EU-/EG-guidelines

2004/108/EG

Battery type

3 x AAA

Battery life

2500 h (typical, at 23 °C)

Display type

LCD

Display size

one-line

Display function

with status line

Storage temperature

-22° to 158 °F / -30 to +70 °C

Weight

5 oz. (instrument incl. battery, without soft case) / 150 g (instrument incl. battery, without soft case)

Air Probes

Temperature - Type K TC

Measuring range

-76.0° to 752.0 °F / -60 to +400 °C

Accuracy

Class 2 ¹⁾

Reaction time

200 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - TC Type T (Cu-CuNi)

Measuring range

-58.0° to 662.0 °F / -50 to +350 °C

Accuracy

±0.4 °F (-4 to +158 °F) / ±0.2 °C (-20 to +70 °C)

Class 1 (t1) ¹⁾

Reaction time

25 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).

Immersion / Penetration Probe

Temperature - Type K TC

Measuring range

-76.0° to 1832.0 °F / -60 to +1000 °C

Accuracy

Class 1 ¹⁾

Reaction time

2 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Temperature - Type K TC

Measuring range

-58° to 752 °F / -50.0 to +400.0 °C

Accuracy

Class 2 ¹⁾

Reaction time

5 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - Type K TC

Measuring range

-76.0° to 752.0 °F / -60 to +400 °C

Accuracy

Class 2 ¹⁾

Reaction time

7 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - Type K TC

Measuring range

-76.0° to 1472.0 °F / -60 to +800 °C

Accuracy

Class 1 ¹⁾

Reaction time

3 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Temperature - Type K TC

Measuring range

-328.0° to 2372.0 °F / -200 to +1300 °C

Accuracy

Class 1 ¹⁾

Reaction time

4 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Temperature - Type K TC

Measuring range

-328.0° to 1832.0 °F / -200 to +1000 °C

Accuracy

Class 1 ¹⁾

Reaction time

5 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K)

Immersion tip, flexible

Order Number: 0602 5793

Temperature - Type K TC

Measuring range

-328.0° to 104.0 °F / -200 to +40 °C

Class 3 ¹⁾

Reaction time

5 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Immersion / Penetration Probe for Food Measurements

Temperature - Type K TC

Measuring range

-76.0° to 752.0 °F / -60 to +400 °C

Accuracy

Class 2 ²⁾

Reaction time

7 sec

2) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Temperature - TC Type T (Cu-CuNi)

Measuring range

-58.0° to 482.0 °F / -50 to +250 °C

Accuracy

Class 1 ¹⁾

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).

Temperature - TC Type T (Cu-CuNi)

Measuring range

-58.0° to 662.0 °F / -50 to +350 °C

Accuracy

±0.4 °F (-4.0° to 158.0 °F) / ±0.2 °C (-20 to +70 °C)

Class 1 (Remaining Range) ¹⁾

Reaction time

7 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).

Temperature - TC Type T (Cu-CuNi)

Measuring range

-58.0° to 662.0 °F / -50 to +350 °C

Accuracy

±0.4 °F (-4.0° to 158.0 °F) / ±0.2 °C (-20 to +70 °C)

Class 1 (Remaining Range) ¹⁾

Reaction time

7 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).

Temperature - TC Type T (Cu-CuNi)

Measuring range

-58.0° to 662.0 °F / -50 to +350 °C

Accuracy

±0.4 °F (-4.0° to 158.0 °F) / ±0.2 °C (-20 to +70 °C)

Class 1 (Remaining Range) ¹⁾

Reaction time

6 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).

Temperature - TC Type T (Cu-CuNi)

Measuring range

-58.0° to 662.0 °F / -50 to +350 °C

Accuracy

±0.4 °F (-4.0° to 158.0 °F) / ±0.2 °C (-20 to +70 °C)

Class 1 (Remaining Range) ¹⁾

Reaction time

8 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).

Temperature - TC Type T (Cu-CuNi)

Measuring range

-58.0° to 662.0 °F / -50 to +350 °C

Accuracy

±0.4 °F (-4.0° to 158.0 °F) / ±0.2 °C (-20 to +70 °C)

Class 1 (Remaining Range) ¹⁾

Reaction time

7 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).

Temperature - TC Type T (Cu-CuNi)

Measuring range

-58.0° to 662.0 °F / -50 to +350 °C

Accuracy

±1.8 °F (-40.0° to 271.4 °F) / ±1.0 °C (-40 to +133 °C)

Class 2 Remaining Range

Reaction time

5 sec

1) According to standard EN 60584-2, the accuracy of Class 1 and Class 2 refers to -40 to +350 °C (Type T).

Temperature - TC Type T (Cu-CuNi)

Measuring range

-58.0° to 482.0 °F / -50 to +250 °C

Accuracy

±0.4 °F (-4.0° to 158.0 °F) / ±0.2 °C (-20 to +70 °C)

Class 1 (Remaining Range) ¹⁾

Reaction time

2 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).

Temperature - TC Type T (Cu-CuNi)

Measuring range

-58.0° to 482.0 °F / -50 to +250 °C

Accuracy

±0.4 °F (-4.0° to 158.0 °F) / ±0.2 °C (-20 to +70 °C)

Class 1 (Remaining Range) ¹⁾

Reaction time

2 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).

Temperature - Type K TC

Measuring range

-58.0° to 446.0 °F / -50 to +230 °C

Accuracy

Class 1 ²⁾

Reaction time

15 sec

2) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

Surface probes

Temperature - Type K TC

Measuring range

32.0° to 572.0 °F / 0 to +300 °C

Accuracy

Class 2 *

Reaction time

5 sec

* According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - Type K TC

Measuring range

-76.0° to 572.0 °F / -60 to +300 °C

Accuracy

Class 2 ¹⁾

Reaction time

3 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - Type K TC

Measuring range

-76.0° to 1832.0 °F / -60 to +1000 °C

Accuracy

Class 1 ¹⁾

Reaction time

20 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K)

Temperature - Type K TC

Measuring range

-76.0° to 572.0 °F / -60 to +300 °C

hort-term to 932.0°°F / hort-term to 500°C

Accuracy

Class 2 ¹⁾

Reaction time

3 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - Type K TC

Measuring range

-76.0° to 752.0 °F / -60 to +400 °C

Accuracy

Class 2 ¹⁾

Reaction time

30 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - Type K TC

Measuring range

-58.0° to 482.0 °F / -50 to +250 °C

Accuracy

Class 2 ¹⁾

Reaction time

3 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - Type K TC

Measuring range

-76.0° to 266.0 °F / -60 to +130 °C

Accuracy

Class 2 ¹⁾

Reaction time

5 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - Type K TC

Measuring range

-58.0° to 212.0 °F , short-term up to +130 °C / -50 to +100 °C , short-term up to +130 °C

Accuracy

Class 2 ¹⁾

Reaction time

5 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - Type K TC

Measuring range

-58.0° to 338.0 °F / -50 to +170 °C

Accuracy

Class 2 ¹⁾

Reaction time

150 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Magnetic probe (TC Type K)

Order Number: 0602 4892

Temperature - Type K TC

Measuring range

-58.0° to 752.0 °F / -50 to +400 °C

Accuracy

Class 2 ¹⁾

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

Temperature - TC Type T (Cu-CuNi)

Measuring range

-58.0° to 662.0 °F / -50 to +350 °C

Accuracy

±0.4 °F (-4.0° to 158.0 °F) / ±0.2 °C (-20 to +70 °C)

Class 1 (Remaining Range) ¹⁾

Reaction time

30 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).

Temperature - Type K TC

Measuring range

-58.0° to 248.0 °F / -50 to +120 °C

Accuracy

Class 1 ¹⁾

Reaction time

90 sec

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K)

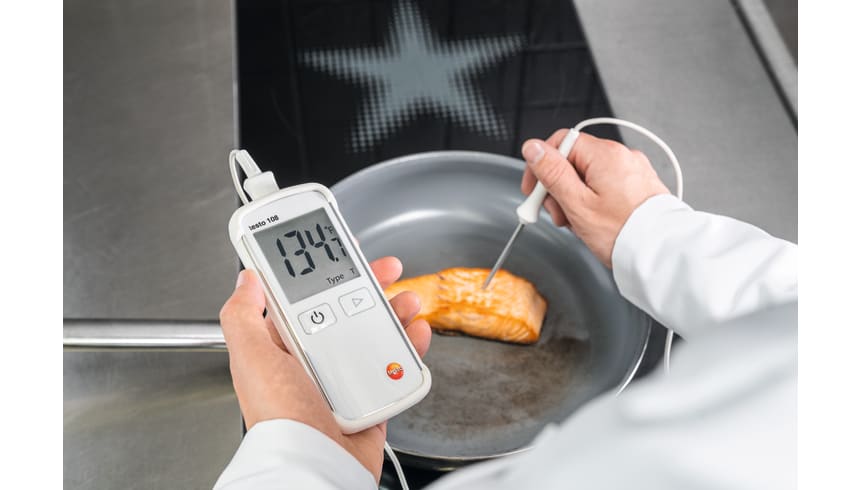

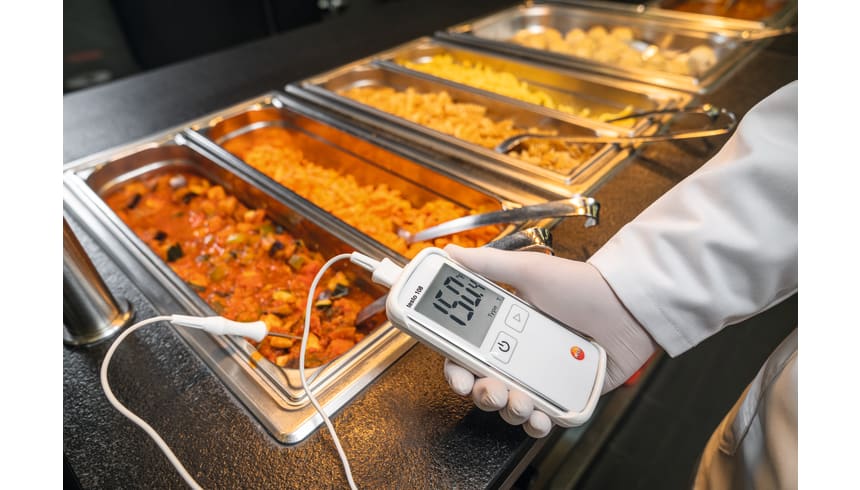

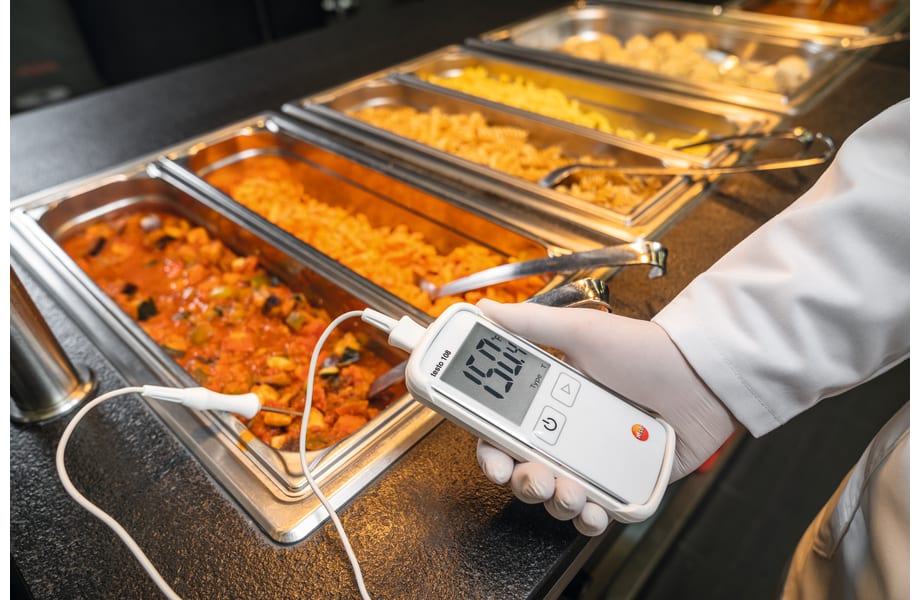

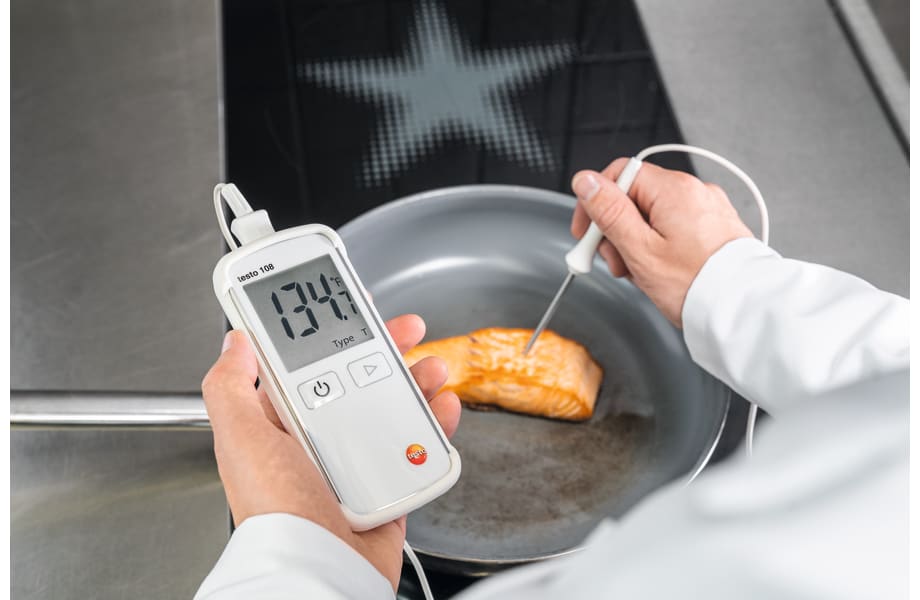

Monitoring product temperatures

In the area of food production and meal distribution, the correct cooking method and temperature of the food play a crucial role in terms of controlling bacteria generation.

- Measure directly during the production process or after food preparation

- Ensure the necessary temperature regarding germs/bacteria, but also quality specifications “defined internally”; (i.e. when heating chocolate it must not be heated too much/too quickly).

Advantages of testo 108:

- Ease of operation and use

- Waterproof instrument and probe (IP67)

- Conforms with HACCP and EN 13485

- Can be used universally

Monitor Food Temperature: During Storage

In the food sector, the cooling chain has to be checked and verified. Part of this is the temperature check during storage. The temperature of food has a decisive effect on the generation and reproduction of germs/bacteria on the food. It is therefore necessary to monitor the temperature continuously to ensure food safety. For storage, both mobile sampling and stationary temperature measuring instruments should be used.

Monitor food storage temperature to ensure that the temperature of goods complies with regulations and that the goods can be “safely” accepted and used for consumption.

• For contact measurements, a measurement is normally taken between the products (carton packaging, frozen foods), as well as core temperature measurement.

• In cases of doubt, a core measurement is of interest. Our frozen food probe 0603 3292 is inserted into the frozen food for this purpose.

These measurements refer to cold storage warehouses, refrigerated transport, and refrigeration for sales counters (i.e. in supermarkets).

Advantages of testo 108:

- Ease of operation and use

- Waterproof instrument and probe (IP67)

- Conforms with HACCP and EN 13485

- Can be used universally

Monitor Food Temperature: Incoming Goods

In the food sector, the cooling chain must be checked and verified. Part of this process is the temperature check when receiving goods. The temperature of food has a significant effect on the generation of germs and bacteria on the food. It is therefore necessary to monitor the temperature continuously to ensure food safety. In incoming goods, both infrared and core temperature measuring technologies can be used for this process.

Monitor the temperature of incoming goods to ensure that the temperature of supplied goods complies with regulations and that the goods can be safely accepted and used for further processing. Both the temperature between the products and the core temperature of foods can be measured. In most cases, data is entered on a form and documented for subsequent traceability. In addition to the measurement, the date, time and user should be noted. If the temperature of the supplied goods complies with regulations, these goods can be accepted and processed.

Advantages of testo 108:

- Ease of operation and use

- Waterproof instrument and probe (IP67)

- Conforms with HACCP and EN 13485

- Can be used universally
