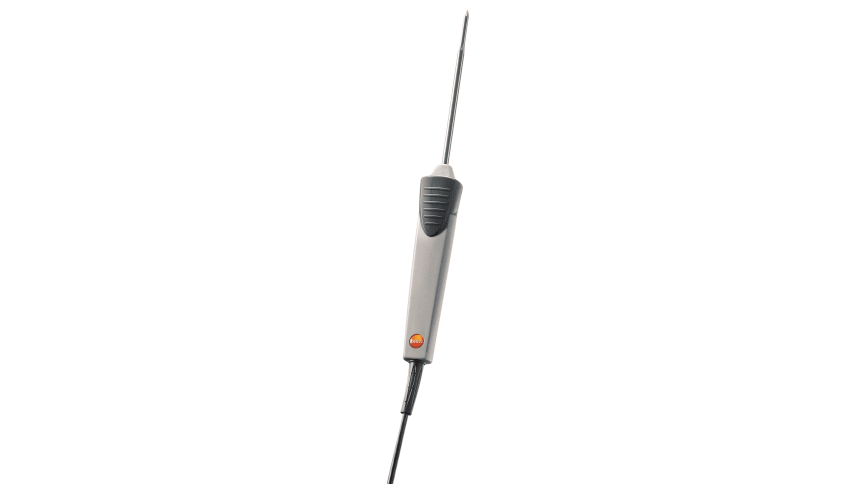

Waterproof Immersion Probe

Order-Nr.  0602 1293

  • Thermocouple type K

  • Response time of 7 seconds

  • Waterproof

  • Measuring range: -60 to +400 °C

A Type K Thermocouple waterproof immersion/penetration probe. This probe is capable of reading temperature values from -76.0° to 752.0 °F.

Product Description

The waterproof immersion and penetration probe (thermocouple type K) can be connected to many different measuring instruments. The probe can be used in a variety of applications, e.g. in industrial production or quality assurance.



Delivery Scope

Waterproof immersion/penetration probe (TC type K) with fixed cable 1.2 m.
Temperature - Type K TC

Measuring range

-76.0° to 752.0 °F / -60 to +400 °C

Accuracy

Class 2 ¹⁾

Reaction time

7 sec

1) According to standard EN 60584-2, the accuracy of Class 2 refers to -40 to +1200 °C.

General technical data

Length probe shaft

4.488 in. / 114 mm

Fixed cable

yes

Cable length

3.937 ft. / 1.2 m

Diameter probe shaft tip

0.146 in. / 3.7 mm

Diameter probe shaft

0.197 in. / 5 mm

Length probe shaft tip

1.969 in. / 50 mm
