Fast-action surface probe with spring thermocouple for uneve...

Order-Nr.  0602 0993

  • Fast response time (3 seconds) thanks to the thermocouple strip

  • Thermocouple type K

  • Also suitable for uneven surfaces

  • Measuring range: -60 to +300 °C

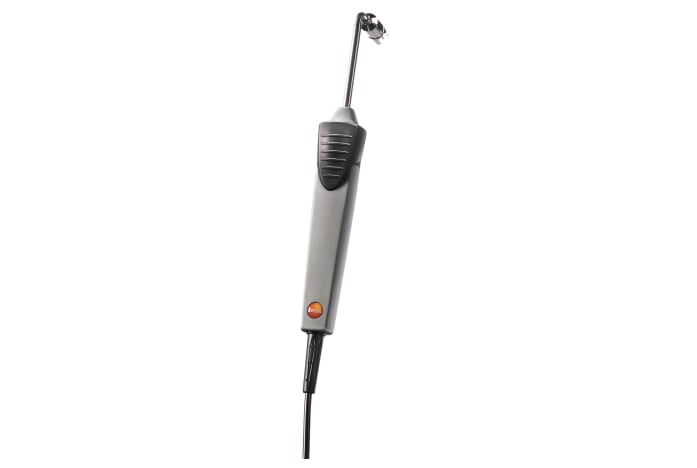

Fast-action surface probe with spring thermocouple for uneven surfaces, short-term to +932°F, T/C Type K


Details

Product Description

The surface temperature probe (thermocouple type K) features a thermocouple strip, which guarantees a short response time and enables measurements to be carried out on uneven surfaces. Thanks to the angled probe tube, you can also carry out measurements in inaccessible areas. Additional benefit: since the handle is located at an angle to the temperature source, even very high temperatures can be measured safely and reliably.

The probe can be used for the following applications, amongst others:
  • Detection of thermal bridges in walls
  • Maintenance and checking of machinery
  • Process monitoring of production steps
  • Adjustment of heating systems (radiators, pipes, boilers)
  • Quality checks

Delivery Scope

1 x fast-reaction, angled surface temperature probe (TC type K) with fixed cable.

Related products


Technical Data

Temperature - Type K TC

Measuring range

-76.0° to 572.0 °F / -60 to +300 °C

hort-term to 932.0°°F / hort-term to 500°C

Accuracy

Class 2 ¹⁾

Reaction time

3 sec

1) According to standard EN 60584-1, the accuracy of Class 2 refers to -40 to +1200 °C.

General technical data

Weight

4.45 oz. / 126 g

Dimensions

length: 8 in. / length: 207 mm

Length probe shaft tip

1.575 in. / 40 mm

Diameter probe shaft

0.197 in. / 5 mm

Diameter probe shaft tip

0.472 in. / 12 mm

Cable length

3.871 ft. / 1.18 m

Length probe shaft

3.15 in. / 80 mm

Product colour

grey

Interface

plug thermocouple
