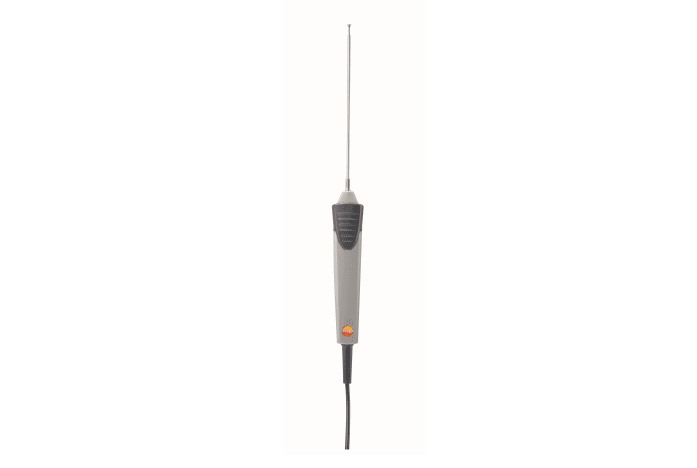

Surface probe with a small measuring head (TC type K)

Order-Nr.  0602 0693

  • Low-mass probe: very short response time for accurate measurement results

  • Thermocouple type K

  • Waterproof

  • Very large measuring range: -60 °C to +1000 °C

Efficient, waterproof surface probe with small measurement head for flat surfaces, T/C Type K


Details

Product Description

The surface temperature probe (thermocouple type K) can be used in a variety of applications in trade and industry. It can be connected to many different measuring instruments. It is also waterproof. This low-mass temperature probe is impressive thanks to its short response time.

Delivery Scope

1 x waterproof surface temperature probe with a small measuring head (TC type K), including fixed cable.

Related products


Technical Data

Temperature - Type K TC

Measuring range

-76.0° to 1832.0 °F / -60 to +1000 °C

Accuracy

Class 1 ¹⁾

Reaction time

20 sec

1) According to standard EN 60584-1, the accuracy of Class 1 refers to -40 to +1000 °C (Type K)

General technical data

Weight

4 oz. / 116 g

Dimensions

length: 12 in. / length: 300 mm

Length probe shaft tip

0.394 in. / 10 mm

Diameter probe shaft

0.098 in. / 2.5 mm

Diameter probe shaft tip

0.157 in. / 4 mm

Cable length

4.265 ft. / 1.3 m

Length probe shaft

5.906 in. / 150 mm

Product colour

Black

Interface

plug thermocouple
