Rugged, accurate food probe (IP 65)

Order-Nr.  0609 2272

  • Robust, Pt100 stainless steel food probe (IP65)
Where to buy
1-484-727-8381
Inquiry

  • Pt100 sensor for particularly accurate measurement results

  • EN 13485 and HACCP-compliant

  • Protected against water jets according to IP65

  • Measuring range: -50 to +400 °C

Rugged, accurate food probe (IP 65), stainless steel, PUR cable can be used at up to +180°F, IP 54 plug-in connection

Details

Product Description

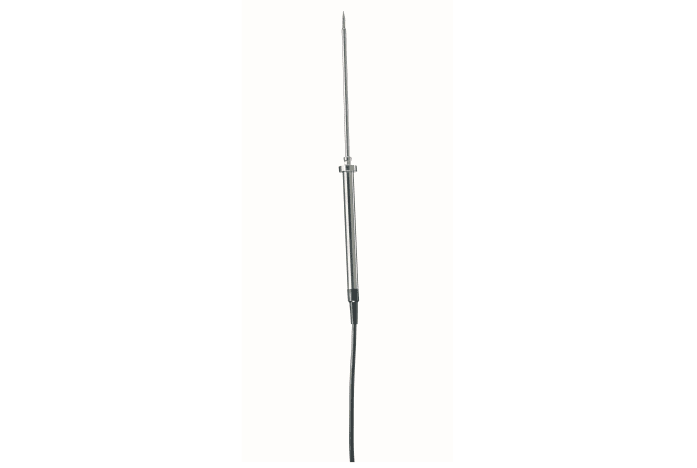

The robust stainless steel food probe (Pt100) is above all used for measuring the core temperature of foods. The fact that the probe is EN 13485 and HACCP-compliant is particularly practical for use in the food sector. In addition, it is protected against water jets according to IP65.

Delivery Scope

Robust stainless steel food probe (Pt100) with 1.5 m fixed cable.

Related products

Technical Data

Temperature - Pt100

Measuring range

-58 to +752 °F / -50 to +400 °C

Accuracy

Class A (-58.0° to 572.0 °F) / Class A (-50 to +300 °C)

Class B (Remaining Range) ¹⁾

Reaction time

10 sec

1) According to standard 60751, the accuracies of Class A and B refer to -200 to +600 °C (Pt100)

General technical data

Dimensions

65 in. / 1660 mm

Length probe shaft

4.921 in. / 125 mm

Housing

Stainless steel

Protection class

IP65

Fixed cable

yes

Cable length

4.921 ft. / 1.5 m

Diameter probe shaft tip

0.118 in. / 3 mm

Diameter probe shaft

0.157 in. / 4 mm

Length probe shaft tip

0.591 in. / 15 mm

Product colour

silver

Weight

3.67 oz. / 104 g
