Details Technical Data

Temperature Probe

Order-Nr. 0628 7503

Where to buy

1-484-705-0777

Inquiry

For connection to the testo Saveris 2-T2 Wi-Fi data logger

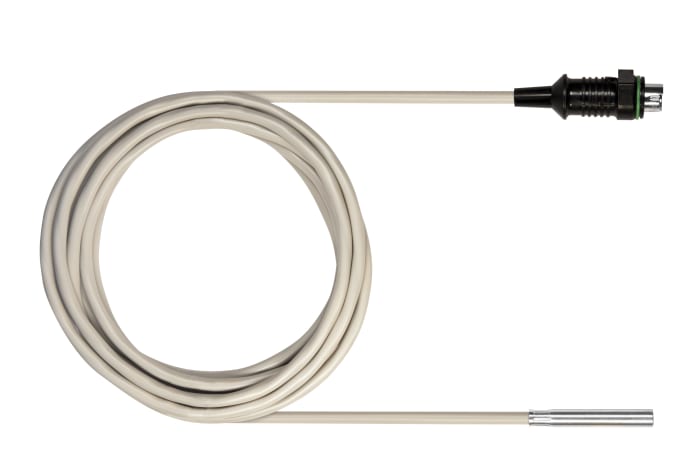

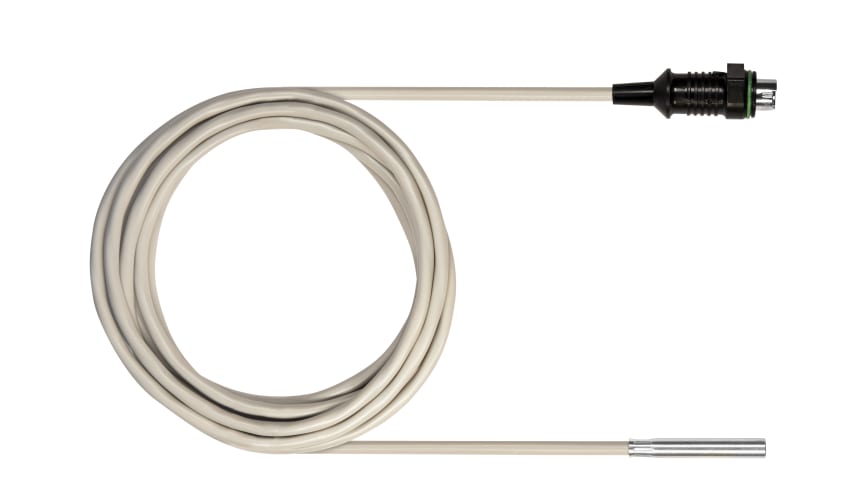

Thermistor NTC temperature probe with 2.4 m cable
Measuring range: -22 to 194 °F (-30 to +90 °C)

Temperature probe with aluminium sleeve for measurements in liquids, pastes and air

Details

Product Description

The testo temperature probe is suitable for air temperature measurements and also for temperature measurements in liquids and pastes. Because of the NTC sensor element, the probe provides precise temperature measurements with an accuracy of up to ±0.2 °C/F.

The temperature probe features a 2.4 m cable. With this probe you are ideally equipped for measuring temperatures which are not in close proximity to the testo Saveris 2-T2 Wi-Fi data logger.

The temperature probe is rated protection class IP 65 (waterproof).

The perfect probe for any application
If you don’t see an appropriate temperature probe for your application, please contact us directly. We have a large range of standard and custom temperature probes.

*For air temperature measurements, the response time is about 40 – 60 times higher than the indicated value measured in water. If you should require a slow-response temperature probe to measure air temperature, this probe is particularly appropriate because it does not take brief temperature peaks into account at all, or only to a very small degree, when measuring temperature. For example, if you are planning to use this probe to measure air temperature in the refrigerator, briefly opening the refrigerator door would not take into account the temperature fluctuation which results from mixing the warm room temperature with the refrigerator temperature.

If you need an air temperature probe with a fast response time, your best choice would be the exceptionally fast temperature probe 0602 0493 which has a large measuring range. This temperature probe can be connected to the testo Saveris 2-T3 Wi-Fi data logger.

Delivery Scope

1 x NTC temperature probe 0628 7503, for the testo Saveris 2-T2 Wi-Fi data logger

Related products

Base - For Saveris 1

Order-Nr. 0572 0260
- Up to 150 probes can be connected
- Graphical display, 4 control keys
Details
testo 175T2 - Temperature data logger

Order-Nr. 0572 1752

$ 274.50

excl. tax
- Professional software with Excel export function for programming the logger and data analysis
- Temperature measuring range from -40 °C to +120 °C
Details
testo 176H1 - Four-channel humidity and temperature data logger

Order-Nr. 0572 1765

$ 709.20

excl. tax
- Professional software with Excel export function for programming the logger and data analysis
- Record up to two humidity and temperature values simultaneously with optionally connectable probes
Details
testo 150 DIN2 - Data logger module with 2 connections for temperature probe with miniDIN

Order-Nr. 0572 3340
- Efficient monitoring by connecting up to two standard probes: enables use of the Testo probe portfolio covering all applications
- Can be combined with Testo communication modules for measurement data transmission via WLAN, Ethernet or testo UltraRange technology
Details

Technical Data

Temperature - NTC
Measuring range	-22.0° to 194.0 °F / -30 to +90 °C
Accuracy	±0.4 °F (32° to 158 °F) / ±0.2 °C (0 to +70 °C) ±0.9 °F (Remaining Range) / ±0.5 °C (Remaining Range)
Reaction time	t90 = 12 sec

Temperature - NTC

Measuring range

-22.0° to 194.0 °F / -30 to +90 °C

Accuracy

±0.4 °F (32° to 158 °F) / ±0.2 °C (0 to +70 °C)

±0.9 °F (Remaining Range) / ±0.5 °C (Remaining Range)

Reaction time

t90 = 12 sec

General technical data
Diameter probe shaft	0.236 in. / 6 mm
Cable length	7.874 ft. / 2.4 m
Fixed cable	yes
Protection class	IP65
Housing	Plastic
Length probe shaft	1.575 in. / 40 mm
Product colour	Black; white; silver
