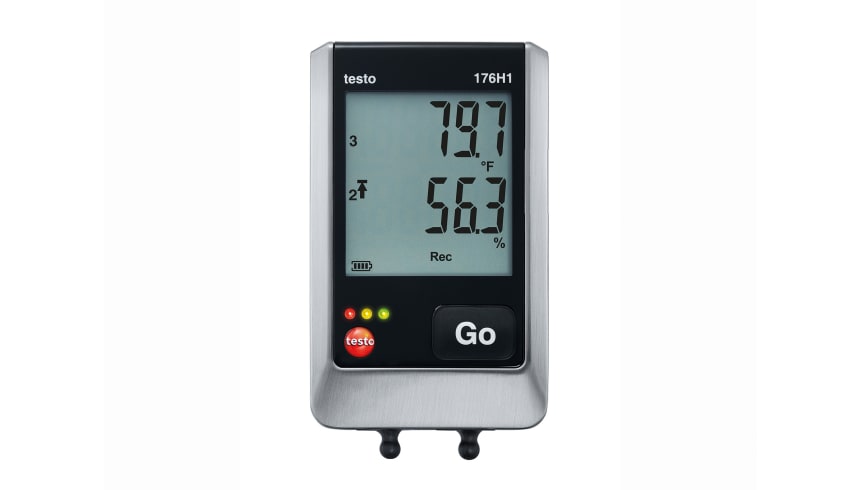

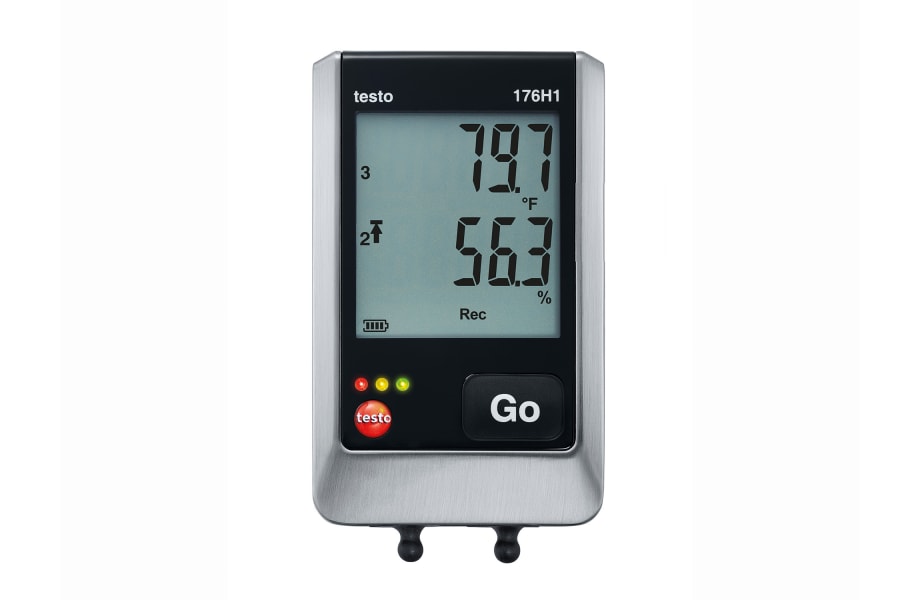

testo 176H1 - Four-channel humidity and temperature data logger

Order-Nr.  0572 1765

This meter uses a sensor to start up. Click here for probe selection.
$ 675.00
excl. tax
Delivery time: 12 working days
  • Professional software with Excel export function for programming the logger and data analysis

  • Record up to two humidity and temperature values simultaneously with optionally connectable probes

  • Temperature measuring range from -20 °C to +70 °C

  • Easy-to-change battery

  • Automatic measuring data backup when the battery runs out or is changed

  • Displays violations of limit values

The testo 176H1 humidity and temperature measurement logger has a large display that makes it ideal for the monitoring of temperature and humidty in enviro chamber and storage rooms. The 176H1 is a RH and temperature data logger with external NTC humidity and temperature sensor connections. Creation of Excel Spreadsheets, PDFs, and data analysis are all easily achieved with the free, downloadable ComSoft software.


Professional software with Excel export function for programming the logger and data analysis.


Details

Product Description

The testo 176H1 RH and temperature data logger is an ideal data logger for the monitoring of temperatures and humidity.
  • Data logger with external NTC sensor connections
  • Data transfer possible using the USB port, or SD card (optional)
  • Easy to read large display that shows current reading
  • IP65 protection class
  • Capable of CFR 21 Part 11 Compliancy
  • Free data logger software available for download
  • Data is secured within the logger, and can be password protected using ComSoft

Delivery Scope

testo 176H1 humidity and temperature measurement logger with external NTC sensor connections, batteries, certificate of conformity

Technical Data

Temperature - NTC

Measuring range

-4° to 158 °F / -20 to +70 °C

Accuracy

±0.4 °F (-4° to 158 °F) ±1 Digit / ±0.2 °C (-20 to +70 °C) ±1 Digit

±0.7 °F (Remaining Range) ±1 Digit / ±0.4 °C (Remaining Range) ±1 Digit

Resolution

0.1 °F / 0.1 °C

Humidity - Capacitive

Measuring range

0 to 100 %rH*

Accuracy

dependent on probe selected

Resolution

0.1 %rH

*Not for condensing atmospheres.

General technical data

Weight

7.76 oz. / 220 g

Dimensions

4 x 2 x 1 in. / 103 x 63 x 33 mm

Operating temperature

-4° to 158 °F / -20 to +70 °C

Housing

Plastic

Protection class

IP65

Channels

4 external

Connectable probes

2 x NTC temperature probe or 2 x humidity probe

Product colour

Black

Standards

EU-guideline 2014/30/EU; 2011/65/EU

Measuring rate

1 s to 24 h; 2 s to 24 h (online measurement)

Battery type

1 x Lithium (TL-5903)

Battery life

8 years at 15 min. meas. rate, +25 °C

Interface

mini usb, SD card slot

Memory

2,000,000 measuring values

Storage temperature

-40° to 185 °F / -40 to +85 °C


Probes

Air Probes

 Efficient, robust NTC air probe

Order Number: 0613 1712

Humidity / Temperature Probe

Humidity / Temperature Probe 12mm

Order Number: 0572 6172

Humidity / Temperature Probe 4 mm

Order Number: 0572 6174


Accessories

Accessories

USB connection cable

Order Number: 0449 0047

$ 41.00
excl. tax
Wall holder

Order Number: 0554 1703

ComSoft Professional 4

Order Number: 0554 1704

ComSoft CFR 21 Part 11

Order Number: 0554 1705


Applications

Monitoring and documentation of building climate

Temperature and relative humidity are crucial factors when it comes to assessing air quality and comfort levels in indoor areas, e.g. in workplaces. Both values can be monitored and documented over the long term using data loggers.
They are also very well suited for checking ventilation systems or for assessing any building moisture which occurs.
The use of special software means measurement configurations can be carried out individually and recorded measurement data can be both analysed and archived.

Monitoring and documentation of storage temperature and humidity

Correct compliance with storage temperature and humidity is an important prerequisite for the quality assurance of many products, e.g. in the area of food and pharmaceutical products.
As a general rule, data loggers are used to do this. They automatically check and document the profile of the ambient conditions and thus make a crucial contribution to verifiable preservation of product quality.

Viewing breaches of limit values directly on the display means you can respond quickly to temperature and humidity deviations. In addition, with the help of the configuration and read-out software, customer-specific measurement configurations can be carried out and recorded measurement data can be both analysed and archived.
