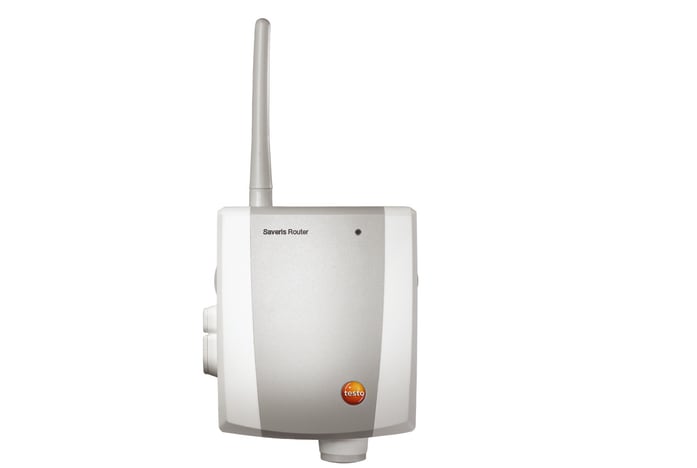

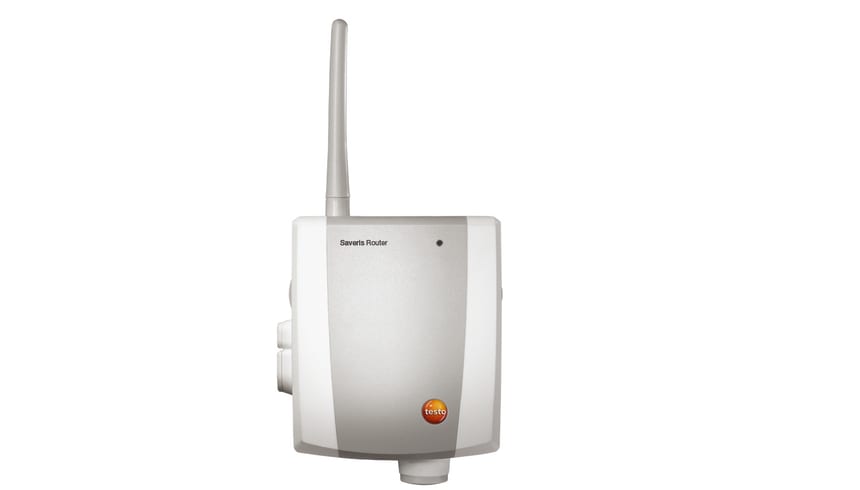

    testo Saveris Router V2.0 - Radio transmission medium

    0572 0259
  1. Router for extending the wireless range
  2. Option of using several routers in one system
  3. Option of connecting up to 3 routers in series
  4. Saveris Router V 2.0, 2.4 GHz, radio transmission medium

    The radio link can be improved or lengthened in poor structural conditions by using a router. Several routers can of course be used in the testo Saveris system. At the same time, the serial switching of up to 3 routers V 2.0 offers highest flexibility in the wireless range.

    This measuring instrument requires a power supply unit (not included).

    What's included

    testo Saveris router V2.0, for extending transmission paths and for router cascading in Saveris systems, radio frequency 2.4 GHz.

    testo Saveris router V2.0, for extending transmission paths and for router cascading in Saveris systems, radio frequency 2.4 GHz.

    General technical data

    Weight
    6 oz. / 180 g
    Dimensions
    3 x 4 x 1 in. / 85 x 100 x 38 mm
    Operating temperature
    -4.0° to 122.0 °F / -20 to +50 °C
    Housing
    Plastic
    Protection class
    IP54
    Connectable probes
    max. 5
    Router cascading
    yes
    Wall bracket
    included
    Power supply
    6.3 V DC mains unit; alternatively via 24 V AC/DC plug-in/screw terminals, power consumption < 0.5 W
    Data transfer
    by radio
    Storage temperature
    -40.0° to 140.0 °F / -40 to +60 °C
