testo 115i - Pipe-clamp thermometer operated via smartphone

Order-Nr.  0560 2115 03

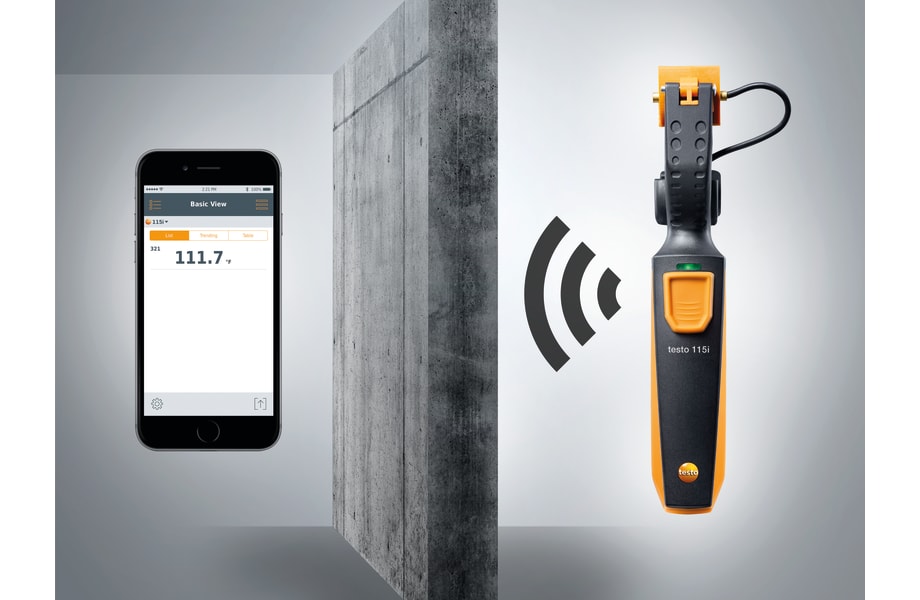

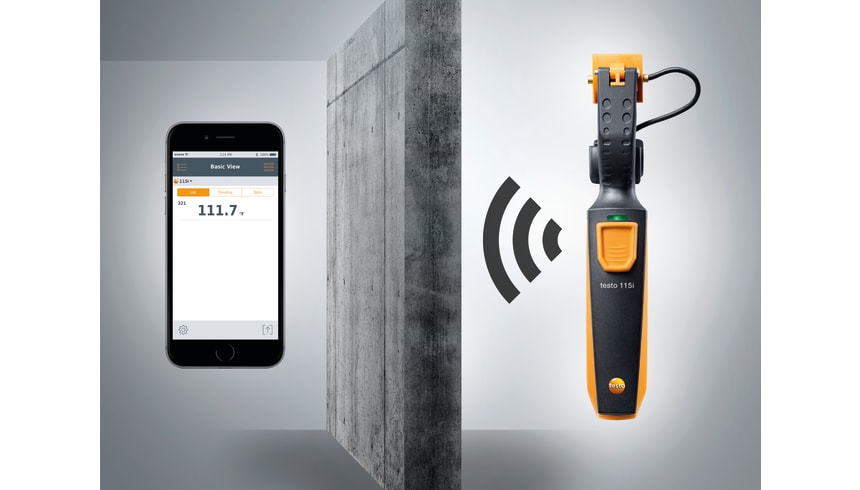

  • Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet

  • Fast identification of temperature changes by graphic progression display

  • Measurement data analyzed and sent via testo Smart Probes App

  • Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 350 ft.

Combined with a smartphone or tablet, the testo 115i clamp thermometer is the ideal temperature measuring instrument for carrying out servicing and troubleshooting on refrigeration, air conditioning and heating systems, as well as for installing them. It can also be used to measure flow and return temperatures.

Product Description

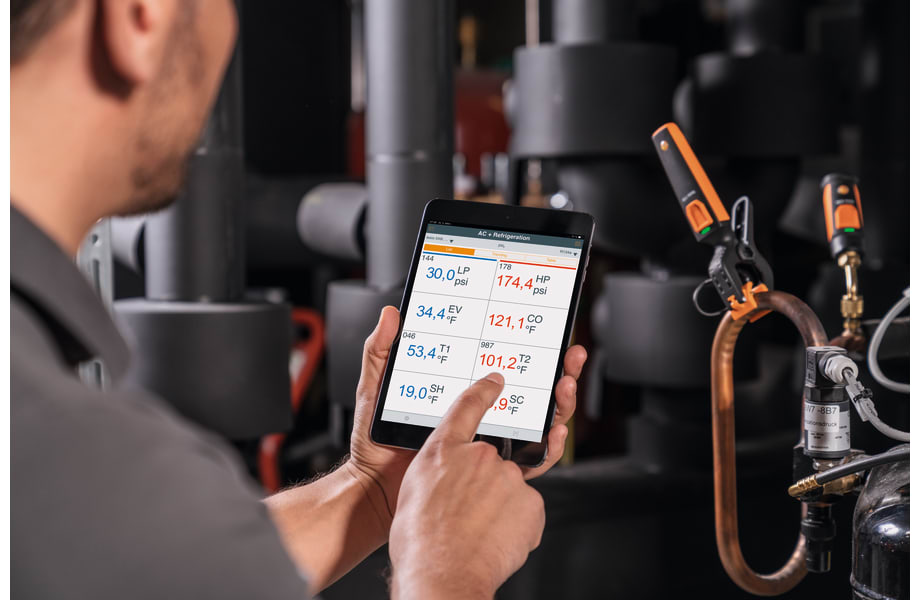

Professional measuring technology is now mobile: when it comes to measuring temperature at widely spaced measuring points in particular, the testo 115i makes things a lot easier – thanks to wireless connection to your smartphone or tablet. When used in conjunction with the testo 549i pressure measuring instrument, individual refrigeration system parameters can also be calculated.



Measuring via the app offers lots of advantages

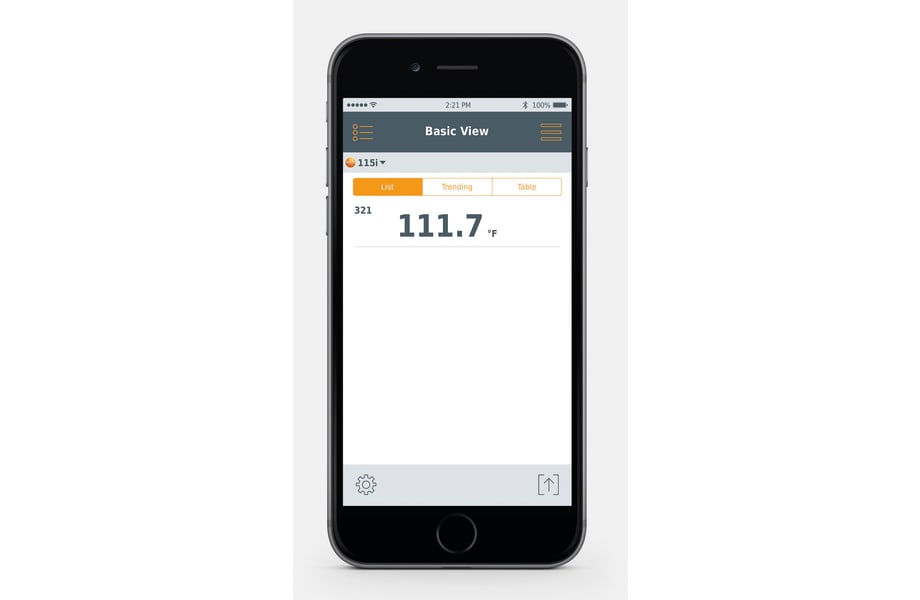

Measurement data is transmitted wirelessly from the clamp thermometer to the testo Smart Probes App and can be viewed conveniently on your smartphone or tablet – either as a chart or in table form. Temperature changes are therefore immediately evident. Finally, the measurement data report can be e-mailed directly as a pdf or Excel file. This saves you time, allowing you to further increase your efficiency.

*Our tip: Use the testo 115i as a probe in conjunction with the appropriate IAQ measuring instrument from Testo.



Delivery Scope

1 x testo 115i clamp thermometer operated via smartphone, including batteries and calibration protocol.
Temperature - NTC

Measuring range

-40° to 302 °F / -40 to +150 °C

Accuracy

±2.3 °F (-4° to 185 °F) / ±1.3 °C (-20 to +85 °C)

Resolution

0.1 °F / 0.1 °C

General technical data

Weight

4.49 oz. / 127.4 g

Dimensions

7 x 4 x 1 in. / 183 x 90 x 30 mm

Operating temperature

-4° to 122 °F / -20 to +50 °C

Housing

Plastic

System requirements

requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Battery type

3 x AAA

Battery life

150 h

Storage temperature

-4° to 140 °F / -20 to +60 °C
