testo Smart Probes AC & Refrigeration Test & Load kit
0563 0009
testo Smart Probes AC & Refrigeration Test & Load kit
0563 0009High-precision measurement technology with convenient smartphone operation

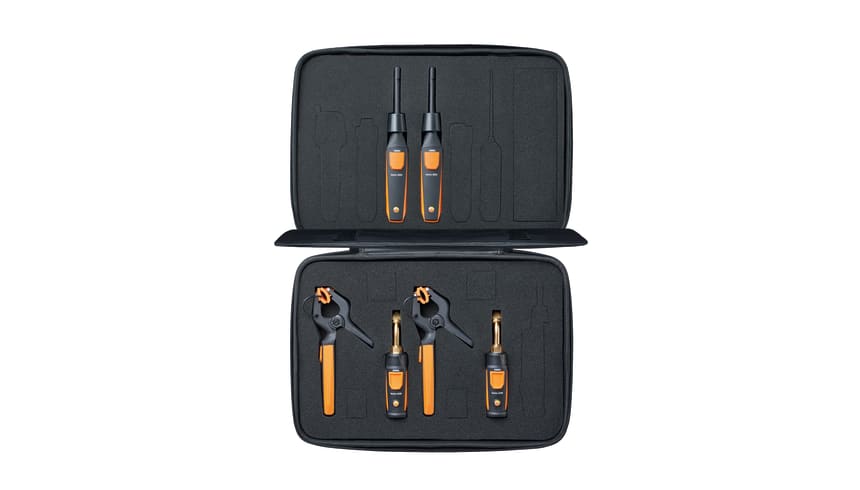

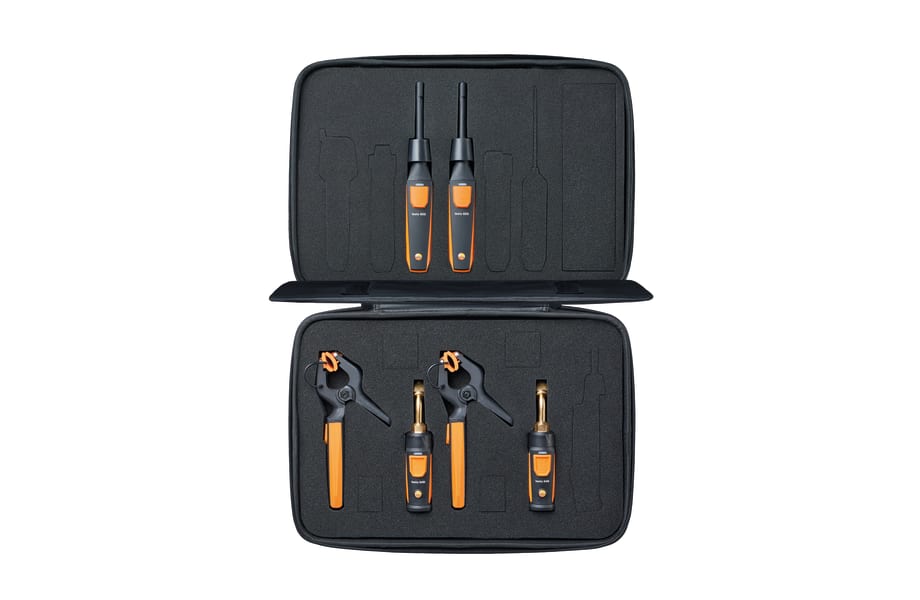

In the kit: 2 x testo 115i clamp thermometers, 2 x testo 549i high-pressure gauges, 2 x testo 605i thermohygrometers, testo HVAC softcase
350 ft Bluetooth® range for particularly flexible applications
App for creating on-site reports
Automatic calculation of evaporation and condensation temperatures
Extremely robust

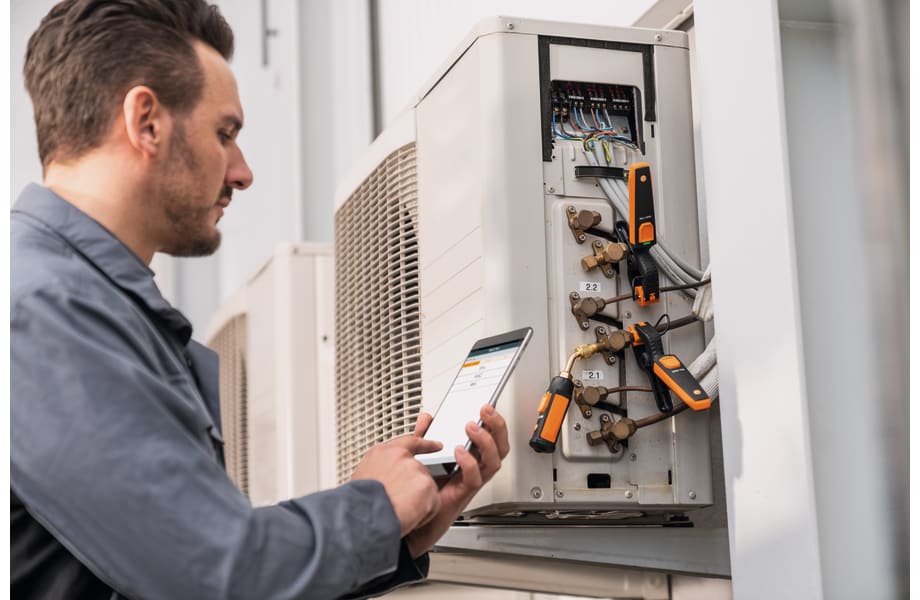

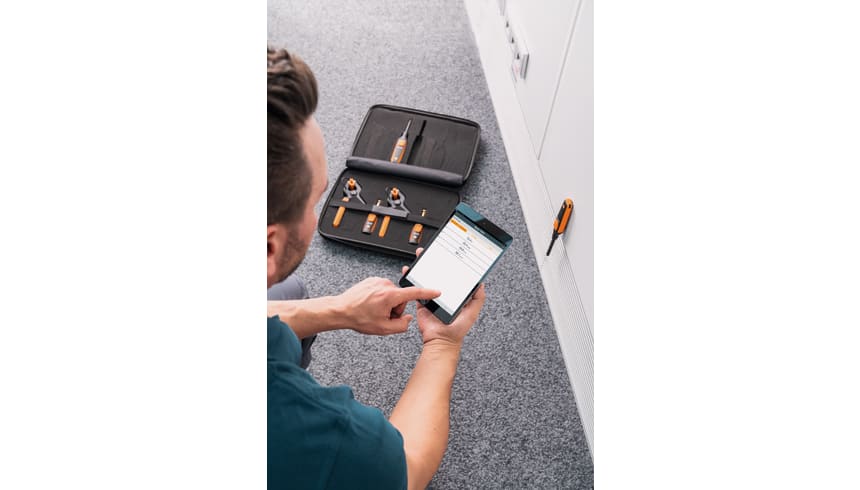

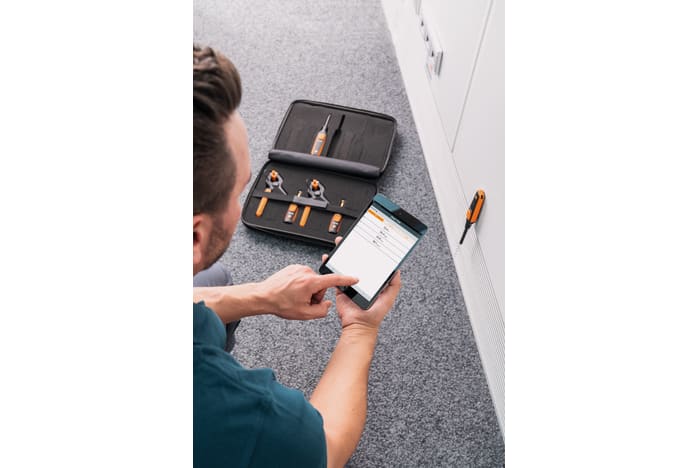

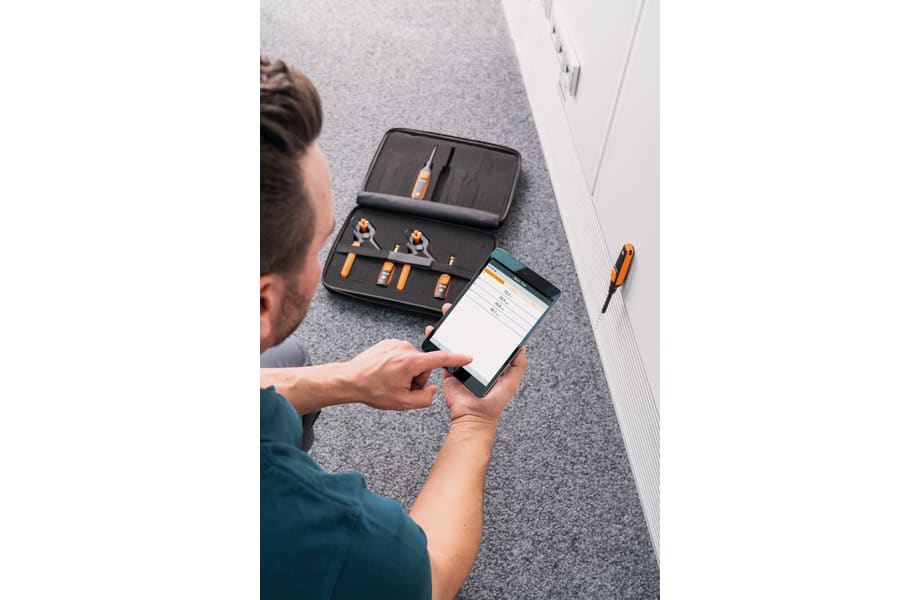

For refrigeration engineers: The kit contains two testo 549i high-pressure gauges, two testo 605i thermohygrometers and two testo 115i clamp thermometers. Used in conjunction with your smartphone/tablet, the kit is ideal for servicing, troubleshooting and installing air conditioning and refrigeration systems. The testo Smart App makes your work easier and more efficient: over 90 stored refrigerants, automatic calculation of superheating/subcooling, target superheat and cooling/heating load, emailing of measurement data reports as PDF or Excel files.
- 2 x testo 115i clamp thermometers operated via smartphone, including batteries and certificate of conformity (0560 2115 03)

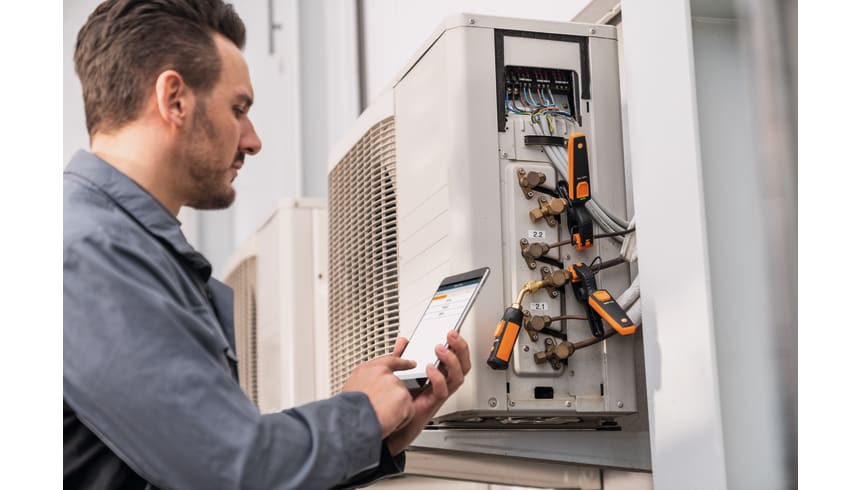

- 2 x testo 549i high-pressure gauges operated via smartphone, including batteries and certificate of conformity (0560 2549 03)

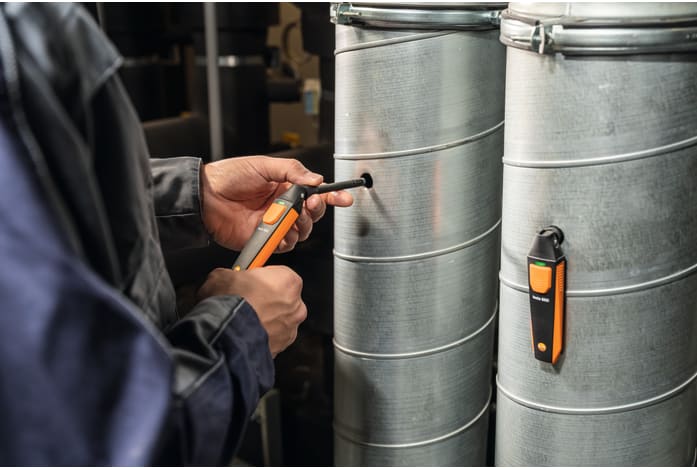

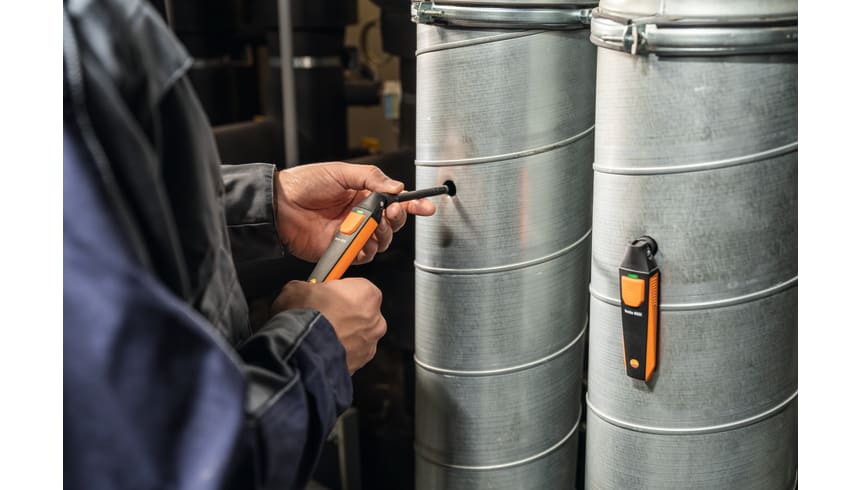

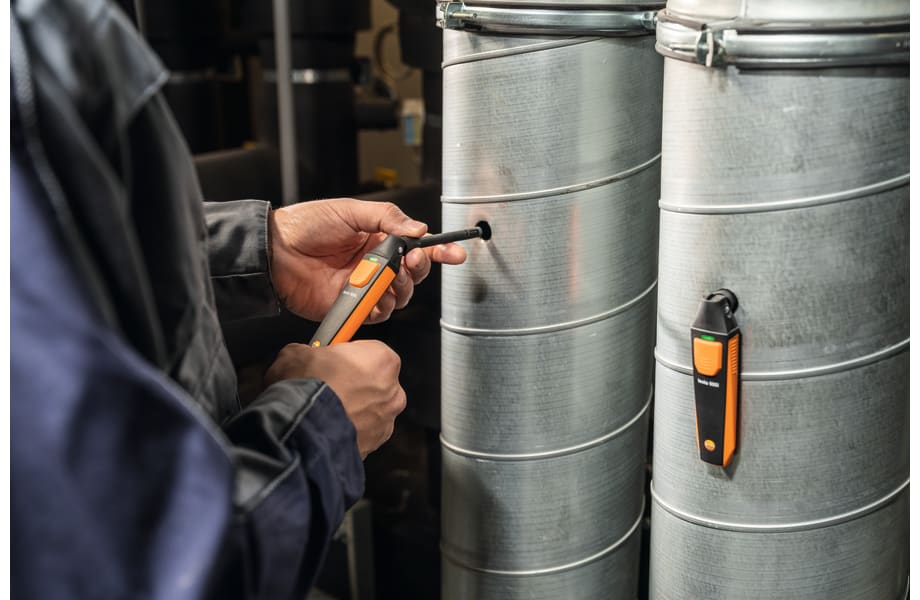

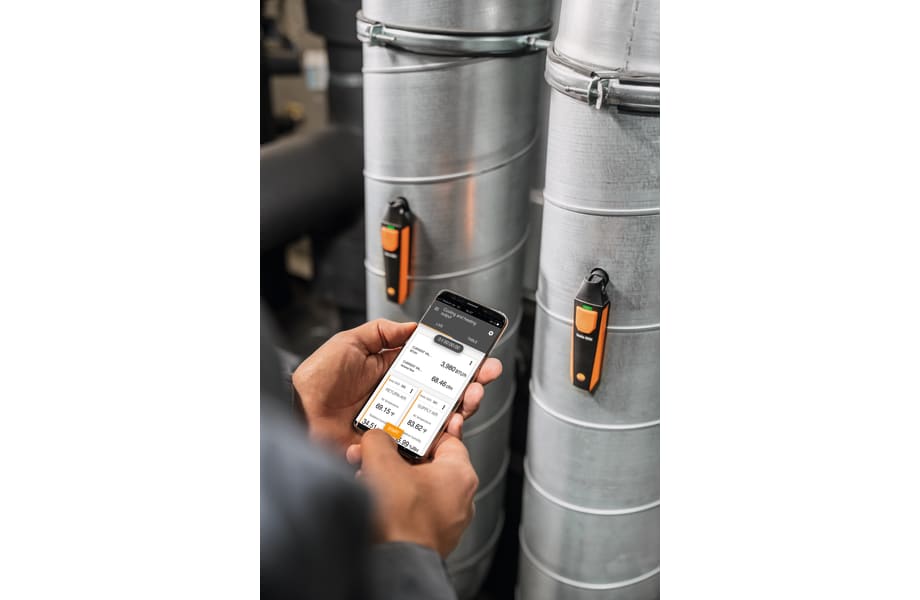

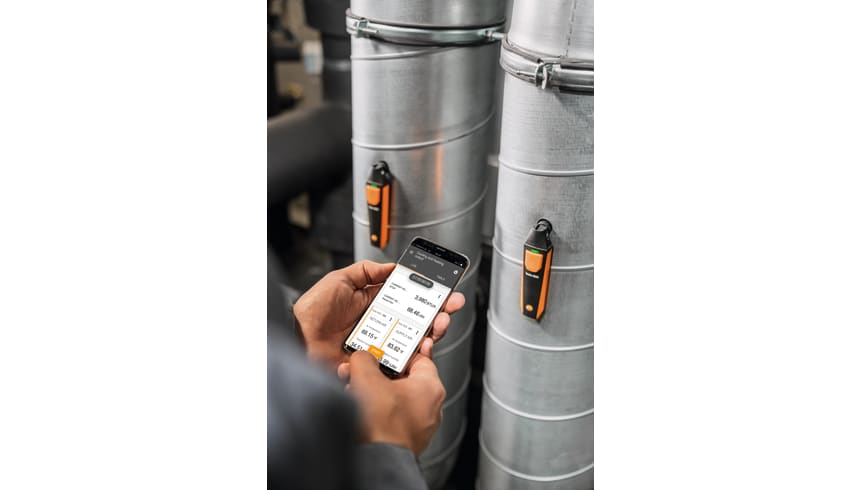

- 2 x testo 605i thermohygrometers operated via smartphone, including batteries and certificate of conformity (0560 2605 03)

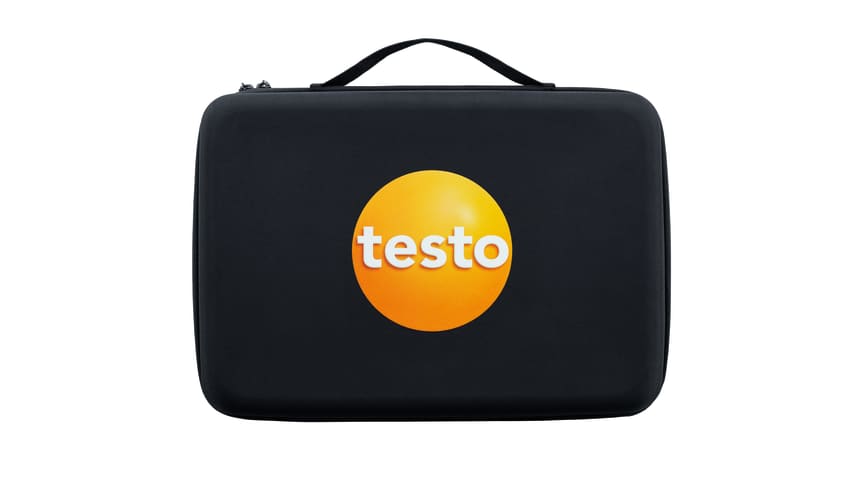

- 1 x testo HVAC softcase - storage case for testo Smart Probes measuring instruments, including foam insert (0516 0283)
Temperature - NTC
| Measuring range | -40° to 302 °F / -40 to +150 °C |
|---|---|
| Accuracy | ±2.3 °F (-4° to 185 °F) / ±1.3 °C (-20 to +85 °C) |
| Resolution | 0.1 °F / 0.1 °C |
General technical data
| Weight | 4.49 oz. / 127.4 g |
|---|---|
| Dimensions | 7 x 4 x 1 in. / 183 x 90 x 30 mm |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| Housing | Plastic |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery type | 3 x AAA |
| Battery life | 150 h |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
Pressure measurement
| Measuring range | -15 to +870 psi / -1 to +60 bar |
|---|---|
| Accuracy | ±0.5 % of full-scale value |
| Resolution | 0.01 psi / 0.01 bar |
| Probe connection | 7 / 16 in. - UNF |
| Overload rel. (high pressure) | +943 psi / +65 bar |
General technical data
| Weight | 5.52 oz. / 156.6 g |
|---|---|
| Dimensions | 5 x 1 x 1 in. / 125 x 32 x 31 mm |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| Housing | Plastic |
| Product colour | black/orange |
| Battery type | 3 x AAA |
| Battery life | 150 h |
| Pressure media | CFC, HFC, HCFC, N, H₂O, CO₂ |
| System requirements | requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0 requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
Temperature - NTC
| Measuring range | -4° to 140 °F / -20 to +60 °C |
|---|---|
| Accuracy | ±1.4 °F (-4° to 32 °F) / ±0.8 °C (-20 to 0 °C) ±0.9 °F (32° to 140 °F) / ±0.5 °C (0 to +60 °C) |
| Resolution | 0.1 °F / 0.1 °C |
Humidity - Capacitive
| Measuring range | 0 to 100 %rH |
|---|---|
| Accuracy | ±5 %rH (< 10 %rH or > 90 %rH) ±3.0 %rH (10 to 35 %rH) (at +77°F) / ±3.0 %RH (10 to 35 %RH) (at +25°C) ±2.0 %rH (35 to 65 %rH) (at +77°F) / ±2.0 %RH (35 to 65 %RH) (at +25°C) ±3.0 %rH (65 to 90 %rH) (at +77°F) / ±3.0 %RH (65 to 90 %RH) (at +25°C) |
| Resolution | 0.1 %rH |
General technical data
| Weight | 3.05 oz. / 86.4 g |
|---|---|
| Dimensions | 10 x 1 x 1 in. / 243 x 30 x 24 mm |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| Housing | Plastic |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery type | 3 x AAA |
| Battery life | 150 h |
| Length probe shaft | 3.937 in. / 100 mm |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
General technical data
| Weight | 26.25 oz. / 744.2 g |
|---|---|
| Dimensions | 15.7 x 11.4 x 3.1 in. / 400 x 290 x 80 mm |
| Product colour | Black |
