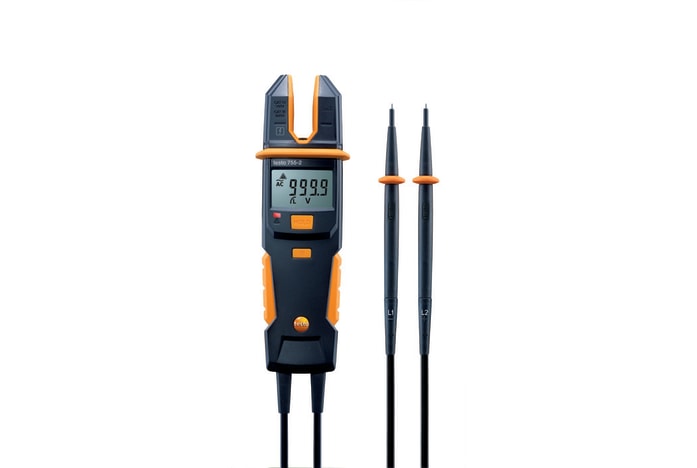

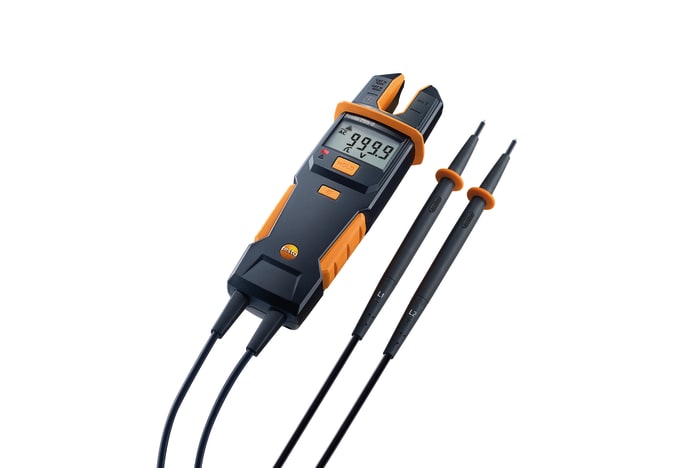

testo 755-2 - Current / Voltage Meter with 200 A AC, 1000 V AC/DC, Continuity, and Phase Rotation Tester

Order-Nr.  0590 7552

  • Phase rotation tester and voltage range up to 1000 V

  • Unique feature which allows the user to check for voltage using only a single lead

  • Polarity detection for DC circuits

  • Meter automatically detects testing in-process and selects correct meter configuration which saves time and optimizes accuracy

The testo 755-2 includes important additional features: phase rotation, voltage range up to 1000V, and the unique feature which allows the user to check for voltage using only a single lead.  The testo 755 current/voltage testers are fast and easy to use, especially when you are testing many circuits. The convenient open-jaw current tester automatically turns on when voltage exceeds 6V. It then auto-selects the correct parameters and range for your test. These rugged testers are suitable for virtually all your daily electrical measuring tasks.


Details

Product Description

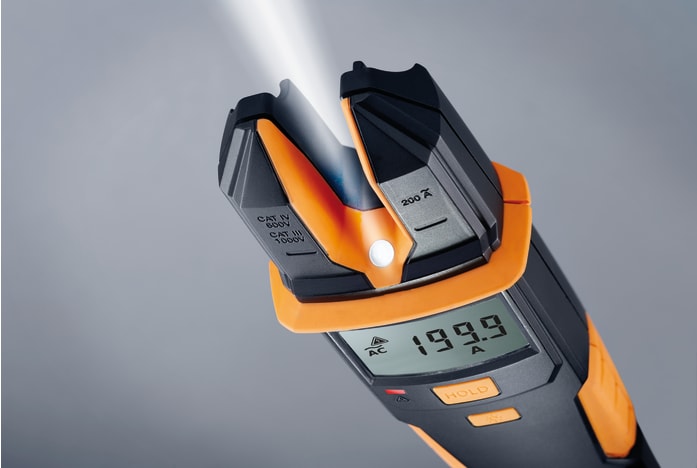

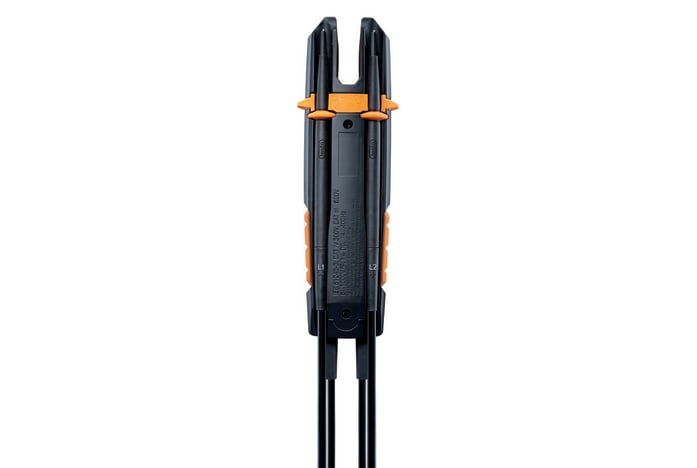

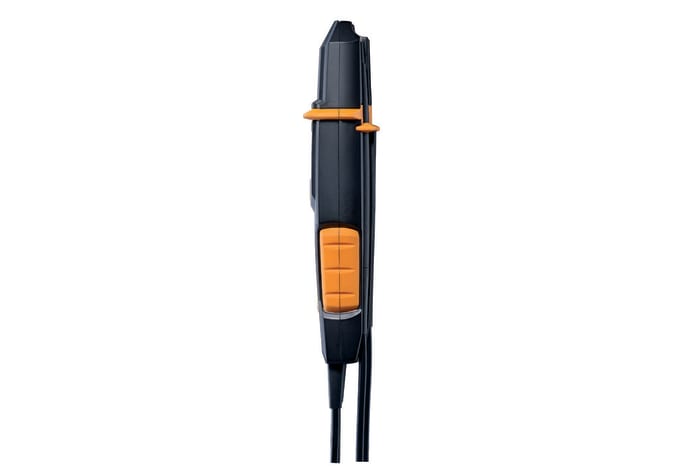

The instruments include important functions such as current, voltage, resistance & continuity. The integrated flashlight enables users to work in poorly lit areas. The overall design is for convenient testing including interchangable measuring tips which can be easily updated and maintained. A convenient lead holder is integrated into the housing for safe and easy storage.

Testo’s history of efficiency, innovation, and quality now extends into the entire electrical lineup. Once again, Testo brings high value, feature-packed products to the HVAC contractor market.

Delivery Scope

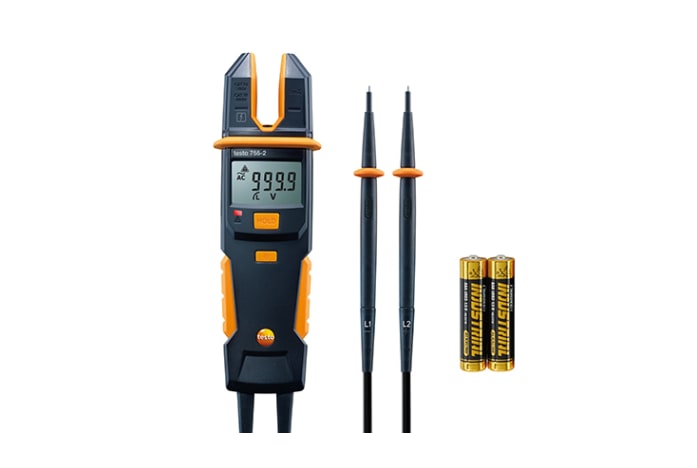

testo 755-2 current / voltage test meter 200 A AC, 1000 V AC/DC, with built-in flashlight, continuity, phase rotation, and single probe voltage testing includes batteries and measuring tips.

Technical Data

DC voltage

Measuring range

6 to 1000 V

Resolution

max. 0.1 V

Accuracy

± (1.5 % of mv + 3 Digit)

AC voltage

Measuring range

6 to 1000 V

Resolution

max. 0.1 V

Accuracy

± (1.5 % of mv + 3 Digit)

AC current

Measuring range

0.1 to 200 A

Resolution

max. 0.1 A

Accuracy

± (3 % of mv + 3 Digit)

Resistance

Resolution

max. 1 Ohm

Measuring range

30 to 100 kOhm

Accuracy

± (1.0 % of mv + 5 Digit)

General technical data

Operating humidity

0 to 75 %rH

Storage temperature

5° to 140 °F / -15 to +60 °C

Weight

11.29 oz.

Dimensions

7.8 x 2.4 x 1.6 in. / 199 x 62 x 40 mm

Operating temperature

14° to 122 °F / -10 to +50 °C

Product colour

Black

Protection class

IP64

Standards

EN 61243-3; EN 61010-1

Battery type

2 AAA batteries

Display type

LCD

Display size

one-line

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

CSA; CE

Instrument Measurement Functions

Continuity testing

yes

Display ligthing

yes

Hold

yes

Rotating magnetic field testing

yes

Single pole phase testing

yes

Measuring point illumination

yes

Display (counts)

4,000

Autom. measurement parameter detection

yes


Accessories

Transport Case


Applications

Ideal for voltage testing and current measurement

  • Automatic measurement parameter detection, voltage range up to 1000 V, automatic switch-on, exchangeable measuring tips, integrated torch for measuring point illumination

Overview of applications

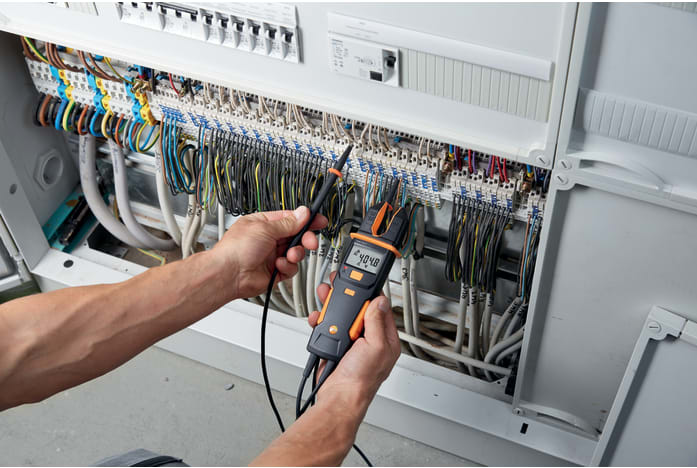

  • Test electrical circuits or systems for voltage or de-energization (according to DIN EN 61243-3:2010)

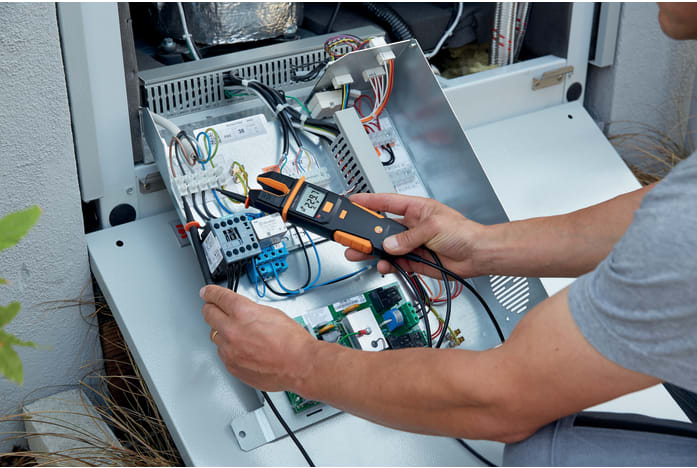

  • Current consumption measurement
  • Checking the rotating magnetic field
  • Single pole voltage testing to determine whether conductors are live
