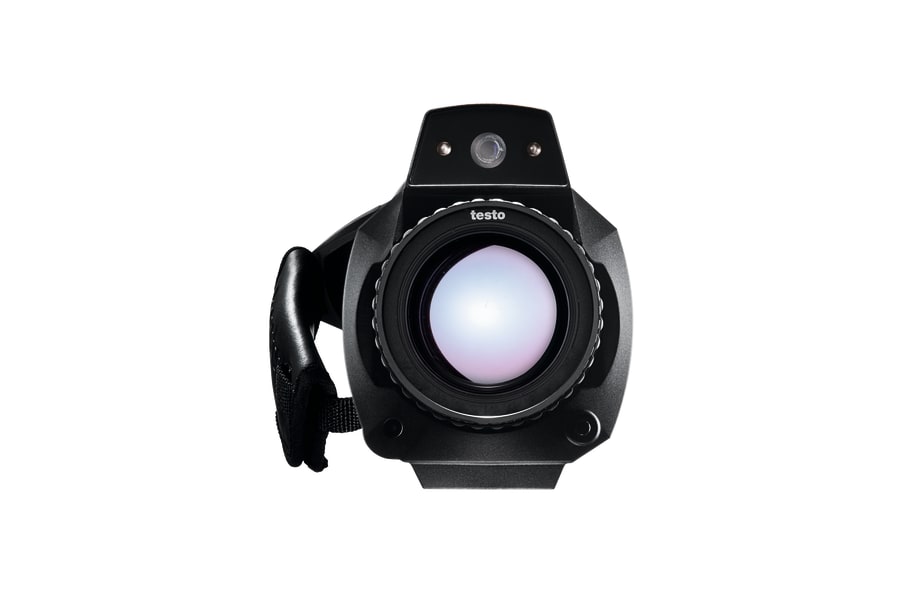

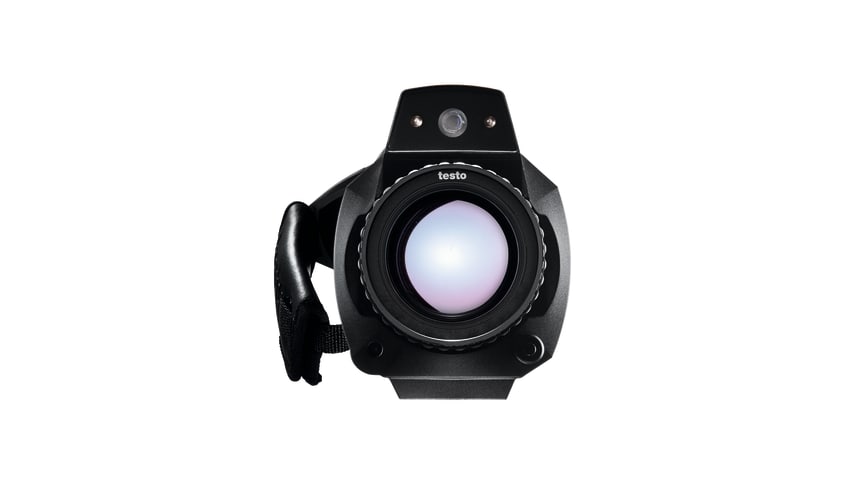

testo 890-2 - Deluxe thermal imager kit (640 x 480 FPA)

Order-Nr. 0563 0890 V3

$ 15,835.00

excl. tax

Where to buy

Delivery costs

Delivery time: 17 working days

1-484-350-4318

Inquiry

Included 15° telephoto lens, allows for detailed imaging at a distance
Site recognition and database allow you to easily revisit past information by scanning a barcode
Radiometric video / sequence imaging capture enable detailed image analysis at timed thermic events
Solar mode for detecting invisible defects on solar panel arrays

The testo 890-2 is a feature-rich thermal imaging infrared camera that can be used in a variety of thermographic applications. With its included 15° telephoto lens and lens protector, the testo 890-2 deluxe kit is the ideal solution for wide angle and narrow field thermography.

Details

Product Description

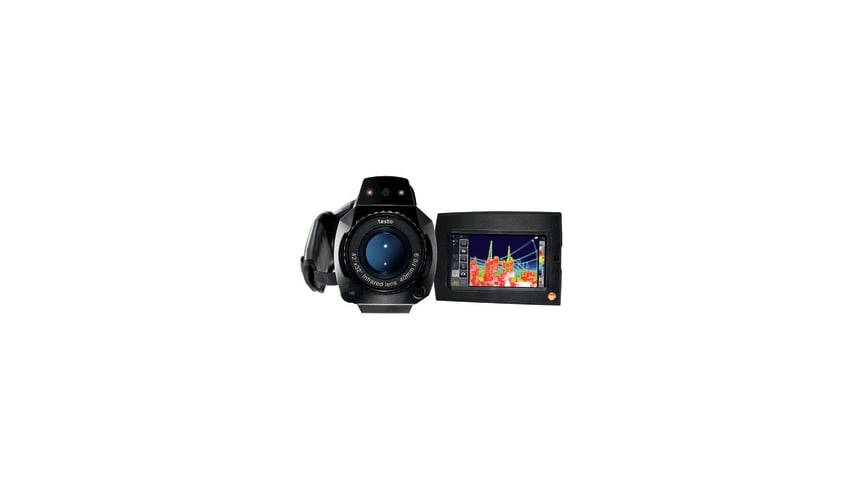

Industrial, commercial, and research applications are demanding work environments for any thermal imager. The testo 890-2 uses a rotating touchscreen and swivel grip that can be vital for capturing proper images. Its high sensitivity of 40 mK and 640 x 480 resolution make this imager extremely versatile in any inspection or research application. SuperResolution allows for detailed 1,280 x 960 resolution images, making it easier to pinpoint any problem areas.

The testo 890-2 deluxe kit includes a 15° telephoto lens, making distant objects much easier to measure. Using our site recognition barcode and database solution, ensuring that images are properly stored in the correct location has never been easier. Add to all of this radiometric video capture, for detailed frame-by-frame analysis and trends, and the testo 890-2 is in a class by itself.

Large 4.3" touchscreen
Quality resolution of 640 x 480
Patented SuperResolution provides 1,280 x 960 resolution images when downloaded to IRSoft
42° wide angle lens and 15° telephoto lens included
Site recognition and database application
High temperature option (2,192 °F)
Radiometric video recording
Atmospheric corrections
Isotherms
Bluetooth voice annotation
Lens protection glass
Customizable reporting software

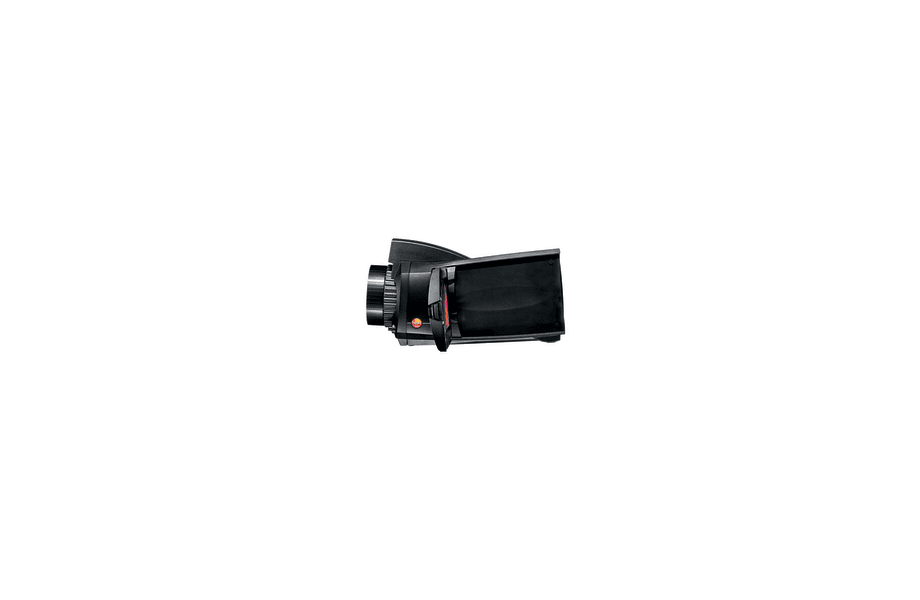

Rotating display and swivel handle allow for ease of use in a variety of applications
2GB SD card included for storage
Video output via USB allows for immediate viewing on a computer screen
Additional battery and external rapid charger included

The testo 890-2 is ideal for the following industrial applications:

Electrical and mechanical maintenance
Fluid level checks
High temperature measurements
Reliable quality assurance and production monitoring
Power and energy applications
Microelectronics
Solar panel inspection
Thermographic video

Delivery Scope

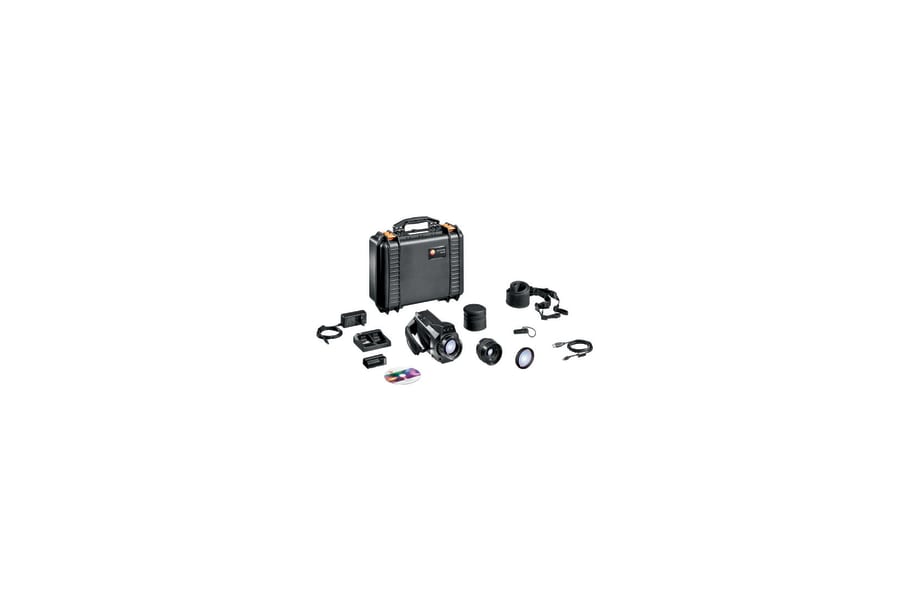

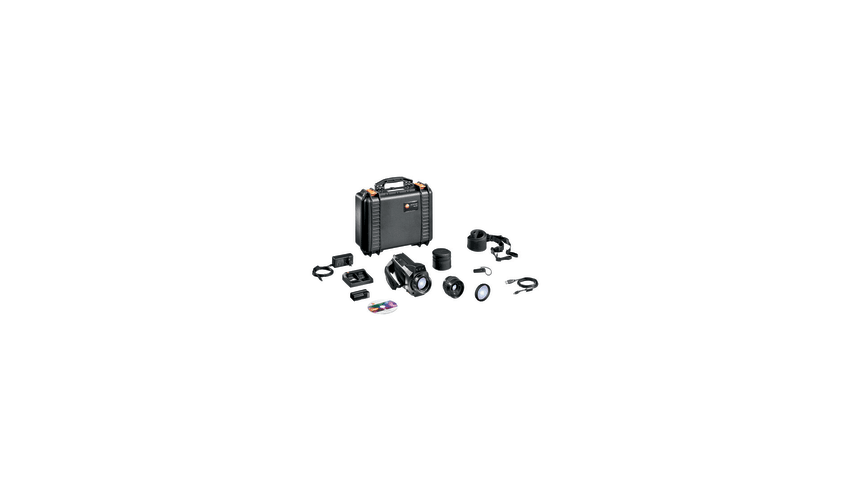

testo 890-2 thermal imager, 15° telephoto lens, lens protector, 2GB SD memory card, USB cable, IRSoft software, power supply, battery (+1 additional), external rapid charger, hard shell storage case, instruction manual, and certificate of conformity

Technical Data

Ambient Condition
Storage temperature	-22 °F; 140 °F / -30 °C; 60 °C
Operating temperature	5 °F; 122 °F / -15 °C; 50 °C
Air humidity	20 to 80 % RH non-condensing
Housing protection class	IP54
Vibration	2G

Image output visual
Image size	3.1 MP
Minimum focus distance	0.5 ft. / 0.5 m

Image presentation
Display type	4.3" LCD touchscreen with 480 x 272 pixels
Display option	IR image / real image
Number of colors	8
Color palettes	8 (iron, rainbow, cold-hot, blue-red, grey, inverted grey, sepia, Testo)
Video output	USB 2.0

Imager equipment
Process analysis package	Optional
Video measurement	up to 3 measurement points
Voice recording	Bluetooth® / wired headset
Panorama image assistant	Included
SiteRecognition	Included
Exchangeable lenses	15° x 11°
Standard lens	42° x 32°
Digital camera	Included
Interface	Labview; free download from hompage
Laser	Laser marker

Imager storage
File format image	.bmt; software export option in .bmp; .jpg; .png; .csv; .xls
File format video	.wmv; .mpeg-1; Testo format (fully radiometric video)
Storage device	SD cart 2GB (approx. 1500 - 2000 images)

Infrared image output
Infrared resolution	640 x 480 pixels
Thermal sensitivity	˂ 40 mK at +30 °C
Field of view	42° x 32°
Minimum focus distance	0.1 m (Tele: 0.5 m)
Geometric resolution (IFOV)	1.13 mrad (Tele: 0.42 mrad)
SuperResolution (Pixel)	1280 x 960 pixels
SuperResolution (IFOV)	0.71 mrad (Tele: 0.26 mrad)
Image refresh rate	33 Hz
Focus	auto / manual
Detector type

Measurement
Measuring range	662°F
High temperature measuring	2192°F Optional
Accuracy	±2% of reading
Reflected temperature	manual
Transmission correction	Included
Accuracy high temperature	±2% of reading

Measuring function
Surface moisture distribution	Included
Humidity measurement	Optional
Solar mode	Included
Analysis function	up to 10 measurement points, Hot/Cold Spot Recognition, up to 5 x area measurement (min/max & average), Isotherm and alarm values

PC software
System requirements	Windows XP (Service Pack 3); Windows Vista; Windows 7 (Service Pack 1); Windows 8; Interface: USB 2.0

Physical specification
Dimensions	10 x 5 x 111 / 253 x 132 x 111
Weight	57.497 oz. / 1,630 g
Tripod mounting	1/4" - 20UNC
Housing	ABS

Power supply
Battery type	Fast-charging, Li-ion battery can be changed on-site
Operating time	4.5 hr
Charging options	In instrument / USB charger
Power supply	yes

Termovisores garantia
EU-/EG-guidelines	2004/108/EG

Accessories

Adhesive tape, e.g. for reflective surfaces

Adhesive tape i.e. for polished surfaces (roll, 33ft. long, 1'' wide)

Order Number: 0554 0051

$ 124.00

excl. tax

Special protective glass for optimum protection of the lens from dust and sctratching.

Order Number: 0554 0289

SuperResolution technology quadruples the image resolution by one detector class, providing a fourfold increase in registered temperature points.

Order Number: 0554 7806

Fast battery charger. Desktop charging station for two rechargeable batteries to optimize charging time.

Order Number: 0554 8851

Additional Lithium-Ion rechargeable battery for extending the operating time.

Order Number: 0554 8852

Process analysis package: image sequence capturing in instrument and fully radiometric video measurement

Order Number: 0554 8902

Applications

Reliable high temperature measurement

Testo thermal imagers adapt to the requirements for applications with high temperatures. With the high temperature option, the measuring range can be flexibly extended up to 1,200 °C . The high-contrast presentation on the display is achieved via the high-temperature iron HT color palette or the special histogram adjustment.

Electrical maintenance checks

Testo thermal cameras are used to spot overheating components in the low, medium, and high voltage systems. Thermal images help to locate parts that are either failing or exposed to imbalanced loads. Routine thermal scans are used to prevent outages and fire risks.

Analysis of power distribution systems

Avoiding the failure of power distribution systems is absolutely essential due to the far-reaching consequences. Faulty connections on high voltage masts can be particularly critical here. These transitions to high-voltage lines, which sometimes occur at great distances, can only be clearly identified with a sufficiently large detector or a telephoto lens. This is the only way to obtain the necessary degree of detail to enable error-free analysis of the thermal image.

Analyzing building shells at a glance

The task of taking thermal images of large buildings poses several challenges for users. Spatial restrictions due to walls, roads or safety zones around neighboring buildings can make it impossible to capture the measuring object in a single image. In such cases, Testo thermal imagers help users obtain the necessary overview. The panorama image assistant can be used to combine several images of the building shell taken at close range into a single thermal image. Users can therefore identify thermal irregularities at a glance across the entire building shell with a high degree of detail.

Providing comprehensive energy advice

In building thermography, infrared technology is particularly suited for quick and effective analysis of energy losses in buildings’ heating or air conditioning systems. Due to their high temperature resolution, Testo thermal imagers provide detailed images of inadequate insulation and thermal bridges. They are ideal for the recording and documentation of energy losses on outer windows and doors, radiator niches, in roof structures or the entire building shell. Testo thermal imagers are the perfect measuring tool for comprehensive diagnoses and maintenance uses, and providing energy consultation services.

Making it possible to see critical temperatures on circuit boards precisely

In the field of research and development, thermal imagers are also used for the targeted analysis of temperature distribution, such as on circuit boards. Electronic components on circuit boards are getting smaller and smaller – thus increasing the challenges with regard to heat dissipation. Only premium-quality thermal imagers with a really fine geometric resolution are suitable for this task. Analysis of the heating and cooling behavior over time is also helpful for optimization and this can be carried out using the Testo thermal imager's video measurement.

Downloads

Product Brochures

Manuals

Software

Testo thermal imagers Instrument firmware (testo 885, 890) (v1.88, EXE, 21.789 KB) In order to be able to use the PC software optimally, the instrument should also be updated with the latest version of the instrument firmware. Please observe the instruction for the Instruction Firmware update. Please note: For the Firmware upgrade the current IRSoft is essential.
PC Software testo IRSoft (for all testo thermal imagers) (v5.0, text/x-html, 1 KB)
Instruction Manual IRSoft (for all testo thermal imagers) (application/pdf, 1.625 KB)
LabView Interface (testo 885, 890) (v1.0, ZIP, 10.239 KB)
Instruction Firmware Update (testo 865, testo 868, testo 871, testo 872, testo 885, testo 890, testo 883) (PDF, 206.2 kB)
