- testo 557s Smart Vacuum Kit with filling hoses
testo 557s Smart Vacuum Kit with filling hoses - Smart digital manifold with wireless vacuum and clamp temperature probes and hose filling set with 4 hoses
0564 5572
testo 557s Smart Vacuum Kit with filling hoses - Smart digital manifold with wireless vacuum and clamp temperature probes and hose filling set with 4 hoses
0564 5572Completely wireless measurements and all results at a glance: thanks to Bluetooth probes and large graphic display
Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth® connection, testo Smart App for documentation and lots more
A3 and A2L compatible and over 90 stored refrigerants

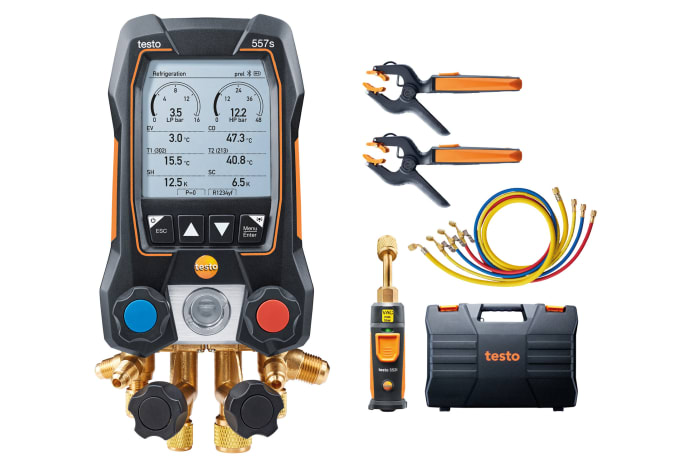

For completely wireless measurements on refrigeration and air conditioning systems and heat pumps. Thanks to the Bluetooth vacuum probe supplied, you can even measure vacuum without any cables or hoses. You will get the testo 557s smart digital manifold with Bluetooth and 4-way valve block, one testo 552i wireless vacuum probe (Bluetooth), two testo 115i wireless clamp thermometers (Bluetooth, NTC), a hose filling set with 4 hoses and a robust transport case. For other wireless measurements, the Testo Smart Probes are ideal.
- testo 557s digital 4-way manifold including batteries (4 x AA) and calibration protocol
- 1 x testo 552i wireless Bluetooth vacuum probe
- 2 x testo 115i wireless Bluetooth clamp thermometers
- Hose filling set with 4 hoses
- Transport case
- testo Smart App (free download)
- Instruction manuals
The testo 557s digital manifold with Bluetooth and a 4-way valve block features a large graphic display, a compact, robust housing, guided measurement menus and the testo Smart App. Top-quality measurement technology, a high degree of reliability and smart functions for quick, easy measurements and documentation make the testo 557s manifold a reliable partner for your commissioning, servicing and maintenance of refrigeration and air conditioning systems and heat pumps.
testo 552i - App-controlled wireless vacuum probe
testo 115i - Clamp thermometer operated via smartphone
testo Smart App with the full range of functions - available as a free download
Temperature
| Measuring range | -50 to +150 °C |
|---|---|
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
| Probe connection | 2 x Plug-in (NTC) |
Pressure measurement
| Measuring range | -1 to 60 bar |
|---|---|
| Accuracy | ±0.5 % fs |
| Resolution | 0.01 bar |
| Probe connection | 3 x 7/16" – UNF + 1 x 5/8'' – UNF |
| Overload rel. (high pressure) | 65 bar |
General technical data
| Weight | 1243 g |
|---|---|
| Dimensions | 229 x 112.5 x 71 mm (LxWxH) |
| Operating temperature | -20 to +50 °C |
| Protection class | IP54 |
| Product colour | Black |
| Auto-off | 10 min* |
| Battery life | 250 h with no illumination, no Bluetooth<sup>®</sup>h (without illumination, without Bluetooth®, without vacuum probe); 100 h with illumination and Bluetooth<sup>®</sup> |
| Battery type | 4 x type AA batteries |
| Radio range | 150 m |
| Pressure media | CFC |
| Refrigerants in instrument | R114; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R13; R134a; R22; R23; R290; R32; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R407F; R407H; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422C; R422D; R424A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂) |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Refrigerants update via App | R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22 |
| Refrigerant | A2L / A3 compatibel |
| Storage temperature | -20 to +60 °C |
| * when not connected via Bluetooth | |
Absolute Pressure
| Measuring range | 0 to 26.66 mbar / 0 to 20000 micron |
|---|---|
| Accuracy | ±(1 ±10 micron + 10 % of mv (100 to 1000 micron) |
| Resolution | 100 micron (2000 to 5000 micron) / 1 micron (0 to 1000 micron) / 10 micron (1000 to 2000 micron) / |
| Overload | absolute: 6.0 bar / 87 psi (relative: 5.0 bar / 72 psi) |
General technical data
| Weight | 142 g |
|---|---|
| Dimensions | 150 x 32 x 31 mm (LxWxH) |
| Operating temperature | -10 to +50 °C |
| Protection class | IP54 |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Auto-off | 10 min* |
| Battery type | 3 AAA micro batteries |
| Battery life | 39 h |
| Connection | 7/16“ UNF |
| Interface | Bluetooth® 4.2 |
| Storage temperature | -20 to +50 °C |
| * when not connected via Bluetooth | |
Temperature - NTC
| Measuring range | -40 to +150 °C |
|---|---|
| Accuracy | ±1.3 °C (-20 to +85 °C) |
| Resolution | 0.1 °C |
General technical data
| Weight | 127.4 g |
|---|---|
| Dimensions | 183 x 90 x 30 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | Plastic |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery life | 150 h |
| Battery type | 3 AAA micro batteries |
| Data transfer | Bluetooth® |
| Radio range | 100 m |
| Refrigerant | A2L / A3 compatibel |
| Storage temperature | -20 to +60 °C |
General technical data
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
|---|---|
Humidity probes
Humidity probes
testo 605i - thermohygrometer operated via smartphone
:
0560 2605 02
0560 2605 02
Temperature probes
Temperature probes
testo 115i - Clamp thermometer operated via smartphone
:
0560 2115 02
0560 2115 02
Temperature probes
NTC temperature sensor, Short response time thanks to the exposed sensor
:
0613 1712
0613 1712
Temperature probes
Clamp temperature probe kit (fixed cable, NTC) - for measurements on pipes (Ø 6-35 mm)
:
0613 5507
0613 5507
Temperature probes
Precision NTC temperature sensor
:
0613 5506
0613 5506
Temperature probes
With Velcro: makes it easy to attach the surface probe to pipes with a pipe diameter of up to 75 mm
:
0613 4611
0613 4611
Temperature probes
Pipe wrap probe (NTC) - Measuring range: -50 to +120°C
:
0613 5605
0613 5605
Temperature probes
NTC temperature sensor
:
0613 1912
0613 1912
Temperature probes
testo 915i with flexible temperature probe (TC type K) and smartphone operation
:
0563 4915
0563 4915
Sets
Sets
testo 557s Smart Vacuum Kit – Smart digital manifold with wireless vacuum and temperature probes
:
0564 5571
0564 5571
Sets
testo 557s Smart Vacuum Kit with filling hoses – Smart digital manifold with wireless vacuum and temperature probes and hose filling set with 4 hoses
:
0564 5572
0564 5572
Sets
testo Smart Probes heating kit operated via smartphone
:
0563 0004 10
0563 0004 10
Sets
testo Smart Probes AC and refrigeration test kit operated via smartphone
:
0563 0002 10
0563 0002 10
Sets
testo Smart Probes AC and refrigeration test kit plus, operated via smartphone
:
0563 0002 41
0563 0002 41
Sets
testo Smart Probes HVAC/R Ultimate kit operated via smartphone
:
0563 0002 32
0563 0002 32
Accessories
Accessories
testo 560i - Digital refrigerant scale with Bluetooth
:
0564 1560
0564 1560
Accessories
testo Smart App with the full range of functions - available as a free download
:
0501 5001
0501 5001
Accessories
Free download: testo DataControl PC software
:
0501 4000
0501 4000
Accessories
Magnetic strap – for digital manifolds
:
0564 1001
0564 1001
Accessories
Valve replacement kit for two valve positioners
:
0554 5570
0554 5570
Accessories
testo 565i Smart Vacuum Pump
:
0564 5652 02
0564 5652 02
Accessories
testo 565i Smart Vacuum Pump
:
0564 5653 02
0564 5653 02
Accessories
Valve core remover
:
0554 3111
0554 3111
Accessories
Shut-off valve 1/4" - 5/16" SAE
:
0554 3112
0554 3112
Accessories
Charging hose adapter 1/4" - 5/16" SAE
:
0554 3113
0554 3113
Accessories
Charging hose adapter 5/16" - 1/4" SAE
:
0554 3114
0554 3114
Accessories
testo 560i kit - Digital refrigerant scale and intelligent valve for automatic charging of refrigeration systems and heat pumps
:
0564 2560
0564 2560
Accessories
Practical storage case for Smart Probes testo 115i (2x) and testo 549i (2x) (available separately)
:
0516 0240
0516 0240
Accessories
Practical storage case for Smart Probes testo 115i, testo 510i, testo 805i, testo 410i and testo 549i (available separately)
:
0516 0270
0516 0270
Accessories
testo HVAC softcase storage case: for testo Smart Probes measuring instruments
:
0516 0283
0516 0283
Certificates
Certificates
ISO temperature calibration certificate for surface probes; with 1 measuring point: +60 °C
:
0520 0072
0520 0072
Refrigeration systems, air conditioning systems, heat pumps
- Determination of high and low pressure, automatic determination of condensation and evaporation temperature and calculation of superheating/subcooling. All results can be read simultaneously on one screen
- Tightness test: Recording and analysis of the pressure curve
- Automatic calculation of the target superheat (in conjunction with the appropriate measuring instrument, e.g. Testo Smart Probe)
- Measure vacuum: Graphic progression display of the measurement with indication of the start and differential value
- Evacuation: Graphic progression display of the measurement with indication of the start and differential value (in conjunction with the appropriate Testo Smart Probe, e.g. testo 552i vacuum probe)
