testo 570s Smart Vacuum Kit

testo 570s Smart Vacuum Kit - Smart digital manifold with wireless vacuum and clamp temperature probes

0564 5702

testo 570s Smart Vacuum Kit - Smart digital manifold with wireless vacuum and clamp temperature probes

0564 5702

Long-term measurement with intelligent error analysis in the testo Smart App

World's longest battery life of up to 360 hours with rechargeable battery (USB-C) and batteries

Suitable for use with A3 and A2L refrigerants

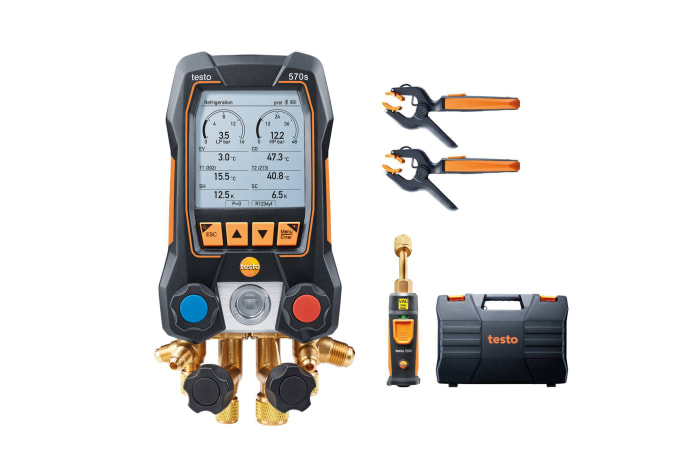

In the kit: testo 570s digital manifold, 2x testo 115i wireless clamp temperature probes, 1x testo 552i wireless vacuum probe and case

Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away. The practical kit containing the testo 570s digital manifold with Bluetooth and 4-way valve block together with the wireless temperature and vacuum probes is ideal for long-term and standard measurements. The intelligent error analysis in the testo Smart App ensures reliable diagnostics following a long-term measurement, eliminating the need for lengthy searches. And with the world's longest battery life of 360 hours, testo 570s is ideal for long-term measurements, but also for all kinds of short-term applications over the course of a working week. In addition, with a measuring accuracy of 0.25% fs, the manifolds offer maximum precision even at low pressure values.

testo 570s digital 4-way manifold with lithium-ion rechargeable battery
2x testo 115i wireless clamp thermometers
1x testo 552i wireless vacuum probe
Transport case
testo Smart App (free download)
Instruction manuals

40 refrigerants are stored in the instrument

: 0564 5701

testo 115i - Clamp thermometer operated via smartphone

: 0560 2115 02

testo 552i - App-controlled wireless vacuum probe

: 0564 2552

Transport case

: 0516 0012

40 refrigerants are stored in the instrument

0564 5701

Temperature

Measuring range	-50 to +150 °C
Accuracy	±0.5 °C
Resolution	0.1 °C
Probe connection	2 x Plug-in (NTC)

Pressure measurement

Measuring range	-1 to 60 bar
Accuracy	±0.25 % fs
Resolution	0.01 bar
Probe connection	3 x 7/16" – UNF + 1 x 5/8'' – UNF
Overload rel. (low pressure)	65 bar
Overload rel. (high pressure)	65 bar

General technical data

Weight	1.3 kg
Dimensions	229 x 112.5 x 71 mm
Operating temperature	-20 to +50 °C
Protection class	IP54
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Auto-off instrument	10 min
Battery life	With built-in rechargeable battery:; ≥220 h without Bluetooth®, without illumination; ≥120 h with Bluetooth® and illumination; With 3 AA batteries:; ≥145 h without Bluetooth®, without illumination; ≥75 h with Bluetooth® and illumination
Battery type	Built-in rechargeable battery: LI batttery 18650; Replaceable battery: 3 alkaline batteries AA
Radio range	150 m
Storage temperature	-20 to +60 °C

testo 115i - Clamp thermometer operated via smartphone

0560 2115 02

Temperature - NTC

Measuring range	-40 to +150 °C
Accuracy	±1.3 °C (-20 to +85 °C)
Resolution	0.1 °C

General technical data

Weight	127.4 g
Dimensions	183 x 90 x 30 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery life	150 h
Battery type	3 AAA micro batteries
Data transfer	Bluetooth®
Radio range	100 m
Refrigerant	A2L / A3 compatibel
Storage temperature	-20 to +60 °C

testo 552i - App-controlled wireless vacuum probe

0564 2552

Absolute Pressure

Measuring range	0 to 26.66 mbar / 0 to 20000 micron
Accuracy	±(1 ±10 micron + 10 % of mv (100 to 1000 micron)
Resolution	100 micron (2000 to 5000 micron) / 1 micron (0 to 1000 micron) / 10 micron (1000 to 2000 micron) /
Overload	absolute: 6.0 bar / 87 psi (relative: 5.0 bar / 72 psi)

General technical data

Weight	142 g
Dimensions	150 x 32 x 31 mm (LxWxH)
Operating temperature	-10 to +50 °C
Protection class	IP54
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour	black/orange
Auto-off	10 min*
Battery type	3 AAA micro batteries
Battery life	39 h
Connection	7/16“ UNF
Interface	Bluetooth® 4.2
Storage temperature	-20 to +50 °C
* when not connected via Bluetooth
