testo 570s Smart Vacuum Kit with clamp meter

testo 570s Smart Vacuum Kit with clamp meter - Smart digital manifold with wireless vacuum and clamp temperature probes plus clamp meter

0564 5704

testo 570s Smart Vacuum Kit with clamp meter - Smart digital manifold with wireless vacuum and clamp temperature probes plus clamp meter

0564 5704

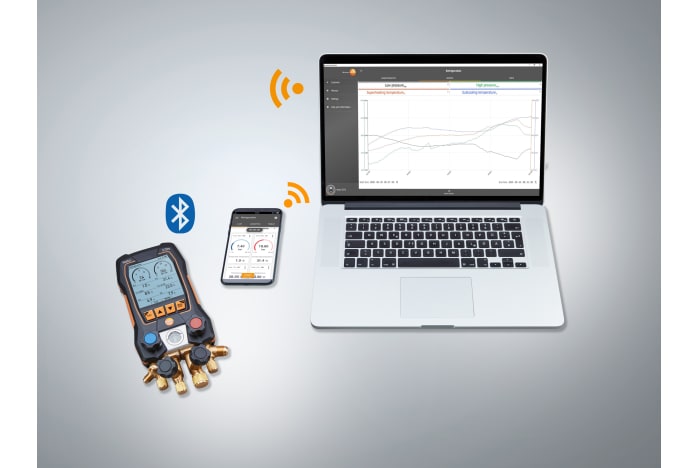

Long-term measurement with intelligent error analysis in the testo Smart App

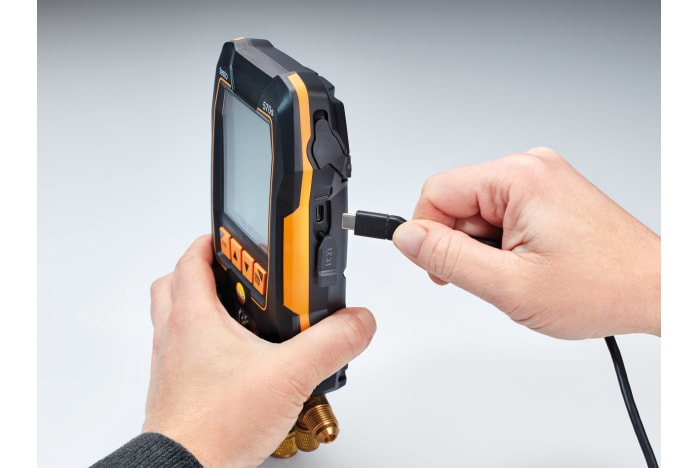

World's longest battery life of up to 360 hours with rechargeable battery (USB-C) and batteries

Suitable for use with A3 and A2L refrigerants

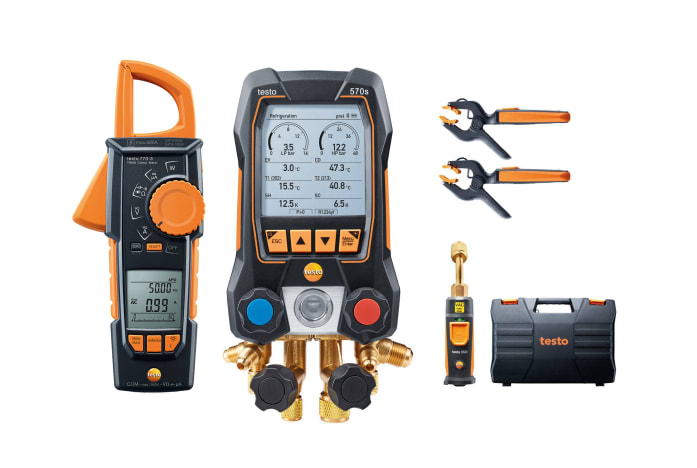

In the kit: testo 570s digital manifold, 2x testo 115i wireless clamp temperature probes, 1x testo 552i wireless vacuum probe, 1x testo 770-3 TRMS clamp meter and case

Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away. The practical kit containing the testo 570s digital manifold with Bluetooth and 4-way valve block together with the wireless temperature and vacuum probes plus clamp meter is ideal for long-term and standard measurements. The intelligent error analysis in the testo Smart App ensures reliable diagnostics following a long-term measurement, eliminating the need for lengthy searches. And with the world's longest battery life of 360 hours, testo 570s is ideal for long-term measurements, but also for all kinds of short-term applications over the course of a working week. In addition, with a measuring accuracy of 0.25% fs, the manifolds offer maximum precision even at low pressure values.

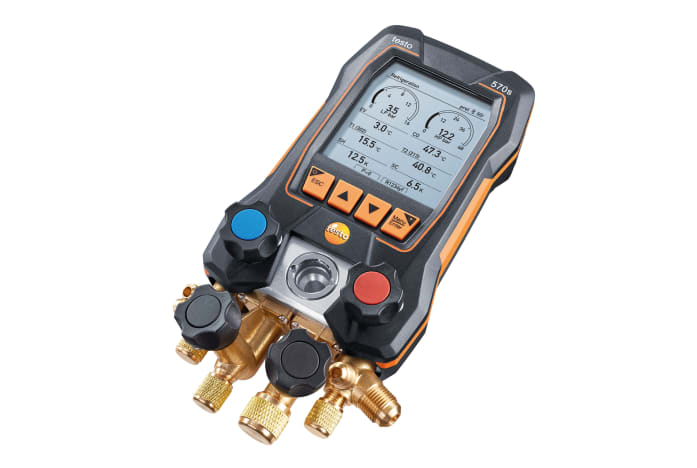

testo 570s digital 4-way manifold with lithium-ion rechargeable battery
2x testo 115i wireless clamp thermometers
1x testo 552i wireless vacuum probe
1x testo 770-3 TRMS clamp meter
Transport case
testo Smart App (free download)
Instruction manuals

40 refrigerants are stored in the instrument

: 0564 5701

testo 115i - Clamp thermometer operated via smartphone

: 0560 2115 02

testo 552i - App-controlled wireless vacuum probe

: 0564 2552

testo 770-3 - clamp meter with Bluetooth

: 0590 7703 02

Transport case

: 0516 0012

40 refrigerants are stored in the instrument

0564 5701

Temperature

Measuring range	-50 to +150 °C
Accuracy	±0.5 °C
Resolution	0.1 °C

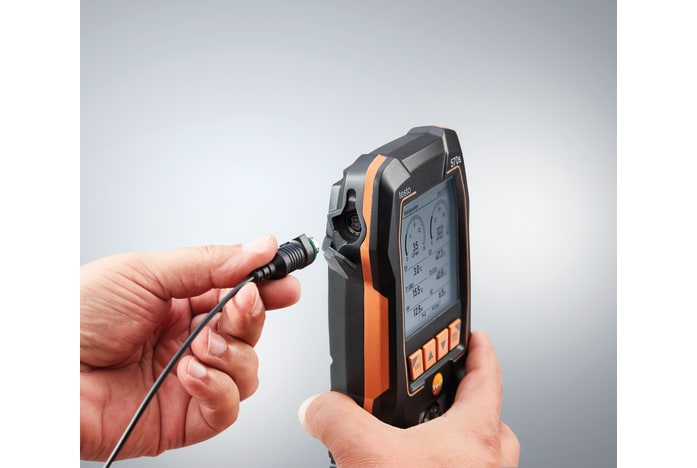

Probe connection	2 x Plug-in (NTC)

Pressure measurement

Measuring range	-1 to 60 bar
Accuracy	±0.25 % fs
Resolution	0.01 bar
Probe connection	3 x 7/16" – UNF + 1 x 5/8'' – UNF
Overload rel. (low pressure)	65 bar
Overload rel. (high pressure)	65 bar

General technical data

Weight	1.3 kg
Dimensions	229 x 112.5 x 71 mm
Operating temperature	-20 to +50 °C
Protection class	IP54
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Auto-off instrument	10 min
Battery life	With built-in rechargeable battery:; ≥220 h without Bluetooth®, without illumination; ≥120 h with Bluetooth® and illumination; With 3 AA batteries:; ≥145 h without Bluetooth®, without illumination; ≥75 h with Bluetooth® and illumination

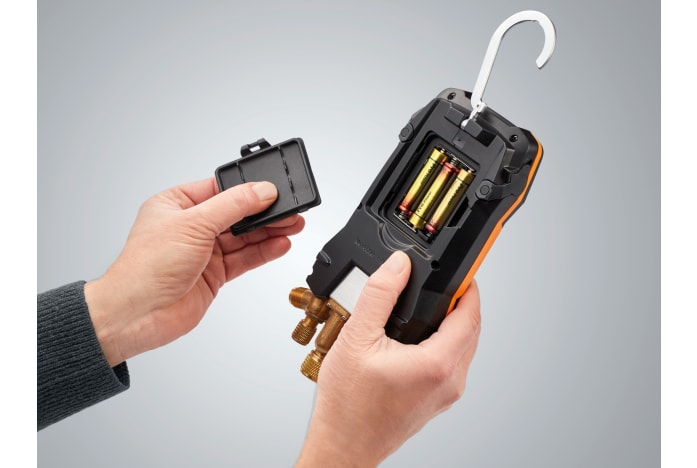

Battery type	Built-in rechargeable battery: LI batttery 18650; Replaceable battery: 3 alkaline batteries AA
Radio range	150 m
Storage temperature	-20 to +60 °C

testo 115i - Clamp thermometer operated via smartphone

0560 2115 02

Temperature - NTC

Measuring range	-40 to +150 °C
Accuracy	±1.3 °C (-20 to +85 °C)
Resolution	0.1 °C

General technical data

Weight	127.4 g
Dimensions	183 x 90 x 30 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery life	150 h
Battery type	3 AAA micro batteries
Data transfer	Bluetooth®
Radio range	100 m
Refrigerant	A2L / A3 compatibel
Storage temperature	-20 to +60 °C

testo 552i - App-controlled wireless vacuum probe

0564 2552

Absolute Pressure

Measuring range	0 to 26.66 mbar / 0 to 20000 micron
Accuracy	±(1 ±10 micron + 10 % of mv (100 to 1000 micron)
Resolution	100 micron (2000 to 5000 micron) / 1 micron (0 to 1000 micron) / 10 micron (1000 to 2000 micron) /
Overload	absolute: 6.0 bar / 87 psi (relative: 5.0 bar / 72 psi)

General technical data

Weight	142 g
Dimensions	150 x 32 x 31 mm (LxWxH)
Operating temperature	-10 to +50 °C
Protection class	IP54
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
Product colour	black/orange
Auto-off	10 min*
Battery type	3 AAA micro batteries
Battery life	39 h
Connection	7/16“ UNF
Interface	Bluetooth® 4.2
Storage temperature	-20 to +50 °C
* when not connected via Bluetooth

testo 770-3 - clamp meter with Bluetooth

0590 7703 02

Temperature - TC Type K (NiCr-Ni)

Measuring range	-20 to +500 °C
Accuracy	±1 °C (0 to +100 °C)
Resolution	0.2 °C

DC voltage

Measuring range	1.0 to 1000.0 V
Resolution	max. 1 mV
Accuracy	± (0.8 % of mv + 3 Digit)

AC voltage

Measuring range	1.0 mV to 1000.0 V
Resolution	max. 1 mV
Accuracy	± (1 % of mv + 3 Digit)

DC current

Measuring range	0.01 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables)
Resolution	0.1 (clamp) 0.1 (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (measuring cables) ± (2 % of mv + 5 Digit) (clamp)

AC current

Measuring range	0.01 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables)
Resolution	0.01 A (clamp) 0.1 μA (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 Digit) (measuring cables)

Resistance

Resolution	max. 0.01 Ohm
Measuring range	0.10 to 60.0 MOhm
Accuracy	± (1.5 % of mv + 3 Digit)

Capacitance

Resolution	max. 0.01 nF
Measuring range	0.001 μF to 60000.00 μF
Accuracy	± (1.5 % of mv + 5 Digit)

Frequency

Resolution	max. 0.1 Hz
Measuring range	0.00 Hz to -10 kHz
Accuracy	± (1 % of mv + 1 Digit)

Active Power

Measuring range	0.1 W to 600 kW
Accuracy	± (5 % of mv + 5 Digit)
Resolution	0.1 W

Reactive Power

Measuring range	0.1 to 600.0 kvar
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0.1 var

Apparent Power

Measuring range	0.1 VA to 600.0 kVA
Accuracy	± 1 Digit
Resolution	0.1 VA

Direct current DC Voltage

Measuring range	0.1 W to 600.0 kW
Accuracy	± 1 Digit
Resolution	max. 0.1 W

Power Factor

Measuring range	-1.00 to +1.00
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0.01

General technical data

Operating humidity	0 to 80.0 %RH
Weight	378 g
Dimensions	249 x 96 x 43 mm
Operating temperature	-10 to +50 °C
Connectable probes	1 x temperature probe (adapter required for type K thermocouples)
Product colour	Black
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Standards	EN 61326-1; EN 61010-2-032; EN 61140
Battery type	3 AAA micro batteries
Display size	2 lines
Display type	LCD (Liquid Crystal Display)
Interface	2 measuring jacks
Storage temperature	-15 to +60 °C
Overvoltage Category	CAT IV 600V; CAT III 1000V
Authorizations	CSA; CE
Internal_resistance	11 MOhm (AC / DC)

Instrument Measurement Functions

Diode test	yes
Continuity testing	yes
Display ligthing	yes
Hold	yes
MinMax	yes
Power Measurement	yes
Temperature measurement with adapter	yes
True RMS	yes
Inrush current measurement	yes
Bluetooth	yes
Display (counts)	6,000
Autom. measurement parameter detection	yes
μA current measuring range	yes
